Samsung Digimax V5000 User Manual

Samsung camera user's manual
Hide thumbs
Table of Contents

Advertisement

Quick Links

ENGLISH

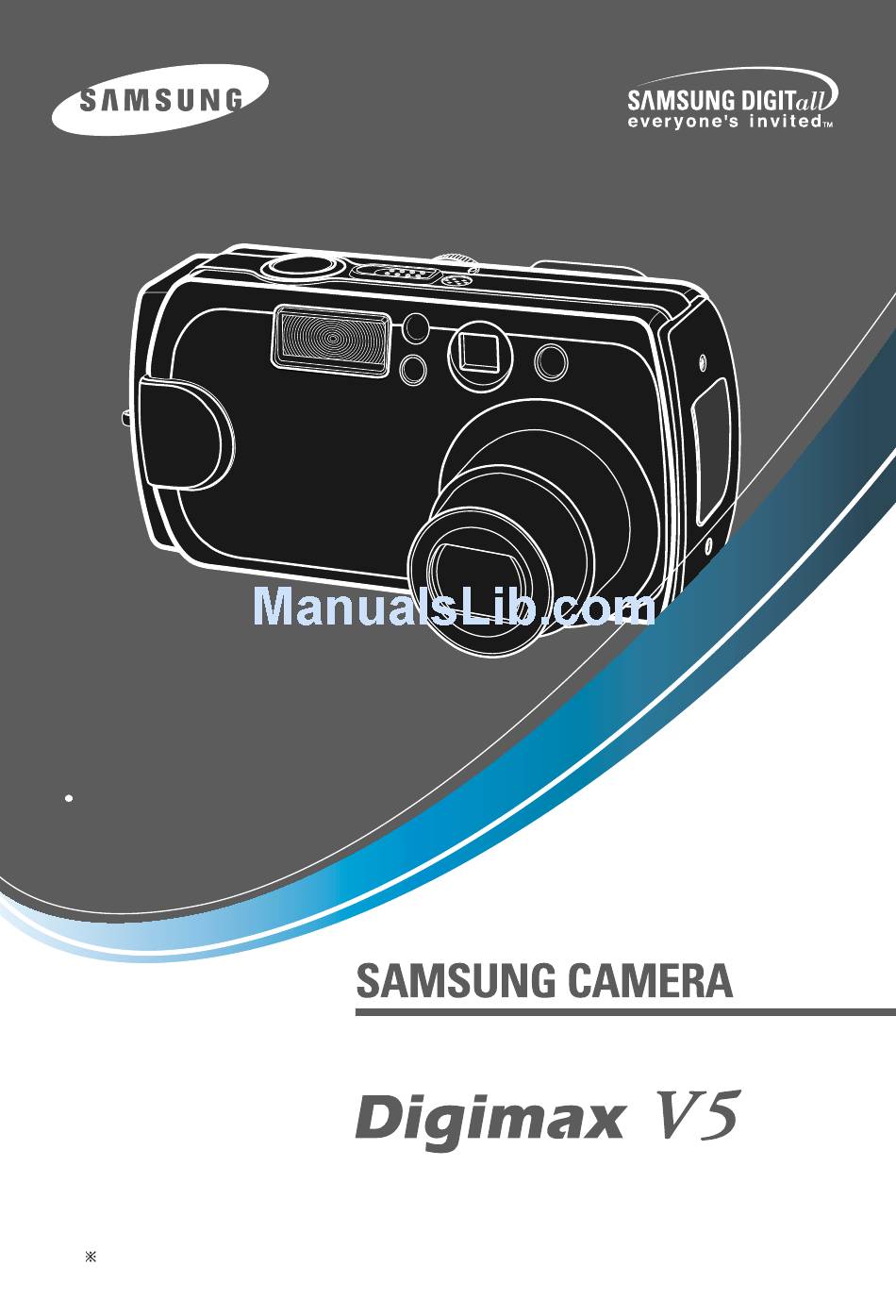

Digimax V5000
User's Manual
Thank you for buying a Samsung Camera.
This manual will guide you through using the camera, including capturing images, downloading images and
using the application software. Please read this manual carefully before using your new camera.
Figures (Images) used for the manual are based on model Digimax V5.

Advertisement

Table of Contents
loading

Related Manuals for Samsung Digimax V5000

Summary of Contents for Samsung Digimax V5000

  • Page 1 Digimax V5000 User's Manual Thank you for buying a Samsung Camera. This manual will guide you through using the camera, including capturing images, downloading images and using the application software. Please read this manual carefully before using your new camera.
  • Page 2 Instructions Use this camera in the following order Set up the camera driver Take a picture Insert the USB cable Check the camera’s power Check [Removable Disk] If you use a card reader to copy the images on the memory card to your PC, the images could be damaged.

  • Page 3: Table Of Contents

    READY Getting to know your camera About the icons Danger Warning Caution An FCC warning This digital camera can be used for Manufacturer's contents Identification of features Front & Top Back & Bottom Side/ 5-function button Mode dial Connecting to a Power Source Using the AC power adapter (5V 2.0A)
  • Page 4 Contents Using the camera buttons to adjust the camera Thumbnail/ Enlargement button Voice memo / Up button Play & Pause button DOWN/ LEFT/ RIGHT/ MENU/ OK button LCD button Delete button Setting up the play back function using the LCD monitor Starting the slide show Protecting images Deleting images...

  • Page 5: Getting To Know Your Camera

    Please check that the camera is operating properly prior to when you intend to use it (e.g. for a trip or an important event) to avoid disappointment. Samsung camera takes no responsibility for any loss or damages that may result from camera malfunction.

  • Page 6: Danger

    Internal inspection, maintenance and repairs should be carried out by your dealer or Samsung Camera Service Center. Please do not use this product in close proximity to flammable or explosive gases, as this could increase the risk of explosion.

  • Page 7: Caution

    Increase distance between the camera and the affected device. Use a different socket away from the affected device. Please contact a Samsung agent or a radio/TV engineer. This device complies with part 15 of the FCC Rules. Changes or modifications not expressly approved by the party responsible for...

  • Page 8: This Digital Camera Can Be Used For

    This digital camera can be used for Printing images using a dedicated printer, DPOF and PictBridge compatible printer or a DPOF-equipped photo lab. (refer to page 70~77) Down loading image files from camera to computer. (refer to page 106) Viewing images on a TV.
  • Page 9 This digital camera can be used for Creation of a digital photo album. Recording your voice. (refer to page 23) You can even create your own unique gift wrap paper by using your digital images. Taking a favourite image and creating your own personalized calendar with it.

  • Page 10: Manufacturer's Contents

    Manufacturer's contents Please check that you have the correct contents before using this product. marked contents are optional. Digital Camera Pouch AV cable USB cable Camera strap User manual Product warranty Software CD AC adapter Remote control SD memory card...

  • Page 11: Identification Of Features

    Identification of features Front & Top Shutter button Flash light amount sensor Flash Strap eyelet Remote control sensor Back & Bottom Flash indicator lamp(Red) Autofocus indicator lamp(Green) Viewfinder +&-/PLAY & PAUSE button MF / DELETE button LCD button LCD monitor * When using the digital zoom to take a picture, the composition of the picture may be different depending on whether you are using the LCD monitor or the viewfinder.

  • Page 12: Side/ 5-Function Button

    Mode dial You can select the desired working mode by using the mode dial located on the back of the camera. This digital camera has 8 recording modes. These are listed below. AUTO mode PROGRAM mode Voice memo/ UP button...
  • Page 13 Identification of features A/S/M mode MySET mode VOICE RECORDING mode MOVIE CLIP mode NIGHT SCENE mode SCENE mode Aperture priority / Shutter priority / Manual mode The Aperture and Shutter can be set manually in the A/ S/ M mode. This mode allows users to save frequently used shooting settings for later use.
  • Page 14 Identification of features Self-timer lamp (Based on 10-second Self-timer; see p. 35) Color Status Blinking Auto focus indicator lamp Color Status Blinking Green Flash indicator lamp Color Status Blinking Mode dial lamp Color Status Green Mode icons MODE AUTO PROGRAM Icon MODE PORTRAIT...

  • Page 15: Connecting To A Power Source

    There are two ways in which to provide the camera with power. You can use batteries or alternatively, you can use an AC(100 ~ 250V) Adapter (DC 5V 2.0A). We recommend using Ni-MH batteries for a digital camera.(Over 1600mAh, and within a year from the date of manufacture) The batteries are listed below.

  • Page 16: Using The Batteries

    Connecting to a Power Source DANGER Always turn off the power before taking the AC adapter out of the mains supply. As with all mains powered devices, safety is important. Ensure that neither the camera nor adapter comes into contact with water or metallic materials. Please ensure that you use an AC adapter (5V 2.0A) with the correct specification for the camera.

  • Page 17: Instructions On How To Use The

    Repeated use of the memory card will eventually reduce the memory card’s performance. Should this be the case, you will need to purchase a new memory card. Wear and tear on the memory card is not covered by the Samsung warranty. The memory card is an electronic precision device.
  • Page 18 Instructions on how to use the memory card INFORMATION If you open the battery chamber cover when the camera power is turned on, the power will turn off automatically. Don’t remove the memory card when the Auto focus lamp(Green) is blinking as this may cause damage to data in the memory card.

  • Page 19: Inserting The Memory Card

    Inserting the memory card 1. Slide the power switch to turn the power off. Open the battery chamber cover while pushing it in the direction of the arrow. 2. Have the front of the memory card facing toward the front of the camera (lens) and the card pins toward the back of the camera (LCD monitor), and then push the memory card into the card slot until you hear a click.

  • Page 20: Lcd Monitor Indicator

    LCD monitor indicator The LCD monitor displays information about the shooting functions and selections. Description Battery Recording mode Camera shake warning Flash Self-timer Voice memo Macro Metering Manual focus Sharpness Auto focus frame Date/ Time Exposure compensation [ Image & Full Status ] Icons 2004/03/01 01:00 PM Page...

  • Page 21: Starting The Recording Mode

    LCD monitor indicator White Balance Image quality Image size/ Continuous shot Number of available shots remaining Remaining time (Movie clip/ Voice recording) Optical/ Digital Zoom rate Starting the recording mode How to use the AUTO mode ( 1. Insert the batteries.(p.16) Insert the batteries taking note of the polarity (+ / -).

  • Page 22: Starting The Recording Mode

    Starting the recording mode How to use the PROGRAM mode ( Selecting the automatic mode will configure the camera with optimal settings. You can still manually configure all functions except the iris and shutter speed. Steps from 1-4 are the same as those for AUTO mode. 5.
  • Page 23 Starting the recording mode How to use the MySET mode ( This mode allows users to save frequently used shooting settings for later use. Steps from 1-4 are the same as those for AUTO mode. 5. Select the MySET mode by rotating the mode dial. 6.
  • Page 24 Starting the recording mode How to use the MOVIE CLIP mode ( Steps from 1-4 are the same as those for AUTO mode. 5. Select the MOVIE CLIP mode by rotating the mode dial. 6. The MOVIE CLIP mode icon and available recording time will display on the LCD monitor.
  • Page 25 Starting the recording mode How to use the SCENE mode ( Use the menu to easily configure optimal settings for a variety of shooting situations including portrait, children, landscape, close-up, sunset, dawn, backlight, fireworks, beach scenes and snowscape. Steps from 1-4 are the same as those for AUTO mode. 5.

  • Page 26: Things To Watch Out For When Taking Pictures

    Things to Watch Out for When Taking Pictures Pressing the shutter button down half way Lightly press the shutter button to confirm focus and flash battery charge. (See page 14) Press the shutter button all way down to take the picture. [ Lightly press the shutter button ] The available recording time may vary depending on shooting conditions and camera settings.

  • Page 27: Using The Camera Buttons To Adjust The Camera

    Using the camera buttons to adjust the camera The RECORDING(AUTO, PROGRAM, A/S/M, MySET, VOICE RECORDING, MOVIE CLIP, NIGHT SCENE , SCENE) mode function can be set up by using the camera buttons. POWER switch Used for turning the camera’s power on / off. Slide the power switch to turn the power on If there is no operation during the specified time, the camera’s power will be turned off automatically to save...

  • Page 28: Tele Zoom

    ZOOM W/T button This camera has a 3X optical zoom and a 4X digital zoom function. Using both will offer a total zoom ratio of 12X. TELE Zoom Optical zoom TELE : Pressing the ZOOM T button. This will zoom into the subject i.e. the subject will appear nearer.

  • Page 29: Voice Memo/ Up Button

    ZOOM W/T button INFORMATION To use the digital zoom the LCD monitor has to be turned on. Images taken using the digital zoom may take a little longer for the camera to process. Allow time for this to take place. Digital Zoom will not work in Night Scene mode.

  • Page 30: Macro / Super Macro Button

    Voice memo( 3. Press the shutter button and take a picture. The picture is stored on the memory card. 4. Voice memo will be recorded for ten seconds from the moment the picture is stored. In the middle of the sound recording, pressing the shutter button will stop the voice memo. INFORMATION A distance of 40cm between you and the camera (microphone) is the best distance to record sound.
  • Page 31 MACRO ( ) / SUPER MACRO ( ) button Types of focus modes and focus ranges (W: WIDE, T: TELE) Types of focus modes Normal Range 0.8 ~ INFORMATION When the macro or super macro mode is selected, It is possible that camera shake will occur.

  • Page 32: Focus Lock

    Focus lock To focus on the subject positioned outside of the center, use the focus lock function. Using the Focus Lock 1. Ensure the subject in the center of the autofocus frame. 2. Press the SHUTTER button halfway. When the green auto lights up, it means the camera is focused on the subject.

  • Page 33: Flash/ Left Button

    FLASH( ) / LEFT button When the menu is displayed on the LCD monitor, pressing the LEFT( ) button makes the cursor shift to the left tab. When the menu is not displayed on the LCD monitor, the LEFT button operates as the FLASH ( Selecting the flash mode 1.
  • Page 34 FLASH( ) / LEFT button Flash mode indicator ICON Flash mode Auto flash Auto & Red eye reduction Fill in flash Slow synchro Flash off Available flash mode, by recording mode Description If the subject or background is dark, the camera flash will operate automatically.

  • Page 35: Self-Timer / Remote Button

    SELF-TIMER / REMOTE button When the menu is displayed on the LCD monitor, pressing the RIGHT button makes the cursor shift to the sub menu. When the menu is not displayed on the LCD monitor, the RIGHT button operates as the SELFTIMER ( ) / REMOTE ( would also like to be in the image.
  • Page 36 SELF-TIMER / REMOTE button Self-timer/ remote mode setting Mode dial Setting ( AUTO PROGRAM A/S/M, MySET MOVIE CLIP NIGHT SCENE, SCENE VOICE RECORDING INFORMATION When taking a picture using the self-timer, the self-timer lamp works as follows: 2 second self-timer setting : The self-timer lamp blinks at 0.25 second interval for 2 10 second self-timer setting : The self-timer lamp blinks at 1 second interval for the If you operate the Mode dial and Self-timer button during the self-timer operation, the self- timer function is cancelled.

  • Page 37: Menu/ Ok Button

    Changing the remote controller battery Check the polarity while installing the remote controller batteries. The + polarity must be upward. Contact your dealer or Samsung camera service center for supplier details. The battery type is CR 2025 3V. MENU/ OK button...

  • Page 38: Mf Button

    MF button In dark conditions, the autofocus may not function. If this occurs, press the MF button and you can select manual focus. Carefully set the focus, using the MF button for focusing. If the focus is not accurate, the picture may be blurred.
  • Page 39 MF button INFORMATION The manual focus function is disabled in the AUTO and VOICE RECORDING mode. The MF bar is divided into 3 parts according to the photography range. Part of the MF bar 1st part 2nd part 3rd part (only in wide zoom mode) When the subject distance is between 0.06m ~ 0.3m, the flash mode is changed to FLASH OFF automatically.
  • Page 40 MF button S mode(Shutter priority mode) 1. Press the MF button and wait for the shutter speed value in the LCD to go red. 2. Use the Left/Right buttons to set the desired shutter speed value. 3. Press the MF or Menu/OK button to save the selected values.

  • Page 41: Button

    MF button If the aperture value or shutter speed is out of the limit of application, the value that is displayed on the LCD monitor will show as red. However, you will still be able to take a picture. Please adjust the shutter speed and aperture value so that the red warning turns white (normal) before taking the picture.
  • Page 42 +/- button ISO: You can select the ISO sensitivity when taking pictures. The speed or specific light-sensitivity of a camera is rated by ISO numbers. Selecting an ISO Sensitivity 1. Press the +/- button, and the use the UP and DOWN buttons to select the ISO icon( will appear as shown.
  • Page 43 +/- button Using the Custom White Balance White balance settings may vary slightly depending on the shooting environment. You can select the most appropriate white balance setting for a given shooting environment by setting up the custom white balance. 1. Select the CUSTOM ( Balance.
  • Page 44 +/- button Long Time shutter : This camera automatically adjusts the shutter speed and aperture values to the shooting environment. However, in NIGHT SCENE mode, you can set the shutter speed and aperture values to your preference. Adjusting the shutter speed and aperture values 1.

  • Page 45: Lcd Button

    LCD button You can check the recording status in the LCD monitor. Toggle the LCD button in shooting mode (except in voice recording mode) to display the next LCD information displayed. Pressing the Pressing the LCD button LCD button [ Image & full information ] [ Image &...

  • Page 46: Using The Lcd Monitor To Adjust The

    Using the LCD monitor to adjust the camera settings You can use the menu on the LCD monitor to set up recording functions. In any mode with the exception of VOICE RECORDING mode, pressing the MENU button displays the menu on the LCD monitor.
  • Page 47 Using the LCD monitor to adjust the camera settings Menu tab Main menu SHOOTING EFFECT SHARPNESS SCENE * Menus are subject to change without prior notice. Sub menu Camera working mode SINGLE 2 SHOTS 4 SHOTS 8 SHOTS NORMAL B & W SEPIA SOFT NORMAL...

  • Page 48: How To Use The Menu

    How to use the menu 1. Turn on the camera and press the MENU button. A menu for each camera mode appears. However, there is no menu for Voice Recording mode ( 2. Use the LEFT and RIGHT buttons to navigate through the menus. Press the LEFT SIZE or RIGHT button.

  • Page 49: Quality

    Quality You can select the compression ratio appropriate for your application of the captured images. The higher the compression ratio, the lower the picture quality. Mode Icon TIFF Sub menu TIFF File Format tiff 2048 2560 QUALITY TIFF S.FINE FINE NORMAL [ PROGRAM mode ] INFORMATION...

  • Page 50: Metering

    Metering If you cannot obtain suitable exposure conditions, you can change the metering method to take brighter pictures. MULTI( : Exposure will be calculated based on an average of the available light in the image area. However, the calculation will be biased towards the centre of the image area.

  • Page 51: Effect

    Continuous shot Available maximum number of continuous shots, by image size/ quality type quality size 2560X1920 2272X1704 2048X1536 1600X1200 1024X768 640X480 * High resolution and picture quality increases file saving time, which increases stand-by time. * Select [2, 4, 8 SHOTS] menu to inactivate the flash. * Changing the image size after continuous shooting will clear the continuous shooting you set.

  • Page 52: Sharpness

    Sharpness You can adjust the sharpness of the picture you want to take. You cannot check the sharpness effect on the LCD monitor before you take a picture, because this function is applied only when the captured image is stored on the memory.

  • Page 53: Scene

    Scene Select the [SCENE] submenu to automatically configure optimal settings, depending on the selected scene. Only available in the Scene Mode. Sub menu Icon PORTRAIT CHILDREN LANDSCAPE CLOSE-UP SUNSET DAWN BACKLIGHT FIREWORKS BEACH & SNOW INFORMATION When close-up, sunset, dawn, fireworks scene mode are selected, it is possible that camera shake will occur.

  • Page 54: Starting Play Mode

    Starting play mode Turn the camera on and select Play mode by pressing the play mode button ( The camera can now play back the images stored in the memory. Slide the power switch to turn the camera power on. Press the play mode button once to switch to play mode.

  • Page 55: Playing Back A Movie Clip

    Starting play mode Playing back a movie clip Steps from 1-2 are the same as those to play back a still image. 3. Select the recorded movie clip that you want to play back by using the LEFT/RIGHT button. If you select a movie clip, the movie clip indicator ( LCD monitor.

  • Page 56: Playing Back A Recorded Voice

    Starting play mode Playing back a recorded voice Steps from 1-2 are the same as those to play back a still image. 3. Select the recorded voice that you want to play back by using the LEFT/RIGHT button. If you select a recorded voice file, the voice indicator ( the LCD monitor.

  • Page 57: Lcd Monitor Indicator

    LCD monitor indicator The LCD monitor displays information about the shooting conditions. Description Battery Play mode File Type Voice memo Protect indicator DPOF indicator Stored image number TIFF file If you press the LCD button, you can check the following recording information: SIZE : 2560X1920 AV : F2.7 TV : 1/30...

  • Page 58: Using The Camera Buttons To Adjust The

    Using the camera buttons to adjust the camera In Play mode, you can use the buttons on the camera to conveniently set up the Play mode functions. Thumbnail ( You can view multiple pictures, enlarge a selected picture, and crop and save a selected area of an image.

  • Page 59: Voice Memo / Up Button

    Thumbnail( The maximum enlargement rate in proportion to the image size. Image size Maximum enlargement rate Trimming : You can extract part of the image that you want and save it separately. 1. Select an image that you want to enlarge and press the enlargement button.

  • Page 60: Play & Pause Button

    Voice ( ) memo / Up button 3. Press the shutter button to start recording and voice will be recorded to the still image for 10 seconds. While the voice is recording, the recording status window will be displayed as shown alongside. 4.

  • Page 61: Down/ Left/ Right/ Menu/ Ok Button

    DOWN/ LEFT/ RIGHT/ MENU/ OK button DOWN/ LEFT/ RIGHT/ MENU/ OK buttons activate the following. - DOWN button : While the menu is showing, press the DOWN button to move from the main menu to a sub menu, or to move down the sub menu cursor. - LEFT button : While the menu is showing, press the LEFT button to select the menu tab to the left of the cursor.

  • Page 62: Delete Button

    Delete ( ) button This deletes images stored on the memory card. Deleting Images in Play Mode 1. Select an image that you want to delete by pressing the LEFT / RIGHT button and press the DELETE ( button. 2. A message will display as shown alongside on the LCD monitor.

  • Page 63: Lcd Monitor

    Setting up the play back function using the LCD monitor PLAY mode functions can be changed by using the LCD monitor. In the PLAY mode, pressing the MENU button displays the menu on the LCD monitor. The menus you can set up in Play mode are as follows.

  • Page 64: Setting Up The Play Back Function Using The Lcd Monitor

    Setting up the play back function using the LCD monitor This menu is available while the camera is connected to a PictBridge supporting printer (direct connection to the camera, sold separately) with a USB cable. Menu tab Main menu IMAGES AUTO SET CUSTOM SET Sub menu...
  • Page 65 Setting up the play back function using the LCD monitor Menu tab Main menu CUSTOM SET PRINT DPOF PRINT RESET Menus are subject to change without prior notice. Sub menu Secondary menu AUTO DRAFT QUALITY NORMAL FINE AUTO DATE AUTO FILE NAME STANDARD INDEX...

  • Page 66: Starting The Slide Show

    Starting the slide show Images can be displayed continuously at pre-set intervals. You can view the slide show by connecting the camera to an external monitor. Configure the interval for the slide show : Configure the length of time to display each picture in the slide show. 1.

  • Page 67: Protecting Images

    Starting the slide show Configure slide show effects: Unique screen effects can be used for the slide show. Steps 1 and 2 are the same as for the [INTERVAL] section. 3. Select the [EFFECT] sub menu by pressing the UP/ DOWN button and press the RIGHT button.

  • Page 68: Deleting Images

    Protecting images - If you protect an image, the protect icon will be displayed on the LCD monitor. (An unprotected image has no indicator) - An image in LOCK mode will be protected from the delete function or [DELETE] functions, but will NOT be protected from the [FORMAT] function.

  • Page 69: Resize

    Resize Change the resolution (size) of pictures taken. Select [LOGO] to save an image to be the start-up image. The resized image will have a new file name. 1. Press the play mode button and press the menu button. 2. Press the LEFT/ RIGHT button and select the [RESIZE] menu tab.

  • Page 70: Rotating An Image

    Rotating an image You can rotate the stored images by 90, 180, or 270 degrees. You can view a picture in its proper orientation if the picture has been taken with the camera oriented vertically or up-side-down. Once the playback of the rotated picture is finished, it will switch back to the original state.

  • Page 71: Dpof : Standard

    DPOF : STANDARD This function allows you to embed print quantity information on a stored image. 1. Press the play mode button and press the menu button. 2. Press the LEFT/ RIGHT button and select the [DPOF] menu tab. 3. Select the [STANDARD] menu by pressing the UP/ DOWN button and press the RIGHT button.

  • Page 72: Dpof : Print Size

    DPOF : PRINT SIZE You can specify the print size when printing images stored on the memory card. The [SIZE] menu is available only for DPOF 1.1 compatible printers. Setting the Print Size 1. Press the play mode button and press the menu button. 2.

  • Page 73: Pictbridge

    PictBridge You can use the USB cable to connect this camera to a printer that supports PictBridge (sold separately) and print the stored images directly. TIFF, Movie clips and voice files cannot be printed. You can set up the following settings from the PictBridge menu. IMAGES PRINTER SETUP PRINT...

  • Page 74: Pictbridge: Picture Selection

    PictBridge: Picture Selection Select pictures to print 1. Connect the camera to your printer. The USB menu must be set to [PRINTER] before you connect the camera to the printer.(See p.86) 2. The [IMAGES] menu will appear. 3. Use the UP and DOWN buttons to select the desired submenu value, and then press the OK button.

  • Page 75: Pictbridge: Print Setting

    PictBridge: Print Setting AUTO SET 1. Connect the camera to your printer. The USB menu must be set to [PRINTER] before you connect the camera to the printer.(See p.86) 2. Use the LEFT and RIGHT buttons to select the [AUTO SET] menu tab.

  • Page 76: Pictbridge: Printing

    PictBridge: Printing Printing Pictures 1. Connect the camera to your printer. The USB menu must be set to [PRINTER] before you connect the camera to the printer.(See p.86) 2. Use the LEFT and RIGHT buttons to select the [PRINT] menu tab. 3.

  • Page 77: Pictbridge : Reset

    PictBridge : RESET Initializes user-changed configurations. 1. Connect the camera to your printer. The [USB] menu must be set to [PRINTER] before you connect the camera to the printer.(See p.86) 2. Use the LEFT and RIGHT buttons to select the [RESET] menu tab.

  • Page 78: Setup Menu

    Setup menu In this mode, you can set up basic settings. You can use the setup menu in all camera modes, except Voice Recording mode. The items indicated by Menu tab Main menu FILE PWR OFF LANGUAGE FORMAT D & TIME IMPRINT SOUND are default settings.

  • Page 79: File Name

    Setup menu Menu tab Main menu VIDEO Q. VIEW RESET * Menus are subject to change without prior notice. File name This function allows the user to select the file naming format. Assigning File Names 1. In any mode with the exception of Voice Recording mode, press the MENU button.

  • Page 80: Auto Power Off

    File name INFORMATION The first stored folder name is 100SSCAM, and the first file name is SV500001. File names are assigned sequentially from SV500001 The folder number is assigned sequentially from 100 to 999 as follows: 100SSCAM 101SSCAM 999SSCAM. The files used with the memory card conform to the DCF(Design rule for Camera File systems) format.

  • Page 81: Language

    Language There is a choice of languages that can be displayed on the LCD monitor. Even if the batteries or AC adapter are removed and inserted again, the language setting will be preserved. Setting Language 1. In any mode with the exception of Voice Recording mode, press the MENU button.

  • Page 82: Setting Up The Date/ Time/ Date Type

    Setting up the Date/ Time/ Date type You can change the date and time that will be displayed on the captured images and set up the date type. Setting Date/Time & Selecting Date Format 1. In any mode with the exception of Voice Recording mode, press the MENU button.

  • Page 83: Sound

    Sound If you set the operation sound to ON, various sounds will be activated for camera startup, when button are pressed, and if there is a card error, so that you can be aware of the camera operation status. Setting Operation Sounds 1.

  • Page 84: Selecting Video Out Type

    Selecting Video out type The Movie output signal from the camera can be NTSC or PAL. Your choice of output will be governed by the type of device (monitor or TV, etc.) to which the camera is connected. PAL mode can support only BDGHI. Setting the Video Out Type 1.

  • Page 85: Quick View

    Quick view If you enable Quick View before capturing an image, you can view the image you just captured on the LCD monitor for the duration set in the [Q.VIEW] setup. Quick view is possible only with still images. Setting Quick View 1.

  • Page 86: Connecting An External Device (Usb)

    Connecting an External Device (USB) You can select an external device to which you want to connect the camera using the USB cable. Selecting an External Device 1. In any mode with the exception of Voice Recording mode, press the MENU button. 2.

  • Page 87: Setting Up The Mycam Menu

    Setting up the MYCAM menu You can set up a start up image, start up sound and shutter sound. Every camera working mode (with the exception of Voice recording mode) has the MyCAM menu. The items indicated by Menu tab Main menu S.IMAGE S.SOUND...

  • Page 88: Start Up Sound

    Start up sound You can select the sound that is activated whenever the camera is turned on. Setting the Startup Sound 1. In any mode with the exception of Voice Recording mode, press the MENU button. 2. Press the LEFT/ RIGHT button and select the [MYCAM] menu tab.

  • Page 89: Important Notes

    - Pay attention not to get fingerprints or foreign substances on the surface of the lens. If the digital camera is not used for a long period, an electric discharge can occur. It is a good idea to remove the batteries and the memory card if you do not intend using the...
  • Page 90 Important notes If the camera is exposed to an electronic interference, it will turn itself off to protect the memory card. Camera Maintenance - Use a soft brush (available from photo stores) to gently clean the lens and LCD assemblies. If this does not work, lens-cleaning paper with lens cleaning fluid can be used.

  • Page 91: Warning Indicator

    Warning indicator There are several warnings that may appear on the LCD display Warning indicator - Memory card error CARD ERROR ! - There is insufficient memory capacity to take an image CARD FULL ! - There are no images stored NO IMAGE ! on the memory card - A memory card is not inserted...

  • Page 92: Before Contacting A Service Center

    Before contacting a service center Please check the following Symptom - There is low battery capacity - An AC Power Adapter is not connected The camera doesn t - Batteries are inserted switch on incorrectly with the reverse polarities - The batteries are exhausted - The Camera is turned off The camera power automatically...
  • Page 93 Before contacting a service center Symptom - A picture was taken within 0.8 m from the subject without setting an appropriate macro The images are mode unclear - Taking a picture beyond the flash range - The lens is smudged or dirty The flash does not - Flash off mode has been fire...
  • Page 94 Before contacting a service center Symptom Colour of image is - White balance setting is different to the incorrect original scene Images are too - Exposure is excessive bright - The external monitor has not been connected properly with No image on the camera external monitor - There are incorrect files in the...

  • Page 95: Specifications

    Specifications Type Image Effective Pixel Sensor Total Pixel Focal Length Lens F No. Digital Zoom Optical Viewfinder Viewfinder LCD Monitor Type Focusing Range Type Shutter Speed Control Exposure Compensation ISO Equivalent Modes Range Flash Recharging Time Sharpness Effect White Balance Voice Recording Date Imprinting Still Image...

  • Page 96: Software

    : Super Fine 64, Fine 106, Normal 139, TIFF 12 : Super Fine 129, Fine 201, Normal 227, TIFF 27 * These figures are measured under Samsung’s standard conditions and may vary depending on shooting conditions and camera settings. Single image, Thumbnails, Slide show, Movie Clip Trimming, Resizing Digital output connector : USB 1.1...

  • Page 97: Software Notes

    Using a Hand-made PC or a PC and OS that has not been guaranteed by the manufacturer is not covered by the Samsung warranty. Before reading this manual, you should have a basic knowledge of computers and O/S (Operating Systems).

  • Page 98: About The Software

    You should allow 5~10 seconds for running the automatic setup program according to the capability of the computer. If the frame does not show, run the [Windows Explorer] and select [Samsung.exe] in the CD-ROM Drive root directory. Before connecting the camera to the PC, you should first install the camera driver.

  • Page 99: Setting Up The Application Software

    INFORMATION Close other programs before installing the application software. Before installing the application software, disconnect the USB connection. You can visit the Samsung web-site through the internet. http://www.samsungcamera.com : English http://www.samsungcamera.co.kr : Korean 1. Click the [Install] menu in the Autorun frame.
  • Page 100 Setting up the application software 3. A window for which you can select application software will be displayed. Select the application program and click the [Install] button. Refer to page 98 for more information about the application program. INFORMATION If you select [Exit] at the step 3, the application program installation will be cancelled. 4.
  • Page 101 Setting up the application software 7. A window will open, asking you to choose a folder to which program icons will be added. Click [Next >] button. If you want to add the program icons to a different folder, choose another folder, and then click [Next >] button.
  • Page 102 Setting up the application software 12. A destination selection window will open. Click [Next >]. To copy to the files to another folder, click [Browse...] and choose a folder you want. 13. The [Select Components] window will appear. Click [Next >] button. 14.
  • Page 103 Setting up the application software 15. Installation is complete. To apply changes, you must restart the computer. Select [Yes, I want to restart my computer now], and then click [Finish]. 16. After restarting the computer, connect the PC to the camera with the USB cable. 17.
  • Page 104 2. Refer to FAQ (p.114) to check for a possible solution to the problem. 3. If your PC’s central processing unit is VIA chip (This is shown in the USB Host Controller), download the patch file from the Samsung Camera web page. (http://www.samsungcamera.com)

  • Page 105: Starting Pc Mode

    Starting PC Mode If you connect the USB cable to a USB port on your PC and then turn on the power, the camera will automatically switch to "computer connection mode". In this mode, you can download stored images to your PC through the USB cable. The LCD monitor is always turned off in PC mode.
  • Page 106 Starting PC Mode Downloading stored images You can download the still images stored on the camera to your PC's hard disk and print them or use a photo editing software to edit them. 1. Connect the camera to your PC with the USB cable. 2.
  • Page 107 Starting PC Mode 6. Press the right mouse button and a pop-up menu will open. Click [Paste]. 7. An image file is transferred from the camera to your PC. - By using [Digimax Viewer], you can see the stored images in the memory directly on the PC monitor and you can copy or move the image files.

  • Page 108: Removing The Usb Driver For Windows 98Se

    Removing the USB Driver for Windows 98SE To remove the USB driver, refer to the process shown below. 1. Trace [Start Settings] and click [Control Panel]. 2. Double-click [Add/Remove programs]. 3. The [Add/Remove Programs Properties] window will open. Click [Digimax V5 V5000] and click the [Add/Remove] button.

  • Page 109: Removable Disk

    Removable Disk To use this camera as a Removable Disk, install (p.99) the USB Driver. 1. Before turning the camera power on, connect the camera to the PC with the USB cable. 2. Click [Removable Disk] under [My computer] or [Windows Explorer]. 3.

  • Page 110: Removing The Removable Disk

    Select the [USB Mass Storage Device] and click the [Stop] button. 4. The [Stop a Hardware device] window will open. Select the [SAMSUNG Digimax V5 USB Device] and click the [OK] button. 5. A [Safe to Remove Hardware] window will open.

  • Page 111: Setting Up The Usb Driver For Mac

    Removing the removable disk 6. A [Unplug or Eject Hardware] window will open. Click the [Close] button and the removable disk will be removed safely. 7. Unplug the USB cable. Setting up the USB Driver for MAC 1. A USB Driver for MAC is not included with the software CD as MAC OS supports the camera driver.

  • Page 112: Using Photoimpression

    Using PhotoImpression With PhotoImpression, you can edit or store still images that you downloaded from the camera. This software is only available in Windows version. To start the program, click [Start PhotoImpression4]. The following screen will appear. [ Command Button ] You can use PhotoImpression to perform the following tasks.

  • Page 113: Digimax Viewer 2.1

    2. If the [Auto Launch] option is selected, this program will be executed automatically with recognizing the camera. Button Rotate Layer Rotate All Layers Redo Paste Close Picture 1. To open Digimax Viewer, click the [Start Samsung Digimax Viewer 2.1 2.1 ] and Digimax Viewer 2.1 will then open. Description Programs Digimax Viewer...

  • Page 114: Digimax Viewer 2.1

    Digimax Viewer 2.1 Digimax Viewer functions are listed below. - Basic functions : Copy, Cut, Paste, Delete, Rotate, Rename, changing file type, Resize, Property. - Advanced functions : Print, Slide show, Export, Sending e-mail, On-line print, Web album etc. INFORMATION Before deleting images from the camera, you should protect or download images to your computer that you wish to keep.
  • Page 115 [Case 4] The camera is not recognized by your PC. Sometimes, the camera may appear under [Unknown Devices] in Device Manager. Install the camera driver correctly. Turn off the camera, remove the USB cable, plug in the USB cable again, and then turn on the camera.
  • Page 116 [Case 9] When I open the Device Manager (by clicking Start Panel (Performance and Maintenance) Manager), there are Unknown Devices or Other Devices entries with a yellow question mark(?) beside them or devices with an exclamation mark(!) beside them. Right-click on the entry with the question(?) or exclamation (!) mark and select "Remove".
  • Page 117 Most problems will be solved with those remedies. If the movie clip doesn't play back continuously, install the JPEGCODE provided with the camera again. For more information, visit the samsung website(www.samsungcamera.com) and see the FAQ page. Run] and a window will open.
  • Page 118 MEMO...
  • Page 119 MEMO...
  • Page 120 SAMSUNG TECHWIN CO., LTD. OPTICS & DIGITAL IMAGING DIVISION 145-3, SANGDAEWON 1-DONG, JUNGWON- GU,SUNGNAM-CITY, KYUNGKI-DO, KOREA 462-121 TEL : (82) 31-740-8086,8088, 8090, 8092, 8099 FAX : (82) 31-740-8398, 8111 SAMSUNG OPTO-ELECTRONICS AMERICA, INC. HEADQUARTERS 40 SEAVIEW DRIVE, SECAUCUS, NJ07094, U.S.A.

This manual is also suitable for:

Digimax v5Digimax v50Ual

Table of Contents
