I N S T R U C T I O N
M ANUAL
®
model V2x
Acoustical airway clearance device
. 5.04.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Frequencer V2x and is the answer not in the manual?

Questions and answers

Drew Cunningham
February 1, 2025

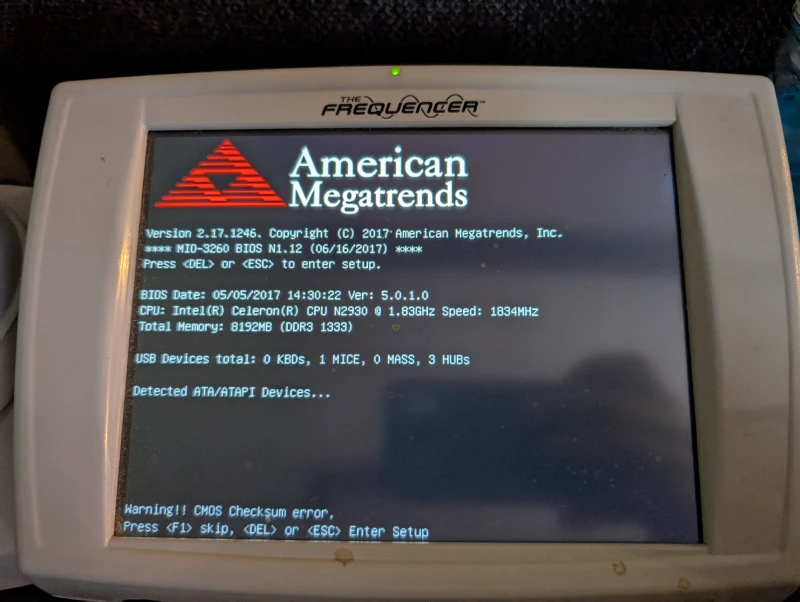

Frequencer is stuck on American megatrends screen. Help please

User image 679e4a310d728
0

Summary of Contents for Dymedso Frequencer V2x

  • Page 1 I N S T R U C T I O N M ANUAL ® model V2x Acoustical airway clearance device . 5.04.1...
  • Page 2 CLASS II DOUBLE INSULATED ELECTRICAL DEVICE PROHIBITION Copyright © by Dymedso inc. All rights reserved. No part of this manual may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, or otherwise, without the prior written permission of Dymedso inc.

  • Page 3: Table Of Contents

    Table of Contents [ 1 ] Indications for use [ 2 ] Contraindications [ 3 ] General Information [ 4 ] Description [ 4_a ] The components [ 4_b ] Control unit functionalities [ 4_c ] Control unit connections [ 5 ] Treatment in a controlled environment [ 6 ] Preparing for treatment...

  • Page 4: Indications For Use

    • Use only original Frequencer V2x parts or replacement parts sold ® by Dymedso. Do not substitute the power supply. • If patient experiences any discomfort or pain while using the Frequencer V2x, stop the treatment and consult a physician.

  • Page 5: 2 ] Contraindications

    [2] Contraindications IT IS IMPORTANT TO READ AND UNDERSTAND THE FOLLOWING CONTRAINDICATIONS. IF YOU HAVE ANY QUESTIONS ABOUT YOUR CONDITION OR THE USE OF YOUR FREQUENCER V2x, ® CONSULT YOUR PHYSICIAN. WARNING: Tests with the Frequencer V2x were performed ® with patients in a sitting or slightly reclined position.

  • Page 6: General Information

    [3] General Information Frequencer V2x is to be used only as described in this manual and ® only as prescribed by a physician. Failure to do so could result in serious injury or death. We recommend that, before you begin using the Frequencer V2x for in- ®...
  • Page 7 5_Instruction manual WARNING: The use of ACCESSORIES, transducers and cables other than those specified, with the exception of transducers and cables sold by Dymedso as replacement parts, may result in increased EMISSIONS or decreased IMMUNITY of the Frequencer V2x. ®...

  • Page 8: 4_B ] Control Unit Functionalities

    [4_B] CONTROL UNIT FUNCTIONALITIES The interface on the control unit includes a touch screen which offers the following functions: 1_START function to start treatment... PAUSE function appears when the START function is pressed. 2_PAUSE to temporarily suspend treatment. 3_TREATMENT INTENSITY slide UP and DOWN to increase and decrease intensity of treatment.

  • Page 9: 4_C ] Control Unit Connections

    [4_C] CONTROL UNIT CONNECTIONS A_ Plugging in the power supply. On/Off Push Button. [5] Treatment in a controlled environment 104° F The Frequencer V2x should not be used when the temperature exceeds ® (40° C) F (40 C) or goes below 4 1 F (5 C).

  • Page 10: 7 ] Treatment With The Frequencer ® V2X

    WARNING: before pushing the START button. Do not substitute or modify the adapters supplied by Dymedso; it could seriously damage the transducer. STEP 2: Patient should be in a sitting or slightly reclined position. The operator can be beside the patient to administer the treatment.

  • Page 11: 8 ] Cleaning

    STEP 5: With your hand holding the top part (cover) of the transducer, place trans- ducer on chest wall and press START. STEP 6: Adjust frequency level one Hz at a time until vibration is felt on back or other part of chest cavity.

  • Page 12: 9 ] Maintenance

    If, for any reason, you do not think the device is working properly, the troubleshooting list below can help you find the cause of the problem. If you cannot solve the problem, contact DYMEDSO Customer Service at 1-877-DYMEDSO (396.3376) or info@dymedso.com. Do not attempt to repair or disassemble the device.

  • Page 13: 12 ] Disposal

    Make sure the control is not is no noise coming from the on PAUSE and the treatment transducer. intensity is higher than 0%. The transducer works Contact DYMEDSO Customer but I cannot adjust the Service. frequency level. The transducer works Contact DYMEDSO Customer but I cannot adjust the Service.

  • Page 14: 14 ] Specifications

    [14] Specifications PRODUCT USE: Temperature: 5 to 40ºC Humidity: 15 to 93%, non-condensing Atmospheric pressure: 700 hPa to 1060 hPa TRANSPORT & STORAGE: Temperature: -25ºC (without RH control) to + 70ºC (at an RH of up to 93%, non-condensing) Humidity: 15 to 93%, non-condensing Standards compliance: IEC 60601-1 3 edition Mode of operation: Continuous...

  • Page 15: 15 ] Emc Requirements

    [15] EMC Requirements GUIDANCE AND MANUFACTURER’S DECLARATION - ELECTROMAGNETIC EMISSIONS The Frequencer ® V2x should be used in the electromagnetic environments specified below. The user of the Frequencer ® should ensure that it is used in such an environment. EMISSION TEST The Frequencer ®...
  • Page 16 GUIDANCE AND MANUFACTURER’S DECLARATION - ELECTROMAGNETIC IMMUNITY The Frequencer ® V2x is intended for use in the electromagnetic environment specified below. The user of the Frequencer ® should ensure it is used in the appropriate environment. IEC 60601 IMMUNITY TEST COMPLIANCE ELECTROMAGNETIC LEVEL...
  • Page 17 Voltage dips, <5% U <5% U Mains power quality short (>95% dip should be that of a (>95% dip in U for 0.5 cycle interruptions typical home or in U ) for and voltage 0.5 cycle hospital. If the user variations on of the Frequencer ®...
  • Page 18 Guidance and manufacturer's declaration - electromagnetic immunity ® The Frequencer V2x is intended for use in the electromagnetic environment specified ® below. The customer or the user of the Frequencer V2x should assure that it is used in such an environment. IMMUNITY Compliance IEC 60601 TEST...
  • Page 19 ® warning symbol and training in ESD precautionary procedures. Please refer to the section below on Minimum ESD Procedures. It is recommended by Dymedso that all staff involved in the assembly and/or installation and/or repair of the Frequencer V2x receive ®...

  • Page 20: 16 ] Esd Precautionary Procedures

    RECOMMENDED SEPARATION DISTANCES BETWEEN PORTABLE AND MOBILE RF COMMUNICATIONS EQUIPMENT AND THE FREQUENCER ® FOR LIFE-SUPPORTING. ® The Frequencer ® V2x is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the Frequencer ®...
  • Page 21 [17] FREQUENCER V2x, parts and accessories ® DYMV2x Frequencer ® V2x control unit DYMPS100 Power supply DYMPC101 Power cord _IN MULTI-PATIENT SETTINGS (HOSPITALS, CLINICS, LONG TERM CARE FACILITIES) A. THE TRANSDUCER DYMV2XTRMP The transducer B. THE MULTI-PATIENT USE DISPOSABLE ADAPTER WITH FILTER DYMFLT4 Adapter with a 4"...

  • Page 22: 17 ] Frequencer ® V2X, Parts And Accessories

    C.THE ROLL STAND DYMRSN Roll stand with fixation plate, handle, 2 baskets and a power supply holder. HARD171 Post, 34" HARD172 Base with casters, 21" HARD176 Utility basket HARD1710 Handle HARD1712 Fixed mounting plate HARD1714 Power supply bracket _IN SINGLE PATIENT SETTING (HOME USE) A.THE TRANSDUCER DYMV2XTRPU The transducer with permanent adapter (no filter)
  • Page 24 For technical assistance 1 877.DYMEDSO (396.3376) info@dymedso.com Dymedso Inc. 2120, 32nd Avenue Montreal, Quebec, H8T 3H7 Canada The Frequencer instruction manual ®...
