INSTALLATIONS
INSTALLATIONS
Standard Parts:
Insert
Deadbolt Bracket
Deadbolt Plug
Guardbolt Bracket (Auxiliary Bolt Bracket)
Keeper Shims: 1/16" (1.5mm) & 1/8" (3.0mm)
A Center-lined latch faceplate and an Offset
latch faceplate are provided. Both are:
4-7/8" x 1-1/4" (123.8mm x 31.8mm)
Trim Plate
12VDC or 12 to 24VAC Cable Connector
24VDC Cable Connector
Tamper Proof Strike Mounting Screws (2pcs)
The fail secure locking mechanism shall only be installed where allowed by the local authority having jurisdiction and shall not
impair the operation of the panic hardware or intended operation of the emergency exit.
Wiring Instructions
Use the appropriate wire harness supplied.
12V for 12VDC & 12-24VAC
24V for 24VDC only
Attach the red wire to (+) positive of the power supply. Attach
the black wire to the (–) negative of the power supply.
If using AC power, polarity is not observed.
NOTE: If a suppression diode is required for access control,
observe proper polarity.
Latch Monitor Wires
Black
= Common (C)
Blue
= Normally Close (NC)
Orange = Normally Open (NO)
Model F2164 must be connected to a compatible UL Listed Burglary or Access Control Power Supply.
ISF2
USA: 2517 SQUADRON COURT, SUITE 104, VIRGINIA BEACH, VA 23453 • CANADA: 210 SHEARSON CRESCENT, CAMBRIDGE, ON N1T 1J6
PHONE • 1.800.265.6630 • 519.621.7651 • FAX: 1.800.482.9795 • 519.621.7939 • E-MAIL: SALES@RUTHERFORDCONTROLS.COM
®
®
Accessories:
Latch Monitor Switch - F2LM
©2011 RUTHERFORD CONTROLS INT'L CORP. WWW.RUTHERFORDCONTROLS.COM
24VDC
Terminal
12VDC
12-24VAC
Black
Terminal
Red
-
+
Black
Red
-
+
Latch
Monitor

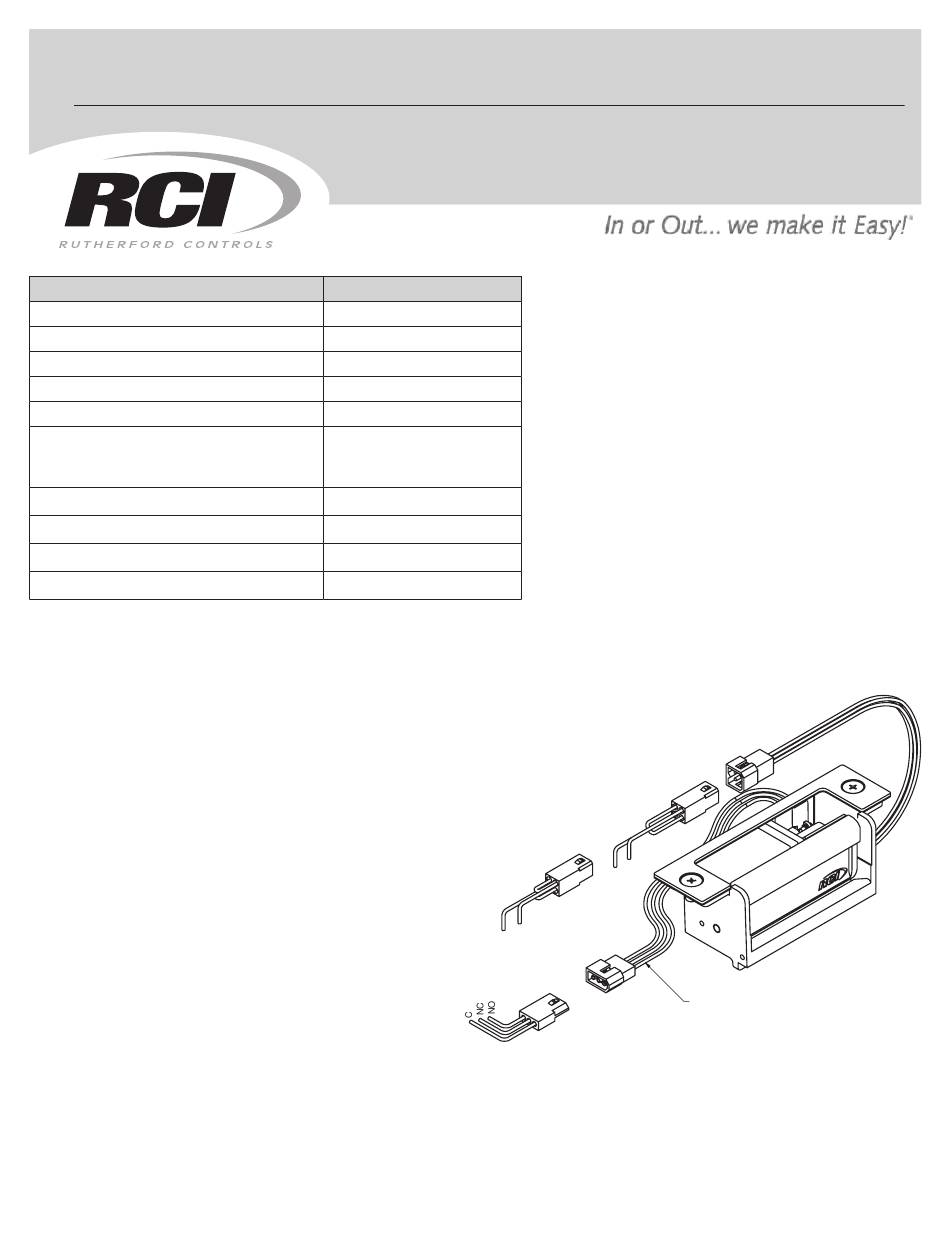

Wiring the F2 Series Electric Strike
F2 164
ELECTRIC STRIKE
Optional LM
PCN110022
R08/11SH
