Black Widow MCC-600 Instructions Manual

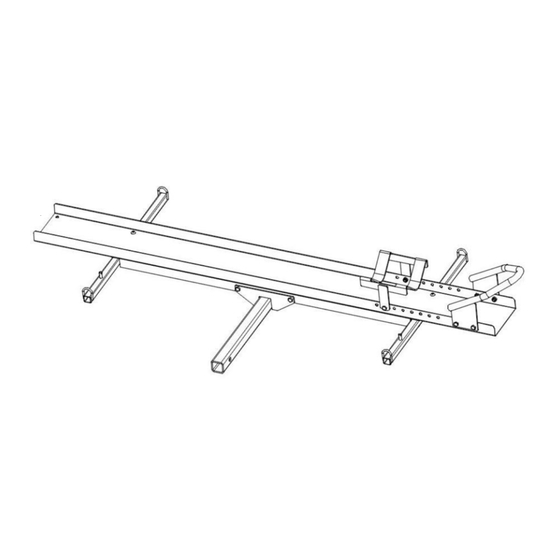

Heavy duty steel motorcycle carrier
Hide thumbs
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual
General Guidelines
• It is the user's responsibility to read and follow all instructions.
• Keep these instructions with the product at all times and review before each use.
• It is the responsibility of this product's owner to furnish the instructions to any person that borrows
or purchases the product.
• Inspect the product before use to ensure it is assembled properly and all parts are in safe working
order and free of defects.
• Never modify this product in any way.
• All circumstances cannot be addressed in these instructions. Please use common sense and
practice general safety measures when using this product.
• Parts and/or instructions are subject to change without notice.
Safety Warnings
• Read and understand all instructions. Failure to follow all instructions listed may result in serious
injury.
• Do not exceed the
600
• Only load the carrier on flat and level surfaces capable of supporting its maximum load.
• Prior to transport, make sure the ramp of the carrier and the motorcycle are properly secured to the
carrier.
• When not in use, store the carrier in a secure place out of the reach of children.
• Be aware of the possible fire risk and property damage resulting from the vehicle's exhaust system
pointing at or running near the cargo in the carrier. Do not use if this condition exists.
Maintenance
• It is recommended that the general condition of any steel motorcycle carrier be examined each
time before it is used. Keep your steel motorcycle carrier in good repair by adopting a program of
conscientious repair and maintenance. Check misalignment, loose or damaged parts, and any oth-
er condition that may affect its safe operation. If any abnormal vibrations or noise occur, have the
problem corrected before further use. Have necessary repairs made by qualified service personnel.
• Before each use, make sure any dirt, debris, oil, grease, etc. is cleaned off the carrier. Clean the
carrier with a clean, moist cloth. Do not use solvents.
• Periodically check all hardware for tightness.
Heavy Duty Steel Motorcycle Carrier
Instructions for Part # MCC-600
lb weight capacity. Distribute the load evenly.

Advertisement

loading
Need help?

Need help?

Do you have a question about the MCC-600 and is the answer not in the manual?

Questions and answers

Summary of Contents for Black Widow MCC-600

  • Page 1 Heavy Duty Steel Motorcycle Carrier Instructions for Part # MCC-600 General Guidelines • It is the user’s responsibility to read and follow all instructions. • Keep these instructions with the product at all times and review before each use. • It is the responsibility of this product’s owner to furnish the instructions to any person that borrows or purchases the product.
  • Page 2 Parts Part Description Q’ty Part Description Q’ty Carrier frame 10 nylon washer Hitch tube 10 flat washer Hook tube M10 butterfly nut M10*25 hexagon bolt Safety pin M10 lock nut Clamping block M10*50 bolt Hitch pin Wheel chock drop-leaf Hitch clip Wheel chock front frame M10*50 hexagon bolt M10*20 hexagon bolt...
  • Page 3 Step 1. Place the Carrier frame (1) upside down on a solid work surface, place hitch tube (2) in the ramp. Align the holes, secure with M10*25 hexagon bolt (4) and M10 lock nut (5). Place hook tube (3) on the ramp, align the holes, secure with M10*50 bolt (6) and M10 lock nut (5). See FIG FIG 1 Step 2.
  • Page 4 Step 3. Attach the 2pcs of Hook tube (3) and ramp (10) with 10 nylon washer (11) and 10 flat washer(12) and M10 butterfly nut (13). Insert Safety pin (14) finally. See FIG FIG 3 STEP 4 Set clamping block (15) into Hitch tube (2) and put them into the hitch receiver. Insert Hitch pin (16) and hitch clip (17).

  • Page 5: Mounting The Carrier To The Hitch Receiver

    Mounting the Carrier to the Hitch Receiver 1. Slide the clamping block (G) over the end of the hitch tube. Make sure the large, open end of the clamping block faces the hitch receiver on the vehicle. With assistance, lift the empty carrier and slide the open end of the hitch tube into thehitch receiver.

  • Page 6: Product Warranty And Liability

    Product Warranty and Liability GENERAL PRODUCT WARRANTY: Products purchased from the Authorized Dealer (original place of purchase) or Merchant (“Dealer”) will be free of defects in material and workmanship at the time of receipt, and will meet the specifications stated at the place of purchase transaction or online at the Dealer’s website, under normal use and service when correctly installed, operated and maintained.
