PD 60 DYNAMIC WHITE SERIES

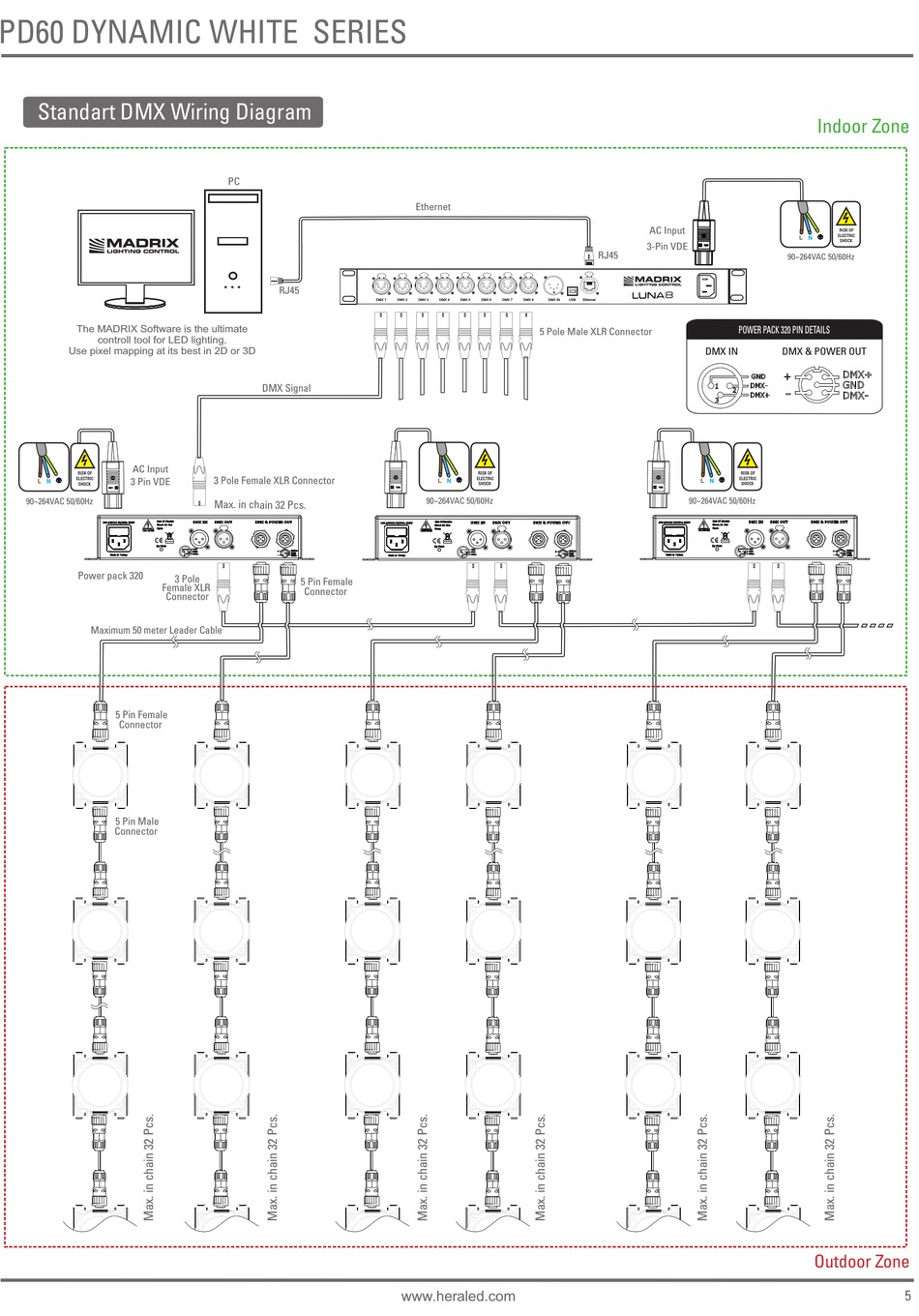

Standart DMX Wiring Diagram

The MADRIX Software is the ultimate
controll tool for LED lighting.
Use pixel mapping at its best in 2D or 3D
AC Input
RISK OF
ELECTRIC 3 Pin VDE
SHOCK
90~264VAC 50/60Hz
Power pack 320
Female XLR
Connector
Maximum 50 meter Leader Cable
5 Pin Female
Connector
5 Pin Male
Connector
PC
RJ45
DMX Signal
3 Pole Female XLR Connector
3 Pole
5 Pin Female
Connector
Ethernet
DMX 1 DMX 2 DMX 3 DMX 4 DMX 5 DMX 6 DMX 7 DMX 8
DMX IN
5 Pole Male XLR Connector
RISK OF
ELECTRIC
SHOCK
90~264VAC 50/60Hz
www.heraled.com
AC Input
3-Pin VDE
RJ45
8
USB Ethernet
POWER PACK 320 PIN DETAILS
DMX IN
RISK OF
ELECTRIC
SHOCK
90~264VAC 50/60Hz
Indoor Zone
RISK OF
ELECTRIC
SHOCK
90~264VAC 50/60Hz
DMX & POWER OUT
Outdoor Zone
5
