Page 1: Cover

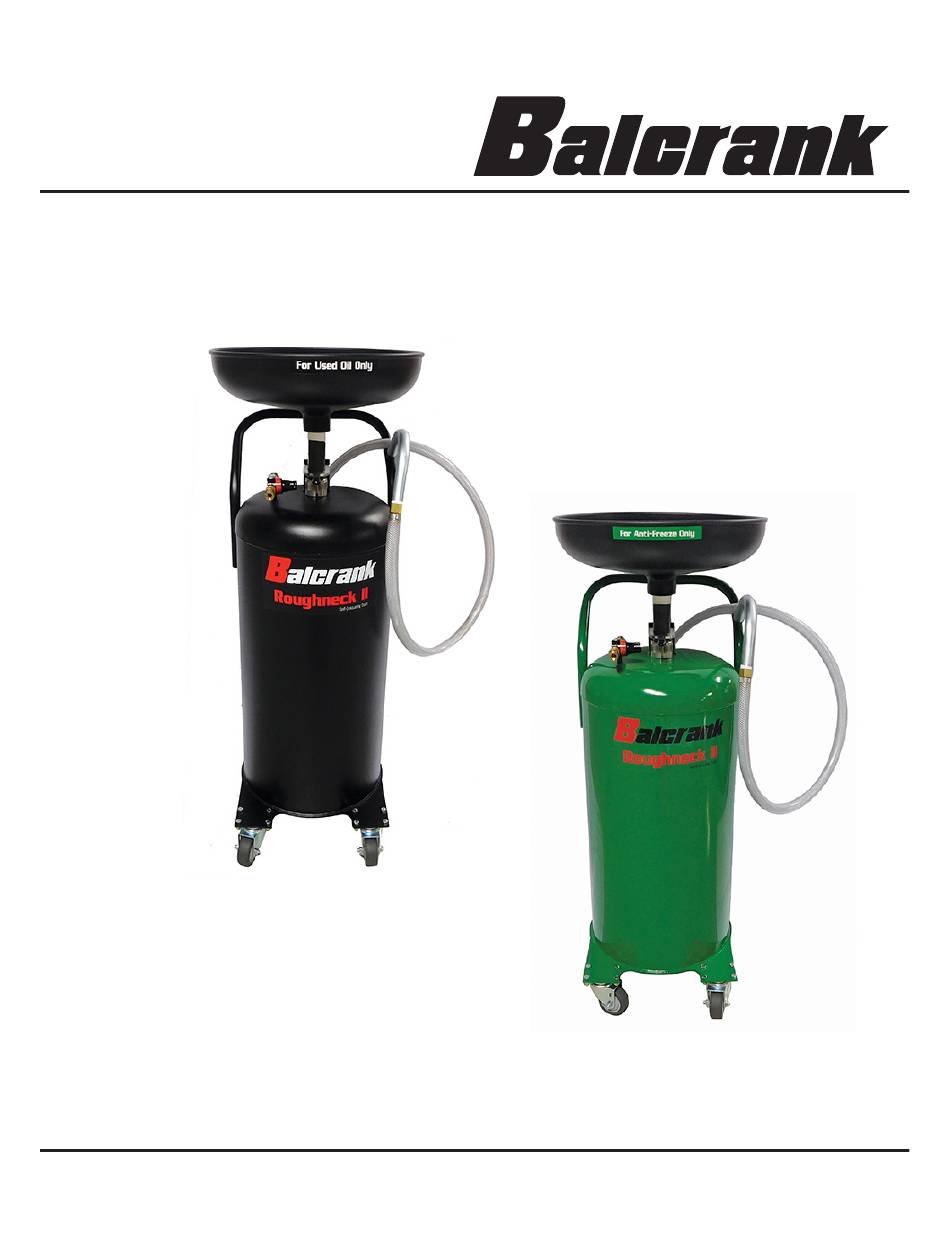

SERVICE BULLETIN SB4027 Rev. K 08/18 ® ROUGHNECK II™ Pumpless Drain Model #4110-022 FOR USED OIL ONLY (Black) Model #4110-023 FOR USED ANTIFREEZE ONLY (Green) Patent # 5,921,262 Thoroughly read and understand this manual before installing, operating or servicing this equipment. OPERATION, INSTALLATION, MAINTENANCE AND REPAIR GUIDE... -
Page 2: Table Of Contents
GENERAL SAFETY REQUIREMENTS WARNING: Do not alter or remove the N O T E : T H O R O U G H LY R E A D A N D dispense nozzle. The hose/nozzle assembly is UNDERSTAND THIS MANUAL BEFORE designed to provide an open and uninhibited INSTALLING, OPERATING, OR SERVICING drain passage from the tank to the tip of the... -
Page 3: Product Description
Product Description 3. Install front casters by inserting bolts up through caster and weldment then secure with nuts provided. The Roughneck II™ pumpless drain is designed for fast simple disposal of used oil/antifreeze. The tank holds 23 gallons with the clear hose doubling as the dispense hose and as a visual level gauge. -
Page 4: Operation/Evacuation
Bowl Height Adjustment Operation/Evacuation To raise the bowl, simply lift up on the bowl or NOTE: It has been shown that some fluids can drain pipe. To lower the bowl, support the bowl cause a deterioration of the o-rings in this unit. with one hand and with the other hand, lift up All Fluids used in this drain must be chemically on the spring side of the locking bar on the... -
Page 5: Parts Listing
Parts Listing ITEM PART DESCRIPTION QTY. ITEM PART DESCRIPTION QTY. 1 & 2 831886 Bowl & Strainer* 827442* O-Ring ( Guide Tube ID) 831424 Conical Spring* 830277* O-Ring (Guide Tube OD) (Prior to 8/16) 831705 Strainer* 828004 Pressure Relief Valve (After 8/18) 828002 Nozzle... -
Page 6: Notes
NOTES... - Page 7 Revision Log: Rev. C - Removed second washer on wheels. Rev. D - Added Snap Ring (item 24) Rev. E - Added strainer (item 2) Rev. F - Created single part # for item 1 & 2 Rev. G - Changed to 832186 nylock nut Rev.
-
Page 8: Warranty
For Warranty Information Visit: www.balcrank.com Balcrank Corporation ® Weaverville, NC 28787 800-747-5300 800-763-0840 Fax www.balcrank.com SERVICE BULLETIN SB4027 Rev. K 8/18...
