- Page 1 MOTORIZED SHADES FEATURING Z-WAVE TECHNOLOGY...
-
Page 2: Table Of Contents
TABLE OF CONTENTS TABLE OF CONTENTS GETTING TO KNOW YOUR REMOTES Getting to Know Your Remotes Two-Button Remote ............... 3 Single-Channel Remote ..............4 Multi-Channel Remote ..............5 Two-Button Remote Shade Program Button ..............6 The two-button remote is usually used to control a single shade, but it Quick Start Guide can control up to 12 shades at once. -
Page 3: Single-Channel Remote
Single-Channel Remote Multi-Channel Remote The single-channel remote can control up to 12 shades at once. The multi-channel remote has 12 available channels. Each channel can include a single shade or multiple shades, maximum of 8 shades on one channel. The remote can control a maximum of 24 shades. UP button LED light Display... -
Page 4: Shade Program Button
Shade Program Button QUICK START GUIDE The program button on the shade’s headrail or motor end lets you move your shade without a remote. It’s also used to perform various programming functions, discussed later in this manual. Getting Your Remote Ready For the Two-Button or Single-Channel Remote Pull out the paper strip on the... -
Page 5: Knowing Your Shade's Limits And Home Position
Controlling Your Shade Legend Knowing Your Shade’s Limits and Press and hold Move up Home Position We preprogrammed your remotes Press and release Move down to operate your shades. To help you get started quickly and easily, we set your shade up with predefined positions. -
Page 6: Assigning Shades To Channels (Multi-Channel Only)
ADJUSTING YOUR SHADE’S Assigning Shades to Channels (Multi-Channel Remote Only) LIMITS AND HOME POSITION If you bought your shades and multi-channel remote at the same time, your shades arrive already paired with your multi-channel remote. However, you’ll need to assign each shade to a channel (or multiple channels) to control them. -
Page 7: Adjusting The Upper Limit
Adjusting the Upper Limit 1. On the remote, press and For the Two-Button or Single-Channel Remote release the UP button. Before You Start Wait until the shade reaches its preset upper limit. TARGET 2. Press and hold the UP and SHADE DOWN buttons at the same time for 3 seconds. -
Page 8: Adjusting The Lower Limit
Adjusting the Lower Limit For the Multi-Channel Remote For the Two-Button or Single-Channel Remote 1. On the remote, press and hold Before You Start the MENU/RIGHT button for 2 seconds to enter the menu. 2. Select SHADE > LIMITS. TARGET SHADE 3. - Page 9 For the Multi-Channel Remote 1. On the remote, press and release the DOWN button. 1. On the remote, press and Wait until the shade reaches hold the MENU/RIGHT button its preset lower limit. for 2 seconds to enter the menu. 2.
-
Page 10: Adjusting The Home Position
Adjusting the Home Position 1. On the remote, use the UP and Before you start, decide whether you want to adjust your shade’s upper or lower limit. If you do, make those changes DOWN buttons to move the shade to first—moving those limits will reset your home position. -
Page 11: Pairing Your Remotes And Shades
For the Multi-Channel Remote PAIRING YOUR REMOTES AND SHADES 1. Use the UP or DOWN buttons to move the shade to your new home position. This can be anywhere between the upper and lower limits. 2. Press and hold the MENU/RIGHT button for 2 seconds to enter We preprogrammed your remotes to operate your shades. -
Page 12: Pairing Your Two-Button Or Single-Channel Remote
Pairing Your Two-Button or Pair a Remote with a Shade Single-Channel Remote You might need to do this if you bought a new remote or shade. These steps apply only to the new remote or shade. The two-button and single-channel remote behave almost identically. - Page 13 Pair a Remote with a Group of Shades Pair a Second Remote with a Shade If you want to control a group of shades with one remote, follow If you paired a group of shades with a group remote in these steps.
-
Page 14: Pairing Your Multi-Channel Remote
Pairing Your Multi-Channel Remote Pair a Remote with a Group of Shades Already Controlled by a Group Remote Pair a Remote with a Shade If you bought a new multi-channel remote and want to pair it with a group of shades that are already controlled by a group You might need to do this if you bought a new shade after your remote, follow these steps. - Page 15 Pair a Second Remote with a Shade That’s Already Remove a Shade from the Multi-Channel Remote Controlled by a Multi-Channel Remote You might need to do this if your shade needs to be sent in If you paired a group of shades with a multi-channel for repairs.
-
Page 16: Integrating Your Shades With A Z-Wave ® Home Automation System
Step 1: (Exclude) Remove the Current Pairing INTEGRATING YOUR Between Your Shades and Remotes SHADES WITH A Z-WAVE ® HOME AUTOMATION SYSTEM 1. Reset each two-button or single-channel remote, if you have them. a. Press and hold the program button on Your shades and remotes operate using Z-Wave radio the back of the remote for 15 seconds until the remote LED stops flashing. -
Page 17: Step 2: (Include) Add Your Shades And Remotes To The Home Automation System
Step 2: (Include) Add Your Shades and Remotes Add Your Multi-Channel Remote to the Home Automation System 1. From your home automation system’s user interface, select the option to enroll a new Z-Wave device. NOTE See your home automation system’s You need to add the shades first and then the remotes to your home instructions for details. -
Page 18: Step 3: (Associate) Pair Remotes With Your Shades
Step 3: (Associate) Pair Remotes with Your Shades TROUBLESHOOTING If you want to be able to control your shades with remotes as well as with your home automation system, follow these steps. PROBLEM SOLUTION Pair a Shade with a Two-Button or Single-Channel Remote Replacing Batteries for the Shade Insert eight AA lithium batteries per battery case. -
Page 19: Troubleshooting
Troubleshooting, cont. If your shade isn’t responding to your To remove the current pairing between multi-channel remote, confirm that you’re your shades and remotes, and start fresh, My multi-channel remote isn’t on the correct channel for the shade you’re follow these steps: working. -
Page 20: Glossary
GLOSSARY TERM DEFINITION MULTI-CHANNEL REMOTE TERM DEFINITION A brief down-and-up movement of the shade. A group of shades that operates at the Channel same time. Each channel can include a Exclude single shade or multiple shades. Removing the current pairing between your shades and remotes. -
Page 21: About Z-Wave
FCC Class B Notice This device complies with Part 15 of the FCC Rules. Operation is subject to the ABOUT Z-WAVE following two conditions: ® 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. -
Page 22: Channel Assignment Worksheet
Shades Channel Assignment Name/Location Shades on the same channel will operate as a group. Industry Canada Notice This device complies with Industry Canada License-exempt Example RSS standard(s). Operation is subject to the following Kitchen Shade 1 - two conditions: Shade 1 1. - Page 23 For video tutorials and additional help, visit www.motorization.support Customer Service 1-800-221-6352 motorization.support@springswindowfashions.com 79083-01 (03/18) 17-7492...
Need help?
Do you have a question about the MOTORIZED SHADES and is the answer not in the manual?
Questions and answers
I **** purchasing Bali motorized cellular shades. Can I Pair them directly to the app or do i need to purchase a gateway?
We need to order the charging cord for our shade. It has been misplaced.
On multi motorized shades do they all have to be charged
Some Bali motorized shades use AA lithium batteries, while others use rechargeable battery packs. If a shade uses AA lithium batteries, it does not need to be charged but will require battery replacement over time. If it uses a rechargeable battery pack, it will need periodic charging.
This answer is automatically generated

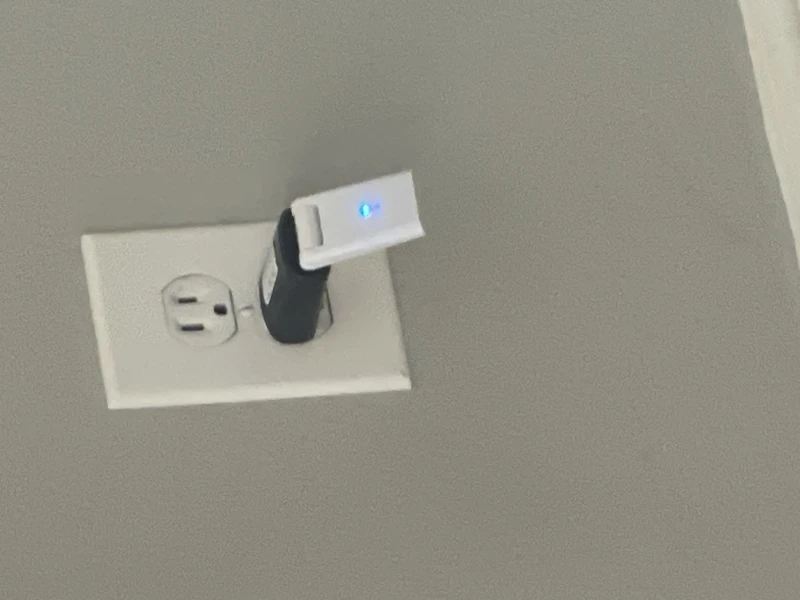

My fob is blinking blue and will not control my blinds
