Summary of Contents for Q Experience QAA14AV013

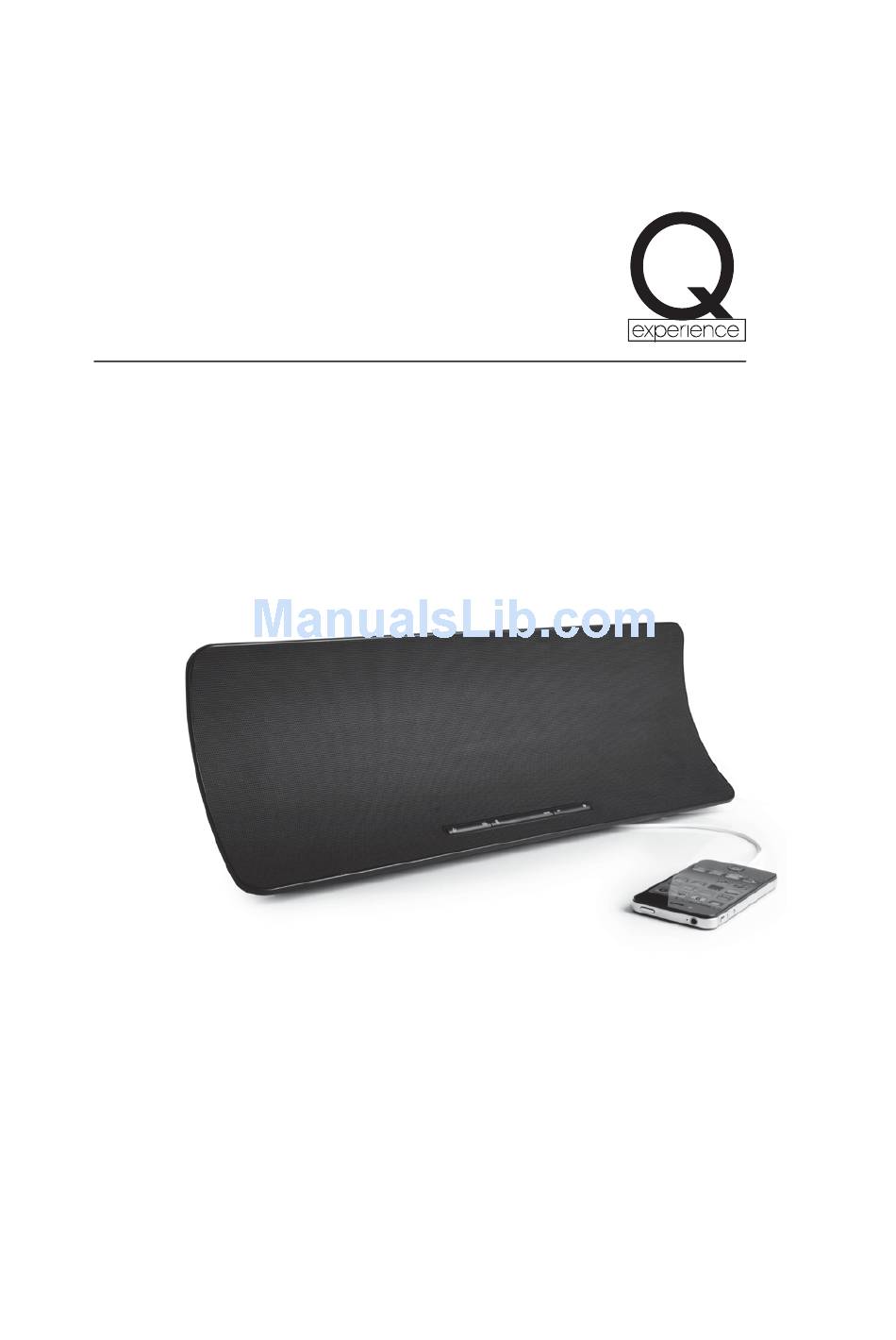

- Page 1 QAA14AV013 Instruction Manual...
-
Page 2: Table Of Contents
Contents Important Safety Instructions ....................2 Safety ..................................... 2 Warning ....................................2 Identifying the Parts ......................4 Main Unit: ................................... 4 Remote Control ................................. 4 Install remote control batteries ..................5 Connections .........................5 Connect Power .................................. 5 USB Charge ..................................5 Connect to External Audio Device..........................5 Basic Operations ........................6 Power .................................... -
Page 3: Important Safety Instructions
Important Safety Instructions on or pinched par ticularly at the plugs, WARNING convenience receptacles, and at the point RISK OF ELECTRIC SHOCK where they exit from the apparatus. DO NOT OPEN 11 Only use attachments/accessories specified by the manufacturer. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT Use only with the cart, stand, tripod, REMOVE COVER (OR BACK). - Page 4 system, unplug the system and have it checked (1) this device may not cause harmful by qualified personnel before operating it any interference, and further. (2) this device must accept any interference Do not attempt to clean the unit with chemical received, including interference that may cause solvents as this might damage the finish.
-
Page 5: Identifying The Parts
Identifying the Parts Main Unit: Remote Control PAIR BASS MUTE Press this button to turn on or switch to the Eco Power standby mode. Turn on this product or switch to Eco Power Select AUX IN function. standby mode. - Select Bluetooth function. Select a function. -
Page 6: Install Remote Control Batteries
Install remote control batteries Connections Prepare the Remote Control Connect Power The provided Remote Control allows the unit to Caution: be operated from a distance. Risk of product damage! Ensure that the power Even if the Remote Control is operated within supply voltage corresponds to the voltage the effective range (6m), remote control printed on the back or the underside of the unit. -
Page 7: Basic Operations
"PAIR" button on remote control to resume sound. activate Bluetooth pairing mode. 3 Activate your Bluetooth device and select the search mode. 4 “QAA14AV013” will appear on your Bluetooth device list. 5 Select “QAA14AV013” and enter “0000” for password if necessary. -
Page 8: Listen To Music From Bluetooth Device
Tips: Troubleshooting If there is an existing connection, press PAIR button on the remote control or press To keep the warranty valid, never try to repair the the front panel of the unit for a few seconds. It system yourself. If you encounter problems when will re-activate the pairing mode. -
Page 9: Specifications
Specifications General Power Requirements ............................. 120V~60Hz Power Consumption ................................25W USB 2.0 Socket .................................5V, 2.1A Output Power ..................................25W x 2 Total Harmonic Distortion ..........................1%(1kHz, 1W) Audio Input Sensitivity/Impedance......................500mV/47kΩ Frequency Response ..........................40Hz - 20kHz(+/-3dB) Unit Dimensions (W x H x D) ......................481 x 120 x 155 mm Speaker Impedance .................................8Ω...
