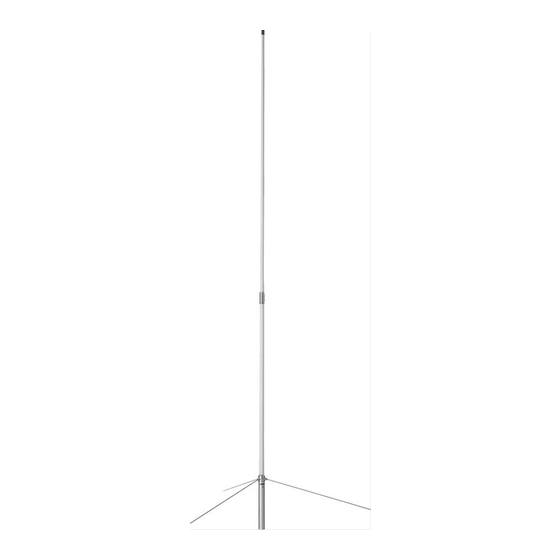

2m/70cm Dual Band High Performance Gain Base Station Antenna
Description
1. Liner Phase Shifter technology
permits the antenna to achieve
high performance, high power rat-
ing low vswr, and broader band
coverage on both 2m and 70cm
bands.
2. Direct element joint structure with
two interconnected FRP outer-
shells. Enables the antenna to
maintain the same strength as one
with one piece structure. The ring
gasket makes the antenna water-
proof, and therefore maintains
performance even in rainy weather.
When required, the antenna can be
easily assembled or disassembled
by adjusting the joint bracket
accordingly.
3. Professional quality maximum
wind resistance is achieved by the
rugged structure. Superior water-
proofing
eliminates
VSWR that might otherwise
happen in climatic weather. This
antenna may also be used in seaside
or contaminated air environments
as it is rust and corrosion free.
4. Both of the bands, 2m and 70cm,
can be operated simultaneously by
using optional antenna duplexer.
5. DC ground structure, which
escapes high voltage caused by
lightning, protects your radio and
equipment.
FREQUENCY: 144-148 MHz
GAIN:
POWER:
IMPEDANCE: 50 Ohms
VSWR:
MAX WIND
RESISTANCE: 50m/sec (112 MPH)
MAST DIAMETER
ACCEPTED:
LENGTH:
WEIGHT:
CONNECTOR: UHF Female
WARRANTY: 1 Year against
unstable
DIAMOND ANTENNA Products are distributed by RF PARTS COMPANY
435 S. Pacific Street • San Marcos, CA 92078 • (760) 744-0900
www.diamondantenna.net
X200A
Specifications
435-450 MHz
6.0 dB
8.0 dB
200 Watts
less than 1.5:1
30-62mm
(1-1/5" to 2-2/5")
2.5m (98.4")
1.2 kg (2.6 lbs.)
defects in material
or workmanship.
VSWR Charts
Adjustment
All X-Series antennas are completely
adjustment free. If VSWR of an anten-
na is extraordinarily high, see if each
connecting part is well contacted. It is
most likely due to bad contact in the
coaxial cable and/or connector connec-
tion, or soldering problem. Be sure to
use 50ohm coaxial cable to feed the
antenna.
Assembly
Upper Outershell
Upper Outershell
Joint Bracket
Gasket Holder
10cm
Element Joint Bracket
Lower Element
Lower Outershell
Joint Bracket
Lower Outershell
Radial Element
Lock Nut
Radial Element
Continued on next page...
