Installation Instructions
Model ADB-11
Audible Base
INTRODUCTION
Model ADB-11

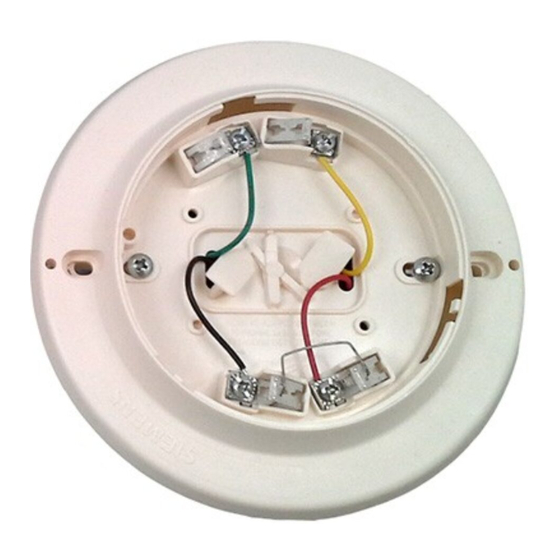

The Model ADB-11Audible Base consists of a standard Series 11 base
combined with an audible device. The ADB-11 is an audible base used only with
Series 11 conventional detectors (DT-11, PE-11/-11T) and is powered directly
from the zone circuit. (Refer to Table 1 for compatible detector model numbers
and the related Installation Instructions.) All field wiring terminates at a four
position terminal block located on the back of the unit. The audible device
sounds when the detector alarms and stops sounding when the system is
reset. (Refer to Figure 1, the ADB-11 Audible Base Terminal Blocks, and
Figure 2, the ADB-11 Wiring Diagram.) Only one device is guaranteed to
activate per zone.
The ADB-11 can generate either steady or temporal tone with the insertion of a
jumper at the terminal block.
AUX
NOT USED
JUMPER FOR
TONE SELECTION
Siemens Industry, Inc.
Building Technologies Division
Florham Park, NJ
P/N 315-096162-8
+
5
_
6
7
8
ADB-11 Audible Base Terminal Blocks
4
3
ADB-11
2
1
FROM INITIATING CIRCUIT OF
COMPATIBLE CONTROL PANEL
Figure 1
Siemens Building Technologies, Ltd.
Fire Safety & Security Products
2 Kenview Boulevard
Brampton, Ontario L6T 5E4 Canada
TO NEXT DB-11 OR ADB-11
_
+
_
+
Advertisement
Related Manuals for Siemens ADB-11
Summary of Contents for Siemens ADB-11
- Page 1 Model ADB-11 The Model ADB-11Audible Base consists of a standard Series 11 base combined with an audible device. The ADB-11 is an audible base used only with Series 11 conventional detectors (DT-11, PE-11/-11T) and is powered directly from the zone circuit. (Refer to Table 1 for compatible detector model numbers and the related Installation Instructions.) All field wiring terminates at a four...
- Page 2 Constraint: Only one device is guaranteed to activate per zone. DETECTOR PLACEMENT The table below lists the detectors that can be used with the ADB-11 Detector Base, along with the appropriate Installation Instructions. Even though no specific spacings are allocated to the detectors used with...
- Page 3 (USING THE ADB-11 BASE) The detector base comes from the factory prewired. All signaling and initiating circuits are connected directly to the back of the ADB-11 audible base using the four-position terminal blocks. Note: The Audible Base Model ADB-11 attaches only to a 4-inch square electrical box with extension.
- Page 4 4. After all bases are installed, check loop continuity. Refer to System manual for the loop continuity checkout procedure. For ADB-11 loop continuity check, use the jumper furnished in every base (between terminals 1a and 1b) to complete the loop (Refer to Figure 3). An open circuit condition exists until the jumper or detector is installed in the base.
