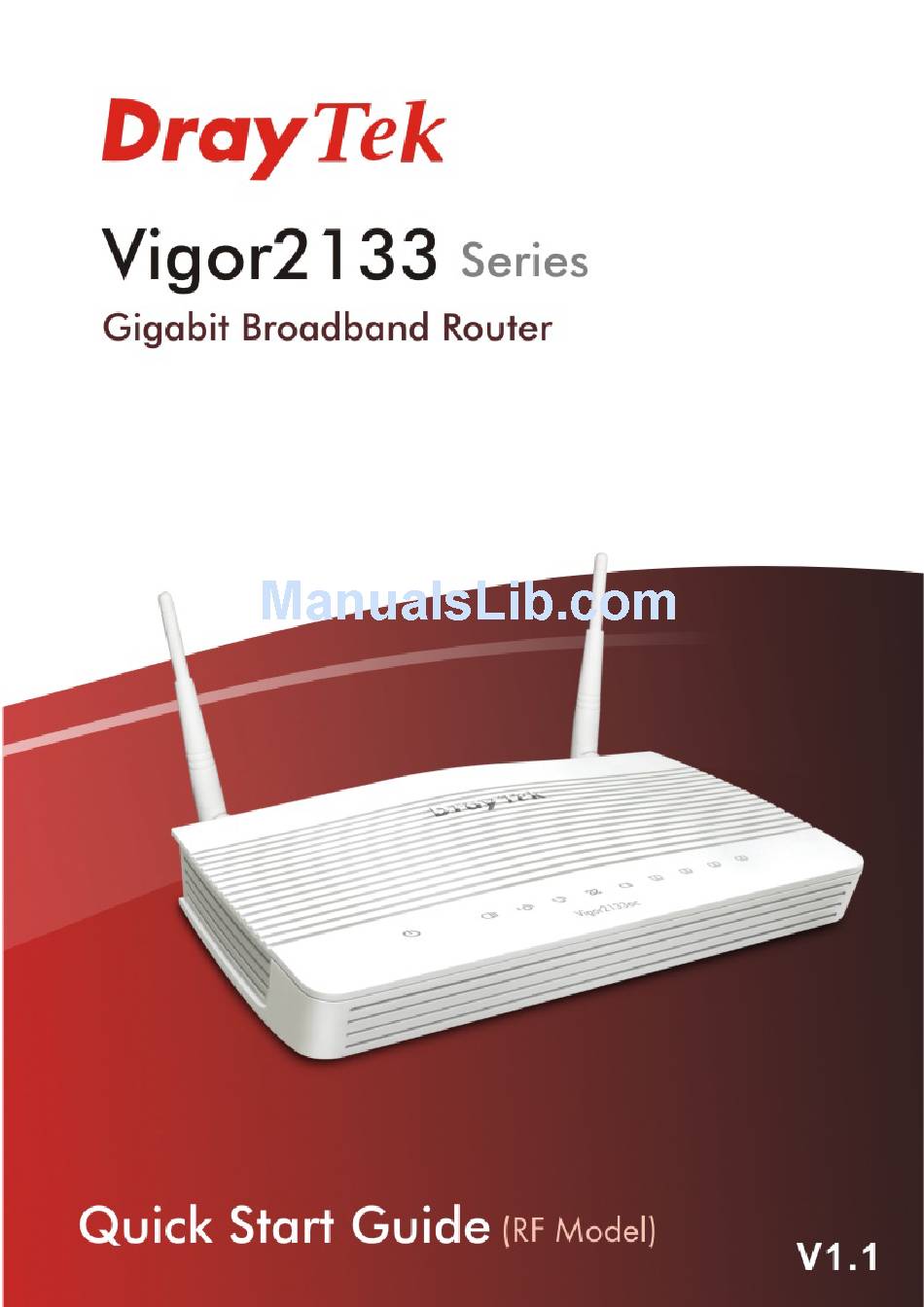

- Page 2 Vigor2133 Series Gigabit Broadband Router Quick Start Guide (for RF Model) Version: 1.1 Firmware Version: V3.8.6_RC1 (For future update, please visit DrayTek web site) Date: July 31, 2017...
- Page 3 Intellectual Property Rights (IPR) Information © All rights reserved. This publication contains information that is protected Copyrights by copyright. No part may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language without written permission from the copyright holders. The following trademarks are used in this document: Trademarks Microsoft is a registered trademark of Microsoft Corp.
- Page 4 Declaration of Conformity Hereby, DrayTek Corporation declares that the radio equipment type Vigor2133 is in compliance with Directive 2014/53/EU. The full text of the EU Declaration of Conformity is available at the following internet address: http://www.draytek.com.tw/ftp/Vigor2133/Document/CE/ Manufacturer: DrayTek Corp. Address: No.
- Page 5 This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. More update, please visit www.draytek.com.
- Page 6 Web registration is preferred. You can register your Vigor router via http://www.draytek.com. Firmware & Tools Updates Due to the continuous evolution of DrayTek technology, all routers will be regularly upgraded. Please consult the DrayTek web site for more information on newest firmware, tools and documents.
-
Page 7: Table Of Contents
1. Introduction ......................1 2. Package Content ....................2 3. Panel Explanation ....................3 4. Hardware Installation ................... 5 4.1 Network Connection ........................5 4.2 Wall-Mounted Installation ......................6 5. Software Configuration ..................7 6. Customer Service ....................11... -
Page 8: Introduction
The Vigor2133 series features advanced bandwidth control mechanism such as IP-layer QoS, NAT Session Limitation, Bandwidth Borrowed, etc., to allow easy, flexible, reliable access control and bandwidth management. The SPI (Stateful Packet Inspection) firewall uses object-based design to make settings of firewall policies easy. The CSM (Content Security Management) feature allows more precise and efficient access control for URL/Web Content Filtering, IM (Instant Messenger) and P2P (Peer to Peer) applications. -
Page 9: Package Content
Take a look at the package content. If there is anything missed or damaged, please contact DrayTek or dealer immediately. Vigor Router Quick Start Guide RJ-45 Cat-5 Ethernet Cable Antenna (for “n” or “ac” model) The type of the power adapter depends on the country that the router will be installed. -
Page 10: Panel Explanation
Status Explanation Blinking The router is powered on and running normally. Blinking When ACT and WLAN LEDs blink quickly and (Activity) simultaneously is enabled and the system waits for wireless station of connection. The router is powered off. A USB device is connected and active. Blinking The data is transmitting. - Page 11 Interface Description Wireless LAN WLAN On - Press the button and release it within 2 seconds. When ON/OFF/WPS the wireless function is ready, the green LED will be on. WLAN Off - Press the button and release it within 2 seconds to turn off the WLAN function.
-
Page 12: Hardware Installation
This section will guide you to install the router through hardware connection and configure the router’s settings through web browser. Before starting to configure the router (taking Vigor2133n for example), you have to connect your devices correctly. Connect the cable Modem/DSL Modem/Media Converter to any WAN port of router with Ethernet cable (RJ-45). -
Page 13: Wall-Mounted Installation
Vigor2133 series has keyhole type mounting slots on the underside. A template is provided on the Vigor2133 packaging box to enable you to space the screws correctly on the wall. Place the template on the wall and drill the holes according to the recommended instruction. -
Page 14: Software Configuration
To access Internet, please finish basic configuration after completing the hardware installation. The Quick Start Wizard is designed for you to easily set up your router for Internet access. You can directly access the Quick Start Wizard via Web Configurator. Make sure your PC connects to the router correctly. - Page 15 Now, the Main Screen will pop up. Click Wizards>>Quick Start Wizard. Note The home page will change slightly in accordance with the router you have. Enter the login password on the field of New Password and retype it on the field of Confirm Password.
- Page 16 On the next page as shown below, please select the appropriate protocol according to the information from your ISP. For example, you should select PPPoE mode if the ISP provides you PPPoE interface. Then click Next for next step. PPPoE: If you click PPPoE as the protocol, after clicking Next, you will get the following web page.
- Page 17 PPTP/L2TP: if you click PPTP/L2TP, you will get the following page. Please type in all the information originally provided by your ISP. Then click Next for next step. Static IP: if you click Static IP, you will get the following page. Please type in the IP address information originally provided by your ISP.
-
Page 18: Customer Service
Finish and then restart the router. Afterward, you will enjoy surfing on the Internet. If the router cannot work correctly after trying many efforts, please contact your dealer/DrayTek for further help right away. For any questions, please feel free to send e-mail to support@draytek.com.
