User Manual

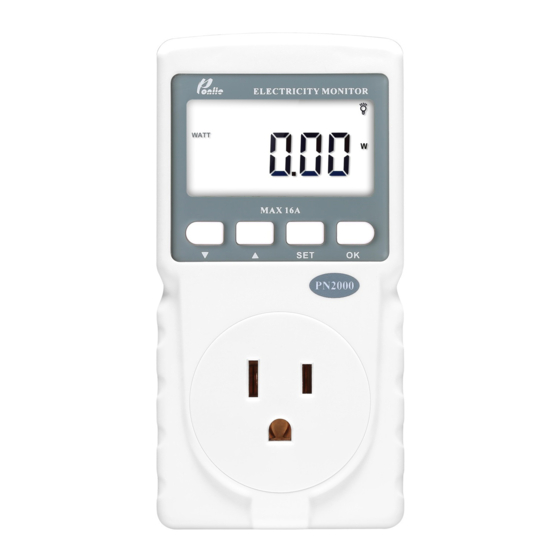

Model No: PN2000
Thank you for purchasing the Electricity Usage Monitor by Poniie. Please
read this manual carefully before using this product.
Note: There is a protective film on the screen, the film itself may seems have
some "scratches", please peel off the film before use!
Advertisement
Related Manuals for Poniie PN2000
Summary of Contents for Poniie PN2000
- Page 1 User Manual Model No: PN2000 Thank you for purchasing the Electricity Usage Monitor by Poniie. Please read this manual carefully before using this product. Note: There is a protective film on the screen, the film itself may seems have some "scratches", please peel off the film before use!
- Page 2 (as Watts/Vrms*Arms). How to calculate your dollar cost of energy consumption over a period? Plug the PN2000 device into the outlet, then plug the electric appliance which you want to test into the Power Monitor. It will start measuring the kilowatts used over a measured period of time.
- Page 3 1. Be sure to read, understand and comply with all the instructions in this manual. 2. Before using this product, check to see if there is any crack or short of plastic parts on the shell, pay attention to the insulation around the connectors. Please do not use the product if it is damaged.
- Page 4 ▼ 1. There are four functional buttons on the product “ ”, “▲”, “SET” & “OK” 2. LCD display is shown as above. 1. Device startup/shutdown Directly plug the monitor into the power supply socket, and connect to commercial power to start the device; disconnect the power supply to shut down.
- Page 5 Under the “CUR” display interface, press “SET” for 2 seconds to enter backlight setting interface. It will display “LEd” after entering the interface, and the “ON or OFF” is flickering (as shown in Figure 1). At this time, you can ▼...
- Page 6 How to clear EC and CT data? Respectively switch to EC and CT monitoring interface. Press “SET” for 2s, the cumulative electricity consumption value and time will flicker. Press “OK” to reset. ○ W atts and Current Respectively switch to Watts (WATT) monitoring interface (as shown in Figure 4) and Current (CUR) monitoring interface (as shown in Figure 5) by ▼...
- Page 7 ▼ by pressing “ ” or “▲”, the measuring display ranges shall be 110.0-260.0V and 40.00-60.00Hz respectively. ○ P ower Factor and Overload Indication Switch to Power Factor (PF) monitoring interface (as shown in Figure 8) by ▼ pressing “ ”...
- Page 8 Note: The default factory value is 1800W (16A, 115V), you can set your own limit if needed. When the power of the electrical appliance exceeds the setting limit, the backlight will flicker to indicate overload (as shown in Figures 9), please turn off the power and remove appliance immediately.
- Page 9 The warranty period for quality related issues of this product is one year. If the device does not operate properly or has any other faults, please always feel free to contact Poniie Customer Service at any time. We will provide you with best service and do our best to help you out.
