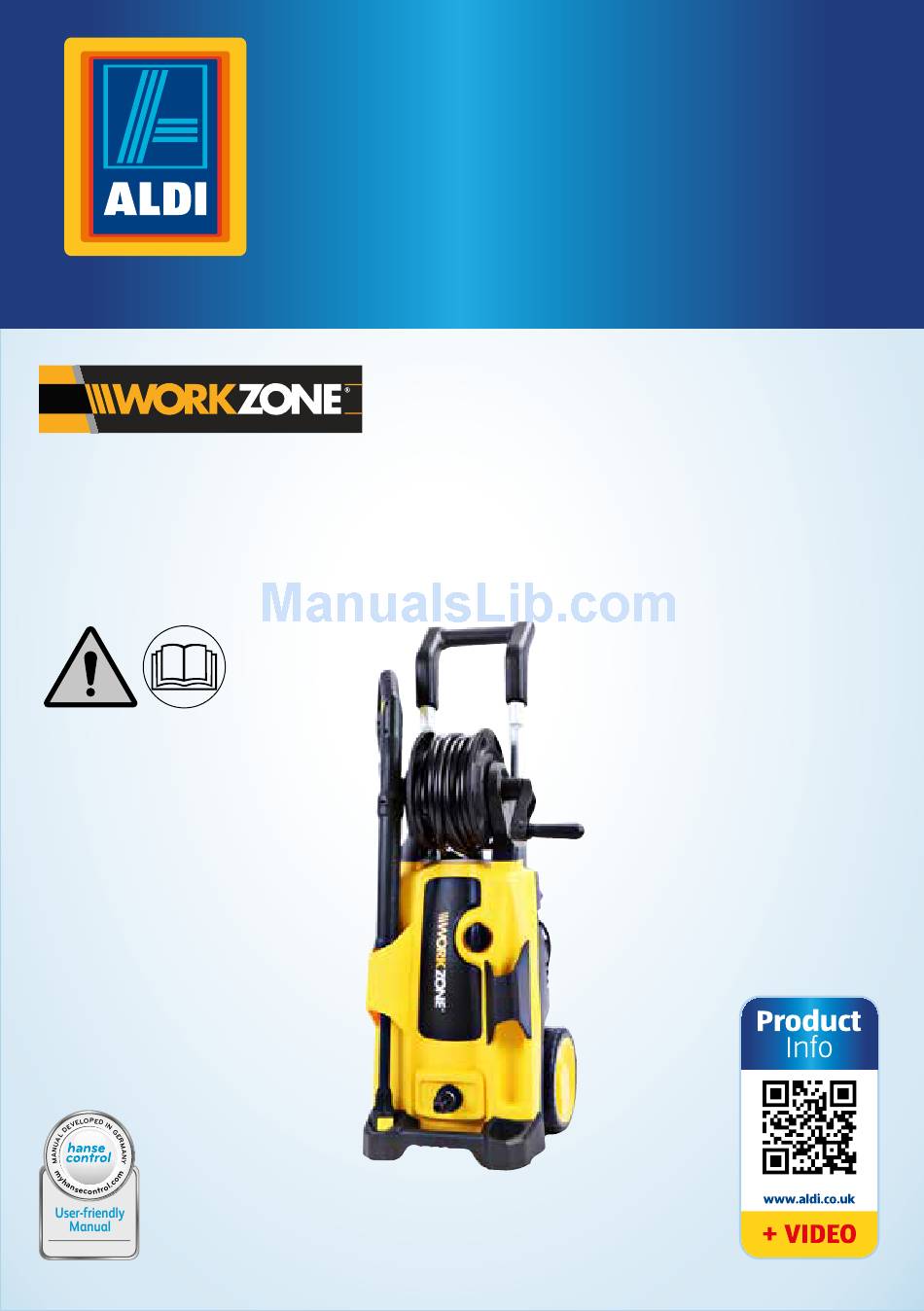

- Page 1 User Manual Spend a little Live a lot 2.2 KW PRESSURE WASHER Original instructions ID: #05007...
- Page 2 QR codes take you where you want to go quickly and easily Whether you require product information, spare parts or accessories, details on warranties or aftersales services, or if you want to watch a product demonstration video, our QR codes will take you there in no time at all. What is a QR code? A QR code (QR = Quick Response) is a type of matrix that can be read with a smartphone camera and that contains a link to a...
-
Page 3: Table Of Contents
Contents Overview ..............4 Package contents/device parts .......6 General information ..........7 Reading and storing the user manual ....... 7 Explanation of symbols ..........7 Safety ................9 Proper use ..............9 Safety notes ..............9 First use ..............14 Checking the washer and package contents...14 Assembling the washer ..........15 Operation .............. -
Page 4: Overview
OF F... -
Page 6: Package Contents/Device Parts
Package contents/device parts Handle (height-adjustable) High-pressure hose (with hose clamp) Hand crank (foldable) Cleaning pin ON/OFF switch Holder for the spray gun Screw connection for the water inlet hose (with adapter) Button (height adjustment for the handle) Cleaner container Mains cord Spray gun (with a swivelling lance) Spray gun connection (with a quick lock) Trigger... -
Page 7: General Information
General information General information Reading and storing the user manual This user manual accompanies this 2.2 kW pressure washer (referred to below only as “washer”). It contains important information on start-up and handling. Before using the washer, read the user manual carefully, particularly the safety instructions. - Page 8 General information Caution! Read the user manual prior to start-up! This symbol indicates that the mains plug must be disconnected from the power supply immediately if the cord is damaged, twisted or knotted, if it has been severed, or if the washer is left unsupervised, even for a short period of time.
-
Page 9: Safety
Safety The LGA-tested quality certificate certifies consistent quality corresponding to specific criteria that has been tested by an independent body. It confirms the safety and usability of the product and therefore its overall quality. Declaration of conformity (see chapter “Declaration of conformity”): Products marked with this symbol meet all applicable Community regulations for the European Economic Area. - Page 10 Safety the earth exceeds 30 mA for 30 ms, or that it be equipped with an earth tester. − Connect the washer only if the mains voltage of the socket corresponds to the rating plate specification. − Connect the washer only to an easily accessible socket to allow the washer to be disconnected from the mains quickly in the event of a fault.
- Page 11 Safety − Never store the washer such that there is a risk of it falling into a tub or a basin. − Never reach to retrieve an electrical device if it has fallen in water. In such a case, immediately disconnect the mains plug from the socket.
- Page 12 Safety WARNING! Risk of electric shock! Unsuitable extension cords may be dangerous and could result in an electric shock. − If an extension cord is used, the mains plug and coupling must be water-tight and must never be placed in water. Mains plug and coupling must bear the IP44 label.
- Page 13 Safety Discolouration of the tyres indicates the first signs of damage. Damaged vehicle tyres and tyre valves pose a risk to life. Keep the high-pressure jet at a distance of at least 30 cm! − The high-pressure washer must not be used by children or untrained persons.
-
Page 14: First Use
First use − High-pressure hoses, fittings and couplings are important for guaranteeing the safety of the device. Only use high- pressure hoses, fittings and couplings recommended by the manufacturer. − Only use original spare parts from the manufacturer or approved by the manufacturer to guarantee the safety of the device. -
Page 15: Assembling The Washer
First use WARNING! Risk of injury! The washer could be inadvertently activated and cause injury. − Ensure that the washer is disconnected from the mains before you assemble the washer. Assembling the washer WARNING! Health hazard! The washer must not be directly connected to the drinking water network because the return flow of water poses a risk to the drinking water. -
Page 16: Operation
Operation Operation NOTICE! Risk of damage! Improper handling of the washer may result in damage to the washer. − Familiarise yourself with all control elements before starting up the washer. Before each use, make sure that the washer is functional. −... -
Page 17: Stopping The Washer
Operation Stopping the washer 1. Release the trigger . The high-pressure pump will stop immediately. to OFF. 2. Move the ON/OFF switch 3. Close the water tap for the water inlet. 4. Push the trigger until the pressure in the washer has been released. -
Page 18: Using The Cleaning Attachments
Using the cleaning attachments 2. Fill the suction hose with water and allow all of the entrapped air to escape. 3. Connect the suction hose to the washer. Remove all attachments. 4. Switch on the washer and press the trigger until the washer discharges a steady stream of water. -
Page 19: Fitting The Turbo Nozzle
Using the cleaning attachments 3. Push the spray lance slightly in the direction of the spray and turn the spray lance anticlockwise at the same time. 4. Remove the spray lance. Fitting the turbo nozzle NOTICE! Risk of damage! When using the turbo nozzle, there is a very high risk of damaging sensitive surfaces. -
Page 20: Fitting The Vario Pressure Nozzle
Using the cleaning attachments Fitting the Vario pressure nozzle The Vario pressure nozzle produces a fan beam at a 30° angle. 1. Place the Vario pressure nozzle on the quick lock of the spray lance in such a way that the small rectangular elevation fits exactly into the rectangular recess in the spray lance 2. -
Page 21: Using The Cleaner
Using the cleaner Removing the wash brush to OFF. 1. Stop the washer and move the ON/OFF switch 2. Push the trigger until the pressure in the washer has been released. 3. Push the wash brush slightly in the direction of the spray gun and turn the wash brush anticlockwise at the same time. -
Page 22: Cleaning And Maintenance
Cleaning and maintenance The washer is equipped with a device for the automatic supply of cleaners for the water jet. 1. Prepare the cleaning solution by diluting the cleaner 1 part to 10 with water. 2. Lock the trigger by pushing downwards onto the safety lock 3. -
Page 23: Cleaning The Dirt Filter
Storage Cleaning the dirt filter The washer is equipped with a dirt filter to protect the pump. If the dirt filter is not kept clean, the flow of water to the washer will be restricted and the pump could be damaged. 1. -
Page 24: Troubleshooting
Troubleshooting − Secure the end of the hose with the hose clamp. − Wind the mains cord around the cord holder at the rear side of the device. − Store the accessory parts in the compartments provided for this purpose on the front and rear side of the washer. Troubleshooting WARNING! Risk of injury! - Page 25 Troubleshooting Fault Cause Solution Washer is Contact the The mains cord working, but manufacturer or an damaged. keeps cutting authorised service An internal electrical out. centre at the service connection has address specified on the become loose. warranty card. The ON/OFF switch is defective.
- Page 26 Troubleshooting Fault Cause Solution Large The high-pressure Clean the high-pressure fluctuations in nozzle is clogged. nozzle; see section pressure “Cleaning the high-pressure nozzle”. There is only Check the water insufficient water pressure. pressure. The water inlet hose is Check the water inlet kinked.
-
Page 27: Technical Data
Technical data Technical data Model: Q1W-SPO5-2200A Article number: 94313 Power consumption: 2200 W Operating pressure: max. pressure: 15 MPa (150 bar) Nominal pressure: 11 MPa (110 bar) Input pressure/temperature max.: 1.0 MPa (10 bar)/40 °C Power consumption: 9 A Sound power level: 94 dB (uncertainty K : 4 dB) Guaranteed sound power level: 98 dB... -
Page 28: Declaration Of Conformity
Declaration of conformity Declaration of conformity EU Declaration of Conformity MEROTEC GmbH D-47877 Willich, Hanns-Martin-Schleyer Str. 18a, Germany herewith declare that our product High Pressure Water Cleaner Model no. Q1W-SP05-2200 und Q1W-SP05-2200A complies with the following directives: Machinery Directive 2006/42/EC EMC Directive 2014/30/EU Noise Directive 2000/14/EC RoHS 2011/65/EU... -
Page 29: Spare Parts List
Spare parts list Spare parts list Spare part Part number Order (see package number contents page 6) Hand crank (foldable) 1172B10 Cleaning pin 1142005 Adapter for the water inlet 1151C01 Cleaner container 1175022 Cleaner container cap 1119003 Spray gun (with a swivelling lance) 01106BG Spray lance 1106B50... -
Page 30: Disposal
Disposal Disposal Disposing of the packaging Dispose of the packaging separated into single type materials. Dispose of cardboard and carton as waste paper and film via the recyclable material collection service. Disposing of the washer (Applicable in the European Union and other European states with systems for the separate collection of reusable waste materials) Old devices must not be disposed of with household waste! - Page 31 PRODUCED IN CHINA FOR: ALDI STORES LTD. PO BOX 26, ATHERSTONE WARWICKSHIRE, CV9 2SH. ALDI STORES (IRELAND) LTD. PO BOX 726, NAAS, CO. KILDARE. Visit us at www.aldi.com AFTER SALES SUPPORT 94313 +441904727501 +35319022605 support@coreservice.co.uk YEARS MODEL: WARRANTY Q1W-SPO5-2200A 04/2017...
