  • Page 1 Part # (11-0096-11)
  • Page 2 This manual covers your new 2009 TidalFit...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Congratulations.............. Safety Warnings.............. Line Drawing Key............TidalFit Configuration and Water Capacities....Electrical Requirements and Installation..... Basic System Features and Functions......60 Hz Electrical Wiring........... 50 Hz Electrical Wiring........... TidalFit Start Up.............. Selecting a Location..........Inspection.............. Filling the Pool with Water........
  • Page 4 TABLE OF CONTENTS cont... Spa Chemicals Glossary.......... Maintaining the Proper pH........Warranty Information............ Interior Pool Diagram...........

  • Page 5: Congratulations

    Congratulations... Congratulations on the purchase of your new TidalFit. We know you will enjoy your TidalFit. Not only will your TidalFit be a physical workout, but also it will be relaxing and fun. We believe this will be an indispensable part of a healthy lifestyle. The TidalFitl lifestyle is one that encourages health and well-being.
  • Page 6 For your future reference and convenience, please record the Se- rial and Model number along with the installation date in the spaces provided below. STORE THIS MANUAL WHERE YOU CAN EAS- ILY FIND IT WHEN NEEDED. The serial and model numbers are mounted on the base of the equipment enclosure area, as shown below.

  • Page 7: Safety Warnings

    PLEASE TAKE THE TIME TO READ ALL OF THESE WARNINGS AND CAUTIONS PRIOR TO USING YOUR POOL PLEASE, be a responsible TidalFit owner. When installing and using this pool, always adhere to basic safety precautions. Be sure to list emergency telephone numbers at the telephone nearest the pool, including physician, hospital, ambulance, police, and the fire department.
  • Page 8 SAFETY WARNINGS cont... 8. WARNING - To reduce the risk of injury: a) The water in a pool should never exceed 40ºC (104ºF). Water temper- atures between 38ºC (100ºF) and 40ºC are considered safe for a healthy adult. Lower water temperatures are recommended for young children and when pool use exceeds 10 minutes.

  • Page 9: Line Drawing Key

    6. Do not service this product yourself as opening or removing covers may expose you to dangerous voltage or other risk of injury. Refer all ser- vicing to qualified service personnel. KEEP THESE SAFETY INSTRUCTIONS IN A CONVENIENT AND READILY ACCESSIBLE LOCATION!! LINE DRAWING KEY Name of Component Symbol for Component...

  • Page 10: Tidalfit Configuration And Water Capacities

    CONFIGURATION AND WATER CAPACITY TidalFit Volume 1715 gal 7554 l Weight (dry/filled) 2000 / 16,303 lbs 907 / 7,395 kg Dimensions 168x91x52in 427x231x132 cm Control CE SWIM SPA CE SWIM SPA Heater 4kW in.THERM 4kW in.THERM Circulation System Hi-Flo Standard...

  • Page 11: Electrical Requirements And Installation

    Failure to do so will terminate all warranties and all listings from the independent listing facility. 1) The TidalFit requires a 240 VAC dedicated system. The pool must be hard wired to the power supply, with no plug-in connections, extension cords, or sharing of service.

  • Page 12: Basic System Features And Functions

    Basic System Features and Functions Main Board Power Requirements (60Hz) • 240VAC, 48A, Class A GFCI-protected service (Circuit Breaker rating = 60A max.) • 4 wires (hot, hot, neutral, ground) Auxiliary Heater Power Requirements (60 Hz) • 240VAC, 60Hz, 24A, Class A GFCI-protected service (Circuit Breaker rating = 30A max.) •...

  • Page 13: 60 Hz Electrical Wiring

    60Hz GFCI WIRING DIAGRAM...
  • Page 14 Pack Terminal Block from GFCI MUST BE DONE BY A CERTIFIED ELECTRICIAN 1) The black and red wires from the main electrical box* must be con- nected to the input lugs in the GFCI. 2) The white wire from the main electrical box* must be connected to the dedicated neutral bar inside the GFCI box.

  • Page 15: 50 Hz Electrical Wiring

    tions 50Hz Electrical Service Configuration Op cont’d.. Dual Service Option (2 x 16 Amp) Completely remove the white wire from J26 and J32. Note: J32 and J23 are electrically identical.The white wire may be at- tached to either terminal before removal. DIP Switch A2 must be 3 Phase Service Option IMPORTANT - Service...

  • Page 16: Tidalfit Start Up

    In preparation for installing your new TidalFit, you should ensure that your chosen location meets some minimum guidelines: 1) Place your TidalFit on a surface that is large enough for the entire Tidal- Fit to fit. Consider the space needed to easily access equipment compart- ments and circuit breakers.

  • Page 17: Inspection

    8). If the TidalFit is placed on the ground, even for a short period of time, it must be supported by stones that are at least 2 inches thick and 12 inches square. A solid foundation is recommended as soon as pos- sible.

  • Page 18: Turning The Power On

    If the GFCI breaker fails to operate as described, there is a possibility of an electrical shock if the TidalFit is used. Shut off the power at the main electrical service panel until the source of the problem has been identi-...

  • Page 19: Priming The Pump

    Tidal Fit START-UP cont... TESTING THE GFCI BREAKER cont... NOTE: When power is turned on, your pool is automatically programmed to start circulating water through the circulation pump. Each pump and/ or blower will come on consecutively for approximately 1 minute to au- tomatically purge the system.

  • Page 20: Ml700 Panel User Guide

    ML700 PANEL USER GUIDE Initial Start-up When your pool is first actuated, it will go into Priming mode (after dis- palying some configuration information). Please see the M-7 Installa- tion Instruction Manual for complete instructions on Power-up and Pump Priming. The Priming mode will last for up to 4 minutes and then the pool will begin to heat and maintain the water temperature in the Standard mode.
  • Page 21 Time When time hasn’t been programmed, the “TIME” icon flashes to set the time, press “Time” then “Mode/Prog.” Use the “Warm” and “Cool” buttons to adjust time. See previous page for more detailed instructions. (Time settings on EL1000 and some EL2000 systems are not preserved in the event of power loss;...
  • Page 22 Temp Set (80ºF - 104ºF / 26.0ºC - 40.0ºC) The last measured temperature is constantly displayed on the LCD. Your pool’s set temperature range may vary from range shown above depend- ing on your manufacturer’s settings Note that the last measured spa temperature displayed is current only when the pump has been running for at least 1 minute.
  • Page 23 pump in Standy Mode (“Drain Mode”). In this case, press any other but- ton to exit. System will will revert to previous mode after 1 hour. Jets 1 Press the “Jets 1” button once to turn pump 1 on or off, and to shift be- tween low and high speeds if equipped.
  • Page 24 default is 8:00 AM to 10:00 AM and 8:00PM to 10:00 PM. Press “Time” then “Mode/Prog” to step through the filter settings to see how they are currently set. Each filter cycle automatically operates the pump for the duration of the filter cycle.
  • Page 25 Press “Mode/Prog” will enter the new filter cycle times into the system and display the current water temperature. Pressing “Time” at any time during this programming sequence will save the values entered up to that point and exit programming. If you would like to select continuous filtration, set the filter 1 start and end times to be the exact same time.
  • Page 26 Freeze Protection If the temperature sensors within the heater detect a low enough temper- ature, then the pump(s) automatically activate to provide freeze protec- tion. The pump(s) and blower will run either continuously or periodically depending on conditions. In colder climates, an optional additional freeze sensor may be added to protect against freeze conditions that may not be sensed by the standard sensors.

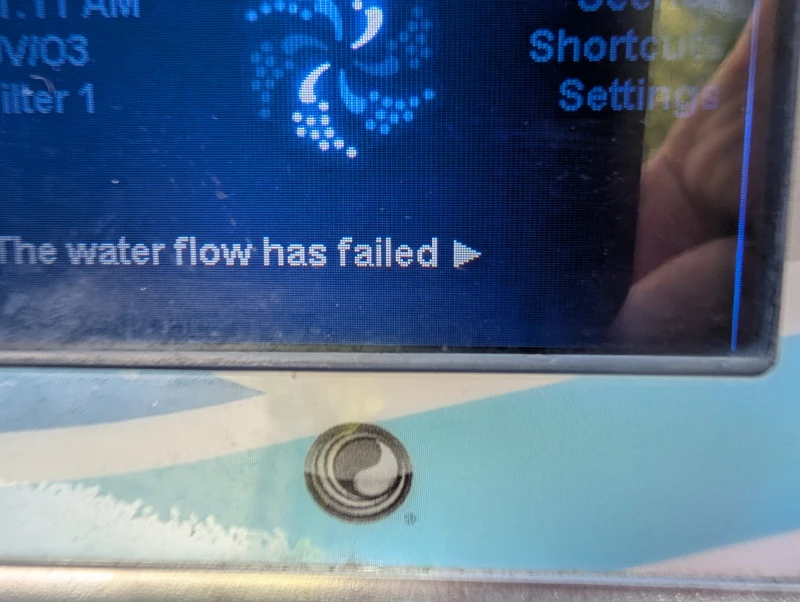

  • Page 27 Diagnostic Messages No message on display. Power has been cut off to the spa. • The control panel will be disabled until power returns. Time of day will be preserved for 30 days with a battery back-up on EL8000 and EL 5000 systems.
  • Page 28 Diagnostic Messages cont... Pool is shutdown. The sensor that is plugged into the Sensor “B” jack is not working • If the problem persists, contact your dealer or service organization. (May appear temporarily in an overheat situation and disappear when the heater cools).

  • Page 29: Diagnostic Messages

    Diagnostic Messages cont... • Follow action required for “dr” message. Pool will not automatically reset; you may press any button to reset. When your pool is first actuated, it will go into Priming Mode. • See the M-7 Installation Instruction Manual for complete instructions on Power-up and Pump Priming.
  • Page 30 Diagnostic Messages cont... Sanitizer is low. • Add sanitizer according to manufacturer’s instructions. Sanitizer is high. • Remove pool cover and allow sanitizer to dis- sipate. The pump is on during Standby Mode to assist in draining the pool. • Press “Jets 1”...
  • Page 31 Diagnostic Messages cont... • POWER DOWN POOL IMMEDIATELY. DO NOT ENTER THE WATER. contact your dealer or service organization. A pump appears to have been stuck on the last time spa was powered. • POWER DOWN POOL IMMEDIATELY. DO NOT ENTER THE WATER. Contact your dealer or service organization.
  • Page 32 Periodic Reminder Messages cont... Every 365 days. • Install new filter. As needed. • Install new Mineral cartridge * User can suppress all reminders in User Preferences. **All of these Periodic Messages can be disabled individually by the pool manufacturer. ***Any of these frequencies may be changed by the pool manufacturer.
  • Page 33 GFCI Trip Test Procedure The installer can cause the GFCI Trip Test to occur sooner by initiating it with the following button sequence. Press “Warm”, then “Jets 1”, then “Light.” (Each press must be within 3 seconds of the previous press.) Press the “Warm” button repeatedly until “9FC”...

  • Page 34: Rowing Exercise

    Rowing Exercise Install Rowers Press the quick release button. Snap the back of the rowing bar into the mount. Install First Set of Tension Cords Use the mounting loops as a slip knots around each safety bar. Clip tension cord to mounting loop. Clip tension cord to rowing bar.

  • Page 35: Upper Body Exercise

    Upper Body Workouts Install Tension Cords Choose a desired pair of the varying length tension cords. Clip the tension cords to the mounted loops. Attach handles to the tension cords. Chest Press Standing up- right and facing away from the cords, Position your hands and elbows at...

  • Page 36: Treadmill/Advanced Swimming.w/Superswim

    Treadmill with SuperSwim Install Super Swim Pole Attach the two poles together by matching up the brass attachments and twisting until tightened. Place bottom of the pole into the attachment on the lip of the pool, above the rowing seat. Adjust nylon rope to desired length.

  • Page 37: Maintaining Your Tidalfit

    MAINTAINING YOUR TidalFit DRAINING YOUR TidalFit Your TidalFit needs to be drained, cleaned, waxed, and refilled about every six months. More frequent water changes may be necessary if bather load is heavy. A hose bib has been provided below the left side of your front access panel, to assist you in draining your pool.

  • Page 38: Jet Care

    JET CARE We recommend that you clean your jets when you drain your pool. However, if you do need to clean your jets in between this can be accomplished with a full pool. 1) To remove the jet inserts turn the jet counterclockwise to the off position until it stops.

  • Page 39: Removing, Installing And Cleaning Filters

    MAINTAINING YOUR TidalFit cont... REMOVING, INSTALLING AND CLEANING FILTERS These are the steps needed to successfully replace your filters You should replace your disposable pool filters and clean your non-dispos- able filters every four months. 1) Turn off all power to your pool and remove the filter lid by lifting it out towards you.

  • Page 40: Winterizing Your Pool

    WINTERIZING YOUR TidalFit It is not recommended that you drain your pool completely during freez- ing conditions. We recommend that you leave your pool full of water with the power on to keep the tub from freezing. If you decide to drain your pool during freezing conditions, contact your dealer for help.

  • Page 41: Pool Cabinet Care

    This cabinet requires no maintenance. You may wish to clean the cabi- net with mild soap and water from time to time. If you elected to pur- chase your TidalFit with a wood cabinet, this cabinet is stained and sealed with an oil based acrylic stain. The stain is formulated especially for pool cabinet and deck applications and is resistant to ultraviolet light damage caused by sun rays.

  • Page 42: Cover Care

    After cleaning, make sure all residues are removed prior to filling the pool. This will help prevent sudsing and improper chemical balance. COVER CARE Cleaning of your pool cover is an important part of routine maintenance. Dirt acts as an abrasive to the vinyl topcoat, and can also cause wear to folds, seams, and stitching.

  • Page 43: Chemical Treatment Of Water

    MAINTAINING YOUR TidalFit cont... CHEMICAL TREATMENT OF WATER Water from your tap is fine for showers, bathing and drinking. However, in a contained recirculating system such as in a pool, water must be treated with chemicals. The main purpose of chemical treatment is to keep the water sanitary and to maintain a specific balance of the water.

  • Page 44: Water Chemistry

    WATER CHEMISTRY CAUTION: The chemicals used to maintain the pH balance of the water and to sanitize the water can be dangerous. Always follow these basic guidelines when handling the chemicals: 1. Always read and follow the directions on the label, unless directed otherwise.
  • Page 45 WATER CHEMISTRY cont... WATER TREATMENT GLOSSARY cont... The effects of low PH can be rapid sanitizer loss, eye and skin irritation, expedited corrosion of metals, as well as staining throughout the pool. High PH can result in cloudy water, low sanitizer efficiency, as well as eye and skin irritation.
  • Page 46 9 - Organic Matter: These are carbon-derived substances typically generated by living organisms. In a pool, they are most frequently intro- duced into the water by bathers. Enzyme products such as Spa Perfect by Natural Chemistry are most effective at eliminating organic matter from your body of water.
  • Page 47 WATER TREATMENT GLOSSARY cont... 17 - Chloramines: Irritating, odorous forms of combined chlorine, formed by the reaction of chlorine with nitrogen containing waste prod- ucts. Chloramines are ineffective as a pool or spa sanitizer. High lev- els of chloramines can cause the problems of “Red Eyes” or “Stinging Eyes.”...
  • Page 48 24 - Biguanide: The generic name for a non-chlorine, non-bromine, sanitizer that utilizes the polymer PHMB (polyhexamethylene bigu- anide). It is used to totally eliminate the use of chlorine or bromine. 25 - Biofilm: A slippery coating of microorganisms that can develop in poorly sanitized pools and spas.

  • Page 49: Spa Chemicals Glossary

    SPA CHEMICALS GLOSSARY 1 - Alkalinity Up: The total alkalinity of your pool water should be between 80-140 PPM. A proper alkalinity will help buffer your pool water against sudden changes in pH. Every 2.5 tablespoons of Alkalinity Up will raise your alkalinity by 10 PPM in a pool hold- ing 500 gallons of water.

  • Page 50: Maintaining The Proper Ph

    7 - pH Up: The effects of low pH can be rapid sanitizer loss, eye and skin irritation, expedited corrosion of metals, as well as staining through- out the spa. pH up can be purchased from your dealer in either liquid or solid granular form.

  • Page 51: Warranty Information

    TRANSFER OF OWNERSHIP. COMMERCIAL APPLICATIONS ARE EXCLUDED FROM THIS AND ALL WARRANTIES. If the TidalFit structure is defective and must be replaced, it will be re- turned to the factory. The original, installed equipment (this includes the frame, skirt, and all equipment) will be reinstalled. If new equipment is desired, there will be additional charges to the customer.
  • Page 52 Other exclusions may apply. Normally problems associated with material and workmanship can and will be repaired. If the TidalFit surface is repaired, the repair is limited to the affected area only, and there is no guarantee against discoloration or fading.
  • Page 53 Cabinet Warranty The TidalFit cabinet is described as the outer material encasing the Ti- dalFit structure. The manufacturer warrants it to be free from defects in material and/or workmanship from the date of delivery.
  • Page 54 TidalFit Cover The cover manufacturer for TidalFit warrants the cover for one year. Do not return the TidalFit cover to the manufacturer. This will delay the replacement or repair of the cover. The TidalFit manufacturer is not re- sponsible for lost covers.
  • Page 55 32º F to 110º F, damage caused by clogged or dirty filter cartridges, damage to the TidalFit from an absence of a hard cover, damage to components from improper pH, use of any type of acid, or from chemical imbalance.
  • Page 56 Cabinet Screws Incorrect Wiring Shipping Charges Any alteration of the TidalFit that has not been pre-authorized by the manufacturer will void all warranties. If the manufacturer approves an alteration, verify that this alteration is covered under warranty. Dam- age caused by moving a pool that is blocked in or that has been recessed, along with additional charges for labor, is not covered by this warranty.

  • Page 57: Interior Pool Diagram

    INTERIOR SPA DIAGRAM...
