SPLIT TYPE ROOM AIR CONDITIONER
E DB98-08237A(5)
OWNER'S
INSTRUCTIONS
Indoor unit
AQ07S8GE
AQ07SBGE
SH07ZS8
AQ09S8GE
AQ09SBGE
SH09ZS8
AQ12SBGE
AQ12SGGB
AQ12SGGE
SH12ZSG
AQ18S0GB
AQ18S0GE
SH18ZS0
AQ24S6GB
AQT24S6GE
SH24TS6
( Cool and Heat )

Outdoor unit

UQ07S8GE
UQ07SBGE
SH07ZS8X
UQ09S8GE
UQ09SBGE
SH09ZS8X
UQ12SBGE
UQ12SGGB
UQ12SGGE
SH12ZSGX
UQ18S0GB
UQ18S0GE
SH18ZS0X
UQ24S6GB
UQT24S6GE
SH24TS6X

Advertisement

Table of Contents
loading

Related Manuals for Samsung AQ07S8GE

Summary of Contents for Samsung AQ07S8GE

  • Page 1: Outdoor Unit

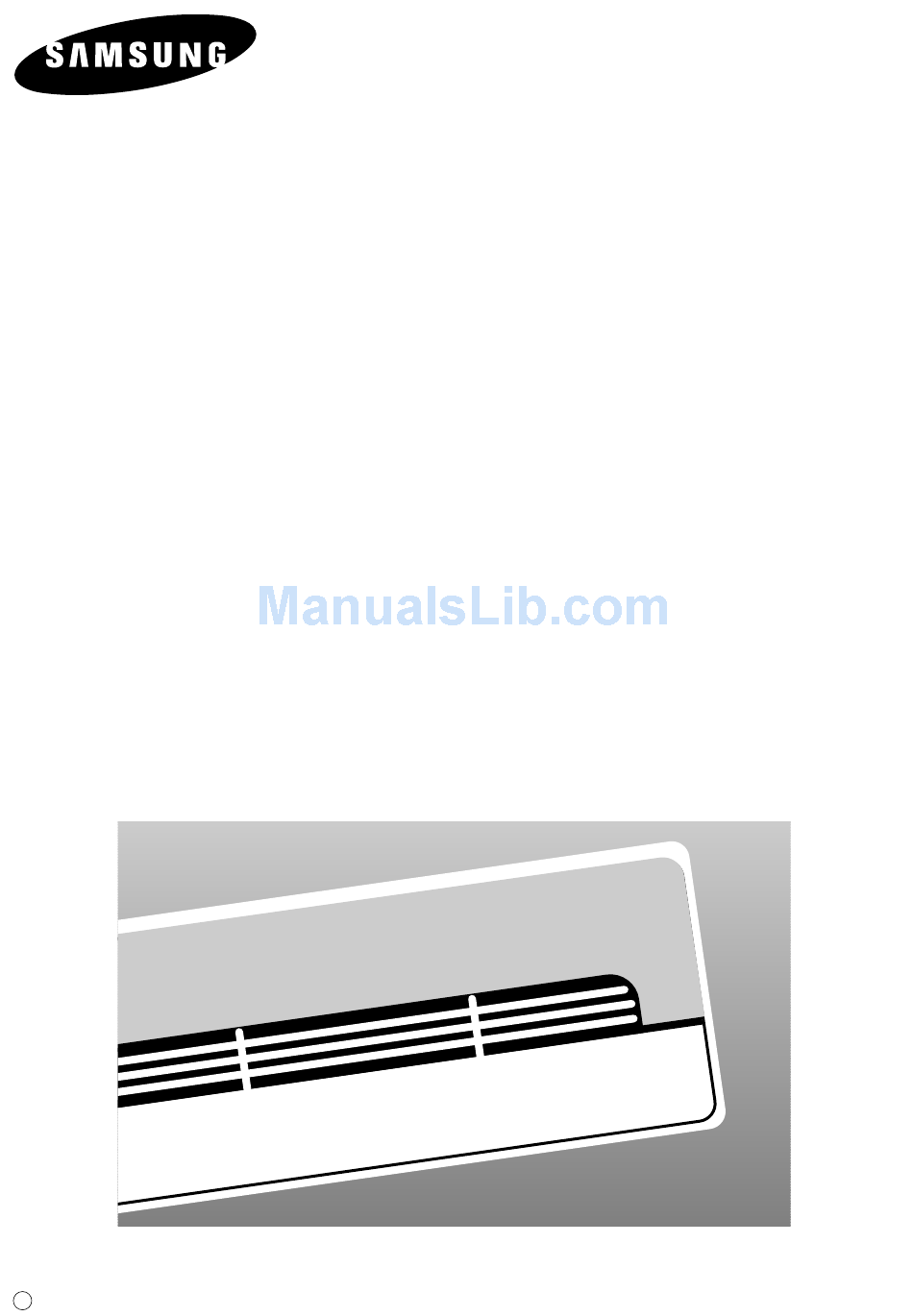

    SPLIT TYPE ROOM AIR CONDITIONER E DB98-08237A(5) OWNER’S INSTRUCTIONS Indoor unit AQ07S8GE AQ07SBGE SH07ZS8 AQ09S8GE AQ09SBGE SH09ZS8 AQ12SBGE AQ12SGGB AQ12SGGE SH12ZSG AQ18S0GB AQ18S0GE SH18ZS0 AQ24S6GB AQT24S6GE SH24TS6 ( Cool and Heat ) Outdoor unit UQ07S8GE UQ07SBGE SH07ZS8X UQ09S8GE UQ09SBGE SH09ZS8X...

  • Page 2: Safety Precautions

    WARNING DANGER CAUTION If the power supply cord of this air conditioner is damaged, it must be replaced by the manufacturer or its authorized service personnel only in order to avoid a safety hazard. Do not attempt to install the air conditioner by yourself.

  • Page 3: Table Of Contents

    Solving Common Problems ......23 Cleaning Your Air Conditioner ......24 Cleaning Deodorizing and Bio-Green filters (option) .

  • Page 4: View Of The Unit

    View of the Unit The design and shape are subject to change according to the model. Indoor Unit Air filter (under the grille) TURBO indicator (RED) Operation indicator (Cooling-GREEN, Heating-RED) Air Inlet Air flow blades (outlet) On/Off switch Remote Control Sensor Energy Saving indicator (GREEN) Timer indicator...
  • Page 5 Outdoor Unit UQ07S8GE SH30ZC1(C2)X Air Outlet Outdoor Unit UQ07SBGE Air Outlet Outdoor Unit UQ12SGGB Air Outlet Outdoor Unit UQ18S0GB UQ24S6GB Air Outlet SH07ZS8X UQ09S8GE SH09ZS8X Air Inlet(Rear) Connection Valve (inside) UQ09SBGE UQ12SBGE Air Inlet(Rear) Connection Valve UQ12SGGE SH12ZSGX Air Inlet(Rear) Connection Valve (inside) UQ18S0GE...

  • Page 6: Remote Control-Buttons And Display

    Remote Control - Buttons and Display Remote control transmission indicator Operating mode AUTO, COOL, FAN, Temperature setting Turbo mode Sleep mode Energy saving Fan speed Air flow direction On Timer setting Off Timer setting Battery discharge indicator Energy Saving button DRY, HEAT) Mode selection button...

  • Page 7: Getting Started

    Your Owner’s Instructions contains valuable information on using your air conditioner. Please take the time to read it as it will help you take full advantage of the unit’s features. The booklet is organized as follows.

  • Page 8: Inserting The Remote Control Batteries

    Inserting the Remote Control Batteries You must insert or replace the remote control batteries when : You purchase the air conditioner The remote control does not work correctly Use two AAA, LR03 1.5V batteries. Do not use old batteries or different kinds of batteries together.

  • Page 9: Selecting The Automatic Operating Mode

    Selecting the Automatic Operating Mode You can start the air conditioner in Automatic mode from your remote control. In the Automatic mode, the standard temperature and the optimum fan speed is selected automatically. You can adjust the standard temperature but not the fan speed.

  • Page 10: Cooling Your Room

    The air conditioner starts up in the mode selected when the unit was last used. The indoor unit beeps. IMPORTANT The air conditioner is fitted with a protection mechanism to prevent the unit from being damaged when it is started immediately after being: Plugged in Stopped lt will start up normally after three minutes.

  • Page 11: Heating Your Room

    (On/Off) button. Result: The operation indicator on the indoor unit lights up. The air conditioner starts up in the mode selected when the unit was last used. The indoor unit beeps. The air conditioner is fitted with a protection mechanism...

  • Page 12: Changing The Room Temperature Quickly

    If necessary, press the (On/Off) button. Result: The operation indicator on the indoor unit lights up. The air conditioner starts up in the mode selected when the unit was last used. The indoor unit beeps. Press the button.

  • Page 13: Removing Excess Humidity

    If necessary, press the (On/Off) button. Result: The operation indicator on the indoor unit lights up. The air conditioner starts up in the mode selected when the unit was last used. The indoor unit beeps. IMPORTANT The air conditioner is fitted with a protection mechanism...

  • Page 14: Airing Your Room

    If necessary, press the (On/Off) button. Result: The operation indicator on the indoor unit lights up. The air conditioner starts up in the mode selected when the unit was last used. The indoor unit beeps. If the is not displayed at the top of the remote control,...

  • Page 15: Selecting Energy Saving Mode

    Selecting Energy Saving Mode If you wish to save energy when using your air conditioner, select the Energy saving mode with the Energy saving button. If necessary, press the (On/Off) button. Result: The operation indicator on the indoor unit lights up.

  • Page 16: Adjusting The Air Flow Direction Vertically

    Result: The blade move up and down, around the base position set. To stop the blade moving up and down, press the If you switch the air conditioner... Then the blade is... On again Adjust the blade to face... Upwards.

  • Page 17: Adjusting The Air Flow Direction Horizontally

    Adjusting the Air Flow Direction Horizontally There are two sets of inner air flow blades. Just as the outer air flow blade can be adjusted vertically, the inner blades can be adjusted horizontally. Adjust each set of inner blades to the required position, by pushing or pulling them sideways.

  • Page 18: Setting The On Timer

    To cancel the On Timer, press the timer setting disappears. Press the (Set/Cancel) button. If you want to turn on the air conditioner before the timer reaches the setting time, press the button one or more times until button until the button one or more times until the (ON/OFF) button.

  • Page 19: Setting The Off Timer

    The air conditioner will switch off automatically when the counter displayed on the remote control reaches the set time and disappears the Off timer setting. If you would like to turn the air conditioner on after 2 hours and to operate it for 2 hours: 1. Press the button until ‘2.0 Hr’...

  • Page 20: Setting The Sleep Timer

    Setting the Sleep Timer The Sleep Timer can be used when you are cooling or heating your room to switch the air conditioner off automatically after a period of six hours. If you wish to switch the unit off at a specific time, refer to page 19.

  • Page 21: Operating Recommendations

    The heat pump inside the air conditioner absorbs heat from outside air and brings it indoors. If the temperature of the outside air drops, the air conditioner will heat less. If you find that the room is not warm enough, use an additional heating appliance.

  • Page 22: Temperature And Humidity Ranges

    Temperature and Humidity Ranges The following table indicates the temperature and humidity ranges within which the air conditioner can be used. If the air conditioner is used at... High temperatures Low temperatures High humidity levels Mode Outdoor Temperature Heating 0°C to 24°C approx.

  • Page 23: Solving Common Problems

    Check whether the TIMER indicator on the indoor unit is switched on. If so: - Wait until the switch-on time is reached and the air conditioner starts up automatically - Cancel the timer (see pages 18 and 19 for further details) Check that there are no obstacles between you and the indoor unit.

  • Page 24: Cleaning Your Air Conditioner

    Clean the front grille with a damp cloth and mild detergent (do NOT use benzene, solvents or other chemicals). If you have not used the air conditioner for a long period of time, set the fan going for three to four hours to dry the inside of the air conditioner thoroughly.

  • Page 25: Technical Specifications

    Technical Specifications Model Indoor unit AQ07S8GE AQ07SBGE SH07ZS8 AQ09S8GE AQ09SBGE SH09ZS8 AQ12SBGE AQ12SGGE SH12ZSG AQ18S0GE SH18ZS0 AQT24S6GE SH24TS6 AQ12SGGB AQ18S0GB AQ24S6GB Power Supply 220-240V~, 50Hz 220V~, 60Hz...
  • Page 26 MEMO...
