MemoryPAT-Blu & PATRec User Notes
Overview
The PATRec application compliments the MemoryPAT-Blu and allows PAT test results to be
annotated and saved as they are made.
MemoryPAT-Blu Communication Link
Communication between the MemoryPAT-Blu and the Android device (Smartphone or
Tablet) running the PATRec application uses Bluetooth.

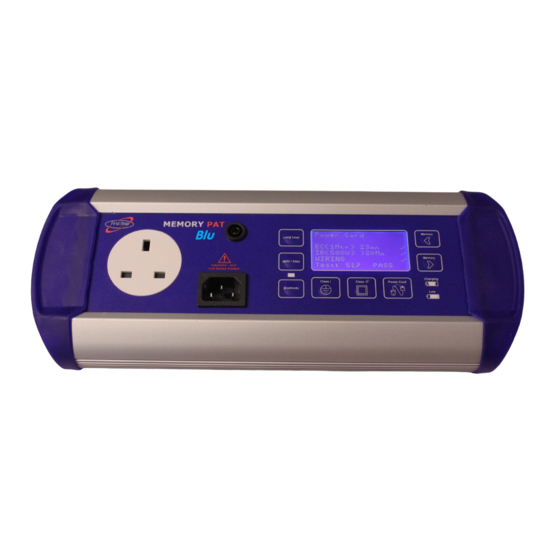

The Bluetooth link on the MemoryPAT-Blu is turned on by pressing the button labelled
'Bluetooth' – shown circled in the picture below. The blue LED above the 'Bluetooth' button
will flash when the link is active.
By default, the link will remain active for 1 hour. During the first 50 minutes, the LED will
flash once per second. For the last 10 minutes of the hour, the LED will flash twice per
second.
Once the link is active, pressing the 'Bluetooth' button again for approximately ½ second will
extend the link active time by a further 1 hour. The LED will flash rapidly 5 times to indicate
the 1 hour active period has been re-started.
To turn off the Bluetooth link manually, press and hold the 'Bluetooth' button for
approximately 3 seconds. The LED will immediately flash rapidly for about ½ second.
Continue to hold the button. Release the button once the LED comes on.
Version: Draft 1 January 2014 Page 1 of 10

Advertisement

loading
Need help?

Need help?

Do you have a question about the MemoryPAT-Blu and is the answer not in the manual?

Questions and answers

Related Manuals for First Stop Safety MemoryPAT-Blu

Summary of Contents for First Stop Safety MemoryPAT-Blu

  • Page 1 Communication between the MemoryPAT-Blu and the Android device (Smartphone or Tablet) running the PATRec application uses Bluetooth. The Bluetooth link on the MemoryPAT-Blu is turned on by pressing the button labelled ‘Bluetooth’ – shown circled in the picture below. The blue LED above the ‘Bluetooth’ button will flash when the link is active.

  • Page 2: Bluetooth Pairing

     You should be prompted to pair with a device labelled either “MPBluxxxx” (where xxxx is the serial number of the MemoryPAT-Blu tester, which is printed on a label on the underside of the tester) or “linvor”. You may be prompted for a pass code and if so enter “1234”.
  • Page 3 The application is free to download from the Google Play Store. In the Play Store search for the name “PATRec”: the correct one is the First Stop Safety PATRec application published by Tele-Products. It is at top of the list on the image shown below left and if selected looks like...
  • Page 4 The application runs in fixed portrait mode and will not rotate if the Android device is held in landscape orientation. NOTE: Before starting PATRec, ensure that: (a) the Bluetooth function of the Android device is turned on (b) the MemoryPAT-Blu has been successfully paired with the device. Version: Draft 1 January 2014 Page 4 of 10...
  • Page 5 Application Settings Allows the user to customise the operation of the application Contact Information Information on how to contact First Stop Safety (FSS) About the MemoryPAT-Blu A description of the MemoryPAT-Blu About this Application Information on the application. In the event of problems, you...
  • Page 6 Once connected, PATRec will automatically receive PAT test results as they are carried out on the MemoryPAT-Blu. After a PAT Test has been carried out on the MemoryPAT-Blu and transmitted via Bluetooth to the Android device, the PATRec application will display the test results.
  • Page 7 MemoryPAT-Blu & PATRec User Notes Example of Received PAT Test Result The following screenshot illustrates the initial display of a received PAT test result on a smart phone (Samsung Galaxy). The central area of the display, shown below, scrolls up/down to show more information about the PAT test.
  • Page 8 MemoryPAT-Blu & PATRec User Notes Annotating PAT Test Results PATRec also allows the PAT test result to be annotated by optionally adding any or all of the following additional information: 1. The Location of the Unit Under Test: Company Name, Site Name and Location ID.
  • Page 9 MemoryPAT-Blu & PATRec User Notes Hiding PAT Result Information Sections There are small downward pointing arrows to the right of the section headings on the PAT test results display, indicated by red arrows in image to the right: Tapping an arrow hides the information display for that section as shown below. Notice that the arrow is now pointing upwards.

  • Page 10: Other Main Menu Options

    The “Contact Information” menu options provides information on how to contact First Stop Safety: About the MemoryPAT-Blu The “About the MemoryPAT-Blu” menu option provides general information about the MemoryPAT-Blu PAT Tester: About this Application The “About this Application” menu option provides information about the version of PATRec installed and the Android device.
