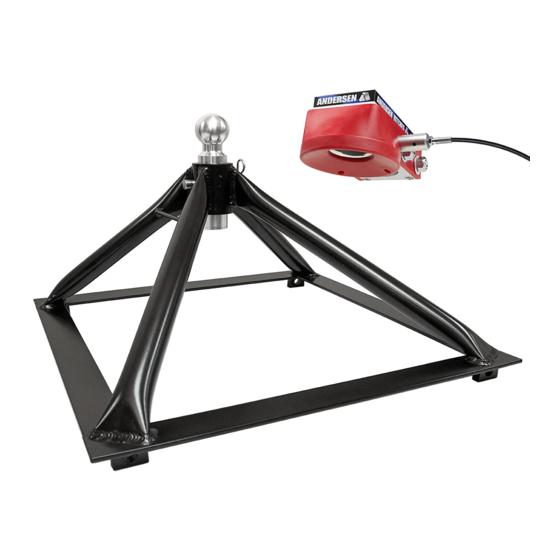

Ultimate 5th Wheel Connection - Gooseneck Mount
For Part #3220 / #3220-TBX and #3221 / #3221-TBX • 24,000 lbs GTWR - 4,500 lbs Tongue
IMPORTANT! DEALER OR INSTALLER: Please make sure your customer receives
this manual for safety tips, warranty, and future removal or installation information

Table of Contents

Important Safety Information .............................................
Parts Illustration .................................................................
Section 1: Turning Clearance ............................................
Section 2: Installing the Base Unit .....................................
Section 6: Removing the Base Unit ...................................
Warranty Information .........................................................
andersenhitches.com
INSTALLATION MANUAL
Standard 3220
NOTE:
THERE IS NEVER A NEED TO GREASE BALL OR COUPLER
Want to see a video of the install?
Page 2
Page 2
Page 3
Page 4
Page 4
Page 5
Page 7
Page 8
Page 9
Use your Smart Phone to scan the
Page 10
QR Code above and to go to
Page 11
our Installation Videos on the web.
'Lowered' 3221

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ultimate 5th Wheel Connection and is the answer not in the manual?

Questions and answers

Related Manuals for Andersen Hitches Ultimate 5th Wheel Connection

Summary of Contents for Andersen Hitches Ultimate 5th Wheel Connection

  • Page 1: Table Of Contents

    Ultimate 5th Wheel Connection - Gooseneck Mount INSTALLATION MANUAL For Part #3220 / #3220-TBX and #3221 / #3221-TBX • 24,000 lbs GTWR - 4,500 lbs Tongue IMPORTANT! DEALER OR INSTALLER: Please make sure your customer receives this manual for safety tips, warranty, and future removal or installation information ‘Lowered’...

  • Page 2: Important Safety Information

    The Ultimate Connection can be installed in a short amount of time with only a few tools. When you unpack your Ultimate 5th Wheel Connection, compare it with the Parts List on Page 3. If any parts appear to be missing or damaged, DO NOT RETURN IT TO YOUR DEALER. Instead, contact us directly using the contact information below.

  • Page 3: Parts Illustration

    Torque Wrench capable of at least 60 ft- lbs of torque Two 15/16” Box End / Socket Wrenches or two medium adjustable wrenches Page 3 of 12 • Andersen Ultimate 5th Wheel Connection (Gooseneck Mount) Installation Manual 2-2018 • www.AndersenHitches.com...

  • Page 4: Section 1: Turning Clearance

    Ultimate Ball closest to the tailgate. You can use your bed grooves to square up the hitch before tightening it down. Page 4 of 12 • Andersen Ultimate 5th Wheel Connection (Gooseneck Mount) Installation Manual 2-2018 • www.AndersenHitches.com...

  • Page 5: Section 3: Installing The Kingpin Coupler Block

    For longer Position 2 pin boxes, installation provides better side rail clearance Position 1. than Measurement 5 Ultimate Ball to Tailgate Page 5 of 12 • Andersen Ultimate 5th Wheel Connection (Gooseneck Mount) Installation Manual 2-2018 • www.AndersenHitches.com...
  • Page 6 (as shown at right) while others will be flush. This is normal and does not affect performance at all. Page 6 of 12 • Andersen Ultimate 5th Wheel Connection (Gooseneck Mount) Installation Manual 2-2018 • www.AndersenHitches.com...

  • Page 7: Section 4: Attaching The Remote Latch Cable Bracket

    Raise the trailer up to clear the ball, disconnect your wiring harnesses and any safety cables and chains, then drive your truck out from under the trailer. 4-2 B Page 7 of 12 • Andersen Ultimate 5th Wheel Connection (Gooseneck Mount) Installation Manual 2-2018 • www.AndersenHitches.com...

  • Page 8: Section 5: Connecting Your Trailer To The Base Unit

    Ultimate Ball. NOTE: THERE IS NEVER A NEED TO GREASE BALL OR COUPLER Page 8 of 12 • Andersen Ultimate 5th Wheel Connection (Gooseneck Mount) Installation Manual 2-2018 • www.AndersenHitches.com...

  • Page 9: Section 6: Removing The Base Unit

    6-3 A 6-3 B Tip: You can hang your Ultimate Connection on wall hooks when not in use. Page 9 of 12 • Andersen Ultimate 5th Wheel Connection (Gooseneck Mount) Installation Manual 2-2018 • www.AndersenHitches.com...

  • Page 10: Popular Add-Ons For Your Ultimate Connection

    Our safety chain plate installs over your gooseneck vehicles that have built-in safety chain hookups. ball and provides a convenient hook up point. Page 10 of 12 • Andersen Ultimate 5th Wheel Connection (Gooseneck Mount) Installation Manual 2-2018 • www.AndersenHitches.com...

  • Page 11: Warranty Information

    ‘King Pin’ manufacturer, because of purchaser’s use of the Andersen Ultimate 5th Wheel Connection (gooseneck or rail mount), and it is shown that the warranty was properly and legally voided by manufacturer as a result of purchaser’s use of the Andersen Ultimate 5th Wheel Connection, then Andersen Manufacturing (d.b.a.
