Visonic PowerMax Pro GSM Installation Instructions

POWERMAX PRO GSM
Internal GSM module for PowerMax Pro
1. INTRODUCTION
The internal GSM module
enables the PowerMax Pro
system to operate over a
GSM/GPRS cellular
network.

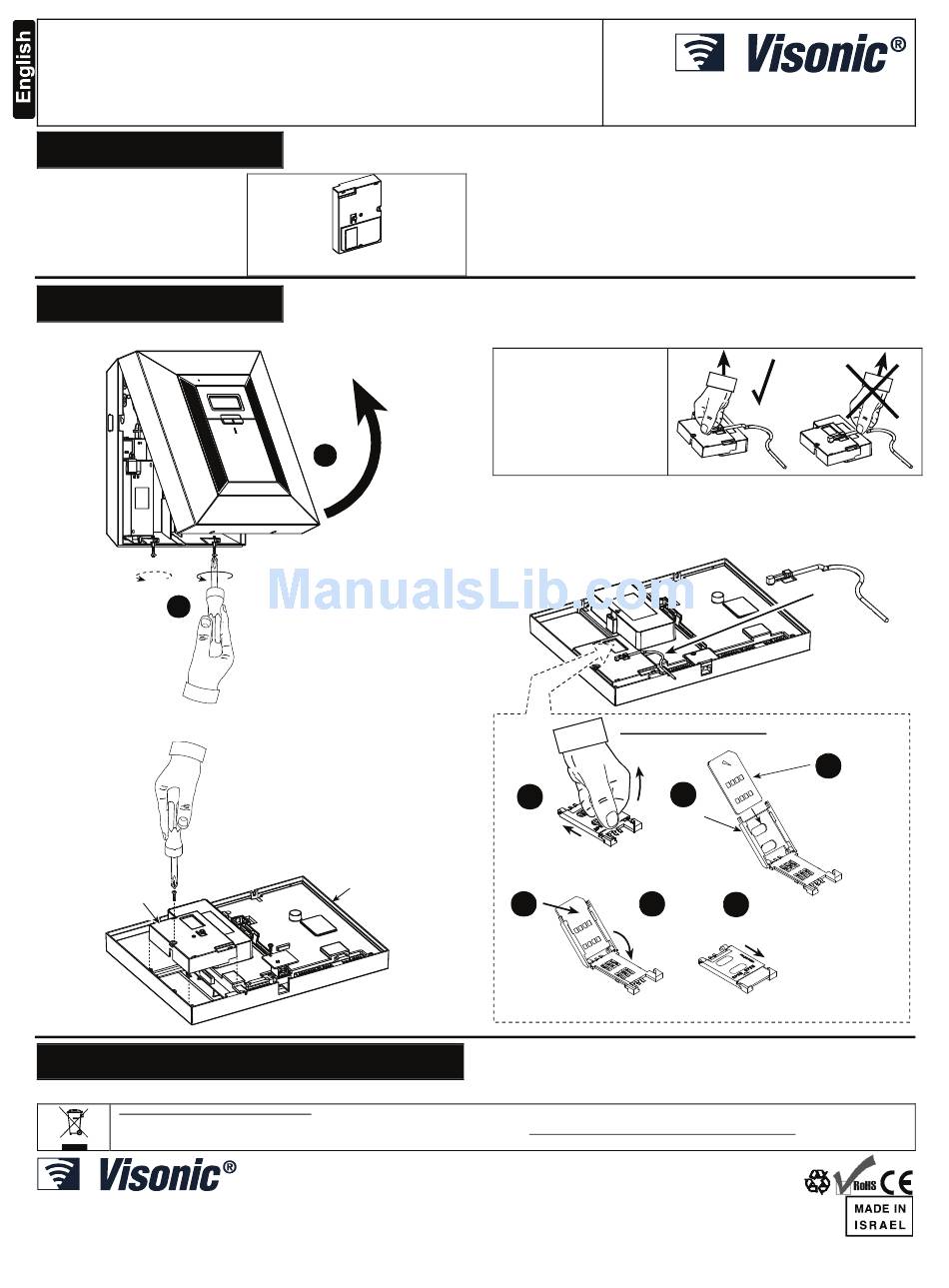

2. INSTALLATION
1. Open the PowerMax Pro:
1
Release
screws
2. Plug in the GSM module and fasten it with the screw:
GSM
3. DEFINING GSM PARAMETERS
Refer to the PowerMax Pro installer guide section 4.6
W.E.E.E. Product Recycling Declaration
For information regarding the recycling of this product you must contact the company from which you orignially purchased it. If you are discarding this product and not
returning it for repair then you must ensure that it is returned as identified by your supplier. This product is not to be thrown away with everyday waste.
Directive 2002/96/EC Waste Electrical and Electronic Equipment.
VISONIC LTD. (ISRAEL): P.O.B 22020 TEL-AVIV 61220 ISRAEL. PHONE: (972-3) 645-6789, FAX: (972-3) 645-6788
VISONIC INC. (U.S.A.): 65 WEST DUDLEY TOWN ROAD, BLOOMFIELD CT. 06002-1376. PHONE: (860) 243-0833, (800) 223-0020 FAX: (860) 242-8094
VISONIC LTD. (UK): 7 COPPERHOUSE COURT, CALDECOTTE, MILTON KEYNES. MK7 8NL. TEL: (0870) 7300800 FAX: (0870) 7300801
www.visonic.com
INTERNET:
©VISONIC LTD. 2007
POWERMAX PRO GSM
D-300964
Internal GSM
2
Front
unit
D-300964 (REV. 1, 6/07)
Installation Instructions
Warning!
If external antenna
removal is required,
hold its connector (not
the cable) and pull it
out.
This prevents damage
to the P.C.B.
3. Mount the optional GSM external antenna on the
desired site surface, connect its connector to the
internal GSM module and insert the SIM card, as shown
below.
SIM card insertion
1
Open
Slide top
cover
cover
4 5
Rotate cover
Slide SIM
card into to close
cover
External GSM
antenna cable
(optional)
3
Align SIM
2
card in cover
(note cover
orientation)
6
IMPORTANT
1.Before inserting SIM
Lock cover
card, deactivate its
to close
PIN code (by using a
cellular telephone).
2.Do not insert or
remove SIM card
when the control
panel is Powered by
AC power or battery.
1
