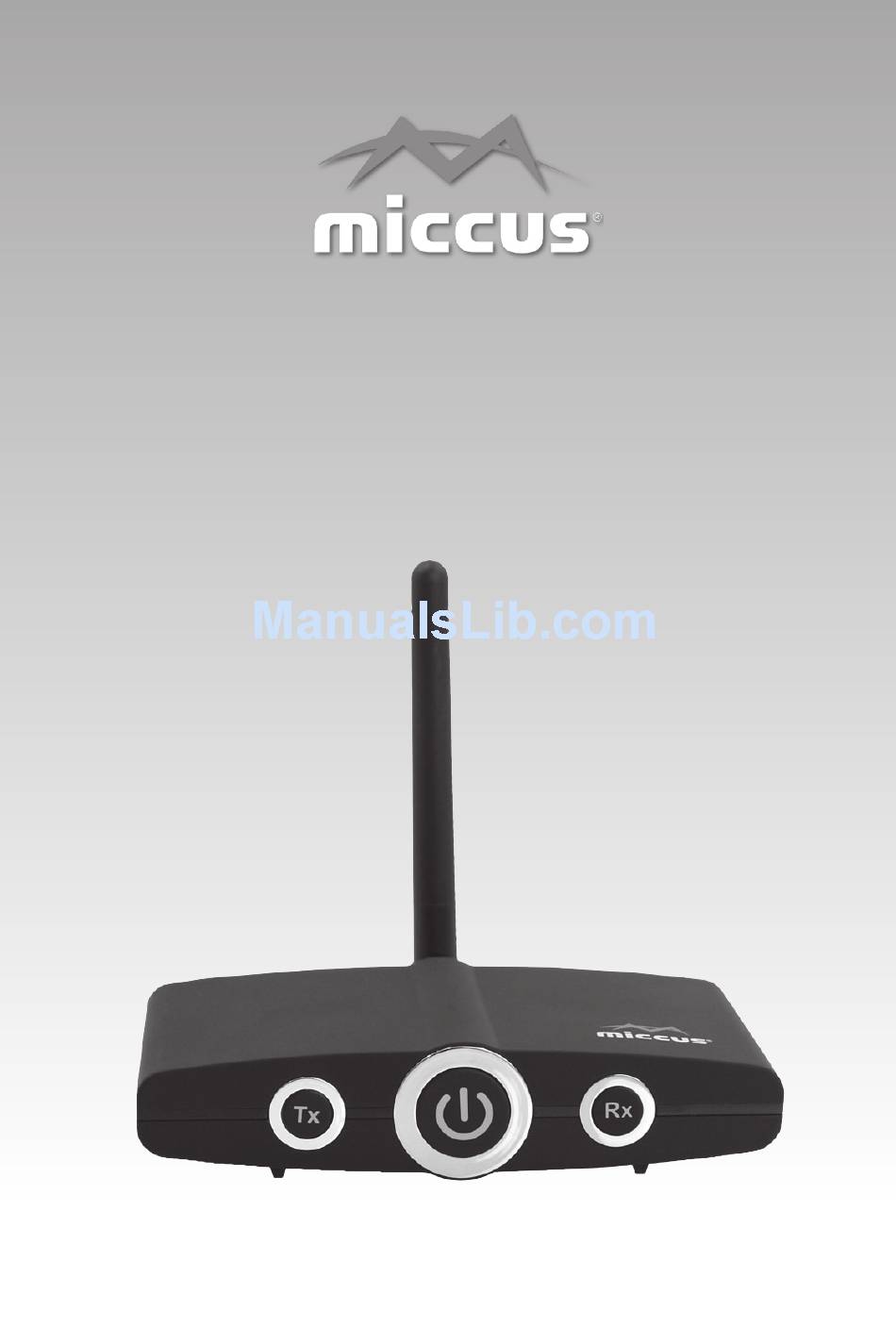

- Page 1 Miccus® Home RTX Long Range Wireless Audio T ransmitterorReceiver Model No.: BBRTX-01...
-
Page 3: Table Of Contents
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . About the Miccus® Home RTX . -
Page 4: Quick Start Guide
Quick Start Guide: • Attachtheantenna:On the back of the RTX, remove the red rubber connector cover and attach the antenna. Turn clockwise until slightly snug. Position the antenna upright. • Connecttheaudio:Before powering up, choose the included connector cable that is appropriate for your connection. When using as a transmitter (TX mode) connect your audio cable to the “TX Audio In”... -
Page 5: About The Miccus® Home Rtx
For detailed instructions and troubleshooting please continue reading the Home RTX user guide or visit www.miccus.com for instructional videos and helpful hints. Thank you for your purchase of the Miccus® Home RTX (BBRTX-01). AbouttheMiccus®HomeRTX The Miccus Home RTX is a long range Bluetooth® transmitter or receiver featuring a line of site transmitting range of up 160ft. -
Page 6: What's In The Box
What’sintheBox? • Miccus® Home RTX (BBRTX-01) • RCA to 3.5mm stereo Y Cable • Dipole Antenna • RCA to RCA Cable • AC USB Wall Adapter • User Manual • USB mini cable receive dipole antenna power transmit RCA audio... -
Page 7: System Requirements
Home RTX, the Home RTX Mini, or Swivel Jack RTX. DetailedInstructionsforUse Poweron/off The Miccus® Home RTX is powered only by mini USB power; there is no battery to charge. Connect one end of the included USB power cable to the Home RTX USB jack;... -
Page 8: Connecting Audio Cables
ConnectingAudioCables To connect the Home RTX to other audio devices to receive or transmit audio, Miccus has included 2 audio cable options to select from dependent on your audio needs. You will only need 1 audio cable to connect the audio. -
Page 9: Pairing The Home Rtx With Another Device
PairingtheHomeRTXwithanotherDevice The pairing process creates a Bluetooth® bridge between a Bluetooth® transmitter and a Bluetooth® receiver. The versatile Home RTX can function as either a Bluetooth® transmitter OR receiver. The pairing process should take approximately 5-10 minutes. For quicker, easier pairing: Verify the RTX has power and audio connections completed •... -
Page 10: Factory Reset
Receive(RXmode): Power on the RTX: press and hold the power button (3 seconds) until the indicator light begins flashing. Press and hold the RX button 3 seconds and release; the light will flash red and blue indicating it is in pairing mode. Open the Bluetooth®... -
Page 11: Faq And Troubleshooting
FAQandTroubleshooting Problem Solution Home RTX does not turn on Check the USB power connection. Make sure you press and hold the power button for at least 3 seconds. Audio breaks up or wireless Make sure the antenna is attached securely and positioned range is too low correctly. - Page 12 Problem Solution Can’t pair my device with the Make sure the Home RTX and the device you’re pairing with are Home RTX right next to each other. Make sure all other Bluetooth® compatible devices you’re NOT trying to pair with are either powered off or Bluetooth®...
-
Page 13: Specifications
If your question is not answered via the support page, feel free to email support@miccus.com; please include the product name in your subject line. Most email is answered within 24 hours or sooner. For live technical assistance please call 1(616)604-4449 Monday-Friday, 11am-4pm EST. - Page 14 This device and its antenna(s) must not be co-located or in conjunction with any other antenna or transmitter. © 2018 Miccus, Inc. All rights reserved. Bluetooth® is a trademark of the Bluetooth SIG and used under license. Made in China to Miccus specifications.
