Item #1002366429
1002366591
Model #DFI-5852-BK
DFI-5852-WH
USE AND CARE GUIDE

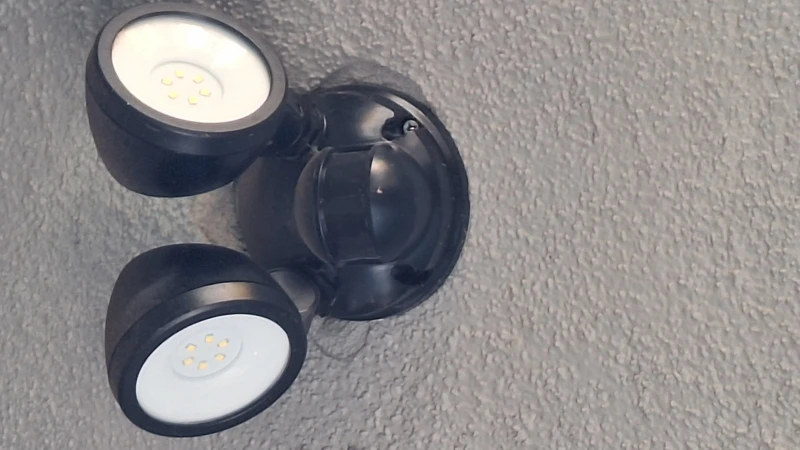

MOTION SECURITY LIGHT
Questions, problems, missing parts?
Before returning to the store, call Defiant Customer Service
8 a.m.-7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday
1-866-308-3976
HOMEDEPOT.COM
THANK YOU
We appreciate the trust and confidence you have placed in Defiant through the purchase of this motion security light.
We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of
products available for your home improvement needs. Thank you for choosing Defiant!
Advertisement
Table of Contents
Related Manuals for Defiant 1002366429
Summary of Contents for Defiant 1002366429
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Defiant through the purchase of this motion security light. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of...
-
Page 2: Table Of Contents
Table of Contents Tools Required ........3 Table of Contents ........2 Hardware Included .........4 Safety Information ........2 Package Contents ........4 Warranty ...........2 Installation ..........5 5-Year Limited Warranty ......2 Operation...........8 Pre-Installation .........3 Care and Cleaning ........10 Planning Installation ......3 Troubleshooting ........10 Specifications ........3 Safety Information PRECAUTIONS WARNING: Turn the power off at the circuit breaker or... -
Page 3: Pre-Installation
Pre-Installation PLANNING INSTALLATION Before installing the light fixture, ensure that all parts are present. Compare parts with the Hardware Included and Package Contents sections. If any part is missing or damaged, do not attempt to assemble, install, or operate this light fixture. -
Page 4: Hardware Included
Pre-Installation (continued) HARDWARE INCLUDED NOTE: Hardware shown to actual size. FRONT Part Description Quantity Rubber plug Mounting bracket screw Mounting bracket screw Small mounting bolt Large mounting bolt (pre-installed) Mounting bracket (not to scale) Mini screwdriver Gasket (not to scale) PACKAGE CONTENTS Part Description... -
Page 5: Installation
Installation Determining the mounting location NOTE: The light fixture should be mounted approximately 8 ft. (2.4 m) above the ground. If the light fixture is mounted higher than recommended, aiming the sensor down will reduce the coverage area. Wall Mount □... - Page 6 Installation (continued) Installing the mounting plate □ Route the junction box wires through one of the large holes in the gasket (HH). □ Route the junction box wires through the hole in the mounting plate (D). □ Place the gasket (HH) and the mounting plate (D) against the junction box and align the center holes with the hole in the mounting bracket (FF).
- Page 7 Installation (continued) Mounting the light fixture NOTICE: The two pins on the rear of the light fixture must be inserted into the terminal block for the light to work. □ Align the top edge of the light fixture (B) with the top edge of the mounting plate (D).
-
Page 8: Operation
Operation Adjusting the lamp heads WARNING: Risk of fire. Keep the lamp heads at least 2 in. (51 mm) from combustible materials. CAUTION: Keep lamp heads 30° below horizontal to avoid water damage and electrical shock. □ Turn the power on at the circuit breaker or fuse and turn on the wall switch. - Page 9 Operation (continued) Adjusting the SENS control □ To increase the sensitivity, turn the “SENS” control counterclockwise. □ To decrease the sensitivity, turn the “SENS” control clockwise. NOTE: The motion sensor (C) is more sensitive to motion moving across the front of the sensor. The motion sensor (C) is less sensitive to motion moving directly toward the front of the sensor.
-
Page 10: Care And Cleaning
Care and Cleaning □ To prolong the original appearance, clean the light fixture with clear water and a soft, damp cloth only. □ Do not use paints, solvents, or other chemicals on this light fixture. They could cause a premature deterioration of the finish. - Page 11 Troubleshooting (continued) Problem Possible Cause Solution □ □ The lights stay on continuously. The motion sensor may be picking up a Decrease the “SENS” heat source, such as an air vent, dryer setting or reposition the vent, or brightly painted, heat-reflective motion sensor.
- Page 12 Questions, problems, missing parts? Before returning to the store, call Defiant Customer Service 8 a.m.-7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday 1-866-308-3976 HOMEDEPOT.COM Retain this manual for future use. 208986-01A...
