Rolls Mic/Source Mixer RM67 Quick Start Manual

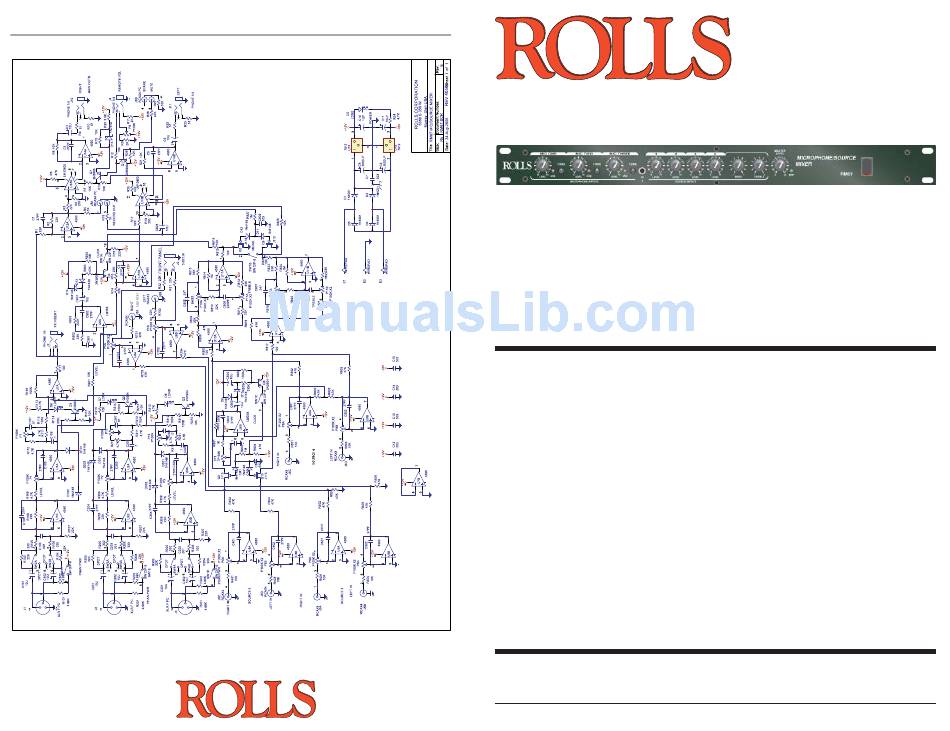

SCHEMATIC
FEATURES
- Three XLR balanced inputs with phantom power
- Four stereo Source inputs, including a resistor-mixed front panel 3.5mm input
- Tone controls for each Microphone input
- Clip indicators for each Microphone input
- Bass and Treble controls for the Source inputs
- 1/4" input for remote volume control
- RCA Record Out
- Master Output Level control
- 1/4" TRS balanced outputs
- Ducking with adjustable Sensitivity control
SPECIFICATIONS
Input Impedance:
Max Input Level:
Connectors:
Phantom Power:
Output Level:
Output Impedance:
Max Gain:
Tone Controls:
Nose Floor:
Size:
Weight:
N O T E : T H I S G U I D E A S S U M E S T H E U S E R H A S A W O R K I N G
K N O W L E D G E
ROLLS CORPORATION
UNBALANCED CONNECTIONS, AND PROPER SIGNAL LEVEL SETTING.
SALT LAKE CITY, UTAH
11/03
Mic/Source Mixer
Mic: 600 Ohms XLR balanced
Line: 22K Ohms
Source: 22K Ohms gold plated RCA
Mic Insert: 22K Ohms 1/4" TS unbal.
Mic: -14 dBV Mic level
+20 dB Line levl
Source: 24 dBV
3: XLR, 6: Stereo RCA, 3: 1/4" TRS, 1: 1/4" TS, 1: 3.5mm
+12 VDC
+17 dBV max
51 Ohms
Mic: 60 dB
Source: 26 dB
+/-12 dB 100 Hz Bass
+/-12 dB 11kHz Treble
- 80 dB, THD: <.025%, S/N Ratio: 96 dB
19" x 1.75" x 6" (48.3 x 4.5 x 15 cm)
5 lbs. (2.3 kg)
O F A U D I O E L E C T R O N I C S ,
RM67
B A L A N C E D A N D

Quick Start Guide
