RM203x

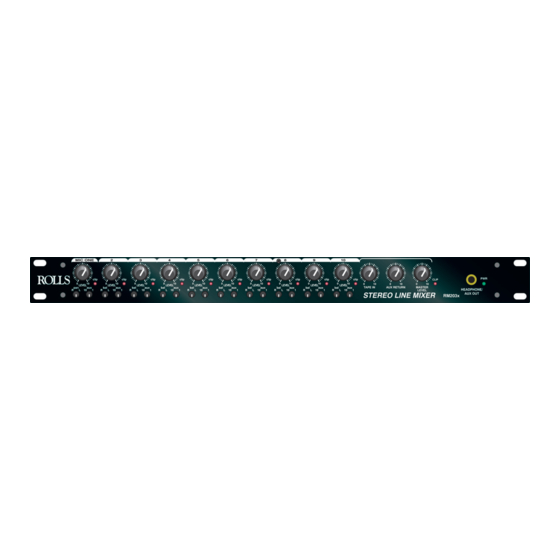

Stereo Mic/Line Mixer
Line:
10 k Ohms unbal.
Mic:
10k Ohms bal.
50 Ohms bal
+18 dBV
< 10 deg. 20 Hz - 20 kHz
1/4" and RCA
26 dB Line
26 dB Aux
>90 dB
< .003%
< .003%
< 82 dB
120 VAC 50-60 Hz, 15 W
7 lbs (3kg)
19" x 1.75" x 6.5"
(48cm x 4.5cm x 17cm)
+12 VDC
OWNERS MANUAL
Advertisement
Related Manuals for Rolls RM203X
Summary of Contents for Rolls RM203X
- Page 1 Max Input Level: Phase Shift: Connectors: Max Gain: S/N Ratio: IMD (SMPTE) Self Noise: Power Weight: Size: ROLLS CORPORATION SALT LAKE CITY, UTAH 4/03 RM203x Line: 10 k Ohms unbal. Mic: 10k Ohms bal. +12 VDC 50 Ohms bal +18 dBV <...
- Page 2 INTRODUCTION Thank your for your purchase of the Rolls RM203x Stereo Mic\Line Mixer. The RM203x is a line-level mixer featuring a single mic input and nine channels of stereo inputs. It has a Tape input and output, and a mono auxiliary send and stereo return. Each channel has a signal level control, a right/left balance control, an auxiliary level control, and a clip LED.
