Foscam FN3109H Quick Installation Manual

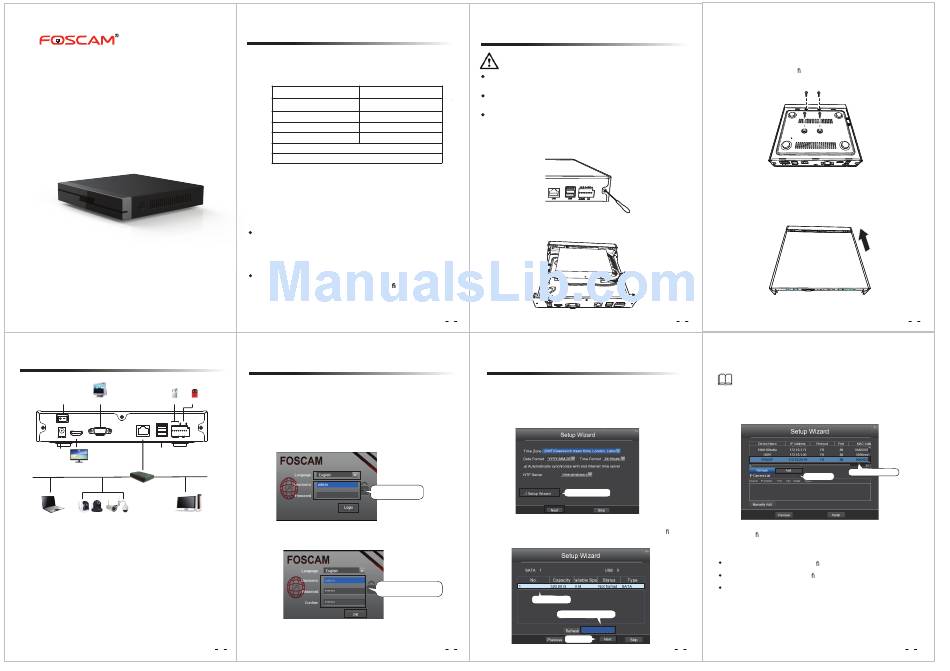

Quick Installation Guide

Network Video Recorder
Model: FN3109H/FN3104H
EQ310409
3

Device Connection

Power Switch VGA Video Output
Alarm IN Alarm OUT
1 2 3 4
POWER NO C
HDMI VGA
LAN USB ALARM N1
DC 12V
USB Interfaces
Power Supply
HDMI Video Output
Router
Internet users Internet users
IP Camera
Procedure
1. Connect your display to one of the video outputs (VGA or HMDI
interface).
3. Connect an external storage device to the USB interface of the NVR as
a backup.
4. Connect a mouse to the USB interface.
5. Connect an alarm input device and an alarm output device to the
alarm input interface and alarm output interface respectively.
2. Some devices need to connect to your router using an Ethernet cable,
including the NVR, PC, IP Camera.
6. Connect the power adapter to the power input port.
1

Before You Start

Package Contents
NVR
Antistatic Gloves
DC Power Adapter Ethernet Cable
Quick Installation Guide USB Mouse
Screw Pack
Warranty Card
Battery (Only FN3104H) CD
IR Remote Control (Only FN3104H)
Data Wire and Power Wire of the Hard Drives
Security Warning
Foscam cameras and NVRs require good security practices
to safeguard your privacy. You should regularly change
your camera or NVR password which is 8-10 numbers,
letters, symbols combination.
You should update your camera or NVR regularly. Make
sure your camera or NVR has the latest rmware installed
for your speci c model and better experience.
V1.5
4
Log In
1. Turn on the power switch on the rear panel.
After the NVR starts up successfully, the Power LED and HDD LED
indicators will turn green. The startup page is displayed on the screen.
2. Login page.
Select the Language, Enter the Username and Password, then click
on the Login button.
Default username is
admin with no password
3. For the initial log in, the system will prompt you to change your
username and password. Once done, click the OK button.
Input a new username and new
password, then click OK.
4. After modifying the username/password, you will be taken to the

Setup Wizard.

4
2

Hard Disk Installation

WARNING
Before installing a hard disk drive (HDD), please make sure the power
is disconnected from the NVR.
Find the antistatic gloves from the package of the NVR and wear the
gloves.
It is recommended that a hard drive be used in 7200 high-speed or
above.
1. Remove the cover from the NVR by unfastening the screws on the
rear and side.
2. Connect one end of the data cable and power cable to the
motherboard of NVR and the other end to the HDD.
HDD
Data cable
Power cable
1
5
Setup Wizard
The Setup Wizard can walk you through some important settings on
the NVR.
1. Setting the time. If you don't want to use the Setup Wizard next
time, uncheck the Setup Wizard checkbox. Click the Next button.
Uncheck the checkbox
2. Select the HDD you would like to use, then click the Format Hard
Disk button to set up the HDD. Note that this will delete all les on
the HDD.
1. Select your HDD
2. Click Format Hard Disk
Format Hard Disk
3. Click Next
5
3. Place the HDD on the bottom of the device and then fasten the
screws on the bottom to x the HDD.
4. Re-install the cover of the NVR and fasten screws.
2
Note
It is recommended to use SATA type of hard disk for recording.
3. You can add an IP Camera that is connected to the internet on the
NVR.
1. Select Your IP Camera
2. Click Add
You can con gure the following information for your IP Camera.
Select a protocol depending on which IP Camera you have.
FOSCAM protocol: The High De nition(HD) IP Cameras for Foscam.
MJ protocol: The Standard De nition(SD) IP Cameras for Foscam.
ONVIF protocol: IP Cameras which support ONVIF protocol.
6
3
7
