Clear-Com BP410 Quick Reference Manual

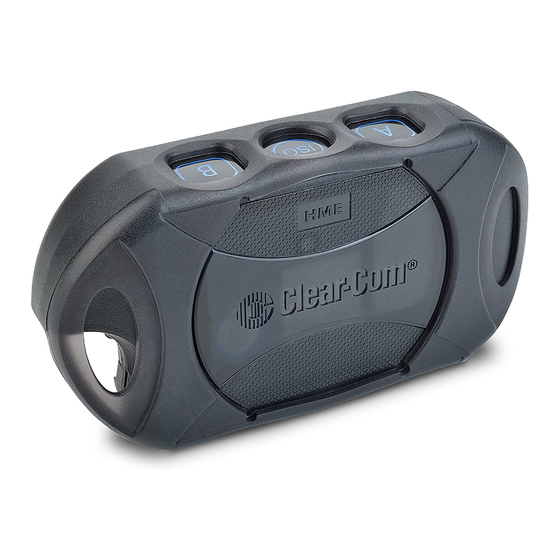

The Beltpack
1 2
7 8
1. Battery
2. Increase Volume button (
3. Decrease Volume button (
4. PWR (Power) button
5. Headset cable connector
6. Battery-release latch
7. Power/Mode lights
8. Channel A (Intercom 1) button - Includes 2-wire and
4-wire connections
9. ISO (Isolate) button - To All Wireless Headsets and
Beltpacks, Base, ISO Relay and AUX OUT
(if activated)
10. Channel B (Intercom 2) button - Includes 2-wire
and 4-wire connections
BP410 Beltpack Settings
To Set:
ISO restrict On
ISO restrict Off
Handsfree On selected button(s)
Handsfree Off selected button(s)
Listen-Only mode On
Listen-Only mode Off
To Set:
Increase mic gain (15 steps)
Decrease mic gain (15 steps)
Increase sidetone level (5 steps)
Decrease sidetone level (5 steps)
Copyright © 2016 Clear-Com, LLC, an HM Electronics, Inc. company. All rights reserved.
Clear-Com, the Clear-Com logo and Clear-Com Concert are trademarks or registered trademarks of HM Electronics, Inc.
4 3 5 6
9 10 7
▲
)
▼ )
All functions are from an off state. Press the Power button and release with the
appropriate buttons below.
A button
A button and ISO buttons
A button and/or B button and/or ISO and Volume up button (▲)
A button and/or B button and/or ISO and Volume down button (▼)
Volume down button (▼)
Volume up button (▲)
With the power already on...
Press the B button while repeatedly pressing the Volume up button (▲)
Press the B button while repeatedly pressing the Volume down button (▼)
Press the A button while repeatedly pressing the Volume up button (▲)
Press the A button while repeatedly pressing the Volume down button (▼)
Quick Reference Guide
Beltpack Setup
Battery
Belt clip
¾ Insert a fully charged battery in each Beltpack with the
metal contacts inserted first. Slide it in until it snaps.
NOTE: The battery will not slide in if inserted
incorrectly. Excessive force should not be necessary.
¾ Plug the Beltpack's headset cable connector into each
Beltpack.
BP410
RELEASE BATTERY button
Headset
cable plug
Part Number: 399G214 Rev A
Date: 12/5/16
