OWNER'S MANUAL

3 TON HYDRAULIC SERVICE JACK

Item: T83002

Questions, problems, missing parts? Before returning to your retailer, call our customer service department at

1-888-44-TORIN (1-888-448-6746), 8 a.m.- 5 p.m., PST, Monday-Friday.

Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating. Failure

to follow the safety rules and other basic safety precautions may result in serious personal injury.

Version 20161111

Table of Contents

Need help?

Do you have a question about the TORIN T83002 and is the answer not in the manual?

Questions and answers

Summary of Contents for BIG RED JACKS TORIN T83002

Page 1 OWNER’S MANUAL 3 TON HYDRAULIC SERVICE JACK Item: T83002 Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 1-888-44-TORIN (1-888-448-6746), 8 a.m.- 5 p.m., PST, Monday-Friday. Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury.
Page 2: Owner / User Responsibility
IMPORTANT Before You Begin Register This Product. For future reference, record the model name, model number, date of manufacture and purchase date of this product. You can find this information on the product. ____________________________ Model Name ____________________________ Model Number ____________________________ Date of Manufacture ____________________________ Date of Purchase...
Page 3: General Safety Rules
GENERAL SAFETY RULES WARNING: Read and understand all instructions. Failure to follow all instructions listed below may result in serious injury. CAUTION: Do not allow persons to operate or assemble this jack until they have read this manual and have developed a thorough understanding of how the jack works. WARNING: The warnings, cautions, and instructions discussed in this instruction manual cannot cover all possible conditions or situations that could occur.
Page 4: Safety Markings
SAFETY Always follow safety precautions when installing and operating this jack. Keep all decals on the unit clean and visible. Before proceeding ensure that you fully understand and comprehend the full contents of this manual. Failure to operate this equipment as directed may cause injury or death. The distributor is not responsible for any damages or injury caused by improper use or neglect.
Page 5: General Safety Instructions
GENERAL SAFETY INSTRUCTIONS Position the Jack Position the jack to only lift on the areas of the vehicle as specified by the vehicle manufacturer. Always Use Jack Stands After lifting the vehicle always support the load with appropriately rated vehicle Jacks stands before working on the vehicle.
Page 6 ASSEMBLY 1. Familiarize yourself with the jack. 3. Refer to picture 2 when performing this step. Press Quick Disconnect on handle piece 2, this will allow slide handle pieces 1 and 2 connect, Lifting Arm align the holes on both sections to allow quick disconnect to trigger.
Page 7 SYSTEM AIR PURGE PROCEDURE IMPORTANT: BEFORE FIRST USE Perform the following Air Purge Procedure to remove any air that may have been introduced into the hydraulic system as a result of product shipment and handling. This step is to be completed without any weight on the jack.
Page 8: Before Use
BEFORE USE 1. Before using this product, read the owner's manual completely and familiarize yourself thoroughly with the product and the hazards associated with its improper use. 2. Perform the air purge procedure. (See System Purge Procedure.) 3. Check and that the pump operates smoothly before putting into service. 4.
Page 9 LOWERING THE JACK 1. Raise load high enough to allow clearance for the jack stands to be removed, then carefully remove jack stands. 2. Remove support stands. 3. Grasp the handle firmly with both hands. Securely hold on to the jack handle so your hands do not slip and ensure the release valve does not rapidly lower.
Page 10: Maintenance Instructions
MAINTENANCE INSTRUCTIONS If you use and maintain your equipment properly, it will give you many years of service. Follow the maintenance instructions carefully to keep your equipment in good working condition. Never perform any maintenance on the equipment while it is under a load. Inspection You should inspect the product for damage, wear, broken or missing parts (e.g.: pins) and that all components function before each use.

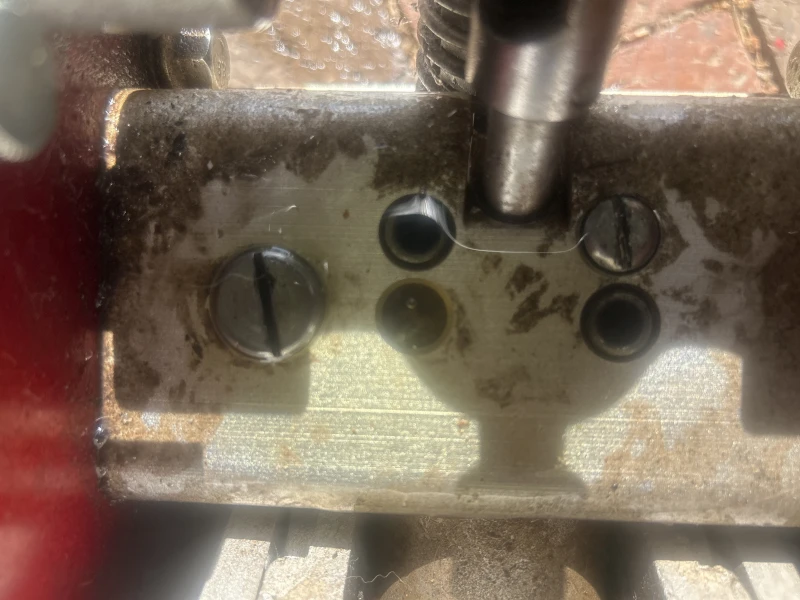

Page 11 TO ADD JACK OIL TO REPLACE JACK OIL 1. Position the jack on level ground and lower the 1. Position the jack on level ground and lower the saddle. saddle. 2. Remove the oil plug. 2. Open release valve by turning handle counter- clockwise.
Page 12 ADDITIONAL WARNINGS: 5. Turn the jack on its side to drain old oil from the oil fill hole. • DO NOT USE MOTOR OIL IN THE JACK. • ONLY USE ANTI-FOAMING JACK OIL. • ALWAYS USE A GOOD GRADE HYDRAULIC JACK OIL.
Page 13: Assembly Diagram
ASSEMBLY DIAGRAM REF# PART # DESCRIPTION QLZ3.5b Saddle Lifting arm assembly GB894.1-18 C-clip Ø18mm Connecting rod pintle Frame assembly QLZ2J-6 Front wheel GB896-15 Side-mount external retaining ring Ø15mm Washer M16 Spring washer M16 Nut M16...
Page 14 REF# PART # DESCRIPTION T830021.5(asm) Rear caster assembly GB859-M12 Spring washer M12 Washer M18 Spring washer M18 Socket head cap screw M12X25mm Shoulder bolt M18X39mm GB6170-M12 Nut M12 QLZ2C.2C Handle assembly T83508.5-4 Handle lock pin QLZ2C.2-4 Handle cover Handle socket QLZ2C-1a Handle socket screw M10X19mm GB848-M8...
Page 15: Troubleshooting
TROUBLESHOOTING JACK JACK JACK POOR WILL NOT CAUSES AND SOLUTIONS WILL WILL WILL JACK LIFT TO LIFTING FULL LIFT HOLD LOWER EXTENSION LOAD LOAD Release valve is not completely closed (Turn handle clockwise). Weight Capacity Exceeded. Air is in the hydraulics. Purge air from system.
Page 16 TORIN ONE YEAR LIMITED WARRANTY Torin Inc.® has been producing quality automotive repair and maintenance products since 1968. All products sold are felt to be of the highest quality and are covered by the following warranty: With proof of purchase for a period of one year from the date of that purchase, the manufacturer will repair or replace, at its discretion, without charge, any of its products or parts thereof which fail due to a defect in material or workmanship.
Page 17 Contact Torin® Customer Service directly by telephone at: 1-888-44-TORIN (1-888-448-6746) 8:00am – 5:00pm Pacific Time, Monday – Friday Communiquez directement avec le Service à la clientèle Torin® au: 1-888-44-TORIN (1-888-448-6746) De 8 heures à 17 heures, heure du Pacifique, du lundi au vendredi Comuníquese conel Servicio de Atención al Cliente de Torin®...
