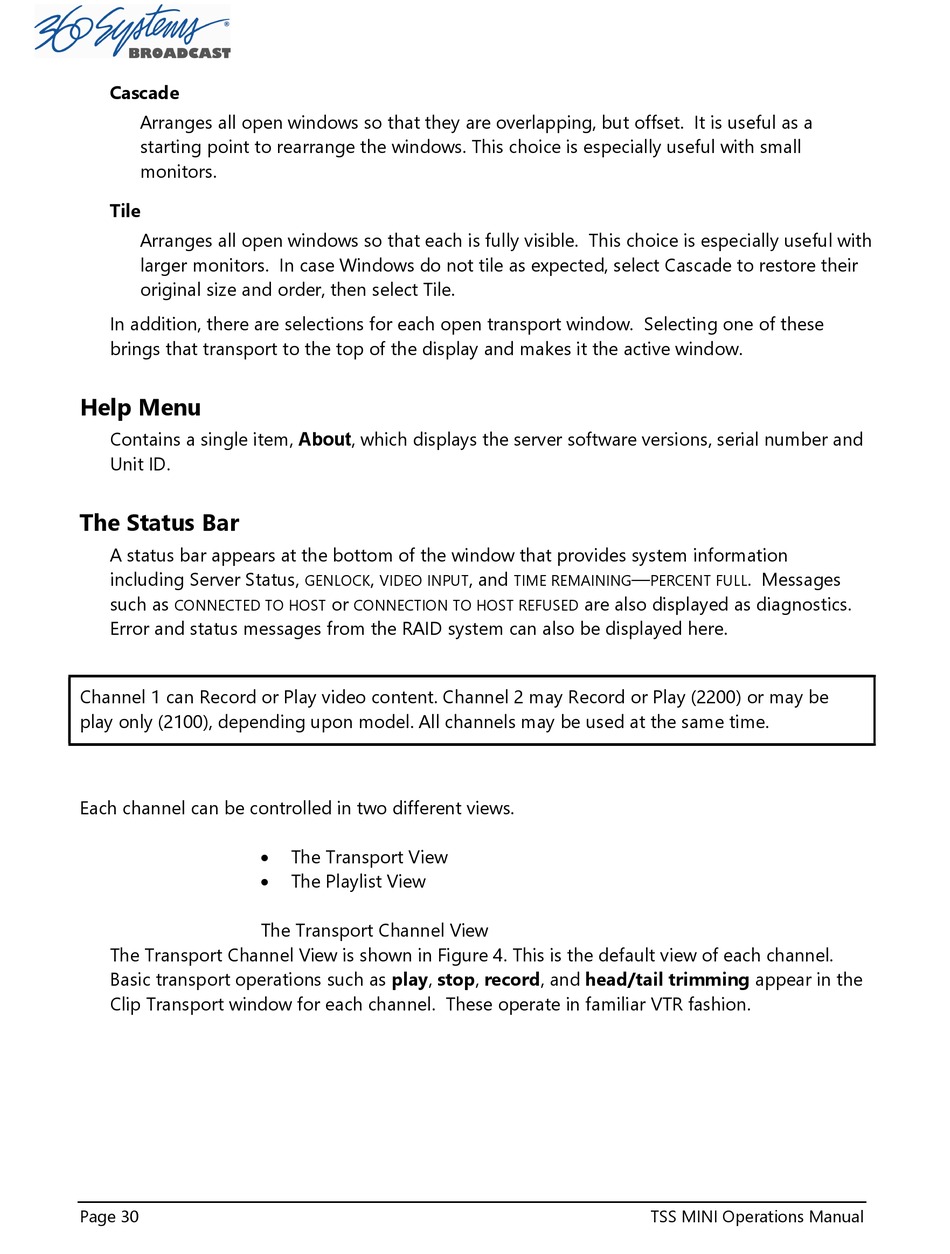

Help Menu; The Status Bar - 360 Systems TSS MINI 2100 Operation Manual

Cascade
Arranges all open windows so that they are overlapping, but offset. It is useful as a
starting point to rearrange the windows. This choice is especially useful with small
monitors.
Tile
Arranges all open windows so that each is fully visible. This choice is especially useful with
larger monitors. In case Windows do not tile as expected, select Cascade to restore their
original size and order, then select Tile.
In addition, there are selections for each open transport window. Selecting one of these
brings that transport to the top of the display and makes it the active window.

Help Menu

Contains a single item, About, which displays the server software versions, serial number and
Unit ID.

The Status Bar

A status bar appears at the bottom of the window that provides system information
including Server Status,
such as
CONNECTED TO HOST
Error and status messages from the RAID system can also be displayed here.
Channel 1 can Record or Play video content. Channel 2 may Record or Play (2200) or may be
play only (2100), depending upon model. All channels may be used at the same time.
Each channel can be controlled in two different views.
The Transport Channel View is shown in Figure 4. This is the default view of each channel.
Basic transport operations such as play, stop, record, and head/tail trimming appear in the
Clip Transport window for each channel. These operate in familiar VTR fashion.
Page 30
,
GENLOCK VIDEO INPUT
or
CONNECTION TO HOST REFUSED
The Transport View

The Playlist View

The Transport Channel View
, and —
TIME REMAINING
are also displayed as diagnostics.
. Messages
PERCENT FULL
