SHIMANO
ITEM
DESCRIPTION
CODE NO.
NO.
1
Y5WS98010
Stroke Adjusting Screws (M4 x 15.3) & Plate
2
Y5WG98010
Cable Fixing Bolt Unit
3
Y5V898030
Cable Adjusting Bolt Unit
4
Y5T822100
B-Tension Adjusting Screw (M4 x 17.5)
5
Y54M98030
Adapter Bolt (M5 x 11.5) & Nut
6
Y5WS98020
B-Axle & Spacer (Direct Attachment Type)
7
Y5TW35010
Guide Pulley Bolt (M5 x 15.2)
8
Y5TW35040
Tension Pulley Bolt (M5 x 13.35)
9
Y5WS98030
Guide & Tension Pulley Unit
10
Y5WS09000
Inner Plate
A: Same parts.
B: Parts are usable, but differ in materirals, appearance, finish, size, etc.
Absence of mark indicates non-interchangeability.
Specifications are subject to change without notice.

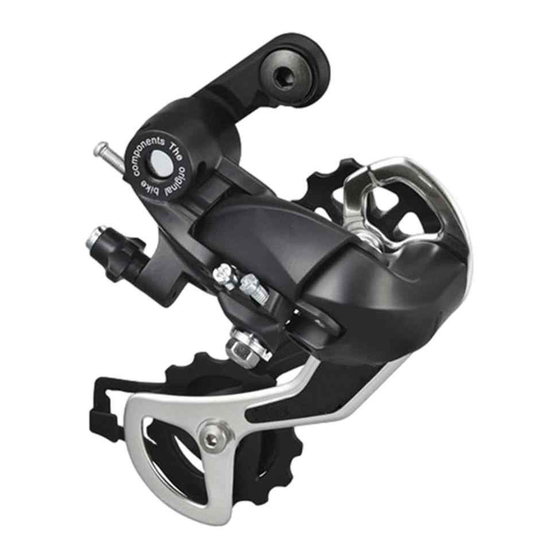

TOURNEY Rear Derailleur
RD-TX35
INTERCHANGEABILITY
A
A
A
A
Jul.-2010-3100
©
Shimano Inc. A
Advertisement
Related Manuals for Shimano RD-TX35
Summary of Contents for Shimano RD-TX35
- Page 1 Guide & Tension Pulley Unit Y5WS09000 Inner Plate A: Same parts. Jul.-2010-3100 © B: Parts are usable, but differ in materirals, appearance, finish, size, etc. Shimano Inc. A Absence of mark indicates non-interchangeability. Specifications are subject to change without notice.
- Page 2 Loosen the outer casing adjustment until the chain returns to the 2nd barrel until the chain touches the 3rd This service instruction explains how to use and maintain the Shimano bicycle parts sprocket. (clockwise) sprocket and makes noise. (counter which have been used on your new bicycle.
