Monobloc Outdoor Unit
7.3 Hydronic module
There are 3 hydronic options for the unit RUA – CP1701H*, RUA – CP2101H*:
1 No Hydronic module
2 Hydronic module equipped with fixed speed single pump
3 Hydraulic module equipped with variable speed single pump (low available pressure)
CAUTION: The use of the hydronic module on open loop is prohibited.

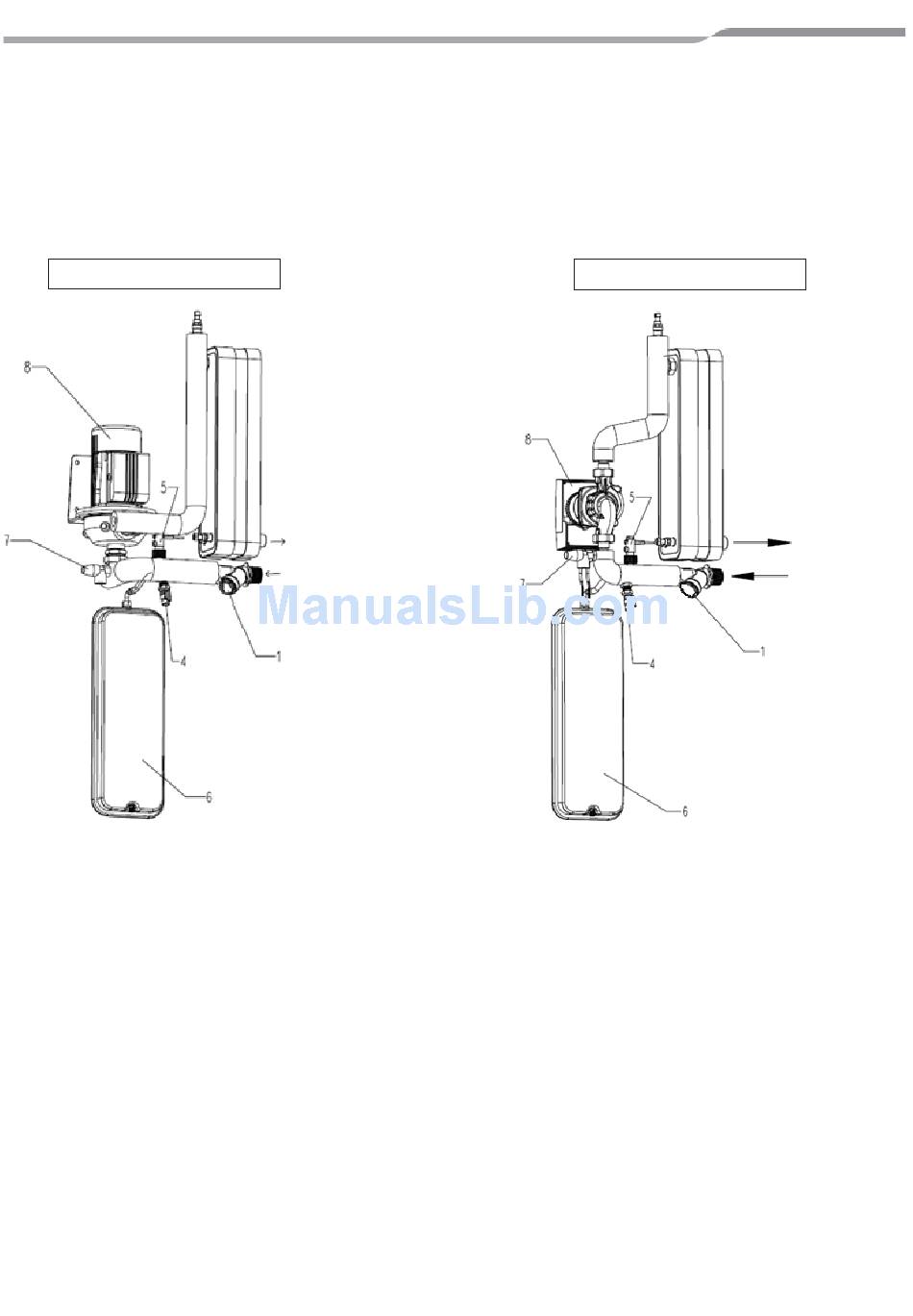

Fixed speed pump
Legend:
1 Mesh filter (1.2mm mesh)
Water drain valve
Paddle flow switch
Expansion tank (8 litre / 1.0 bar g)
Safety valve (3.0 bar g)
8 Pump
Both Fixed speed and variable speed Hydronics modules come with an expansion tank.
OUTLET
INTLET
21
Installation Manual
Variable speed pump
OUTLET
INTLET
