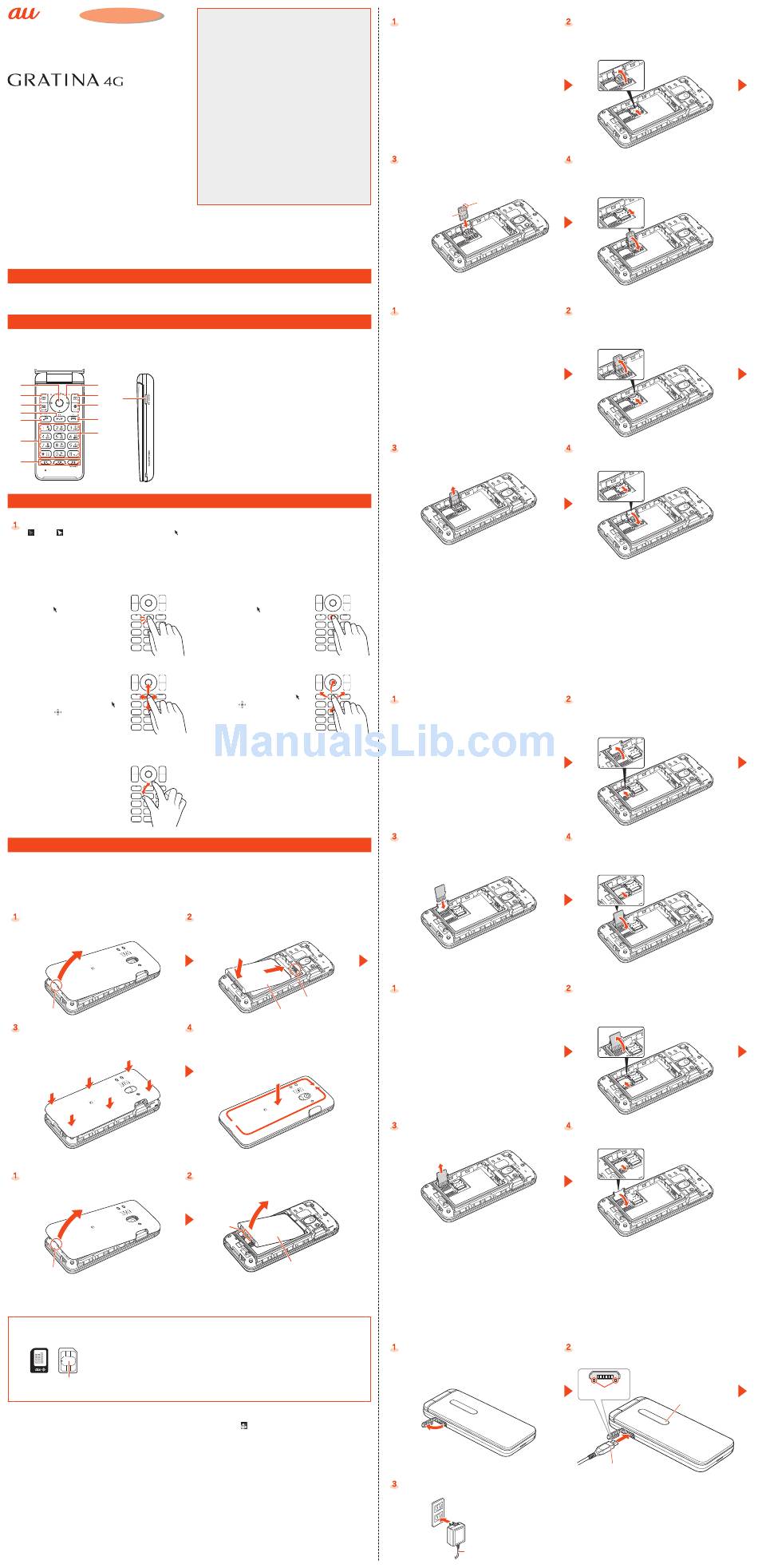

Kyocera GRATINA 4G Settings Manual

Introduction
KYF34
Setting Guide
Thank you for buying the "GRATINA 4G" (simply called the "product"
from here on).
In this guide, settings and precautions for using the product are
described. For explanations of basic functions, refer to "Basic Manual".
Company names and product names referred to in this manual are
trademarks or registered trademarks of respective companies.
The TM, ® marks may be omitted in this manual. Screen illustrations
shown in this manual may look different from the actual screens. In
some cases, minor details or a part of a screen may be omitted.
First edition February 2017
When Using the Product
Note the following when using the product.
● When you purchase the product, the battery is not fully charged. Be sure to charge the battery before use.
● To maintain water and dust resistance, attach the external connection terminal cover and back cover firmly.
Basic Operation
Basic key operations are described here. For detailed operation, refer to the "Basic Manual".
■
Key Names and Functions
Names of keys on the product and their functions are described.
① ⑧
② ⑨
⑬
③
⑩
④
⑪
⑤
⑫
⑥
⑦
Using the Touch Pointer
Use your fingers in the touch area to operate in the same way as a touchpad (Touch Pointer).
Activate a Touch Pointer-capable function/application
" " (OFF)/" " (ON) is displayed in the status bar, and "
● Hold down z for at least 1 second to toggle the Touch Pointer on/off.
● Key operation is still possible when the Touch Pointer is on (except some applications).
■
Touch Pointer Operation
Tap/Double-tap
Gently tap the touch area. To double-
tap, tap the same position twice.
• By moving "
" above an item and
tapping, the item is confirmed
(okayed).
Slide
While gently touching the touch area,
slide in the desired direction or to the
desired position. The pointer moves in
the slid direction.
• By long-touching the touch area, "
"
changes to " ", and you can slide to
scroll the screen.
• With the pointer at the edge of the
screen, slide toward off the screen to
scroll in the slid direction.
Zoom in/Zoom out
While touching the touch area with two
fingers, widen (zoom in) or close (zoom
out) your fingers.
Preparing the Product for Use
● Always turn the power off before installing or removing the battery pack, au Nano IC Card (LTE), or a microSD memory card.
● Attach the battery pack after checking that the au Nano IC Card (LTE) tray and microSD memory card are firmly in place.
● To maintain water resistance, firmly close the back cover without leaving any gaps.
● Attaching items improperly may result in damage to the battery pack or back cover.
■
Installing/Removing the Battery Pack
Installing
Remove the back cover of the back side of the product
Lift the back cover by the notch at its bottom (use fingernail,
etc.) in the direction shown to remove.
Notch
Attach the back cover
Place the back cover on the product and attach.
Removing
Remove the back cover of the back side of the product
Lift the back cover by the notch at its bottom (use fingernail,
etc.) in the direction shown to remove.
Notch
■
Installing/Removing the au Nano IC Card (LTE)
The au Nano IC Card (LTE) contains customer phone number and other information. The product is compatible with au Nano IC Card (LTE)
only. You cannot use the product with an IC card other than au Nano IC Card (LTE).
● When handling the au Nano IC Card (LTE), observe the following to avoid malfunction and
damage.
au Nano IC Card (LTE)
• Do not touch the IC (metal) part on the au Nano IC Card (LTE) or the IC card terminals on the
Back Front
product.
• Confirm the correct orientation for installing.
• Do not forcefully install or remove.
● An error message is displayed if the au Nano IC Card (LTE) is not installed correctly or if it has
an abnormality.
IC (metal) part
● Be careful not to lose the removed au Nano IC Card (LTE).
● Do not insert the au Nano IC Card (LTE) if in a card adapter. May cause malfunction.
● Turn the power off beforehand and remove the battery pack.
● When the au Nano IC Card (LTE) is not inserted
If the au Nano IC Card (LTE) is not inserted, the following operations are unavailable. "
• Making*/Receiving a call
• Sending/Receiving SMS
• Making initial e-mail settings and sending/receiving e-mail
• Making PIN code settings
• Checking product phone number and e-mail address
Besides the above, functions which require your phone number etc. may not be available.
* Emergency calls also cannot be made to 110 (police), 119 (fire department), or 118 (coast guard). However, calls can be made if signal strength
during GSM/UMTS roaming is any level other than "Out of service area" (emergency numbers depend on the country; calls may not connect).
● Restricting product use with a PIN code
Your au Nano IC Card (LTE) contains valuable personal information. To protect this information, you can change the PIN code and lock
the SIM card to restrict use by other persons.
■
When Using the Product
Describes things to note when using the product.
■
Basic Operation
Describes basic key operation.
■
Using the Touch Pointer
Describes Touch Pointer operation.
■
Preparing the Product for Use
Describes initial preparations.
■
Initial Settings
Set an au ID etc. to use various services provided by au.
■
Wi-Fi ® Settings
Describes how to connect to a Wi-Fi ® network.
■
Checking On-Screen Status
Check the signal reception strength, battery level, etc. on-screen.
■
E-mail
Make initial settings for @ezweb.ne.jp etc.
■
How to Transfer Data with the Data Storage App
You can return/save data from your old au phone to the product
using a microSD memory card. You can also use an auスマート
パス (au Smart Pass) server to return/store phone book data to
the product.
■
Reducing Battery Consumption
You can reduce battery consumption by enabling Eco Mode.
Sold by: KDDI CORPORATION,
OKINAWA CELLULAR TELEPHONE COMPANY
Manufactured by: KYOCERA Corporation
① k Center key ⑨ o Camera key
② u Phone book key ⑩ l Browser key
③ j Mail key
Displays browser menu.
④ , Clear key ⑪ . Power/end call key
⑤ m Call/pair key
While using the product, end call
⑥ 0 – 9,-,^
or exit functions. Hold down to
Number keys turn the power on or off.
⑦ q – z ⑫ Touch area (Touch Pointer)
⑬ v Manner/shutter key
Custom keys 1 – 3
⑧ d Cursor key
s Left key/incoming history
f Right key/outgoing history
e Up key
c Down key
" (pointer) is displayed when the Touch Pointer is on.
Long-touch
Keep gently touching the touch area.
After tapping the touch area, the
indication returns to " ".
Flick
Flick your finger on the touch area up,
down, left, or right. The pointer moves in
the flicked direction.
• By long-touching the touch area, "
"
changes to " ", and you can flick to
scroll the screen.
• With the pointer at the edge of the
screen, flick toward off the screen to
scroll in the flicked direction.
Install the battery pack
Confirm location of connection, and then slide battery pack in
and press firmly into place.
②
①
Connection
Battery pack
Press firmly making sure there are no gaps around the
back cover
Working your way all around the back cover in direction ①,
press firmly in direction ② to attach completely.
②
①
Remove the battery pack
Lift the battery pack by the notch (using fingernail, etc.) in the
direction shown to remove.
Notch
Battery pack
" is also displayed.
Installing
Turn the power off and remove the battery pack
• See "Installing/Removing the Battery Pack" for how to
remove the battery pack.
Slide the au Nano IC Card (LTE) in the direction shown
in the slot cover
Note location of notch and direction of IC (metal) surface.
Notch
IC (metal) surface
Removing
Turn the power off and remove the battery pack
• See "Installing/Removing the Battery Pack" for how to
remove the battery pack.
Slide the au Nano IC Card (LTE) in the direction shown
to remove
■
Installing/Removing the microSD Memory Card
You can save, move, and copy data by installing a microSD memory card (including microSDHC memory card) in the product.
● A protective card is preinstalled. If not using a microSD memory card, leave the protective card installed in the product to prevent parts
from rattling.
* The protective card can be used when a microSD memory card is uninstalled. Not installing the protective card does not adversely affect the
product.
● Turn off the power and remove the battery pack beforehand.
● A microSD memory card initialized on another device may not work on the product properly. Format the microSD memory card on this
product. Use the following steps.
When the standby screen is displayed, press k → [Settings] → [More settings] → [Storage] → [Erase SD card] → [Erase SD card] →
[Erase everything]
● Make sure that the top/bottom and front/rear of the microSD memory card are facing correctly. Trying to force a wrongly oriented card
into the slot could make it impossible to remove the card or result in damage.
● Do not touch the terminal part of a microSD memory card.
Installing
Turn the power off and remove the battery pack
• See "Installing/Removing the Battery Pack" for how to
remove the battery pack.
Slide the microSD memory card in the direction shown
in the slot cover
Note orientation of card.
Removing
Turn the power off and remove the battery pack
• See "Installing/Removing the Battery Pack" for how to
remove the battery pack.
Slide the microSD memory card in the direction shown
to remove
■
Charging
● While charging, the charging/notification indicator illuminates in red. When charging is finished, the charging/notification indicator goes
out.
● The product may become warm while charging, depending on the situation, but this is not abnormal.
● When you operate the product with the specified charger (sold separately) connected, the product may repeat short-time charging/
discharging resulting in short battery life.
● When temperature of environment or the product becomes extremely high or low, charging may be stopped. Try to charge the battery
as far as possible at room temperature.
● If the charging/notification indicator blinks in red, check if the phone is connected correctly, etc. Even if the indicator keeps blinking,
stop charging and then contact an au shop or Repair and Delivery Service Center.
Charging with a Specified AC Adapter (Sold Separately)
Open the external connection terminal cover of the
product
Insert the power plug of Common AC Adapter 05 (sold
separately) into an outlet (100 VAC to 240 VAC)
Common AC Adapter 05
(sold separately)
Slide the au Nano IC Card (LTE) slot cover with the pad of
your finger in direction ① and then raise in direction ②
Be careful not to touch metal terminals on product when
raising cover. Do not slide cover forcefully (may damage
cover or injure hand/finger).
②
①
Lower the au Nano IC Card (LTE) slot cover in direction ①,
and then slide in direction ② with the pad of your finger
until it clicks locked
If cover is difficult to close, raise cover again and make sure
the au Nano IC Card (LTE) is installed all the way.
②
①
Slide the au Nano IC Card (LTE) slot cover with the pad of
your finger in direction ① and then raise in direction ②
Be careful not to touch metal terminals on product when
raising cover. Do not slide cover forcefully (may damage
cover or injure hand/finger).
②
①
Lower the au Nano IC Card (LTE) slot cover in direction ①,
and then slide in direction ② with the pad of your finger
until it clicks locked
②
①
Slide the microSD card slot cover with the pad of your
finger in direction ① and then raise in direction ②
Be careful not to touch metal terminals on product when
raising cover. Do not slide cover forcefully (may damage
cover or injure hand/finger).
②
①
Lower the microSD card slot cover in direction ①, and
then slide in direction ② with the pad of your finger until
it clicks locked
If cover is difficult to close, raise cover again and make sure
the microSD memory card is installed all the way.
②
①
Slide the microSD card slot cover with the pad of your
finger in direction ① and then raise in direction ②
Be careful not to touch metal terminals on product when
raising cover. Do not slide cover forcefully (may damage
cover or injure hand/finger).
②
①
Lower the microSD card slot cover in direction ①, and
then slide in direction ② with the pad of your finger until
it clicks locked
②
①
Check the orientation of the microUSB plug of Common
AC Adapter 05 (sold separately) and insert it straight into
the external connection terminal
With the projections
facing down
Charging/
notification indicator
Common AC Adapter 05
(sold separately)
