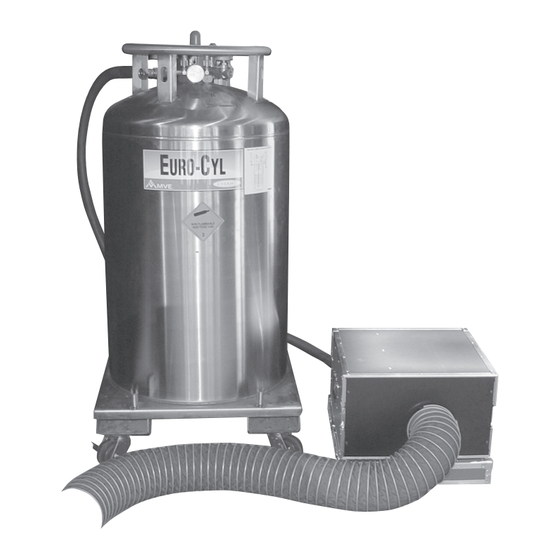

- Page 1 Operating manual CRYO LOW PRESSURE Low fog generator to be used with low pressure tank a Look Solutions product...
- Page 2 Set of Equipment supplied – 1 Cryo-Fog Low Pressure – 1 Connecting tube complete with connectors to link the machine with the CO -Tank, 5 m – 1 Tank lid with Quick coupling – 1 Operating manual Please check whether all the products you ordered are supplied.
-
Page 3: Table Of Contents
2. Safety instructions 3. Description of the parts 4. Liquid 4.1 General notes 4.2 Changing the fluid container 5. Operating the Cryo-Fog 5.1 Selecting the location 5.2 Putting into operation 5.3 Switching the device off 5.4 Disconnect the machine from the tank 5.5 Control choices... -
Page 4: Introduction
It will then take the cooling chamber longer to reach the correct temperature to produce low fog. The Cryo-Fog can be used as a „normal“ fog machine as well as a low fog machine. When using it as a normal fog machine, the Cryo-Fog can be controlled via DMX 512 only. -
Page 5: Safety Instructions
2. Safety instructions A fog machine is not a toy! • Make sure, that all persons who work with the tank and the gas are professionals. Incorrect use can cause the risk of suffocation! • Carbon dioxide is not toxic but may cause asphyxiation in high concentrations. •... -
Page 6: Description Of The Parts
2. Safety instructions Artificially-made fog can be produced in many different ways. The method used here to produce fog, with a device which works according to the vaporizer principle, is the most harmless one. No case has so far been reported in which a healthy human being has been harmed be- cause of using our device to produce artificial fog. - Page 7 2. Exhaust the CO remaining in the hose (display: Co2 or DMX: Channel 3) Serial no. Made by OTTEC Technology GmbH for Look Solutions. Made in Germany. 2: · Fluid tube 6: · DMX in/out 3: · Fluid tube inlet 7: ·...
-
Page 8: Liquid
4.1 General notes The Cryo-Fog can be used with the following Look fog liquids: For low fog use only the recommended Cryo-Fog Fluid. This is a special, high concen- trated and quick disappearing liquid. For use as a normal fog machine:... -
Page 9: Operating The Cryo-Fog
5. Operating the Cryo-Fog Low Pressure 5.1 Selecting the location The location, in which the Cryo-Fog is to be operated, must – be dry, – be free from dusty or polluted air, – be free from vibrations, – be a non-flammable place or surface, –... -
Page 10: Switching The Device Off
When you switch off the DMX signal, the machine will be switched into the post- run-mode automatically after 15 seconds. Note: Please make sure that the Cryo-Fog is not disconnected too early to allow the fan to run until the cooling chamber is dry. -
Page 11: Disconnect The Machine From The Tank
At operation via DMX: The Cryo-Fog needs three channels on your desk (first channel = Pump, second channel = Fan, third channel = Cooling). Run the cooling channel (third channel) at full until no noise can be heard from the machine - at a minimum for one minute. - Page 12 5. Operating the Cryo-Fog Low Pressure Menue 20: Ready-LED, green 19: Cooling-ready-LED, red P 1 5 18: Display 17: DMX-LED, yellow 16: Enter button 15: Up/Down buttons 14: Mode button Fig. 1: Display shown for adjusting the pump output 2 7 5 C o 2 Fig.
-
Page 13: Control Choices
512 this data takes priority over 0 - 10 V (+) DC and Stand-alone operation. 5.5.1 Control via DMX 512 Connect the Cryo-Fog to a DMX desk using the 5pin XLR socket [8] on the back of the machine. As soon as the machine receives a correct DMX signal, the yello DMX-LED [17] is illuminated. -
Page 14: Control Via 0 - 10 Volt (+) Dc
The DMX mode is the only modewhere the Cryo-Fog can be used as a normal fog ma- chine. In this case, use only the first two channels for pump and fan and leave the third one in position “0“. -
Page 15: Wiring Of The Connectors
5. Operating the Cryo-Fog Low Pressure b. Press the Enter button [16] once. The fan start to run and after approx. three seconds the valve for the CO opens. The machine now starts cooling the chamber but will not start to fog. As soon as the cooling chamber is cold enough, the red LED [19] illuminates and the fogging process starts. -
Page 16: Cleaning, Care And Maintenance
– Wipe up spilled fluid immediately. Moisture - also fluid - can destroy the electric parts of the machine. – If the Cryo-Fog High Pressure is been used with a tube, there will be some residues in the tube and also the machine after a while. -
Page 17: Troubleshooting
7. Troubleshooting The machine does not produce low fog • Cooling chamber will not get cool enough – CO tank is empty or the pressure is too low – CO tube is too long or too warm (no liquid CO reach the machine) The machine does not fog –... -
Page 18: Specifications
Microprocessor controlled Overheating protection Heater block/Thermostat Pump/Thermal switch Dimensions (L xW x H) 26.5 x 20 x 12 in Weight without canister 62 lbs Manufactured for Look Solutions - Fog machines made in Germany · Bünteweg 33 · DE-30989 Gehrden... -
Page 19: Warranty Conditions
9. Warranty conditions For the low fog machine Cryo-Fog Look‘ warranty is: 1. Free of charge, subject to the following conditions (No. 2 - 6) we will repair any defect or fault in the unit if it is caused by a proven factory fault and has been advised immediately after identification and within 12 months of delivery to the end user. - Page 20 Look Solutions product...
