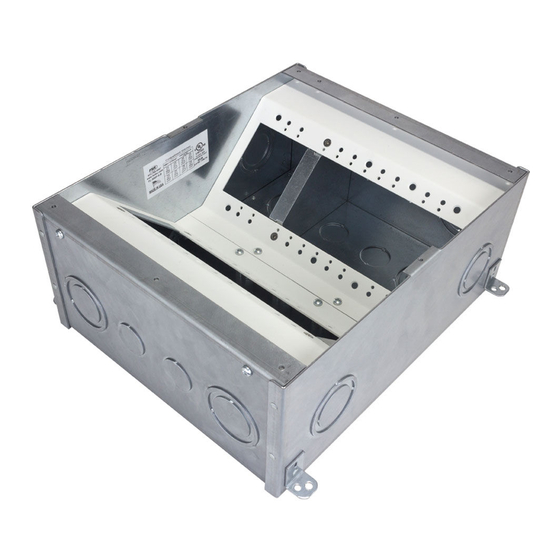

FSR FL-500P Installation Instructions Manual

GANG DIVIDER ASSEMBLY
DIVIDER HOLDER MUST BE ORIENTED AS SHOWN WHEN ATTACHING
TO DIVIDERS, IN ORDER TO PROPERLY ASSEMBLE BOX INTERIOR.
4" BOX DIVIDER 5"-6" BOX DIVIDER
DIVIDER DIVIDER
DIVIDER HOLDER
(2) #8-32 x .25 LG
(2) #8-32 x .25 LG
PAN HEAD
SCREW
DIVIDER HOLDER
* DIVIDER ASSEMBLY FOR 5" & 7" BOXES
POSITION DIVIDER ASSEMBLY IN BOX BEFORE INSTALLING
GANG PLATE ASSEMBLY. SECURE DIVIDER ASSEMBLY TO
GANG PLATE ASSEMBLY WITH SCREWS AS NOTED.
GANG
(2) #8-32 x .25 LG
MOUNTING
PLATE
DIVIDER ASSEMBLY
INSTALLING ELECTRONIC COMPONENTS
PULL WIRES AND CABLES TO BOX AS NECCESSARY (REMOVAL OF
GANG MOUNTING BRACKETS MAY BE REQUIRED). TERMINATE
WIRES AND CABLES TO ELECTRONIC COMPONENTS, AND INSTALL
ELECTRONIC COMPONENTS ONTO GANG MOUNTING BRACKETS.
REINSTALL TEMPORARY COVER IF FINISHED COVER IS TO BE
INSTALLED AT A LATER DATE.
7"-12" BOX DIVIDER
DIVIDER
PAN HEAD
(2) #8-32 x .25 LG
SCREW
PAN HEAD
SCREW
DIVIDER HOLDER
GANG PLATE ASSEMBLY
FLAT HEAD
SCREW
GANG
MOUNTING
BRACKET
FSR
BOX INSTALLATION - STEP 1
LOCATE AND POSITION BOX IN ACCORDANCE WITH FLOOR
PLANS. TOP SURFACE OF TEMPORARY COVER MUST BE SET
TO MATCH THE HEIGHT OF THE FINISHED FLOOR - ie STONE,
WOOD OR CONCRETE - SEE TYPICAL INSTALLATION HEIGHTS.
LEVEL AND ANCHOR BOX AS REQUIRED. USE SCREWS, NAILS,
OR WIRE TO PREVENT BOX FROM FLOATING DURING POUR.
REMOVE AND RETAIN TEMPORARY COVER AND SCREWS.
ROUTE CONDUITS TO BOX AS REQUIRED. GANG BRACKET
SCREWS MUST BE IN PLACE AND BOTTOMED TO ENSURE
SCREW VOIDS AFTER POUR. PLACE THIS INSTALLATION GUIDE
BACK INTO BOX, ALONG WITH ALL SUPPLIED ITEMS, AND
REINSTALL TEMPORARY COVER.
TEMPORARY
COVER
(2) #8-32 x .375 LG
SELF TAPPING
PAN HEAD
SCREW
(4) LEVELING BOLT
TYPICAL INSTALLATION HEIGHTS
Carpeted or Tile Floors, Cover types - BLP, BSQ, B, SLP, SSQ, S
COVER FLUSH WITH CONCRETE
(FOR 1/8" THICK COVER)
SCREED FLUSH
CONCRETE
Vinyl or Stained Concrete, Cover types - BK, SS, BRS
INSTALLED
ELECTRONIC COVER FLUSH WITH CONCRETE
COMPONENT (FOR 1/8" THICK COVER)
SCREED FLUSH
CONCRETE
43200
FL-500P INSTALLATION INSTRUCTIONS
244 Bergen Boulevard, Woodland Park, NJ 07424, Phone: 973.785.4347 - Fax: 973.785.4207
BOX INSTALLATION - STEP 2
SCREED TO TOP OF BOX SURFACE FOR 3/16" THICK
CARPET/FLOORING OR SPECIFIC HEIGHT TO ALLOW
FOR THICKER FINISHED FLOOR MATERIAL. HAND
TROWELING RECOMMENDED NEAR BOX EDGES.
BOX HAS NO HEIGHT ADJUSTMENT AFTER
CONCRETE POUR.
(8) #6-32 FLAT HEAD SCREW
FLOOR BOX TEMPORARY COVER WILL EITHER BE INSTALLED DIRECTLY ON THE BOX OR SHIMMED
BASED ON THE COVER AND FLOORING SPECIFICATIONS. SHIM KITS SOLD SEPARATELY (FL-500P-CSK).
THE TEMPORARY COVER MAY NOT BE FLUSH WITH THE FINISH FLOOR IN ALL INSTALLATIONS.
CARPET FLOORING
1/8" THICK
CARPET
COVER WITH
TEMPORARY
EDGING
COVER
FLOOR BOX FLOOR BOX
CONCRETE
VINYL FLOORING
FINISHED
1/8" THICK COVER
FLOOR
TEMPORARY
COVER
SHIM TO VINYL
THICKNESS
FLOOR BOX
FLOOR BOX
CONCRETE
(FOR USE WITH FL-500P SERIES COVERS ONLY)
CONCRETE SURFACE OR TOP
OF FINISHED FLOOR MATERIAL
TILE OR LAMINATE FLOORING
FINISHED 1/8" THICK
FLOOR COVER WITH
EDGING
FLOOR BOX
CONCRETE
STAINED FLOORING
1/8" THICK COVER
FLOOR BOX
CONCRETE
LIT1332B
