Philips Bruce FC6095 Service Manual

Philips Domestic Appliances and Personal Care
Service Manual
PRODUCT INFORMATION
- This product meets the requirements regarding
interference suppression on radio and TV.
- After the product has been repaired, it should function
properly and has to meet the safety requirements as
officially laid down at this moment.
TECHNICAL INFORMATION
- Adapter AC / DC
- Rechargeable batteries : 10 x NiMH
- Run time
- Charging time
- Charge indicator
- Charging base
- Air flow system
- Accessories
- Application
environment
- Filter
- Dust capacity
Charge/Discharge indication
- Charging : Green LED lights up during charging
- Battery Low : Green LED blinks fast during discharge
after battery pack voltage drops below
11.4 V ± 0.2 V
Published by Philips Domestic Appliances and Personal Care
07/12
: 230 V / 21V DC - 250 mA
: 11 min.
: 16-18 hours
: LED
: Standing, also wall mountable,
incl. accessory storage
: Cyclonic action
: Telescopic stick, Floor nozzle,
crevice and brush
: Dry
: 2-stage type, HEPA
: 450 ml
Bruce
REPAIR INSTRUCTIONS
- No specific issues
ASSEMBLY & DISASSEMBLY ADVICE
- To remove the back plate assy, first remove the rubber screw
hole cover and the screw in the back plate.
- To open the cleaner, first remove the 6 screws and then
gently open it up by using a screwdriver between both
body sides at the front of the cleaner to unsnap both parts
from each other.
OPTIONAL (accessories)
- No specific issues

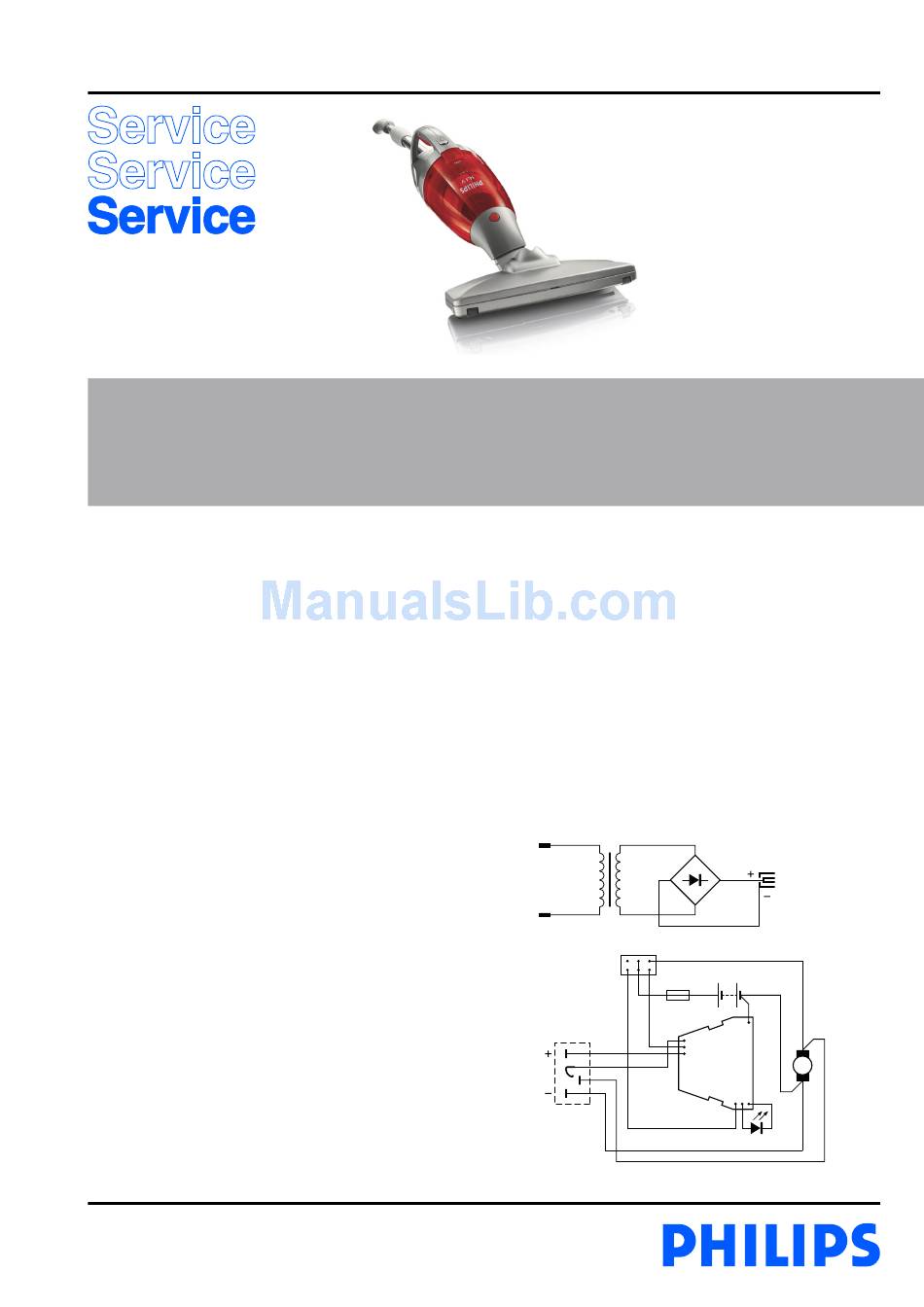

Electrical diagram
230 V
50 Hz
Switch
From
Charger
Printed in the Netherlands © Copyright reserved

Vacuum Cleaner

FC6095
21 V DC
250 mA
4 x
1N4002
0 1
Battery
Fuse
+
16 AT
PCB
M
LED
Subject to modification
