User's Manual

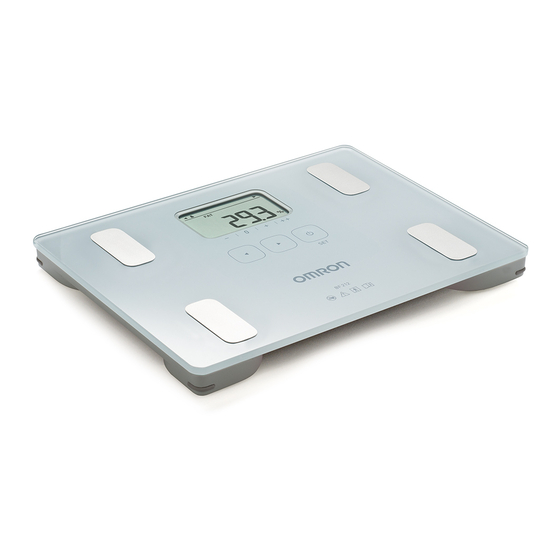

Body weight and composition monitor
Body Scan
HBF-212
®
Thank you for purchasing an Omron product.
For safe and correct operation, please be sure to read this
User's Manual before using the product.
Always keep this manual, which also serves as your
warranty, close to hand.
Keep it in a safe location to avoid loss.
C
M
Y
CM
MY
CY
1. Safety considerations
CMY
K
Please be sure to read this document before using the device.
● This content is provided to ensure that the product is used safely and correctly and to prevent
injury to users or damage to property.
● Displays and their meanings are as follows.
■ Concerning danger, warnings and cautions
The following describes hazardous and urgent situations where a person
Danger
may die or be seriously injured due to improper handling.
The following describes situations in which a person may die or be seriously
Warning
injured due to improper handling.
The following describes situations in which a person may incur injury or in
Caution
which property damage* may occur due to improper handling.
* "Property Damage" refers to extended damage such as to a house, household
goods, livestock and pets.
■ Example of illustration symbols
This code indicates mandatory things that must
always be done. (See the illustration on the left
Be sure to
follow these indicating something that "must always be done")
instructions
Warning
Never use with the following kinds of electronic medical devices.
① Pacemakers or other implantable electronic medical devices,
② Artificial heart-lung and other electronic life support medical equipment,
③ Cardiographs and other wearable electronic medical devices,
Prohibited
• Doing so may cause such an electronic medical device to malfunction, with life-threatening results.
Warning
Although the window on this device is made of reinforced glass, do not drop the main unit, drop
anything onto it, or subject it to any forceful impact.
• The impact will cause the glass to break, resulting in injury. Also, measurements will not be
accurate.
Do not use on tiles, wet floors or other slippery surfaces.
• Doing so may result in a fall and cause injury.
Please do not take measurements immediately after getting out of the bath, or at any time when
your hands feet or body are very wet.
• Doing so may result in a fall that causes injury.
Prohibited
• Water may also enter the interior of the device and cause a malfunction. Also, measurements
will not be accurate.
Do not jump onto the device or hop up and down on the platform.
• Doing so may result in a fall and cause injury.
This may also exceed the limits of use and result in damage to the device.
Do not stand on the edge of the main unit.
• Doing so may result in a fall that causes injury. Also, measurements will not be accurate.
Persons with physical disabilities should be helped by a care-person when using this product.
• Failure to do so may result in a fall that causes injury.
Please refrain from self-diagnosis and be sure to consult a physician or specialist when
Be sure to
undergoing weight-loss or exercise therapy.
follow these
instructions • Self-diagnosis may result in damage to your health.
Do not attempt to open, repair or modify the main unit.
• Doing so may result in injury or malfunction.
Disassembly
prohibited
Do not use in hospitals, clinics, or such institutions.
• This device conforms to the standards for domestic weighing scales. It does not conform
to the requirements for institutional use.
Please do not use your cell phone near the main unit.
Prohibited
• A cell phone can sometimes interfere with the taking of correct measurements.
When taking measurements, remove your shoes and socks before stepping onto the scale.
• Failure to do so may result in a fall and injury. Also, accurate measurements will not be achieved.
Keep out of reach of infants.
• Failure to do so may result in injury.
Be sure the polarity is correct when inserting the batteries.
• Failure to do so may result in damage to the main unit due to heat generation,
fluid leakage or rupture, and this may cause injury.
Be sure to
Please use only the correct type of batteries as designated.
follow these
Do not mix old and new batteries, or batteries from different manufacturers or of different types.
instructions
• Doing so may result in damage to the main unit due to heat generation, fluid leakage,
rupture or personal injury.
Please remove batteries when the device is not to be used for a long time (three or more
months).
Also, immediately remove and replace all spent batteries with new ones.
• Failure to do so may result in damage to the main unit due to fluid leakage, rupture, or injury.
■ The illustrations in this document are image schema.
P l e a s e
■ Installation
Do not use or store the device in a damp place,
or where it might be exposed to water, direct
sunlight, direct air-flow from an air conditioning
unit, or close to a fire.
• Doing so may result in malfunction.
Do not use on Tatami mats, carpeting or other
soft floor surfaces.
• If the legs sink in and the underside of the main
unit touches the floor surface measurements
may not be accurate.
■ Handling
Be sure to clean the device before use if others
you share it with might have foot infections.
• Failure to do so may result in the transfer of
infection. When sharing the device with others,
use a soft cloth, tightly wrung out after being
well-soaked in water or a mild detergent, to
clean the display control panel and the main
unit. Then, wipe with a dry cloth.
Do not use this device for purposes other than
measuring body weight and composition.
Do not stand on the display control panel.
• Doing so may cause a malfunction.
5333216-6C
■ Maintenance
Do not wash the main unit with water.
• Doing so may result in malfunction.
When measurement cannot be taken correctly
■ The following types of person may have difficulty measuring body composition correctly.
Adolescents, senior citizens, people with fever due to colds, pregnant women, individuals with
osteoporosis and very low bone density, those with severe swelling, undergoing dialysis,
professional body builders and athletes, or similar individuals are included.
• This is because the composition of body fluids may be above average.
If you think the measurement value displayed is unlikely... (
2. Part names
Display control panel
Display
This code indicates things that are prohibited
and must never be done. (See the illustration on
The illustration shows
Prohibited the left indicating something that is "prohibited")
all display items.
Control switch
Please touch firmly
with the tip of a finger.
Switch
With each touch, you go
back one step. Keep your
finger on the control to
fast-return.
Switch
Each touch will move
you on to the next step.
Keep your finger on the
control to fast-forward.
Main unit
Electrode
Caution 3. Inserting or replacing batteries
1
Turn the main unit over
Underside of the main unit
1
and remove the battery cover
1
Tab
2
2
2
Insert four AAA batteries as shown in
the illustration.
The side with the spring is the
3
Close the battery cover.
Battery life and replacement
■ Battery life (4 x AAA manganese dry-cells) will be approximately one year, at a room temperature of
Be sure to keep the device clean. 23˚C, when 4 measurements are made per day.
• Use a soft dry cloth to wipe away any dirt on the ・The 4 AAA batteries supplied are for test purposes and their life may be short.
main unit.
・Do not use rechargeable batteries. Doing so may result in malfunction.
• To remove stubborn dirt, use a soft cloth, tightly
■ When the lights up, the batteries need to be replaced.
wrung out after being well-soaked in water or a
mild detergent. Then, wipe with a dry cloth.
Please replace all batteries for new ones of the same type
at the same time.
Do not use benzene, thinners, or
other solvents to remove dirt.
■ Turn the power OFF before replacing batteries.
• Doing so may result discoloration
・Your personal data will be retained even while batteries are being replaced.
and malfunction.
・Please dispose of spent batteries as instructed by the municipalities, wards and towns in which you live.
When performing maintenance on your device,
be careful not to touch the switches. This might
change or delete personal data.
Turning the power OFF
■ Storage
If you store the device in an upright position, be ■ To turn the power off hold the
sure to store it in a location where it will not fall
"OFF" will be briefly displayed.
over.
■ The power turns OFF automatically under the following
Do not store the device in:
circumstances.
• Places exposed to water,
• Places which are hot, have high humidity, are in ・After the device has been inactive for about one minute with "0.0kg" displayed
・After the device has been inactive for about three minutes while personal data is
direct sunlight, are dusty, salty, etc.
being registered
• Places where the device might be subject to
・After the device has been inactive for about 30 seconds with the result of weight
vibration or impact.
measurement displayed
• Places where pharmaceutical products are
・After the device has been inactive for about 3 minutes with the result of body
stored or where corrosive gasses are
composition measurement displayed
generated.
・About 10 seconds after "Err" has been displayed.
Do not place anything on top of the device or
store it upside down.
4. Setting residence region
• Doing so may cause malfunction.
This product corrects the influence of gravitational acceleration to ensure weight is accurately measured.
You must set your residence region correctly to achieve accurate measurements.
1 Touch once
Region number "2" will blink.
"10. If you think results are unlikely...")
If your residence region code is "2", proceed to step three.
2
Select your region code
Region numbers "2" and "1" are displayed alternatively with
each touch
Please select your residence region number.
3
Mark Touch the
The device turns on
when you touch the
Region is set and device powers off automatically.
control switch.
Replace battery mark
■ To correct your region settings...
Remove the batteries and wait for 20 or more seconds. Replace the batteries and turn on
the power.
5. Registering personal data
Power/Set switch
To measure body weight and composition you must register your age, gender and height.
Touch when turning You may register the personal data of up to four different people.
power ON, or setting Others, with no personal data registered in the system, may also use the device as guests to measure
values.
body weight and composition.
The power will turn OFF
What is the Guest Function? (
if you maintain contact
for 3 or more seconds.
1
Touch the
After the device starts, and lights up fully, the display will show, "0.0kg".
Power will turn ON even when you touch
Please proceed to step 2.
2
Select your personal number
Use
Electrode
then touch
Legs
(four locations)
3
Press the tab on the battery cover in the
direction indicated by the arrow to release
the lock.
4
Lift up the battery cover tab.
5
side.
Marked battery
電池交換マーク replacement
■ You cannot register information in the following instances. Please re-register your
personal data.
・Power automatically turns off after three minutes without inactivity when settings are being
configured.
・When you turn off the power while configuring settings
6. Changing or deleting personal data
1
down for three or more seconds.
2
3
to turn the power ON
4
.
.
To change personal data
5
Use to select
"Change"
"Change" starts to blink.
(age, gender and height)
6
Touch the
The age you have registered will start to
"7. Measuring body weight and composition")
blink.
Run steps 3 through 5 in "5. Register
personal data" to make changes.
to turn on the power
.
If you make a mistake in your settings
when making changes, complete all
other settings up to your height, then
to select "Personal Number" or "Guest",
start again to make the appropriate
(Set).
correction.
When "0.0kg" appears, it means that the corresponding
personal number has already been registered. Please use Changes to your personal data are
another number or delete your personal data and start again.
complete.
" "
6. Changing or deleting personal data
You can proceed to measure your body weight
and composition.
If you do not intend to enter measurements, turn
the power OFF.
Set your "Age"
Use to adjust "Age" settings, then touch the
(setting)
Age can be set within the range of 10-80.
The age you set does not update automatically, so be sure to
update your age each birthday. Results may not be accurate if
you do not set your age correctly.
After "Age" is set, "Gender" will start to blink.
Set your "Gender"
Use to select "Male" or "Female", then touch the
(setting)
After "Gender" is set, "Height" will start to blink.
Set your "Height"
Use to adjust "Height" settings, then touch the
(setting)
・The setting range for height is 100.0 to 199.5cm.
After you set your height; "Age", "Gender" and "Height" will be
displayed, followed by "0.0kg".
Registration is now complete.
You can now proceed to measure your body weight and
composition.
( "7. Measuring body weight and composition")
If you do not intend to take your measurements, turn the power
OFF.
Touch the to turn the power on
After lighting up fully, "0.0kg" will appear.
Power will turn ON even when you touch .
Please proceed to step 2.
Use to select the personal
number you want to change or delete
When " " – " " is blinking...
There is no personal data registered for
the number you selected.
Please register your personal data.
( "5. Register personal data")
Touch the to set the value
" " and " " will disappear.
Touch the once again
"Change" and "Delete" will start to blink.
To cancel, touch (set).
To delete personal data
5
Use to select
"Delete"
"Delete" starts to blink.
6
Touch the
The details of the registered personal
numbers you have selected will start to
blink .
Touch one of the to cancel the
delete process.
7
Touch the Once again
After "Clr" is displayed, "P1" will start to blink.
Deletion of your personal data is
complete.
Turn the power OFF.
