Page 1 E-MANUAL imagine the possibilities Thank you for purchasing this Samsung product. To receive more complete service, please register your product at www.samsung.com/register Model _____________ Serial No. _____________...
Page 2 Contents Channel Setting Preference Features Advanced Features Basic Features Other Information...
Page 3 ❑ Using the INFO button (Now & Next guide) The display identifies the current channel and the status of certain audio-video settings. The Now & Next guide shows daily TV programme information for each channel according to the broadcasting time. When you press the (Information) button, you can see the details of the programme.
Page 4: Channel List
❑ Using Channel menu MENUm Support Contents Home ENTERE Press the CONTENT button to select the desired menu. Each screen will be displayed. Channel List ■ You can view channel information, All, TV, Radio, Data/Other, Analogue Favourites 1-5. When you press the CH LIST button on the remote control, Contents Home Channel List...
Page 5 All: Shows all currently available channels. TV: Shows all currently available TV channels. Radio: Shows all currently available radio channels. Data/Other: Shows all currently available MHP or other channels. Analogue: Shows all currently available analogue channels. Favourites 1-5: Shows all favourite channels. If you want to view favourite channels you added, press the CH LIST button and use L (Ch.
Page 6 Using the control buttons with the Channel List. T (Tools): Displays the option menu. (Ch. Mode / Channel): Move to the All, TV, Radio, Data/Other, Analogue Favourites 1-5. When you select the Programme View in T (Tools) menu, you can move to other channels using L (Channel) button.
Page 7 How to use Schedule Viewing in Channel List (digital channels only) When you set the Schedule Viewing Channel List, you can only set the programme in Programme View. Press the CH LIST button, then select a desired digital channel. Press TOOLS button, and then select the Programme View.
Page 8 Using Option Menu t Set each channel using the menu options (Programme View, Edit Channel List Favourites, Lock/Unlock, Edit Channel Name, Edit Channel Number, Delete, Information, Sort, Edit Mode). Option menu items may differ depending on the channel status. 1. Select a channel and press the TOOLS button. 2.
Page 9 Programme View: Displays the programme when digital channel is selected. Edit Favourites: Set channels you watch frequently as favourites. Add or delete the selected channel in Favourites 1-5. Select the Edit Favourites, then press the ENTERE button. Press the ENTERE button to select Favourites 1-5, then press the button.
Page 10 Lock/Unlock: Lock a channel so that the channel cannot be selected and viewed. This function is available only when the Channel Lock is set to On. The PIN input screen appears. Enter your 4-digit PIN. Change the PIN using the Change PIN option.
Page 11 Edit Channel Number: Edit the number by pressing the number buttons desired. Some area may not be able to support Edit Channel Name Edit Channel Number function. Delete: You can delete a channel to display the channels you want. Information: Displays details of the selected programme. Sort: Changes the list ordered by channel number or channel name.
Page 12 Edit Mode: You can select desired channels and edit it. Using Option Menu t Set each channel using the menu options (Edit Favourites, Lock/Unlock, Delete, Deselect, Select All). Press the TOOLS button in screen, then select the Channel List Edit Mode.
Page 13 Edit Favourites: Set the selected channels you watch frequently as favourites. Edit Favourites screen has ﬁve groups (Favourites 2, etc.). You can add a favourite channel to any one of Favourites the groups. Press the buttons to select a group. Lock/Unlock: Lock a channel so that the channel cannot be selected and viewed.
Page 14 Guide ■ The EPG (Electronic Programme Guide 18:30 Sat 1 May Guide) information is provided Die Musik-Show by broadcasters. Using DTV Air 825 NDR FERNSEHEN 19:15 - 20:40 programme schedules provided Dani is devastated when scot makes clear his views ... 825 NDR FERNSEHEN by broadcasters, you can Channel View - All...
Page 15 (Sche. Mgr): Moves to the reserved programmes in Sche. Mgr. Green (-24 Hours): Viewing the list of programmes to be broadcasted before 24 hours. Yellow (+24 Hours): Viewing the list of programmes to be broadcasted after 24 hours. Blue (Ch. Mode): Select the type of channels you want to display on the Channel List window.
Page 16 5 `(Information): Displays details of the selected programme. 6 k (Page): Move to previous or next page. (Watch / Schedule) When selecting the current programme, you can watch the selected programme. When selecting the future programme, you can reserve to watch the selected programme.
Page 17: Schedule Manager
Schedule Manager ■ You can set a desired channel to be displayed automatically at the intended time. In addition, you can view, modify or delete a channel you have reserved to watch. Set the current time first to use this function. Using Option Menu t Set each channel using the menu options (Cancel schedule, Edit Schedule,...
Page 18 Repeat: Select Once, Manual, Sat~Sun, Mon~Fri Everyday to set at your convenience. If you select Manual, you can set the day you want. The (c) mark indicates the day you’ve selected. Date: You can set the desired date. It is available when you select Once in Repeat.
Page 19: Retuning Channels
❑ Retuning Channels Country (Australia / New Zealand / Singapore) ■ (depending on the country) MENUm Channel Country ENTERE Select your country so that the TV can correctly auto-tune the broadcasting channels. The PIN input screen appears. Enter your 4 digit PIN number. The default PIN number is “0-0-0-0.”...
Page 20: Auto Tuning
Auto Tuning ■ (depending on the country) MENUm Channel Auto Tuning ENTERE Scans for a channel automatically and stores in the TV. Automatically allocated programme numbers may not correspond to actual or desired programme numbers. If a channel is locked, the PIN input window appears.
Page 21: Manual Tuning
Manual Tuning ■ MENUm Channel Manual Tuning ENTERE Scans for a channel manually and stores in the TV. If a channel is locked, the PIN input window appears. According to the channel source, Manual Tuning may be supported. Digital Channel Tuning (Channel, Frequency, Bandwidth): Scans for a digital channel.
Page 22 Analogue Channel Tuning: Scans for an analogue channel. Press the button to search the channels by adjusting the Programme, Colour System, Sound System, Channel, Search. Channel mode – (programme mode): When tuning is complete, the broadcasting stations in your area have been assigned to the position numbers from P0 to P99. You can select a channel by entering the position number in this mode.
Page 23 Guide Type ■ (Australia only) MENUm Channel Guide Type ENTERE Selects to use either the built-in or downloaded guide. Guide: Select Native Guide. Auto: Select MHEG Guide but if the channel does not have MHEG Guide, Native Guide will appear. English...
Page 24: Transfer Channel List
Transfer Channel List ■ MENUm Channel Transfer Channel List ENTERE Imports or exports the channel map. You should connect a USB storage to use this function. The PIN number input screen appears. Enter your 4 digit PIN number. Import from USB: Import channel list from USB.
Page 25: Fine Tune
Fine Tune ■ (analogue channels only) MENUm Channel Fine Tune ENTERE If the signal is weak or distorted, fine tune the channel manually. Fine tuned channels are marked with an asterisk “*”. To reset the ﬁne-tuning, select Reset. English...
Page 26 Edit Channel Number (Disable / Enable) ■ (New Zealand only) MENUm Channel Edit Channel Number ENTERE Use this to change channel number. When channel number is changed, channel information is not updated automatically. English...
Page 27: Changing The Preset Picture Mode
❑ Changing the Preset Picture Mode MENUm Picture Picture Mode ENTERE Picture Mode ■ Select your preferred picture type. When connecting a PC, you can only make changes to the Entertain Standard. Dynamic: Suitable for a bright room. Standard: Suitable for a normal environment. : Suitable for reducing eye Natural for LED 5 series 32"...
Page 28: Adjusting Picture Settings
❑ Adjusting Picture Settings Samsung MagicAngle ■ for LED 4 series 19", 5 series 22" MENUm Picture Samsung MagicAngle ENTERE Adjust screen viewing Angle to optimize screen quality according to your viewing position. Samsung MagicAngle: When viewing the screen at an angle from below or above by setting the appropriate mode for each position, you can obtain a similar picture quality as viewing the screen directly from the front.
Page 29 Backlight / Cell Light / Contrast / Brightness / ■ for LED TV for PDP TV Sharpness / Colour / Tint (G/R) Your television has several setting options for picture quality control. NOTE In analogue TV, AV modes of the PAL system, the Tint (G/R) function is not available.
Page 30: Screen Adjustment
Screen Adjustment ■ MENUm Picture Screen Adjustment ENTERE Set the various picture options such as picture size and aspect ratio. Size: Your cable box/satellite receiver may have its own set of screen Picture sizes as well. However, we highly recommend you use 16:9 mode most of the time.
Page 31 4:3: Sets the picture to basic (4:3) mode. Do not watch in 4:3 format for a long time. Traces of borders displayed on the left, right and centre of the screen may cause image retention (screen burn) which are not covered by the warranty. Screen Fit: Displays the full image without any cut-off when HDMI (720p / 1080i / 1080p) or Component (1080i / 1080p) signals are inputted.
Page 32 Position: Adjust the picture position. It is only available in Screen Fit Wide Zoom. Zoom/position: Adjust the picture position. It is only available in Zoom. NOTE After selecting in HDMI (1080i / 1080p) or Component (1080i Screen Fit / 1080p) mode, you may need to centre the picture: Press the button to select Position.
Page 33 Depending on the input source, the picture size options may vary. If you want to reset the position you adjusted, select Reset in the Position screen. The picture will be set to its default position. The available items may differ depending on the selected mode. When connecting a PC, only modes can be adjusted.
Page 34 PC Screen Adjustment for LED 4 series 19", 5 series 22" It is available in mode. Coarse / Fine: Removes or reduces picture noise. If the noise is not removed by Fine-tuning alone, then adjust the frequency as best as possible (Coarse) and Fine-tune again.
Page 35 Depending on the version of Windows and the video card, the actual screens on your PC may differ in which case the same basic set-up information will almost always be applied. (If not, contact your computer manufacturer or Samsung Dealer.)
Page 36 To set screen resolution, click on the “Control Panel” on the Windows start menu, and then set the desired screen resolution in the “Display”. NOTE The correct size setting (Screen resolution) - [Optimum: 1366 X 768 pixels] for LED 4 series - [Optimum: 1920 X 1080 pixels] for LED 5 series If a vertical-frequency option exists on your display settings dialogue box,...
Page 37: Changing The Picture Options
❑ Changing the Picture Options Advanced Settings ■ MENUm Picture Advanced Settings ENTERE (available in Standard / Movie mode) You can adjust the detailed setting for the screen including colour and contrast. When connecting a PC, you can only make changes to Gamma White Balance.
Page 38 Dynamic Contrast (Off / Low / Medium Advanced Settings High): Adjust the screen contrast. Dynamic Contrast Medium Black Tone (Off / Dark / Darker / Black Tone Darkest): Select the black level to adjust the screen depth. Flesh Tone RGB Only Mode Flesh Tone: Adjust the flesh tone colour.
Page 39 Colour Space (Auto / Native / Custom ): Adjust the range of for LED 6 series colours available to create the image. To adjust and Reset, set Colour, Red, Green, Blue Colour Space Custom. for LED 6 series White Balance: Adjust the colour temperature for a more natural picture. R-Offset / G-Offset / B-Offset: Adjust each colour’s (red, green, blue) darkness.
Page 40 10p White Balance (Off / On) : Controls the white balance in for LED 6 series 10 point interval by adjusting the red, green, and blue brightness. Available when the picture mode is set to and when the external Movie input is set to all input.
Page 41 Expert Pattern (Off / Pattern1 / Pattern2) : By running the for LED 6 series Expert Pattern function, the picture can be calibrated without a generator or filter. If the OSD menu disappears or a menu other than the Picture menu is opened, the calibration is saved and the Expert Pattern window disappears.
Page 42 Motion Lighting (Off / On): Reduce power consumption by brightness control adapted motion. This function is not supported in mode. for PDP 490 series Only available in Standard mode. When changing a setting value of Backlight / Cell for LED or Contrast, will be set to Light...
Page 43: Picture Options
Picture Options ■ MENUm Picture Picture Options ENTERE When connecting a PC, you can only make changes to the Colour Tone. Colour Tone (Cool / Standard / Warm1 / Warm2) Warm1 Warm2 will be deactivated when the picture mode is Dynamic.
Page 44 Digital Noise Filter (Off / Low / Medium / High / Auto / Auto Visualisation): If the broadcast signal received by your TV is weak, you can activate the Digital Noise Filter feature to reduce any static and ghosting that may appear on the screen.
Page 45 MPEG Noise Filter (Off / Low / Medium / High / Auto): Reduces MPEG noise to provide improved picture quality. Normal): Selects the black level on the screen to HDMI Black Level (Low / adjust the screen depth. Available only in HDMI mode (RGB signals).
Page 46 Motion Plus (Off / Clear / Standard / Smooth / Custom / Demo) Removes drag from fast scenes with a lot of movement for LED 6 series to provide a clearer picture. The Info screen on your TV displays the resolution and frequency of the incoming signal (60Hz), but not the frequency the TV is generating for the image it is displaying by using function.
Page 47 Reduction: Adjusts the blur reduction level from video sources. Blur Judder Reduction: Adjusts the judder reduction level from video sources when playing ﬁlms. Reset: Reset the custom settings. LED Motion Plus (Off / On) : Removes drag from fast scenes for LED 5, 6 series with a lot of movement to provide a clear picture.
Page 48 Reset Picture (Yes / No) ■ MENUm Picture Reset Picture ENTERE Resets your current picture mode to its default settings. English...
Page 49: Changing The Preset Sound Mode
❑ Changing the Preset Sound Mode Sound Mode ■ MENUm Sound Sound Mode ENTERE Standard: Selects the normal sound mode. Music: Emphasizes music over voices. Movie: Provides the best sound for movies. Voice: Emphasizes voices over other sounds. Clear Amplify: Increase the intensity of high-frequency sound to allow a better listening experience for the hearing impaired.
Page 50: Adjusting Sound Settings
❑ Adjusting Sound Settings Sound Effect ■ (standard sound mode only) MENUm Sound Sound Effect ENTERE Use the up and down arrow keys to select an option, and then press ENTERE. SRS TruSurround HD (Off / On) (standard sound mode only) This function provides a virtual 5.1 channel surround sound experience through a pair of speakers using HRTF (Head Related Transfer Function) technology.
Page 51 SRS TruDialog (Off / On) (standard sound mode only) This function allows you to increase the intensity of a voice over background music or sound effects so that dialogue can be heard more clearly. Equaliser Use Equaliser to customize sound setting for each speaker. Balance: Adjusts the balance between the right and left speaker.
Page 52: Broadcast Audio Options
Broadcast Audio Options ■ MENUm Sound Broadcast Audio Options ENTERE Audio Language (digital channels only) Change the default value for audio languages. The available language may differ depending on the broadcast. Audio Format (digital channels only) When sound is emitted from both the main speaker and the audio receiver, a sound echo may occur due to the decoding speed difference between the main speaker and the audio receiver.
Page 53 Audio Description (not available in all locations) (digital channels only) This function handles the Audio Stream for the AD (Audio Description) which is sent along with the Main audio from the broadcaster. Audio Description (Off / On): Turn the audio description function on or off.
Page 54: Additional Settings
Additional Settings ■ MENUm Sound Additional Settings ENTERE DTV Audio Level (MPEG / HE-AAC) (digital channels only): This function allows you to reduce the disparity of a voice signal (which is one of the signals received during a digital TV broadcast) to a desired level. According to the type of broadcast signal, MPEG / HE-AAC can be...
Page 55 SPDIF Output : SPDIF (Sony Philips Digital InterFace) is used for LED, PDP TV to provide digital sound, reducing interference going to speakers and various digital devices such as a DVD player. Audio Format: You can select the Digital Audio output (SPDIF) format. The available Digital Audio output (SPDIF) format may differ depending on the input source.
Page 56 Dolby Digital Comp (Line / RF): This function minimizes signal disparity between a dolby digital signal and a voice signal (i.e. MPEG Audio, HE-AAC, ATV Sound). Select Line to obtain dynamic sound, and to reduce the difference between loud and soft sounds at night time. Line: Set the output level for signals greater or less than -31dB (reference) to either -20dB or -31dB.
Page 57: Speaker Settings
Speaker Settings ■ MENUm Sound Speaker Settings ENTERE Speaker Select (External Speaker / TV Speaker) for LED, PDP TV A sound echo may occur due to a difference in decoding speed between the main speaker and the audio receiver. In this case, set the TV to External Speaker.
Page 58 Auto Volume (Off / Normal / Night) To equalize the volume level on each channel, set to Normal. Night: This mode provides an improved sound experience compared to Normal mode, making almost no noise. It is useful at night. To use the volume control on the source device connected to the TV, on the TV.
Page 59 Reset Sound (Yes / No) ■ MENUm Sound Reset Sound ENTERE Reset all sound settings to the factory defaults. English...
Page 60 ❑ Selecting the Sound Mode t When you set to I-II, the current sound mode is displayed on the screen. Dual Audio Type Dual I-II Default A2 Stereo Mono Mono Automatic change Stereo Stereo Mono Dual Dual I Dual II Dual I NICAM Stereo Mono...
Page 61: Connecting To The Network
❑ Connecting to the Network for PDP 490 series, 450, 530 series(except Singapore) and LED 4, 5, 6 series(except Singapore) ■ Wired Network Connection for PDP 490 series You can attach your TV to your LAN using cable in three ways: English...
Page 62 You can attach your TV to your LAN by connecting the LAN port on the back of your TV to an external modem using a LAN cable. See the diagram below. * The position of port may differ depending on the model. TV Rear Panel External Modem The Modem Port on the Wall...
Page 63 You can attach your TV to your LAN by connecting the LAN port on the back of your TV to a IP Sharer which is connected to an external modem. Use LAN cable for the connection. See the diagram below. TV Rear Panel The Modem Port on the Wall IP Sharer...
Page 64 Depending on how your network is configured, you may be able to attach your TV to your LAN by connecting the LAN port on the back of your TV directly to a network wall outlet using a LAN cable. See the diagram below. Note that the wall outlet is attached to a modem or router elsewhere in your house.
Page 65 If your network requires a Dynamic IP address, you should use an ADSL modem or router that supports Dynamic Host Configuration Protocol (DHCP). Modems and routers that support DHCP automatically provide the IP address, subnet mask, gateway, and DNS values your TV needs to access the Internet so you do not have to enter them manually.
Page 66: Wireless Network Connection
PDP 490 series, 450, 530 series(except Singapore) and LED 4, 5, 6 series(except Singapore) To connect your TV to your network wireless, you need a wireless router or modem and a Samsung Wireless LAN Adapter (WIS12ABGNX, WIS09ABGNX), which you connect to your TV’s back or side panel USB port. See the illustration below.
Page 67 Samsung’s Wireless LAN adapter is sold separately and is offered by select retailers and Ecommerce sites. Samsung’s Wireless LAN adapter supports the IEEE 802.11a/b/g and n communication protocols. Samsung recommends using IEEE 802.11n. When you play video over a network connection, the video may not be played smoothly.
Page 68 To use a wireless network, your TV must be connected to a wireless IP sharer (either a router or a modem). If the wireless IP sharer supports DHCP, your TV can use a DHCP or static IP address to connect to the wireless network.
Page 69 If HIGH PURE THROUGHPUT (Greenﬁeld) 802.11n mode is selected and the Encryption type is set to WEP or TKIP for your wireless router, Samsung TVs will not support a connection in compliance with new Wi-Fi certiﬁcation speciﬁcations. If your wireless router supports WPS (Wi-Fi Protected Setup), you can connect to the network via PBC (Push Button Conﬁguration) or PIN...
Page 70 If your router, modem, or device is not certiﬁed, it may not connect to the TV via the “Samsung Wireless LAN Adapter”. Ensure the TV is turned off before you connect the Samsung Wireless LAN Adapter. Connection Methods: You can setup the wireless network connection like below.
Page 71 Notice The picture may appear corrupted or have static for some channels when the TV is connected to the Samsung Wireless LAN Adapter. In such a case, establish a connection using one of the following methods or connect the Samsung Wireless LAN Adapter using a USB cable in a place that is not affected by radio interference.
Page 72 TV near the top, using double- sided adhesive tape. The Samsung Wireless LAN Adapter should be installed in an interference-free area in order to avoid interference between the adapter and tuner. English...
Page 73: Network Settings
Network Settings ■ MENUm Network Network Settings ENTERE You can set the wired or wireless network connection. For detailed settings for wired network, refer to the "Setting the Wired Network", and for detailed settings for wireless network, refer to the "Setting the Wireless Network"...
Page 74: Network Status
Network Status ■ MENUm Network Network Status ENTERE You can check the current network and Internet status. English...
Page 75 No network cable found. Check that your network cable is plugged in. Samsung Wireless LAN adapter is required to use a wireless network. If it is connected, make sure that the router is turned on; if it is on, try turning it off and on again.
Page 76 Issues Solutions and Explanations Unable to connect to the Check if your IP address is set correctly in Settings. network. Contact your Internet Service Provider for more information. Connected to your local Check your Internet LAN cable is connected correctly to LAN port of network, but cannot router.
Page 77 The check list for wireless network connection failure When wireless network connection failed, try to apply the following information to each issue. Issues Solutions and Explanations Wireless network No wireless router selected. Go to Network Settings to select your connection failed. router.
Page 78 Issues Solutions and Explanations Unable to connect to the Check if your IP address is set correctly in Settings. network. Check if you need to enter a security key to use the router. Contact your Internet Service Provider for more information. Connected to your local Check your Internet LAN cable is connected correctly to LAN port of network, but cannot...
Page 79 ❑ Setting the Wired Network for PDP 490 series ■ Wired Network Setup (Auto) When connecting the LAN Cable, the screen pop-up appears directly to set wired network. Use the Automatic Network Setup when connecting your TV to a network that supports DHCP.
Page 80 If you want to connect to your wireless network, plug in a Samsung Wireless LAN Adapter. If it fails to set automatically, check the connection of LAN port. If you cannot ﬁnd network connection values or if you want to set connection manually, set it to Manual.
Page 81 ■ Wired Network Setup (Manual) Use the Manual Network Setup when connecting your TV to a network that requires a Static IP address. Getting the Network Connection Values To get the Network connection values on most Windows computers, follow these steps: 1.
Page 82 How to set up manually To set up your TV’s cable network connection manually, follow these steps: 1. Follow Steps 1 through 2 in the “How to IP Settings set up automatically” procedure. IP Mode Manual 2. Select the on network IP Settings IP Address 0 .
Page 83: Setting The Wireless Network
Security Key for your wireless network, you will have to enter the Pass Phrase during the setup process. When connecting Samsung Wireless LAN Adapter, the screen pop-up appears directly to set wireless network.
Page 84 How to set up automatically 1. Go to Network Settings screen. Network Settings 2. Select Start. Samsung Wireless LAN Adapter connected. Press Start to conﬁgure your wireless network settings. 3. The Network function searches for available wireless networks. Start Cancel When done, it displays a list of the available networks.
Page 85 5. If the Security screen pop-up appears, go to step 6. If you select the wireless router which does not have wireless security, go to step 7. 6. To set wireless security for the router, enter the Security key(Security or PIN). When you enter the Security key (Security or PIN), use buttons to select number/characters.
Page 86 ■ Wireless Network Setup (Manual) Use the Manual Network Setup when connecting your TV to a network that requires a Static IP address. Getting the Network Connection Values To get the Network connection values on most Windows computers, follow these steps: 1.
Page 87 How to set up manually To set up your TV’s cable network connection manually, follow these steps: 1. Follow Steps 1 through 7 in the “How to set up automatically” procedure. 2. Select the IP Settings on network connection screen. 3.
Page 88 ■ Wireless Network Setup (WPS(PBC)) If your router has a WPS(PBC) button, follow these steps: 1. Go to screen. Network Settings 2. Select Start. 3. The Network function searches for available wireless networks. When done, it displays a list of the available networks. 4.
Page 89 The internet connection may fail because of a firewall problem. If this is the case, contact your Internet service provider. If you cannot connect to the Internet even after you have followed the procedures of your Internet service provider, please contact Samsung Electronics. English...
Page 90 Set to connect the TV to wireless mobile devices. Using this function, you can connect wireless mobile devices with your TV directly without a wireless router. You can use this function when connecting the Samsung Wireless LAN Adapter. It only supports AllShare Play function.
Page 91 How to connect the device to your TV using Wi-Fi Direct function 1. Go to Wi-Fi Direct screen. The TV starts to search devices. 2. Turn on the Wi-Fi Direct function on your device. Select the desired device, and then press the ENTERE button. PBC: Press the WPS(PBC) button on your device within 2 minutes.
Page 92: Allshare Settings
AllShare Settings ■ MENUm Network AllShare Settings ENTERE Set whether to allow a network connected device like a smartphone or tablet to share content or control TV using an application downloaded on your mobile device. For details on set up options, refer to the "Using the DLNA Functions". English...
Page 93: Device Name
A keyboard appears on the screen and you can key in a name for your TV manually using your remote control. For example, if you want to change the name to Samsung TV, press each character using the buttons, and then select Done.
Page 94 ❑ Executing initial setup Setup ■ MENUm System Setup ENTERE Configure the channels and the time when setting up the TV for the first time or when resetting the unit. For the detailed information about setting Setup, refer to “Initial Setup” in User Manual.
Page 95: Setting The Time
❑ Setting the Time Time ■ MENUm System Time ENTERE The current time will appear every time you press the INFO button. Clock: Setting the clock is for using various timer features of the TV. If you disconnect the power cord, you have to set the clock again. Clock Mode: Set up the current time manually or automatically.
Page 96 – Manual: Set the current time manually. Depending on the broadcast station and signal, the auto time set up may not be correct. In this case, set the time manually. Clock Set: Set the Date and Time. Available only when Clock Mode is set to Manual.
Page 97: Using The Sleep Timer
❑ Using the Sleep Timer MENUm System Time Sleep Timer ENTERE Sleep Timer t: Automatically shuts off the TV after a preset period of time. (30, 60, 90, 120, 150 and 180 minutes). To cancel Sleep Timer, select Off. English...
Page 98 ❑ Setting the On / Off Timer MENUm System Time On Timer <or> Off Timer ENTERE On Timer 1 / On Timer 2 / On Timer 3: Three different on timer settings can be made. You must set the clock first. –...
Page 99 – Source: Select content to be played when the TV is turned on automatically. (USB can be selected only when a USB device is connected to the TV) – Aerial (when the Source is set to TV): Select or DTV. –...
Page 100 When there is only one photo ﬁle in the USB device, the slide show will not play. If a folder name is too long, the folder cannot be selected. Each USB you use is assigned its own folder. When using more than one of the same type of USB, make sure the folders assigned to each USB have different names.
Page 101 Off Timer 1 / Off Timer 2 / Off Timer 3: Three different off timer settings can be made. You must set the clock first. Setup: Select Off, Once, Everyday, Mon~Fri, Mon~Sat, Sat~Sun Manual to set at your convenience. If you select Manual, you can set up the day you want to activate the timer.
Page 102 ❑ Locking Programme Security ■ MENUm System Security ENTERE The PIN input screen appears before the setup screen. Enter your 4-digit PIN. Change the PIN using the Change PIN option. On): Lock channels in Channel menu to prevent Channel Lock (Off / unauthorized users, such as children, from watching unsuitable programme.
Page 103 Program Rating Lock (depending on the country): Prevent unauthorized users, such as children, from watching unsuitable programme with a user- defined 4-digit PIN code. If the selected channel is locked, the “\” symbol will be displayed. Allow All: Unlock all TV ratings. –...
Page 104 ❑ Picture In Picture (PIP) ■ MENUm System ENTERE You can watch the TV tuner and one external video source simultaneously. (Picture-in-Picture) does not function in the same mode. NOTE For PIP sound, refer to the Sound Select instructions. If you turn the TV off while watching in mode, the PIP window will disappear.
Page 105 PIP settings Main picture Sub picture Component, HDMI PIP (Off / On): Activate or deactivate the PIP function. Channel: Select the channel for the sub-screen. Size (Õ / Ã): Select a size for the sub-picture. (Ã / – / — / œ): Select a position for the sub-picture. Position Sound Select (Main / Sub): You can choose the desired sound...
Page 106: Economical Solutions
❑ Economical Solutions Eco Solution ■ MENUm System Eco Solution ENTERE Energy Saving (Off / Low / Medium / High / Picture Off) t: This adjusts the brightness of the TV in order to reduce power consumption. If you select Picture Off, the screen is turned off, but the sound remains on.
Page 107 Eco Sensor (Off / On) : To for LED 5 series 32" and above, LED 6 series, PDP TV enhance your power savings; the picture settings will automatically adapt to the light in the room. If you adjust the Backlight / Cell Light , the for LED TV...
Page 108 No-Signal Power Off (Off / 15 min / 30 min / 60 min): To avoid unnecessary energy consumption, set how long you want the TV to remain on if it’s not receiving a signal. Disabled when the PC is in power saving mode. Auto Power Off (Off / On): The TV will be automatically turned off when no user operation is received for 4 hours.
Page 109: Other Features
❑ Other Features Language ■ MENUm System Language ENTERE Teletext Language: Set a desired language for teletext. English is the default in cases where the selected language is unavailable in the broadcast. Preferred Language (Primary audio / Secondary audio / Primary subtitle / Secondary subtitle / Primary teletext / Secondary teletext): Select a language, which will be the default language when a channel is selected.
Page 110 Subtitle ■ MENUm System Subtitle ENTERE Use this menu to set the Subtitle mode. On): Switches subtitles on or off. Subtitle (Off / Subtitle Mode (Normal / Hearing Impaired): Sets the subtitle mode. Language: Sets the subtitle language. Subtitle If the programme you are watching does not support the Hearing Impaired function,...
Page 111 Digital Text (Disable / Enable) ■ (Australia & New Zealand only) MENUm System Digital Text ENTERE If the programme broadcasts with digital text, this feature is enabled. English...
Page 112 Auto Protection Time ■ for LED TV MENUm System Auto Protection Time ENTERE Auto Protection Time (Off / 2 hours / 4 hours / 8 hours / 10 hours): If the screen remains idle with a still image for a certain period of time defined by the user, the screen saver is activated to prevent the formation of ghost images on the screen.
Page 113 Screen Burn Protection ■ for PDP TV MENUm System Screen Burn Protection ENTERE To reduce the possibility of screen burn, this unit is equipped with screen burn prevention technology. The Time setting allows you to programme the time between movement of the picture in minutes. On): Using this function, you can minutely move pixels Pixel Shift (Off / on the PDP in horizontal or vertical direction to minimize after image on the...
Page 114 Pixel Shift value may differ depending on the monitor size (inches) and mode. This function is not available in the mode. Screen Fit Auto Protection Time (Off / 10 min / 20 min / 40 min / 1 hour): If the screen remains idle with a still image for a certain period of time defined by the user, the screen saver is activated to prevent the formation of ghost images on the screen.
Page 115 The after-image removal function has to be executed for a long time (approximately 1 hour) to effectively remove after-images on the screen. If the after-image is not removed after performing the function, repeat the function again. Press any key on the remote control to cancel this feature. Side Grey (Light / Dark): When you watch TV with the screen ratio set to 4:3, the screen is prevented from any damage by adjusting the white balance on...
Page 116 General ■ MENUm System General ENTERE Game Mode (Off / On): When connecting to a game console such as PlayStation™ or Xbox™, you can enjoy a more realistic gaming experience by selecting game mode. NOTE Precautions and limitations for game mode –...
Page 117 Picture Mode is set to Standard Sound Mode is set to Movie. Panel Lock (Off / On): Lock or unlock all the keys on the TV. Boot Logo (Off / On): Display Samsung logo when the TV is turned on. English...
Page 118 DivX® Video On Demand ■ MENUm System DivX® Video On Demand ENTERE Shows the registration code authorized for the TV. If you connect to the DivX web site and register with 10-digit registration code, you can download the VOD activation file. Once you play it using Videos, the registration is completed.
Page 119: Support Menu
❑ Support Menu e-Manual ■ MENUm Support e-Manual ENTERE You can read the introduction and instructions about the TV features stored in your TV. For the detailed information about e-Manual Screen, refer to “How to use the e-Manual” in User Manual. English...
Page 120: Self Diagnosis
Self Diagnosis ■ MENUm Support Self Diagnosis ENTERE Self Diagnosis might take few seconds, this is part of the normal operation of the TV. Picture Test (Yes / No): Use to check for picture problems. Sound Test (Yes / No): Use the built-in melody sound to check for sound problems.
Page 121 The PIN input screen appears before the setup screen. Enter your 4-digit PIN. Change the PIN using the Change PIN option. Troubleshooting: If the TV seems to have a problem, refer to this description. If none of these troubleshooting tips apply, contact the Samsung customer service centre. English...
Page 122: Software Upgrade
Installing the Latest Version USB: Insert a USB drive containing the firmware upgrade file, downloaded from “www.samsung.com” into the TV. Please be careful not to disconnect the power or remove the USB drive until upgrades are complete. The TV will be turned off and on automatically after completing the firmware upgrade.
Page 123 By Online : Upgrade the software using the Internet. for PDP 490 series First, conﬁgure your network. For detailed procedures on using the Network Setup, refer to the “Network Settings” instructions. If the internet connection doesn’t operate properly, the connection may be broken.
Page 124 Channel: Upgrade the software using the broadcasting signal. If the function is selected during the software transmission period, software will be automatically searched and downloaded. The time required to download the software is determined by the signal status. Alternative Software: Replace the current software with the alternative. Standby Mode Upgrade (Off / 1 hour later / 2 hours later / 00:00 / 02:00 / 12:00 / 14:00): A manual upgrade will be automatically performed at selected...
Page 125: Contact Samsung
Contact Samsung ■ MENUm Support Contact Samsung ENTERE View this information when your TV does not work properly or when you want to upgrade the software. You can find information regarding our call centres, and how to download products and software.
Page 126: Contents Home
Contents Home ■ MENUm Support Contents Home ENTERE You can enjoy useful and various contents. English...
Page 127 ENTERE This exciting new feature enables you to view 3D content. To fully enjoy this feature, you must purchase a pair of Samsung 3D Active Glasses to view 3D video. Samsung 3D Active Glasses are sold separately. For more detailed purchasing information, contact the retailer where you purchased this TV.
Page 128 Viewing TV using the 3D function IMPORTANT HEALTH AND SAFETY INFORMATION FOR 3D PICTURES. Read and understand the following safety information before using the TV’s function. WARNING Some viewers may experience discomfort while viewing 3D TV such as dizziness, nausea and headaches. If you experience any such symptom, stop viewing 3D TV, remove 3D Active Glasses and rest.
Page 129 A responsible adult should frequently check on children who are using the 3D function. If there are any reports of tired eyes, headaches, dizziness, or nausea, have the child stop viewing 3D TV and rest. Do not use the 3D Active Glasses for other purposes (such as general eyeglasses, sunglasses, protective goggles, etc.) Do not use the 3D function or 3D Active Glasses while walking or moving around.
Page 130 Mode: Select the 3D input format. If you want to feel the 3D effect fully, please wear the 3D Active Glasses ﬁrst, and then select 3D Mode from the list below that provides the best 3D viewing experience. When watching 3D images, turn on 3D Active Glasses. 3D Mode Operation Turns the 3D function off.
Page 131 Some ﬁle format may not be supported the "2D 3D". When you watch 3D images under ﬂickering lighting such as a ﬂuorescent lamp (50Hz ~ 60Hz ) or a 3 wavelength lamp, you may notice some screen ﬂickering. If this occurs, dim or turn off the light. 3D Perspective (-5 ~ +5): Adjust overall 3D perspective of on-screen image.
Page 132 Support resolution (16:9 only) HDMI Source Resolution Frequency (Hz) 50 / 59.94 / 60 Hz 1280 X 720p 50 / 59.94 / 60 Hz 1920 X 1080i 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 Hz 1920 X 1080p 50 / 59.94 / 60 Hz 1280 X 720p...
Page 133: Allshare Play
Component & DTV Source Resolution Frequency (Hz) 1280 X 720p 50 / 59.94 / 60 Hz 1920 X 1080i 50 / 59.94 / 60 Hz Component 1920 X 1080p 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 Hz 1280 X 720p 50 / 59.94 / 60 Hz 1920 X 1080i...
Page 134 How to watch the 3D image Method 1 Some 3D modes may not be available depending on the format of the image source. To watch in 3D, wear 3D Active Glasses and press the power button on the glasses. Press the MENU button use the button to select Picture, and then press the ENTERE button.
Page 135 Method 2 Press the W button. and then you can view the image. If you want to change 3D options (such as Perspective), press the MENU button and then select Picture. Go to Step 3 in the “Method 1”, and follow the directions from that point To exit the mode, press the W button on your remote again.
Page 136 3D Active Glasses from Samsung’s previous product (IR type) or other manufacturers not be supported. When the TV is initially powered on, may take some time until the 3D display is optimized.
Page 137 The 3D Active Glasses may not work properly if there is any other 3D product or electronic devices turned on near the glasses or TV. If there is a problem, keep other electronic devices as far away as possible from the 3D Active Glasses.
Page 138 ❑ Using the Media Contents Enjoy photos, music and movie files saved on a USB Mass Storage Class (MSC) device. 1. Press the CONTENT button to select Media Play / AllShare Play Play Only for PDP 490 series 2. Press button to select desired menu (Videos, Photos, Music), then press the ENTERE button.
Page 139: Connecting A Usb Device
❑ Connecting a USB Device 1. Turn on your TV. 2. Connect a USB device containing photo, music and movie files to the USB port on the side of the TV. 3. When USB is connected to the TV, popup window appears. You can select Videos, Photos Music directly.
Page 140 Devices should be connected directly to the TV’s USB port. Before connecting your device to the TV, please back up your ﬁles to prevent them from damage or loss of data. SAMSUNG is not responsible for any data ﬁle damage or data loss.
Page 141 For unsupported or corrupted ﬁles, the “Not Supported File Format” message is displayed. MP3 ﬁles with DRM that have been downloaded from a non-free site cannot be played. Digital Rights Management (DRM) is a technology that supports the creation, distribution and management of the content in an integrated and comprehensive way, including the protection of the rights and interests of the content providers, the prevention of the illegal copying of contents, as well as managing billings and settlements.
Page 142 If a USB extension cable is used, the USB device may not be recognized or the ﬁles on the device may not be read. If a USB device connected to the TV is not recognized, the list of ﬁles on the device is corrupted or a ﬁle in the list is not played, connect the USB device to the PC, format the device and check the connection.
Page 143 Disconnecting a USB Device Method 1: Using the SOURCE button. Press the SOURCE button. Select a desired USB device, and then press the TOOLS button. The Tools menu appears. Select Safely Remove USB Device, and then wait until the selected USB device is disconnected.
Page 144 Method 2: Using the Media Play / AllShare Play home Only for 490 series Screen. Go to Media Play / AllShare Play home Screen. Only for 490 series Select any category, and then press the ENTERE button. Select a desired USB device, and then press the TOOLS button. The Tools menu appears.
Page 145 If you want to use AllShare Play to play ﬁles saved on your PC over your TV, you should download “AllShare PC Software” and users manual from “www. samsung.com”. 1. For more information on how to configure your network, refer to ‘Network Connection’. –...
Page 146 2. Using a LAN cable, connect between the external modem and the PC onto which the AllShare PC Software programme will be installed. – You can connect the TV to the PC directly without connecting it through a Sharer (Router). Functions that are not supported when connecting to a PC through a network: Background Music On...
Page 147 When you use AllShare Play mode through a network connection, according to functions of the provided server: The sorting method may vary. (REW), µ (FF) or (Pause) buttons may not work depending on the content information. If you experience any ﬁle stuttering issue while playing a video over a wireless network, we recommend using a wired network.
Page 148: Screen Display
❑ Screen Display Move to the desired file using the / / / buttons and then press the ENTERE or (Play) button. The file is played. The screen may differ depending on the way to enter the screen. * The displayed image may differ depending on the model.
Page 149 Videos ■ Playing Video 1. Press the / / / button to select the desired video in the file list. 2. Press the ENTERE button or (Play) button. – The selected ﬁle name is displayed on the top with its playing time. –...
Page 150 Supported Subtitle Formats – External Name File extension MPEG-4 timed text .ttxt SAMI .smi SubRip .srt SubViewer .sub Micro DVD .sub or .txt SubStation Alpha .ssa Advanced SubStation Alpha .ass Powerdivx .psb – Internal Name Container Format Xsub Picture Format SubStation Alpha Text Format Advanced SubStation Alpha...
Page 151: Supported Video Formats
Supported Video Formats File Frame rate Bit rate Audio Container Video Codec Resolution Extention (fps) (Mbps) Codec DivX 3.11/4.x/5.x/6.1 *.avi *.mkv *.asf MPEG4 SP/ASP 1920 x 1080 *.wmv LPCM *.mp4 ADMPCM H.264 BP/MP/HP *.3gp (IMA, MS) *.vro Motion JPEG 640 x 480 *.mpg 6~30 HE-AAC...
Page 152 Other Restrictions Video content will not play, or not play correctly, if there is an error in the content or the container. Sound or video may not work if the contents have a standard bit rate/frame rate above the compatible Frame/sec listed in the table above. If the Index Table is in error, the Seek (Jump) function is not supported.
Page 153 Video decoder Audio decoder Supports up to H.264, Level 4.1 WMA supports up to 10 Pro 5.1 channel and H.264 FMO / ASO / RS, VC1 SP / MP / AP L4 M2 proﬁle. (LBR mode of M0 is not supported) and AVCHD are not supported.
Page 154 Photos ■ Viewing a Photo (or Slide Show) 1. Press the / / / button to select the desired photo in the file list. 2. Press the ENTERE button. During the slide show, all ﬁles in the ﬁle list will be displayed in order. When you press the (Play) button in the ﬁle list, slide show will be started immediately.
Page 155 Supported Photo Formats File Extension Type Resolution *.jpg JPEG 15360 X 8640 *.bmp 1920 X 1080 *.mpo 15360 X 8640 English...
Page 156 Music ■ Playing Music 1. Press the / / / button to select the desired Music in the file list. 2. Press the ENTERE button or (Play) button. – You can use (REW) and µ (FF) buttons during playback. Only displays the ﬁles with supported music ﬁle extension. Other ﬁle extensions are not displayed, even if they are saved on the same USB device.
Page 157 Using the playback menu – Press the button to select the desired menu. Play / Pause: You can start or stop a music. Alternatively, the button on the remote. Repeat Mode (Off / One Song / All): You can play music ﬁles repeatedly.
Page 158 Supported Sound Formats File Extension Type Codec Remark *.mp3 MPEG MPEG1 Audio Layer 3 *.m4a *.mpa MPEG4 *.aac *.3ga *.ﬂac FLAC FLAC Seek is not supported. Supports up to 2ch. *.ogg Vorbis Supports up to 2ch. *.wma WMA supports up to 10 Pro 5.1 channel and M2 proﬁle.
Page 159 ❑ Media Contents - Additional Functions Playing the selected Videos/Music/Photos files 1. Press the TOOLS button at each main screen and select Play selection. 2. Select the desired files. The check box appears to the left of the selected ﬁles. 3.
Page 160 Videos/Music/Photos Play Option menu During playing a file, press the TOOLS button. Category Operation Videos Photos Music Title Search You can move the other ﬁle directly. Time Search You can search the video using button at one minute interval or entering the number directly.
Page 161 Category Operation Videos Photos Music You can adjust the sound setting. Sound Mode Audio Language You can change the audio language if the video has more than one language. Subtitle You can set subtitles on/off. Subtitle Settings You can play the video with subtitles. This function only works if the subtitles are the same ﬁle name as the video.
Page 162 Category Operation Videos Photos Music You can start or stop a slide show. Start Slide Show / Stop Slide Show Slide Show Speed You can select the slide show speed during the slide show. Background Music You can set on/off background music On / Background when watching a slide show.
Page 163 Category Operation Videos Photos Music You can edit the play list when playing Edit playlist the desired music. Play selection Select and play multiple ﬁles. Information You can see detailed information about the played ﬁle. English...
Page 164 For more information, visit “www.samsung.com” or contact the Samsung call centre. Mobile devices may need additional software installation. For details, refer to each device’s user’s guide. If your Samsung TV connects to a non-Samsung DLNA server, a compatibility issue may occur during video playback. English...
Page 165 By connecting your Samsung TV to a network via AllShare™, you can use Samsung’s original functions as follows: – Playback of various video formats (DivX, MP4, 3GPP, AVI, ASF, MKV, etc.) – Video thumbnail feature – Bookmark function (to resume video playback) –...
Page 166 Playing the media contents saved on the devices 1. Connect the mobile phone or other devices which support AllShare Play function, and then play the media contents of each device. The popup screen appears on the bottom of your TV. 2.
Page 167 Using the function, play the media contents of the devices AllShare Play connected to DLNA function. 1. Press the CONTENT button to select AllShare Play. 2. Press button to select desired menu (Videos, Photos, Music), then press the ENTERE button. 3.
Page 168 NOTE Contents may not be played on your TV depending on their resolution and format. The ENTERE and buttons may not work depending on the type of media content. Using the mobile device, you can control the media playing. For details, refer to each mobile’s user’s guide.
Page 169 Using the AllShare Settings function MENUm Network AllShare Settings ENTERE Shows a list of mobile phones or connected devices which have been set up with this TV for using the AllShare Settings function. function is available in all devices which support DLNA AllShare Settings DMC.
Page 170: Teletext Feature
❑ Teletext Feature The index page of the Teletext service gives you information on how to use the service. For Teletext information to be displayed correctly, channel reception must be stable. Otherwise, information may be missing or some pages may not be displayed.
Page 171 1 (sub-page): Displays the available sub-page. 8 (store): Stores the Teletext pages. 6 (index): Displays the index (contents) page at any time while you are viewing Teletext. 4 (size): Displays the teletext on the upper half of the screen in double-size. To move the text to the lower half of the screen, press it again.
Page 172 5 (reveal): Displays the hidden text (answers to quiz games, for example). To display the normal screen, press it again. 7 (cancel): Shrinks the Teletext display to overlap with the current broadcast. Colour buttons (red, green, yellow, blue): If the FASTEXT system is used by the broadcasting company, the different topics on a Teletext page are colour- coded and can be selected by pressing the coloured buttons.
Page 173 The Teletext pages are organized according to six categories: Part Contents Selected page number. Broadcasting channel identity. Current page number or search indications. Date and time. Text. Status information. FASTEXT information. English...
Page 174 ❑ Anti-theft Kensington Lock The Kensington Lock is not supplied by Samsung. It is a device used to physically fix the system when using it in a public place. The appearance and locking method may differ from the illustration depending on the manufacturer. Refer to the manual provided with the Kensington Lock for additional information on proper use.
Page 175 2. Slide the end of the cable with the lock attached through the looped end of the Kensington lock cable. 3. Insert the locking device into the Kensington slot on the product. 4. Lock the lock. These are general instructions. For exact instructions, see the User manual supplied with the locking device.
Page 176: Troubleshooting
❑ Troubleshooting If you have any questions about the TV, first refer to this list. If none of these troubleshooting tips apply, please visit “www.samsung.com”, then click on Support. Issues Solutions and Explanations Picture Quality First of all, please perform the Picture Test and conﬁrm that your TV is...
Page 177 Issues Solutions and Explanations The TV image does not If you have an analogue cable/set top box, upgrade to a digital set top look as good as it did in box. Use HDMI or Component cables to deliver HD (high deﬁnition) the store.
Page 178 Issues Solutions and Explanations The picture is distorted: Compression of video contents may cause picture distortion especially macroblock error, small in fast moving pictures such as sports and action movies. block, dots, pixelization Low signal level or bad quality can cause picture distortion. This is not a TV issue.
Page 179 Issues Solutions and Explanations There is poor colour or Adjust the Picture options in the TV menu. (go to Picture Mode / brightness. Colour / Brightness / Sharpness) Adjust Energy Saving option in the TV menu. (go to MENU - System - Eco Solution - Energy Saving)
Page 180 Issues Solutions and Explanations When changing If connected with a cable box, please try to reset the cable box. channels, the picture Reconnect the AC cord and wait until the cable box reboots. It may freezes or is distorted or take up to 20 minutes.
Page 181 Issues Solutions and Explanations The picture is good but Set the Speaker Select option to TV Speaker in the sound menu. there is no sound. for LED, PDP TV If you are using an external device, make sure the audio cables are connected to the correct audio input jacks on the TV.
Page 182 Issues Solutions and Explanations The speakers are Check the cable connections. Make sure a video cable is not making an inappropriate connected to an audio input. noise. For antenna or cable connections, check the signal strength. Low signal level may cause sound distortion. No Picture, No Video The TV will not turn on.
Page 183 Issues Solutions and Explanations The TV turns off Ensure the Sleep Timer is set to in the Time menu. automatically. If your PC is connected to the TV, check your PC power settings. Make sure the AC power cord is plugged in securely to the wall outlet and the TV.

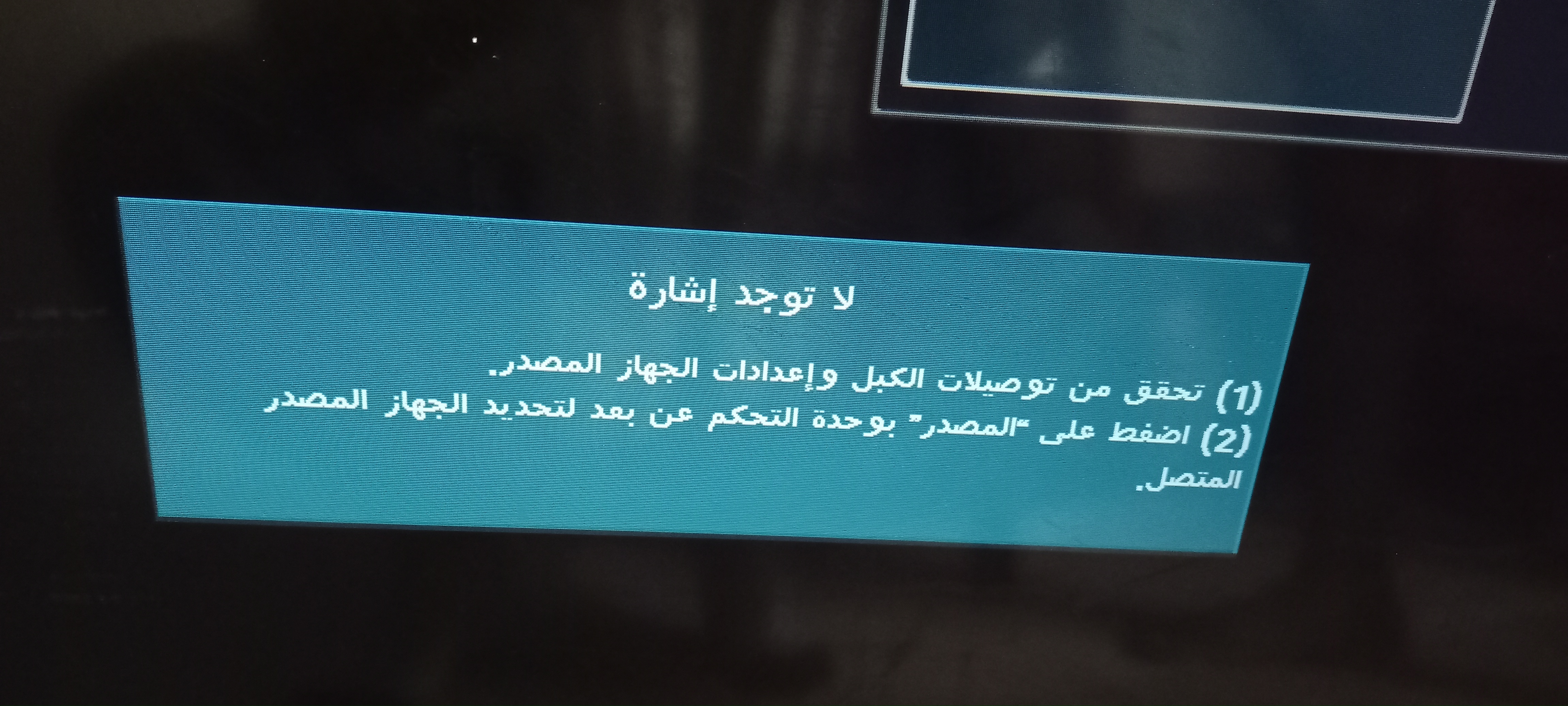

Page 184 Issues Solutions and Explanations There is no picture/ Check cable connections (remove and reconnect all cables connected video. to the TV and external devices). Set your external device’s (Cable/Set top Box, DVD, Blu-ray etc) video outputs to match the connections to the TV input. For example, if an external device’s output is HDMI, it should be connected to an HDMI input on the TV.
Page 185 Issues Solutions and Explanations RF(Cable/Antenna) Connection The TV is not receiving Make sure the Antenna cable is connected securely. all channels. Please try Setup (Initial setup) to add available channels to the channel list. Go to MENU - System - Setup (Initial setup) and wait for all available channels to be stored.
Page 186 PDP 490 series, 450, 530 series(except Singapore) and LED 4, 5, 6 series(except Singapore) The wireless network Samsung Wireless USB dongle is required to use a wireless network. connection failed. Make sure the Network Connection is set to Wireless.
Page 187 Issues Solutions and Explanations Plasma TV is Plasma TVs typically make a soft humming sound. This is normal. It’s making humming caused by the electrical charges that are used to create the images on noise. for PDP TV the screen. If the humming sound is loud, you may have set the brightness on the TV too high.
Page 188 The cable/set top box Programme the Cable/Set top box remote control to operate the TV. remote control doesn’t Refer to the Cable/Set user manual for the SAMSUNG TV code. turn the TV on or off, or adjust the volume. “Mode Not Check the supported resolution of the TV, and adjust the external Supported”...
Page 189 Issues Solutions and Explanations There is a plastic smell This smell is normal and will dissipate over time. from the TV. The TV This function is only available with digital channels from an Antenna / RF Signal Information / Coax connection. unavailable in the Self Test menu.
Page 190 Issues Solutions and Explanations Channel menu is Channel menu is only available when the TV source is selected. grey out (unavailable). Your settings are lost If the TV is in the mode, it will reset audio and picture Store Demo after 30 minutes or every settings every 30 minutes.
Page 191 Issues Solutions and Explanations You see small particles This is part of the product’s design and is not a defect. when you look closely at the edge of the frame of the TV. menu is not functionality is only available when you are using a HDMI or available.
Page 192 Issues Solutions and Explanations There are recurrent Check and change the signal/source. picture/sound issues. A reaction may occur To prevent this, use felt pads on any surface of the TV that comes in between the rubber direct contact with furniture. cushion pads on the base stand and the top ﬁnish of some furniture.
Page 193 ❑ Licence TheaterSound, SRS and symbol are trademarks of SRS Labs, Inc. TheaterSound technology is incorporated under licence from SRS Labs, Inc. SRS TheaterSound™ provides the most immersive surround sound experience from the TVs built-in speakers, while maintaining steady volume and delivering rich bass and clear dialog. Manufactured under licence from Dolby Laboratories.
Page 194 The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. DivX Certified to play DivX video up to HD 1080p, including premium content. ABOUT DIVX VIDEO: DivX®...

Samsung LA32E420 E-Manual

Quick Links

Related Manuals for Samsung LA32E420

Summary of Contents for Samsung LA32E420

Table of Contents
