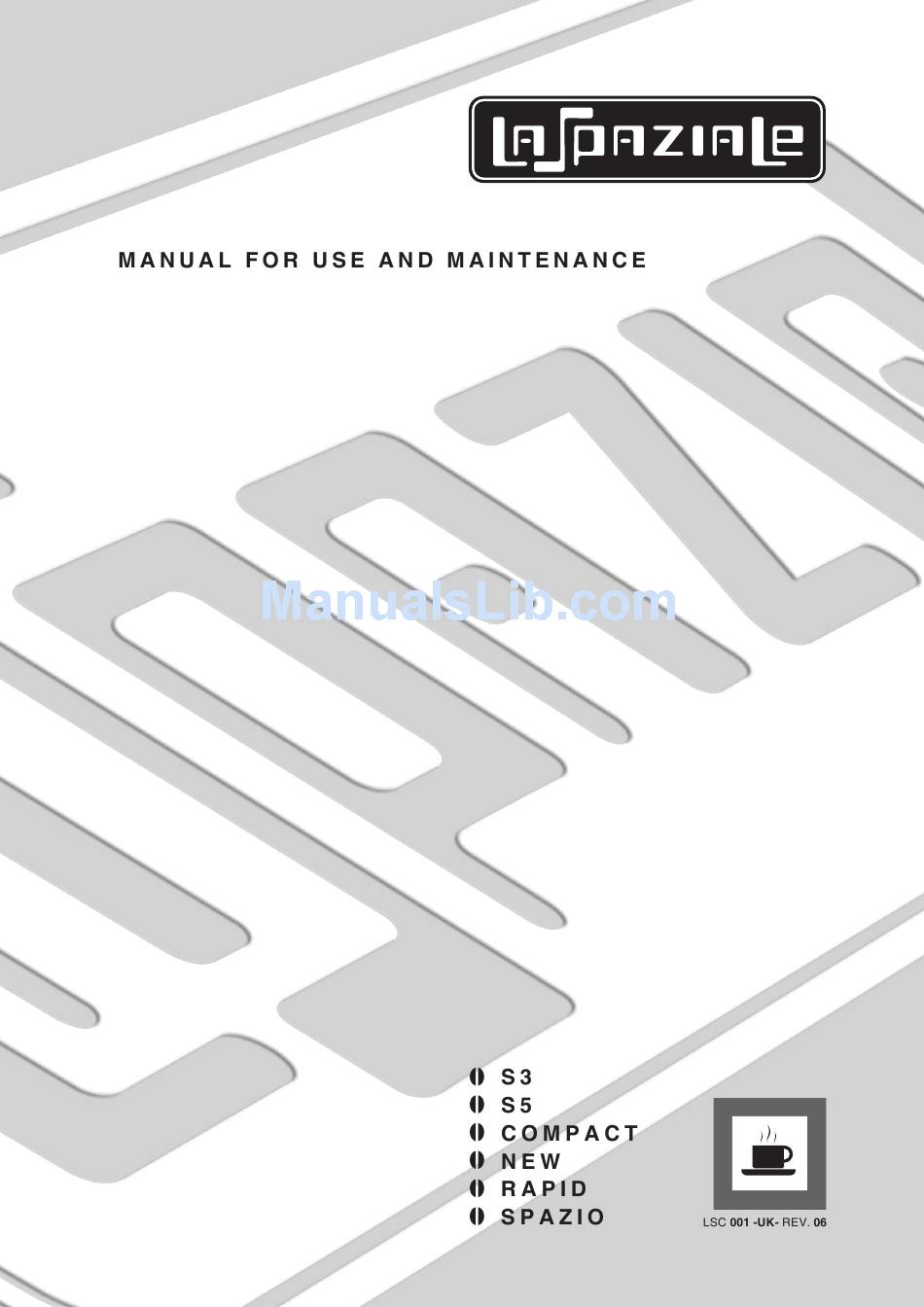

La Spaziale S 3 Manual For Use And Maintenance

Hide thumbs Also See for S 3:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S 3 and is the answer not in the manual?

Questions and answers

Rachid
April 9, 2025

مقبض توصيل البخار لا يعمل جيدا يتنفس

0

Related Manuals for La Spaziale S 3

Summary of Contents for La Spaziale S 3

  • Page 2: Conformity Declaration

    CONFORMITY DECLARATIONÀ MANUFACTURER: La Spaziale SpA Via E. Duse, 8 - Casalecchio di Reno (BO) ITALY ADDRESS: HEREBY DECLARES THAT: The espresso coffee machines from the following ranges: New, Rapid, Spazio, S3, S5, Compact, conform to the directions in the following DIRECTIVES:...

  • Page 3: Table Of Contents

    CONTENTS Chap. 1 GENERAL NOTES ...................... pag. 4 RATING PLATES .......................4 GENERAL WARNINGS .....................4 MACHINE EQUIPMENT ....................5 SAFETY RULES ........................5 INSTALLATION REQUIREMENTS FOR THE USER ............6 Chap. 2 STARTING UP AND PROGRAMMING THE APPLIANCE (Range New - Rapid - Spazio - S3 EP/EK models - S5 – Compact models) ..... pag. 7 STARTING UP ........................7 ALARMS CONTROL ......................12 ROUTINE APPLIANCE MAINTENANCE TO BE PERFORMED BY THE USER ....14...

  • Page 4: General Notes

    GENERAL NOTES RATING PLATES La Spaziale S.p.A. - MADE IN ITALY - - MADE IN ITALY - ( UCIMAC ) ( UCIMAC ) via E. Duse, 8 40033 Casalecchio di Reno BOLOGNA - CASALECCHIO DI RENO (BO) - SERIAL NO.

  • Page 5: Machine Equipment

    MACHINE EQUIPMENT 1 set of filter holders with relative spouts 1 wrench for shower head removal 1 complete set of hoses for connection to 1 brush water mains 1 motor-driven pump 2 sets of filters (unless already built in) 1 set of shower heads 1 manual coffee tamper SAFETY RULES CAREFULLY READ THE FOLLOWING WARNINGS, WHICH OFFER IMPORTANT GUIDELINES FOR...

  • Page 6: Installation Requirements For The User

    INSTALLATION REQUIREMENTS FOR THE USER The machine has to be placed on a stable flat surface that can guarantee a safe position. Check this important requirement, since the manufacturer cannot be considered liable for any damage caused by the instability of the appliance. While preparing the systems, take into account that a hole is needed in the bearing surface in order to make all electric and water connections through the opening below where a...

  • Page 7: Starting Up And Programming The Appliance (Range New - Rapid - Spazio - S3 Ep/Ek Models - S5 - Compact Models)

    STARTING UP AND PROGRAMMING THE APPLIANCE (Range New - Rapid - Spazio - S3 EP/EK - S5 – Compact models)  FOLLOW THE INSTRUCTIONS BELOW (REFERRING TO THE LIST OF PARTS ON PAGES 27/34. STARTING UP FILLING THE BOILER a) Open the water supply tap as fitted during the preparatory stages (2 - Pict.1 - page 6). b) Make sure that on the pressure gauge of the motor-driven pump (17) you can read the water mains pressure ( approx.
  • Page 8 HEATING PHASE AND PRESET PHASE FOR OPERATION (Range New - Rapid - Spazio - S3) In the S5 1 GROUP range , turn the switch knob to position 2 (boiler heating element ON ) a) Fasten the filter holders (11) to the delivery groups (16). b) Open the steam valves (5) (turning them anticlockwise) and leave them open;...
  • Page 9 DISPENSING STEAM FOR HOT DRINK PREPARATION (Range New - Rapid - Spazio - S3) a) Insert the steam wand (8) into the pitcher containing the drink to be heated up. b) Turn the knob (5) of the corresponding steam wand (8) anti-clockwise. Set the amount of steam as needed by turning the knob (5) more or less.
  • Page 10 POURING HOT WATER FOR PREPARING INFUSIONS (Range S3 EP model) a) Place the pitcher underneath the hot water spout (7). b) Press the hot water delivery button (6). c) Press the hot water delivering button (6) again to stop delivery water. Do not press the hot water delivery button (6) before placing the pitcher underneath the hot water spout (7), in order to prevent possible burns.
  • Page 11 TEMPORARY TEMPERATURE INCREASE FUNCTION (Range S5) When the appliance is used in conditions where its temperature could be lowered quite notably, holding down the button (37) for about 5 seconds will increase the boiler temperature by 2 °C. In this condition, the programmed SET temperature will continue to flash on the control panel (13) and at the same time, the temperature symbol, 2°...

  • Page 12: Alarms Control

    ALARMS CONTROL RANGE NEW - EK MODEL This model informs users as to possible malfunctions through the LEDs for the 4 preset dose buttons on the touchpads. 1. LED CORRESPONDING TO THE COFFEE DOSE BUTTON DISPENSING, FLASHING AFTER 5-6 SECONDS: •...
  • Page 13 3. “125 °C” SYMBOL LIT AND ALL OTHER SYMBOLS SWITCHED OFF: When the temperature taken by the sensor is above 140 °C (total block of all machine operations). To • return to normal operation, turn off the machine with the ON/OFF switch (3). If the problem persists, switch off the appliance and contact an authorised Assistance Centre.

  • Page 14: Routine Appliance Maintenance To Be Performed By The User

    ROUTINE APPLIANCE MAINTENANCE TO BE PERFORMED BY THE USER NOTE. To grant the efficiency of the appliance and to maintain correct operation, it is necessary  to follow the manufacturer’s instructions as to cleaning and regular maintenance. WARNING! Cleaning and routine maintenance operations must be carried out by the user according to the manufacturer’s instructions given here below.

  • Page 15: How To Clean The Milk - Sensor

    2) Then clean the filter holders and the filters with the brush provided, making sure no dirt is left inside the filter holders and that all filter holes are clean. 3) Clean the shower heads below the delivery groups with the brush. 4) Clean the drip tray (9) and the cup grid (10), using the standard detergents on sale, if necessary.
  • Page 16 2) Unscrew the external tube (2) and dip it in hot water and Pulicaf detergent for 30 minutes (pic- ture below). 3) Unscrew the internal tube (3) (picture below). 4) Dip the internal tube in hot water and Pulicaf detergent for 30 minutes (picture below). In order to remove any milk incrustations, clean the internal part of the sheath by means of the appropriate pipe-cleaner (4) you will find in the...
  • Page 17 5) After cleaning and drying it, reassemble the internal tube (5) and screw it to the end (picture below). 6) After cleaning and drying it, reassemble the external tube (6) and screw it to the end (picture below). 7) After cleaning and drying it, reassemble the steamer (7) (picture below).

  • Page 18: Starting Up And Programming The Appliance

    STARTING UP AND PROGRAMMING THE APPLIANCE (Range S3 - Seletron model) FOLLOW THE INSTRUCTIONS BELOW REFERRING TO THE PARTS LIST ON PAGES 27/34.  STARTING UP BOILER WATER FILLING a) Turn on the water supply tap, which was fitted during the system pre-arrangement phase (2 - Fig.1 - page b) Make sure that the mains water pressure (more or less 4 bar) is shown on the motor-driven pump pressure gauge (17).
  • Page 19 To enter the setting menu for the day of the week, time and date, proceed as follows: 1. Press and hold down the buttons for 5 seconds, until the display reads ““““““A XXXX””””, where the symbol is flashing and the symbols “XXXX” refer to the current year (NOTE. Pressing the two buttons will show the current time of day).
  • Page 20 HOT WATER DELIVERY FOR THE PREPARATION OF TEA, INFUSIONS, ETC. a) Place the pitcher below the hot water nozzle (7). b) Press the delivery button (6). c) Delivery stops after the time programmed during installation. WARNING! Do not press the timed hot water delivery button (6) before placing the pitcher beneath the hot water nozzle (7), in order to avoid possible burns.
  • Page 21 To program the switching on and off times, proceed as follows: 1. Press and hold down the button about 5 seconds; the display will show the flashing symbol and “P”. 2. Press the button to enter the TIMER MENU; the display will show: Where “OFF”...
  • Page 22 NOTE. Every time the minutes for the switching on time are confirmed, the same time is automatically  suggested as the switching off time (this is because the switching off time cannot be before the switching on time). To set the TIMER so as not to have a switching on time on a specific day (for example, the day on which the premises are closed) set 00:00 as the switching on time (ON) and 00:00 as the switching off time (OFF).
  • Page 23 Where the symbols are now fixed to indicate the total number of cups of coffee delivered by the appliance (coffees delivered using the manual delivery button “ON/OFF” (29) are not counted). NOTE. This is a perpetual counter that cannot be reset to zero. ...

  • Page 24: Alarms Control

    ALARM CONTROL The appliance is run by a program that controls the correct operation of its functions and in case one or more of these is not properly performed, the display will signal the relevant alarm message together with an acoustic signal. NOTE.
  • Page 25 Coarse grinding (only if enabled in the relevant menu) AL05 This is not a blocking alarm. It appears when the main control program of the appliance signals that the delivery time for a dose corresponding to one of the coffee delivery times is less than the % value set in the relevant menu. Fine grinding (only if enabled in the relevant menu) AL06 This is not a blocking alarm.

  • Page 26: Routine Appliance Maintenance To Be Performed By The User

    ROUTINE APPLIANCE MAINTENANCE TO BE PERFORMED BY THE USER NOTE. To grant efficient equipment and correct operation, it is necessary to follow the manufacturer’s  instructions carrying out cleaning and routine maintenance. WARNING! Cleaning and routine maintenance operations must be carried out by the user according to the manufacturer’s instructions, listed here below.

  • Page 27: Parts

    PARTS 1 GROUP CLOSED OPEN DELIVERY CONTROL SYSTEMS 11/a RAPID - SPAZIO MOD. EK MOD. EC 12/a NEW EC 11/a 11/b MOD. 3000 12/c MOD. EP 12/b 11/a 11/b 11/a MANUAL FOR USE AND MAINTENANCE LSC 001 -UK- REV. 06...
  • Page 28 S3 EP 23 24 22 MANUAL FOR USE AND MAINTENANCE LSC 001 -UK- REV. 06...
  • Page 29 S3 EK 12 14 18 19 20 21 22 23 MANUAL FOR USE AND MAINTENANCE LSC 001 -UK- REV. 06...
  • Page 30 S3 Seletron 12 14 17 4 MANUAL FOR USE AND MAINTENANCE LSC 001 -UK- REV. 06...
  • Page 31 S5 EK 110 111 115 116 118 119 S5 EP 110 111 115 116 118 119 MANUAL FOR USE AND MAINTENANCE LSC 001 -UK- REV. 06...
  • Page 32 S5 Water timer version (A.T.) S5 M.A.T. Version MANUAL FOR USE AND MAINTENANCE LSC 001 -UK- REV. 06...
  • Page 33 COMPACT and S5 1 GROUP 12 16 CLOSED OPEN COMPACT EK and S5 EK 1 GROUP COMPACT EP and S5 EP 1 GROUP MANUAL FOR USE AND MAINTENANCE LSC 001 -UK- REV. 06...
  • Page 34 KEY TO PARTS Control knob for gas delivery (optional) Tap for manual filling valve Piezoelectric gas igniter(optional) Boiler water level indicator ON/OFF button for appliance electric heating Main switch Display Boiler pressure gauge Indicator light for electric heating system Steam delivery knob status Hot water dispensing knob Display datum increase...
  • Page 35 03/2009 Graphics and Printing: “ X TYPE ENGINEERING S.r.l.” for “LA SPAZIALE S.p.A.“ MANUAL FOR USE AND MAINTENANCE LSC 001 -UK- REV. 06...
  • Page 36 La Spaziale S.p.A. Via E. Duse, 8 40033 Casalecchio di Reno Bologna - (Italy) Tel. +39 051 611.10.11 Fax +39 051 611.10.40 E-mail: info@laspaziale.com Web Site: www.laspaziale.com...

This manual is also suitable for:

S 5CompactNewRapidSpazio
