Metra Electronics TYTO-01 Installation Manual

TYTO-01
* IMPORTANT WARNING
THIS PRODUCT INCLUDES INSTRUCTIONS FOR INSTALLATION WHICH MUST
BE CAREFULLY FOLLOWED. THE INSTRUCTIONS ARE WORDED IN SUCH A
MANNER TO ASSUME THAT THE INSTALLER IS CAPABLE OF COMPLETING
THESE TYPE OF ELECTRONIC INSTALLATIONS. IF YOU ARE UNCLEAR AS TO
WHAT YOU ARE INSTRUCTED TO DO OR BELIEVE THAT YOU DO NOT UNDER-
STAND THE INSTRUCTIONS SO AS TO PROPERLY AND SAFELY COMPLETE
THE INSTALLATION YOU SHOULD CONSULT A TECHNICIAN WHO DOES HAVE
THIS KNOWLEDGE AND UNDERSTANDING. FAILURE TO FOLLOW THESE
INSTRUCTIONS CAREFULLY AND TO INSTALL THE INTERFACE AS
DESCRIBED COULD CAUSE HARM TO THE VEHICLE OR TO SAFETY
SYSTEMS ON THE VEHICLE. INTERFERENCE WITH CERTAIN SAFETY
SYSTEMS COULD CAUSE HARM TO PERSONS AS WELL. IF YOU HAVE ANY
QUESTIONS IN THIS REGARD PLEASE CALL THE HELP LINE OR THE
METRA AT 1-800-221-0932 FOR ASSISTANCE.
TYTO-01
REV. 11/22/10
TOYOTA AMPLIFIER INTERFACE
TYTO-01

INSTALLATION INSTRUCTIONS

* READ IMPORTANT WARNING INSIDE
BEFORE ATTEMPTING ANY INSTALLATION
The TYTO-01 is designed to interface an after-
market radio with factory amplifiers in the vehi-
cles listed below that have the JBL or JBL
Synthesis amplified sound system.
APPLICATIONS
Lexus
Toyota
• ES330 2004-06
• 4Runner 2003-11
• ES350 2007-10
• Avalon 2011
• ES300 2002-03
• Camry/Camry Hybrid 2010-11
• GX470 2003-08
• Corolla 2005-10
• IS350 2006-10
• Highlander 2008-10
• IS300 2002-05
• Prius 2010
• IS250 2006-10
• Rav4 2004-10
•LS460 2007-08
•LS430 2001-06 • Sequoia 2005-2011
•LX470 2001-07
• Sienna 2004-2011
•RX300 2001-03
• Solara 2004-2009
•RX330 2004-07
• Tacoma 2005-2011
•RX350 2007-09
• Tundra 2004-2011
•RX400H 2006-08
• Venza 2009-10
•SC430 2002-09
• Yaris 2007-10

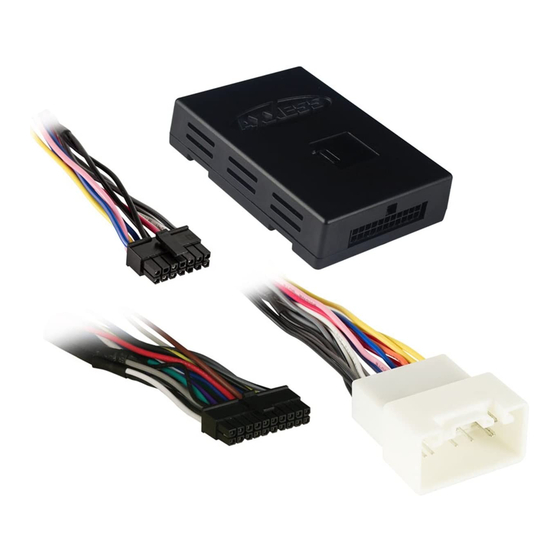

INTERFACE COMPONENTS
• TYTO-01
• 10 pin harness with rca's
• 12 pin to 20 pin Toyota harness
TOOLS REQUIRED FOR INSTALLATION
• Cutting Tool • Tape • Crimping Tool
1-800-221-0932 www.metraonline.com
©Copyright 2010 Metra Electronics Corporation
INST-TYTO-01
