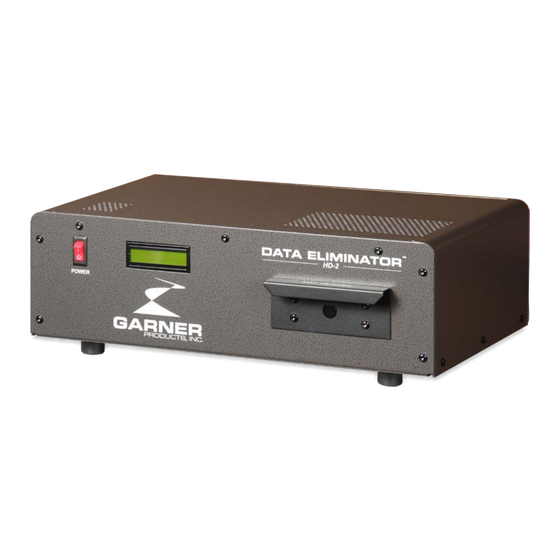

- Page 1 HD-2 Series Continuous Degaussing System Operation and Installation Manual www.GarnerProducts.com (800) 624-1903 10620 Industrial Ave. Suite 100 Roseville, CA 95678 Manufactured in the U.S.A PN 4075-289 Rev 001 HD-2 Operation and Installation Manual...
-
Page 2: Table Of Contents
TABLE OF CONTENTS GENERAL INFORMATION INSPECTION INTRODUCTION MAGNETIC FIELDS Magnetic fields measured around perimeter Pace Maker Users SPECIFICATIONS INSTALLATION Power Requirements Line Voltage Selection Reference Input Voltage Configuration WARNING Power Plug Fuse Block Location Cooling OPERATION Degaussing Instructions Automatic Degaussing Degaussing Instructions for DLT Media. -
Page 3: General Information
Inspect the degausser for shipping damage as soon as it is unpacked. If the degausser or any accessories are damaged or fail to operate correctly, notify carrier and Garner Products, Inc. immediately. For assistance from Garner Products, Inc. call (916) 784- 0200 or fax (916) 784-1425. -
Page 4: Specifications
SPECIFICATIONS Power Supply (HD-2): Selectable: 95~105, 105~115, 115~125, 215~225, 225~235 or 235~240, See “Input Voltage Configuration” section of this manual. Power Consumption 100V: Under Standby 0.3A While charging 5.0A (HD-2): At the time of ERASE 0.6A 110V: Under Standby 0.25A While charging 4.5A At the time of ERASE 0.55A 120V: Under Standby 0.2A... -
Page 5: Installation
HD-2 input voltage is configured to match the voltage from the power mains the HD-2 will plug into. Call Garner Products, Inc. if the voltage listed is not compatible with your voltage or if you have any questions. International customers call 011 916 784-0200. -
Page 6: Input Voltage Configuration Warning
WARNING Input Voltage Configuration The HD-2 model is equipped with a voltage selection block allowing the HD-2 to be configured for use in any country. To check or change the voltage configuration of the HD-2, follow the steps listed below: All trouble shooting and wiring checks must be performed by a qualified electrician or authorized plant personnel. - Page 7 Lift the top cover as shown being careful as a ground wire is still internally attached. Carefully place the cover next to the HD-2 as shown.. To change the jumper position, pull the brown jumper wire from the front side of the fuse block and move it to the corresponding terminal that matches the power...
- Page 8 Notice, this photo shows the correct jumper setting for 240 VAC. Replace the Top Cover and the screws. HD-2 Operation and Installation Manual Page 6...
-
Page 9: Power Plug
Power Plug Plug the EIA connector attached to the power cord supplied into the receptacle on the back of the HD-2. Fuse Block Located behind the removable panel on the front side of the HD-2, there are six separate fuses, one each for 100, 110, 120, 220, 230 & 240 VAC power. Only one fuse is used at a time. -
Page 10: Operation
The second pass at 90 degrees will correct this condition. If you have any questions, please call Garner Products, Inc. at 1-800-624-1903 or 916- 784-0200. First Pass... -
Page 11: Degaussing Overview
The LCD display gives status, automatic count, total count, software version, field strength, user instructions and fault messages. The following information appears on the LCD Display from power-up through one automatic degaussing cycle: Action LCD Display Description GARNER Displays Manufacturer. Step 1: PRODUCTS, INC. Press POWER button ON HD-2 Displays Degausser Model. -
Page 12: Controls And Indicators
HD-2 by pushing the power button off, wait one minute and then press the power back on. If another erase failure happens, call Garner Products Customer Support for assistance. 8) When the LCD displays “REMOVE MEDIA”. Follow the steps to open the media drawer and remove the degaussed media. -
Page 13: Error Codes
The media in the degaussing chamber will be erased if the field is sufficient otherwise the “Gauss Error” will persist on the LCD screen. If error persists, call Garner Products customer support. -
Page 14: Parts List Model
Fuse, 1.6A 250V 4300-025 Fuse holder, 5 x 20mm 4800-009 Thyristor Module 4800-028 Diode module, 600V100A 5100-034 Switch, power rocker 5600-025 Transformer, HD-2 series SA1400-347 Assy, Chassis Base SA1400-349 Assy, Coil Clamp SA1700-204G PCB Assy, SS Controller SA1800-103 Coil Assy, 160W SA1400-350... -
Page 15: Declaration Of Conformity
DECLARATION OF CONFORMITY HD-2 Operation and Installation Manual Page 13... - Page 16 Garner; (e) to damage caused by service performed by anyone who is not a representative of Garner or a Garner authorized service provider; (f) to a product or part that has been modified to alter functionality or capability without the written permission of Garner;...
