Monico mCore SDR Manual

Tel 281•350•8751 Fax 888•418•5955
www.monicoinc.com

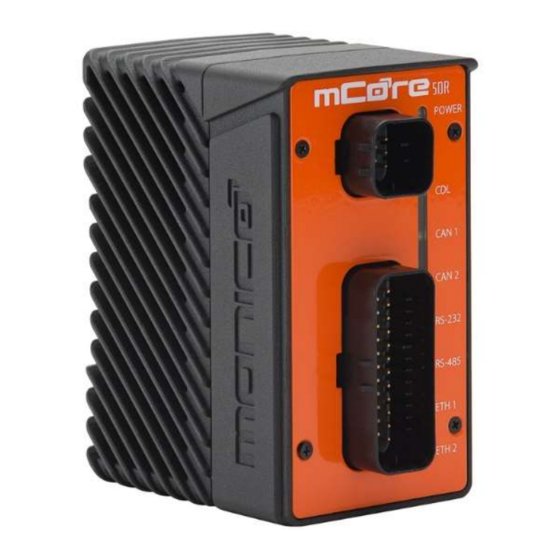

mCore® SECURE DATA ROUTER - ADVANCED PROTOCOL CONVERTER
IND. CONT. EQ.
FOR HAZ. LOC.
CL I, DIV 2, GP A, B, C, D
Opera�ng Temp. Code T5
Conforms to UL STD 61010-1 & ISA STD 12.12.01
Cer�fied to CSA STD C22.2 #s 61010-1 & 213

SAFETY PRECAUTIONS

Thoroughly read and follow the safety precautions and
operating instructions listed in this manual before
using the product. After reading, retain this manual for
future reference.
•Do not use or mount the product in any manner or location
not intended.
•This manual should be available for anyone operating,
repairing or relocating the product.
•The product should be installed, repaired or removed by
quali ed personnel only.
•Do not disassemble or modify the product. Improper instal-
lation or repair may cause injury, damage, electric shock or
re.
•To ensure proper operation and avoid damage to the prod-
uct, use appropriate tools along with recommended
connectors and recommended wire gauge.
•Do not open or break the seal between the housing and
the connector header.
•Do not operate a unit that has been damaged.
•Extended environmental conditions: wet location, outdoor
use, ambient temperature - 40°C and 70°C, and altitude up
to 2000m.
FOR CONFIGURATION AND OR INSTALLATION ASSISTANCE PLEASE CONTACT MONICO AT 281-350-8751 – OPTION 1
Thank you for purchasing mCore® SDR (Secure Data Router). Your device comes precon-
gured and ready to install.
Prior to use, thoroughly read the instructions in this manual to connect and use this
product correctly. Please retain this manual for future reference and make sure that this
manual is available to all users. To ensure the safety and proper operation of the device
and any connected equipment, installation or relocation should be performed by quali-
ed personnel only.
IND. CONT. EQ.
FOR HAZ. LOC.
CL I, DIV 2, GP A, B, C, D
INPUT VOLTAGE: 8-48 VDC
INPUT VOLTAGE: 8-28 VDC
Manufacturing Location: 1001 E. Arapaho Rd. Richardson, TX 75081
WARNINGS
WARNING – EXPLOSION HAZARD. DO NOT CONNECT OR DISCONNECT WHEN ENERGIZED.
AVERTISSEMENT – RISQUE D'EXPLOSION. NE PAS BRANCER OU DÉBRANCHER LORSQUE LE
CIRCUIT EST SOUS TENSION.
WARNING – EXPLOSION HAZARD. DO NOT DISCONNECT WHILE THE CIRCUIT IS LIVE OR
UNLESS THE AREA IS FREE OF INGNITIBLE CONCENTRATIONS.
AVERTISSEMENT – RISQUE D'EXPLOSION. NE PAS DÉBRANCHER SI LE CIRCUIT EST SOUS
TENSION, À MOINS QUE LE MILIEU SOIT LIBRE DE SUBSTANCES INFLAMMABLES CONCEN-
TRÉES.
WARNING – EXPLOSION HAZARD. DO NOT REMOVE OR REPLACE BATTERIES OR PLUG-IN
MODULES (AS APPLICABLE) UNLESS POWER HAS BEEN DISCONNECTED OR THE AREA IS FREE
OF IGNITIBLE CONCENTRATIONS.
AVERTISSEMENT – RISQUE D'EXPLOSION. NE PAS RETIRER OU REMPLACER DES BATTERIES
OU DES MODULES DE PLUG-IN (COMME APPLICABLES) À MOINS QUE LA PUISSANCE A ETE
DÉCONNECTEE OU LA ZONE EST LIBRE DE CONCENTRATIONS IGNITIVE.
WARNING – DO NOT REMOVE THE AMPSEAL CONNECTORS UNLESS THE EQUIPMENT NEEDS
TO UNDERGO REPAIR OR MAINTENANCE. AFTER REPAIR OR MAINTENANCE HAS BEEN DONE,
PLEASE CHECK THE BARE PINS ON THE EQUIPMENT TO ENSURE THERE IS NO DUST OR WATER
PRESENT. IP RATING OF THE EQUIPMENT IS ONLY MAINTAINED WITH THE AMPSEAL CONNEC-
TORS ATTACHED TO THE EQUIPMENT.
AVERTISSEMENT - NE RETIREZ PAS LES CONNECTEURS AMPSEAL À MOINS QUE L'ÉQUIPE-
MENT NE SOIT RÉPARÉ OU ENTRETENU. UNE FOIS LA RÉPARATION OU L'ENTRETIEN
EFFECTUÉE, VÉRIFIEZ LES BROCHES NUES SUR L'ÉQUIPEMENT POUR VOUS ASSURER QU'IL N'Y
A PAS DE POUSSIÈRE OU D'EAU PRÉSENTE. LA CLASSIFICATION IP DE L'ÉQUIPEMENT EST
UNIQUEMENT ENTRETENUE AVEC LES CONNECTEURS AMPSEAL ATTACHÉS À L'ÉQUIPEMENT.
WARNING – TO MAINTAIN CLASS 1, DIVISION 2 RATING, THE UNIT MUST BE INSTALLED IN A
TOOL-SECURED ENCLOSURE USING ONE OF THE NEC WIRING METHODS THAT IS OUTLINED
IN THIS MANUAL.
AVERTISSEMENT - POUR MAINTENIR L'INDICE DE CLASSE 1, DIVISION 2, L'UNITÉ DOIT ÊTRE
INSTALLÉE DANS UN BOÎTIER SÉCURISÉ EN UTILISANT L'UNE DES MÉTHODES DE CÂBLAGE
NEC DÉCRITES DANS CE MANUEL.
®
