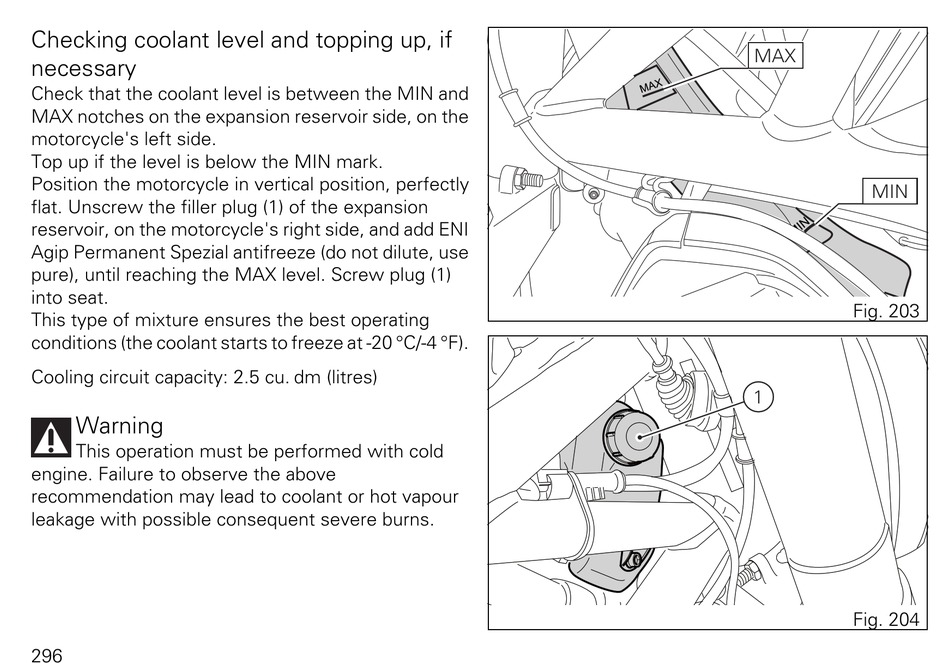

Checking coolant level and topping up, if
necessary
Check that the coolant level is between the MIN and
MAX notches on the expansion reservoir side, on the
motorcycle's left side.
Top up if the level is below the MIN mark.
Position the motorcycle in vertical position, perfectly
flat. Unscrew the filler plug (1) of the expansion
reservoir, on the motorcycle's right side, and add ENI
Agip Permanent Spezial antifreeze (do not dilute, use
pure), until reaching the MAX level. Screw plug (1)
into seat.
This type of mixture ensures the best operating
conditions (the coolant starts to freeze at -20 °C/-4 °F).
Cooling circuit capacity: 2.5 cu. dm (litres)
Warning
This operation must be performed with cold
engine. Failure to observe the above
recommendation may lead to coolant or hot vapour
leakage with possible consequent severe burns.
296
MAX
MIN
Fig. 203
1
Fig. 204
