- Page 1 316-2 Leakage detector for gas Instruction manual...
-
Page 2: Safety And Environment
Protecting the environment > Dispose of faulty rechargeable batteries/empty batteries at the proper collection points. > Send the product back to Testo at the end of its life. We will ensure that it is disposed of in an environmentally friendly manner. -
Page 3: Specifications
The testo 316-2 is a gas leak detector for the fast and reliable detection of leakages on gas pipes. The testo 316-2 is not an item of safety equipment! Do not use the testo 316-2 as a monitoring instrument for your personal safety... -
Page 4: Technical Data
Warranty 80%RH, with limited functionality (only audible indi- · Duration: 2 years cation, reduced accuracy, reduced operating time) · Warranty conditions: See web page www.testo.com/ can also be used in the range -20°C to -5°C / -4 to warranty 23°F ·... -
Page 5: Product Description

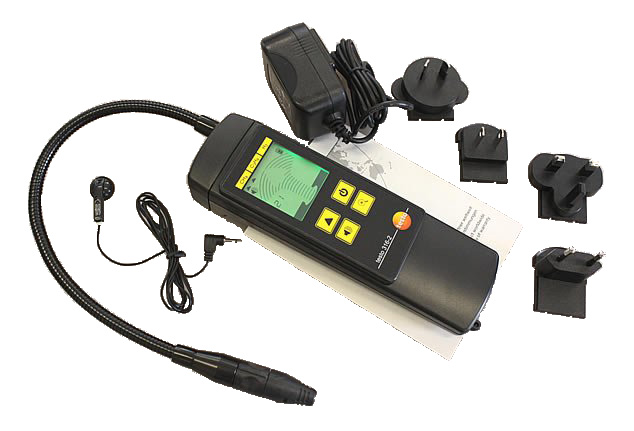

Product description 5 Product description At a glance Sensor head with gas sensor. Flexible probe shaft. Top: earplug socket, mains unit socket. Display . Operating buttons. Display and operating elements Display Meaning Colour of the display illumination green No gas detected. -
Page 6: Audible Notification
First steps Audible notification The audible notification takes place with a signal tone whose interval frequency increases with increasing gas concentrations. A continuous signal sounds when the second alarm threshold is passed. First steps Charging battery: Use only the original mains unit 0554 1093! The rechargeable battery can only be charged at an ambient temperature of 0 to 45°C ( 32 to 113°F). -
Page 7: Using The Product
Using the product 7 Using the product Switching on the instrument: 1 Press - All display segments light up (duration: 3 sec), the suction pump starts (ventilator noise). - The initialization phase is carried out (heating, auto-test). The remaining duration is displayed. - Page 8 Using the product Carrying out gas detection: Attention! Destruction of the sensor by non-desorbant substances (e.g. oils)! Do not use the instrument in dirty surroundings. > > Move the sensor head as close as possible, and slowly (3 to 5 cm per second) over the parts which are to be examined for leaks.
-
Page 9: Maintaining The Product
Switching on regularly If the instrument is used infrequently, deposits may build up on the sensor. Switching the instrument on prevents deposits building up on the sensor. Testo recommends switching the instrument on regularly to avoid deposits building up on the sensor. -
Page 10: Tips And Assistance
“Sensor” blinkt · Sensor dirty: clean sensor, see chapter “Maintaining product”. If we were not able to answer your question, please contact your dealer or Testo customer service. For contact data, see back of this document or web page www.testo. - Page 12 0970 3165 en 05 0970 3165 en 05 0970 3165 en 04...
