iseeBell WF100 User Manual

How Does iseeBell Work?
The iseeBell outdoor camera will stay idle when no motion is detected.
When a motion within 3 meters is detected by the PIR motion sensor,
outdoor camera will be activated and the icon will flash. The motion
will trigger iseeBell outdoor camera to automatically take one or a few
snapshots. These photos will be saved on Cloud storage, meanwhile, users
will receive a push notification on their smart phones. Users can view these
photos from the iseeBell App, or they can watch a live streaming from the
camera.
When a visitor touches the Call icon , the indoor chime will ring, and
the outdoor camera will take a photo of the visitor. Users will receive a Call-
in notification on their smart phones with the option to live chat with the
visitor or hang up.
1

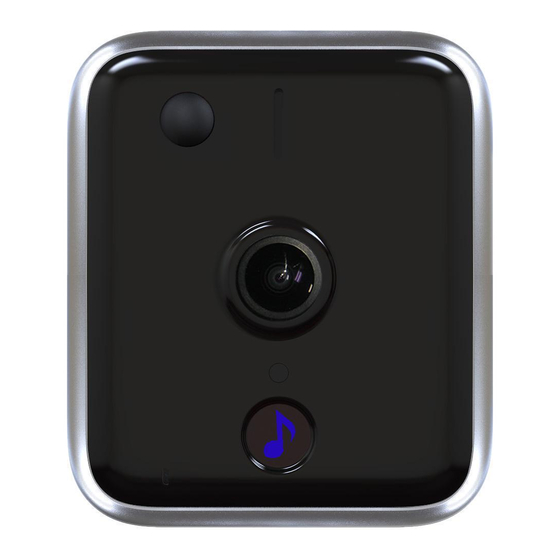

Outdoor Camera front
Speaker
PIR Motion Sensor
Wide angle
HD camera
Light sensor
Touch button
Microphone
4

Before installation

1. Before you install your iseeBell, you need to prepare a drill, a
crosshead screwdriver, a flat screwdriver, fixing screws and sockets.
We do not provide these tools.
2. Pleas do not install iseeBell on the metal frame or metal surface.
3. Pleas keep iseeBell away from the heat or humid sources, such
as heating radiators, kitchen etc.
4. Operation voltage: AC/DC 9-24V/1A
5. Please do not expose the camera in the sunlight
User registration/Login
Download the latest iseeBell APP from App Store or Google Play.
7

User Manual

Packing list

Accessories
Wi-Fi Video Doorbell
1
Mounting Bracket
Installation User Guide
(Bevel Bracket available)
2 Pictures are for reference only. Make the object as the standard.
Mounting Bracket
Reset button
Refer to wiring diagram
1
1，2 Power
2
（AC/DC9-24V/1A)
3
3，4 lock
4
Level
5
Registration and Login Touch "+" to add iseeBell device
8
Warning :
This device complies with Part 15 of the FCC Rules.
Operation is subject to thefollowing two conditions:
(1) this device may not cause harmful interference, and
(2)this device must accept any interference received,
including interference that may causeundesired operation.
Changes or modifications not expressly approved by the party
responsible forcompliance could void the user's authority to
operate the equipment
NOTE:
THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY
R A D I O O R T V I N T E R F E R E N C E C A U S E D B Y
U N A U T H O R I Z E D M O D I F I C A T I O N S T O T H I S
EQUIPMENT.SUCH MODIFICATIONS COULD VOID THE
USER'S AUTHORITY TO OPERATE THE EQUIPMENT.
Plug adapter
Indoor Chime
3
Back panel/Hook
NO:
NC:
MODEL:WF100
INPUT:9-24V~1A/
9-24V 1A
Holes for wires
ID:13114638xxxxxxxx
Screw hole
Back panel/Hook
6
Connect to the power
9
Power Supply Adaptor
Stand(Optional)
Reset button
1
Electrical contact spring
2
3
4
4.Make sure outdoor camera and
smart phone connect to the same Wi-Fi.
