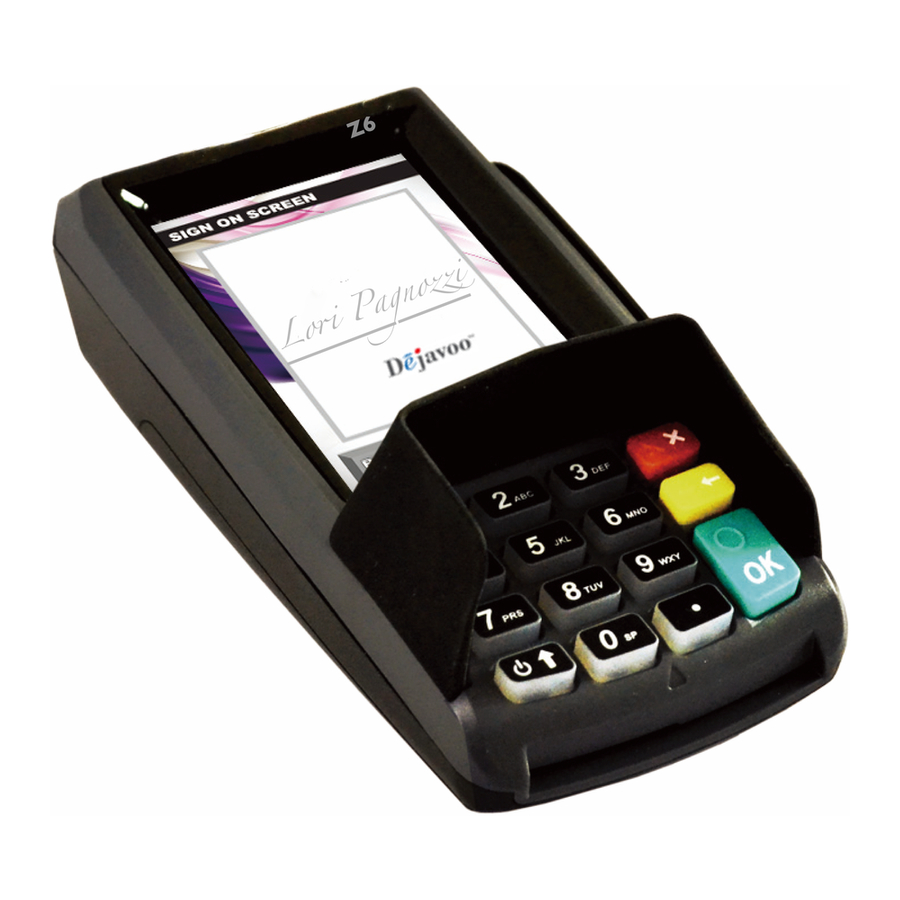

dejavoo Z6 Quick Reference Manual

Touch Screen Z Line Models Z6, Z9 & Z11
** Note: The terminal's idle prompt is the main "Credit / Sale ... Enter Amount" Screen
These steps have been provided as a guide for assistance with your Dejavoo Touch Screen Payment Device
C C S
HIP REDIT
 Input Sale Amount and press OK
 Insert Chip Card
 Press OK to confirm Sale Amount
-
V T
OID RANSACTION
 Tap the word "Sale" then Tap the word Void for
"Credit/ Void Enter Amount"
 input VOID Amount and press OK
 If prompted input Manager Password (1234 default)
 Insert Chip Card
 When prompted tap "YES"
 Receipts Print
TERMINAL HELP DESK: -
EMV Retail Quick Reference Guide
-
S
ALE WIPED OR
 Input Sale Amount and press OK
 Swipe OR Manually Enter Card #
 Press OK to confirm Sale Amount
-
R
ETURN
 Tap the word "Sale" then Tap the word RETURN for
"Credit/ Return Enter Amount"
 input RETURN Amount and press OK
 If prompted input Manager Password (1234 default)
 Insert Chip Card
 When prompted tap "YES"
 Receipts Print
-
877.358.6797 option 2 - support@dejavoosystems.com - http://www.dejavoosystems.com/
M C S
ANUAL REDIT ALE
 Tap the word "Credit" then Tap the word Debit for
"Debit / Sale Enter Amount"
 input Sale Amount and press OK
 Insert Chip Card
 When prompted tap "YES"
 Input PIN # on PIN Pad and press OK
 Press OK to confirm Sale Amount
-
T
RANSACTION
 From the idle prompt tap the Favorites icons on
the display:
 Tap CORE SETTLE DAILY BATCH
 If prompted input Manager Password (1234
default)
-
-
Retail
D S
EBIT ALE
S T O B
ETTLE HE PEN ATCH
Terminal communicates with the Host
Settle Report Prints
