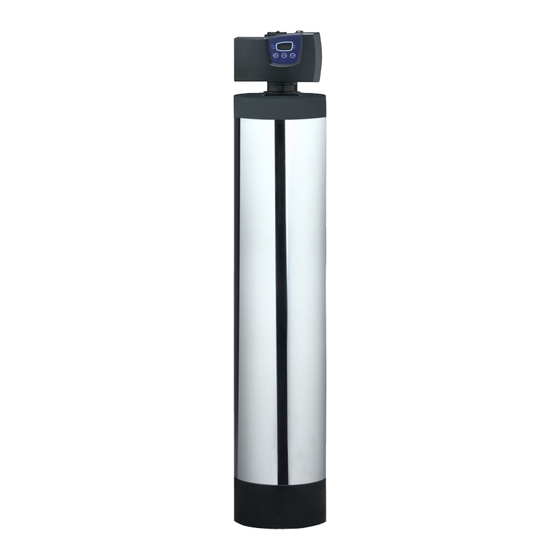

Summary of Contents for DuPure EcoPur S-Series
- Page 1 DUPURE ECOPUR S-SERIES WHOLE -HOME S YS TEM USER MANUAL...
-
Page 2: System Diagram
DUPURE ECOPUR S-SERIES SYSTE M D IAG R AM STAGE ONE: CATALYTIC CARBON Reduces Chlorine, Chloramines, Chemicals, Tastes & Odors from the water supply STAGE TWO: GREEN GUARD SCALE STOP High efficiency Template Crystallization Technology that reduces hard water scaling damage to... - Page 3 Therefore the problem of internal buildup of scale in pipes, water heaters and on fixtures and glass is greatly reduced. The EcoPur S-Series system is not a water softener – low or phosphate-free clean- ing products are recommended to achieve optimum results. Modern surfactant or detergent-based, liquid soaps are preferred over old-fashioned, caustic solid soaps.
-
Page 4: System Specifications
• Perform installation according to state and local plumbing codes Use only lead-free solder and flux for sweat-solder connections, as required by state and federal codes • Handle all components of the EcoPur S-Series system with care. Do not drop, drag or turn components upside down... -
Page 5: Installation
• Be sure the floor under the EcoPur S-Series system is clean and level • The EcoPur S-Series system uses 24 volt-60z electrical power. Always use the transformer supplied - Plug transformer into an indoor 120 volt, grounded outlet - Properly ground system to conform with all codes and ordinances • Install EcoPur S-Series system in a protected area. - Page 6 8. To adapt a rigid drain pipe to the EcoPur S-Series system, do not attach barbed hose fitting to valve. Instead, plumb rigid tubing directly to the ½”...
- Page 7 18. Connect electrical power by plugging the transformer into a (120 volt) outlet 19. With the valve “In Service”, manually initiate a backwash as the final installation step. This backwash will: - Complete the final flushing and conditioning of the EcoPur S-Series ECOPUR S-SERIES CONTROL OPERATION AND SETTINGS...
- Page 8 7000 Control Start-Up Procedures Set Time of Day • Press the Set Up and Set Down buttons to set time of day - Metric = 24 hour clock - US = 12 hour clock with PM indicator light Enter Control Programming Mode • Press and hold both the Set Up and Set Down buttons for 5 seconds to enter Programming Mode.
- Page 9 i. Use the Set Up and Set Down buttons to adjust this valve ii. Press the Extra Cycle button once to Exit Setup Programming Mode or press and hold the Set Up and Set Down buttons simultaneously for five (5) seconds to enter the extended setup programming mode.
- Page 10 ECOPUR S-SERIES EcoPur Scale Control and Whole-Home Filtration Appliance DuPure warrants to the original purchaser, that the EcoPur S-Series System will be free from defect in materials and workmanship from the date of purchase for the following periods: For the LIFETIME of the Original Purchaser:...
