Ketotek STC-1000 Operating Manual

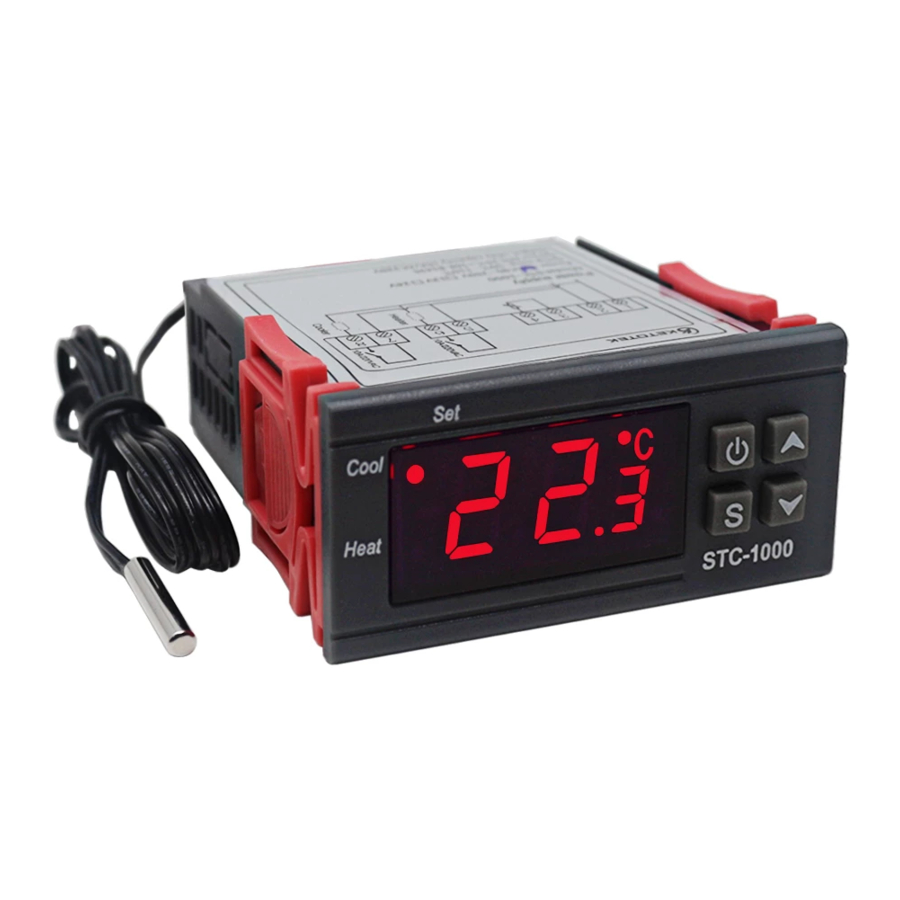

STC-1000 Temperature Controller
1. Overview
•
Switch between heat and cool.
•
Support delay start and temperature calibration.
•
Alarm when temp exceed temperature limit or sensor error
•
All parameters setting can be saved after short circuit.
•
Refrigerating control output delay protection
•
Can be used for domestic freezer, water tanks, refrigerator,
industrial chiller, steamer, industrial equipment and other
temperature-controlled system.
2. Specifications
•
Power Supply: AC90~250V 50/60HZ/ DC12V/ DC24V
•
Temperature control range: -50~99°C
•
Difference Set Value: 0.3~10°C
• Accuracy: ±1℃(-50℃～70℃)
•
Sensor error delay:1 minute
•
Measuring input: NTC(10K0.5%) Waterproof sensor 1m
•
Relay contact capacity: Cool Heat(10A/250VAC)
•
Ambient temperature: -20-70°C , humidity 20% -85%RH
•
Size: 75mm(L)*34mm(W)*85mm(Depth)
•
Mounting size: 71(L)*29(W)mm
• Power consumption: ≤3W

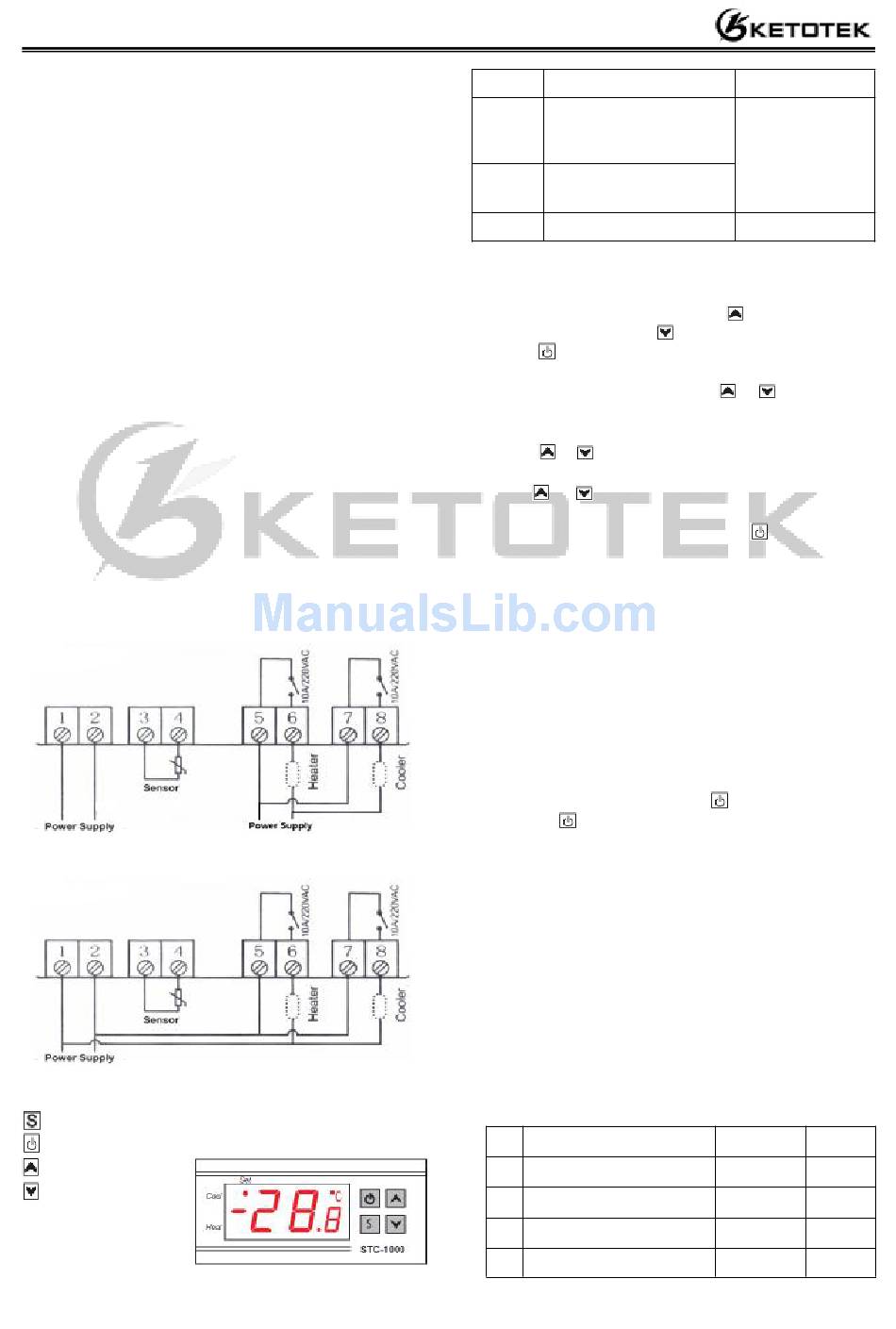

3. Wiring Diagram
Connection 1:Independent power supply for load
Connection 2:Same power supply for load
4. Key Instruction
:Set key,Confirm the setting value,Entry and Set parameter.
:powr on/off, or quit the setting.
:increase value
:
decrease value
Cool:cool output indicator
Heat:heat output indicator
Set:Setting indicator
Operating Manual
Resolution : 0.1°C
Indicator Function
On:Refrigeration starts;
Heat light Off:Refrigeration stops;
Flash:compressor delay
On: heating starts;
Cool light
Off:heating stops
Set light On:parameter setting status
5. Key Operation Instruction
•
Check parameter:In normal working status, the screen
display real time temperature.press
temperature value.press
Press to back to normal display.
•
Set parameter:In normal working status, press S for 3s to
enter set parameter mode. Press
F1-F4.(see menu code table). Press S to display the
parameter set value of the current code.Press and hold S，
or
Press again to adjust up and down the parameter
setting value of the current code. Press and hold both S
or
and simultaneously to choose and adjust the
parameter value of the current menu value promptly.After
finishing the setting,press and release
the parameter modified value and return to normal display.
If no key operation within 30 seconds, system won't save
modified parameter, screen back to display normal
temperature. Screen display "Er" if error appears during
parameter saving, and back to normal working status in 3
seconds.
•
Restore system data:When electrified, system will check
itself, screen will display"Er"if error exit, please press any
key at this time, and it restore default value and enter into
normal working mode. it is advised to reset the parameter
value under this condition.
6. Operation Instruction
•
In normal working status, hold
off, hold for 3seconds to power on.
•
In normal working status, the screen display RT(real time
temperature value). the controller can also switch the
working mode between heating and cooling.
•
①Refrigerating starts when RT≥ST (temperature set
value) + F2 (difference value), the refrigerating relay is
connected. cool indicator flashes. it indicates the
refrigerating equipment is under compressor delay protect
status;When RT≤ST, cool indicator light off,
refrigerating relay disconnects.cooler stop working.
•
②Heating starts when RT≤ST-F2, heat indicator light
on. heat relay connect. When RT≥ST, heat indicator turn
off, heat relay disconnect, heater stop working.
• For example,set 10 ℃ ,difference 3 ℃ ,heater work when
RT≤7℃.heater stop when RT≥10℃. Cooler work when
RT≥13℃,Cooler stop when RT≤10℃.
Code Function
F1 Temperature set value
F2 Return Difference
F3 Compressor delay time
F4 Temperature calibration value -10℃～10℃
Notes
Cool、Heat indicator
light can not be "on"
status simultaneously
. it dispay the setting
. it dispay the difference value.
or
to switch from
instantly to save
for 3seconds to power
Set Range Default
-50～99℃ 10℃
1～10℃ 3℃
1～10minute 3 minutes
0℃
