TM
INSTALLATION OPERATION MANUAL
This manual should be kept for future reference. If you have any questions regarding your
water filter, contact your local dealer, OEM, or the manufacturer at the following:
ENPRESS, LLC. | 34899 Curtis Blvd., Eastlake Ohio 44095
Phone 866.859.9274 | Fax 440.510.0202 | info@enpress.com
EPA Est. 092577-OH-001
Advertisement
Table of Contents
Related Manuals for Enpress PIONEER
Summary of Contents for Enpress PIONEER
- Page 1 This manual should be kept for future reference. If you have any questions regarding your water filter, contact your local dealer, OEM, or the manufacturer at the following: ENPRESS, LLC. | 34899 Curtis Blvd., Eastlake Ohio 44095 Phone 866.859.9274 | Fax 440.510.0202 | info@enpress.com...
-
Page 2: Where To Install
WHERE TO INSTALL CITY WATER INLET WATER METER PRESSURE TANK SERVICE RELIEF VALVE MUST BE INSTALLED PUMP WELL INLET INSTALLING THE CARTRIDGE The System comes preassembled without the cartridge installed. 1. Push down the top cap with both hands to unseat the retaining ring, and remove the retaining ring by carefully grasping the handle and pulling inward, then upward. -
Page 3: Replacing The Cartridge
EASY FILTER REPLACEMENTS AND NO TOOLS REQUIRED PIONEER uses state-of-the-art snap-ring technology to eliminate the need for cumbersome tools. Homeowners can easily replace the filter in their PIONEER system by followng a few simple steps. PRESS THE RED PRESSURE RELIEF VALVE & PULL SNAP-RING LIFT TOP CAP *Meter preset at 100,000 gallons;... - Page 4 IMAGE AND INSTALLATION INSTRUCTIONS PART IDENTIFICATION PART NUMBER 1. Filter housing CTA0840BBBKP5-04C00 2. Bottom Inlet/Outlet cap assembly CT-INOUTASSY 3. Vertical elbow CT-VERTICALELBOW 4. Flow Meter Assembly CT-CTMETERASSY 5. Bypass manifold CT-BPMANIFOLD 6. Straight or 90-degree Angled In/Out 1” MNPT plumbing connectors CT-1MNPTELBOWSET 7.
- Page 5 17.1 lpm) REPLACEMENT CARTRIDGE FILTERS ARE LISTED AS PIONEER™ 0.5 Micron High Capacity Carbon Block // PART NUMBER: CT-05-CB-AMYCL *Claims are not performance tested or certified by IAPMO or NSF. Performance claims are based on independent laboratory and manufacturer’s internal test data.
- Page 6 WATER TOTALIZER NOTIFIER The overall purpose of this device is to receive a water meter input, and totalize the amount of water that passes through the meter. When there is flow through the water meter, the lights flash at a rate that increases with the water flow rate. When the total amount of water flowed reaches within 10% of a pre-selected amount the totalizer turns yellow, when the total amount reaches the pre-selected amount the totalizer turns red.
-
Page 7: Warranty
• ENPRESS LLC warrants its line of ENPRESS PIONEER™ filtration systems, to be free of defects in material and workmanship for a period of one year, and replacement PIONEER™ filters for a limited thirty-day warranty, from the date of purchase. This warranty is extended to original purchaser, by authorized OEM customers. Use of this product constitutes Buyer’s acceptance of this Limited Liability. - Page 8 COMPONENT All information contained herein is the property of ENPRESS LLC. ENPRESS LLC makes no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. ENPRESS LLC shall not be liable for technical or editorial errors or omissions contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.
Need help?
Do you have a question about the PIONEER and is the answer not in the manual?
Questions and answers

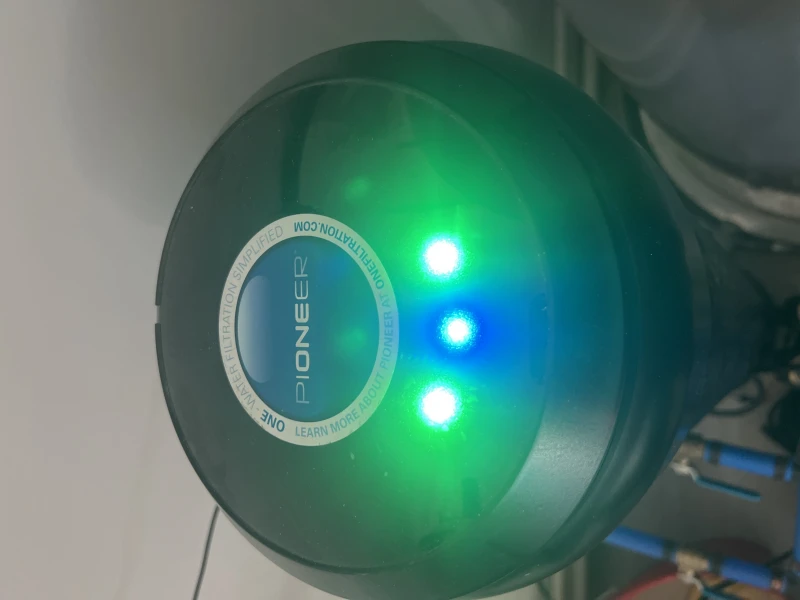

I have two green lights and one blue light what dies that mean on my pioneer one water filtration
