Philips AJB4700 User Manual

Always there to help you
a
Register your product and get support at
www.philips.com/welcome
AJB4700
Question?
Contact
Philips
b
User manual
1 Important

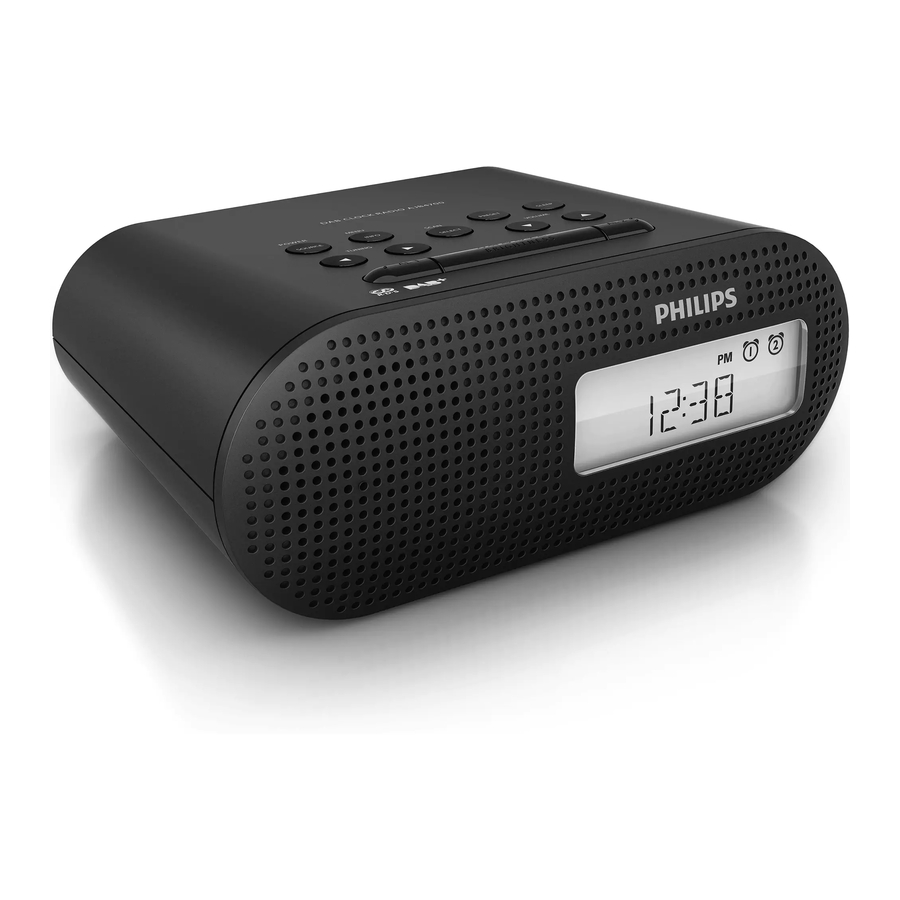

2 Your FM/DAB+ clock radio
•
Read these instructions.
Congratulations on your purchase, and welcome to Philips! To fully
•
Heed all warnings.
benefit from the support that Philips offers, register your product at
•
Follow all instructions.
www.philips.com/welcome.
•
Do not block any ventilation openings. Install in accordance with the
manufacturer's instructions.
Introduction
•
Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
With this clock radio, you can
•
Protect the power cord from being walked on or pinched,
•
listen to FM and Digital Audio Broadcasting (DAB+) radio; and
particularly at plugs, convenience receptacles, and the point where
•
set two alarms.
they exit from the unit.
•
Only use attachments/accessories specified by the manufacturer.
•
Use only power supplies listed in the user manual. What's in the box
•
Unplug this unit during lightning storms or when unused for long
periods of time.
•
3 Get started
Refer all servicing to qualified service personnel. Servicing is required
when the unit has been damaged in any way, such as power-supply
Always follow the instructions in this chapter in sequence.
cord or plug is damaged, liquid has been spilled or objects have fallen
into the unit, the unit has been exposed to rain or moisture, does
not operate normally, or has been dropped.
Prepare FM/DAB+ antenna
•
This unit shall not be exposed to dripping or splashing.
•
Do not place any sources of danger on the unit (e.g. liquid filled For better reception, fully extend and adjust the position of the FM/
objects, lighted candles). DAB+ antenna. (Fig.
•
Where the plug of the Direct Plug-in Adapter is used as the
disconnect device, the disconnect device shall remain readily operable.
Note
Warning •
To prevent interference, position the antenna as far as possible from TV, VCR,
or other radiation source.
•
Never remove the casing of this clock radio.
•
Never lubricate any part of this clock radio.
•
Never place this clock radio on other electrical equipment.
•
Keep this clock radio away from direct sunlight, naked flames or heat.
•
Make sure that you always have easy access to the power cord, plug or
adaptor to disconnect the clock radio from the power.
c
Always there to help you
Register your product and get support at
www.philips.com/welcome AJB4700
User Manual
d
Connect power
Caution
•
Risk of product damage! Make sure that the power supply voltage
corresponds to the voltage printed on the back or the underside of the
clock radio.
•
Risk of electric shock! Hold the plug securely when unplugging the adapter.
Note
•
The type plate is located on the bottom of the clock radio.
(Fig. )
(Fig. )
Turn on
Press POWER.
» The clock radio switches to the last selected source.
Switch to standby mode
)
Press and hold POWER for 3 seconds.
» The clock (if set) appears on the display panel.
Set time
1 In standby mode, press and hold INFO for 3 seconds to activate the
time setting mode. (Fig. )
» The hour digits blink.
2 Press / to adjust the hour.
e f
3 sec.
3 Press INFO to confirm.
In DAB+ mode, press TUNING
» The minute digits blink.
the available DAB+ stations.
4 Repeat steps 2-3 to set the minute. » If the signal of the DAB+ radio station is too weak, [OFF AIR] (off
air) is displayed.
5 Repeat steps 2-3 to set the day, month, and year.
Store DAB+ radio stations automatically
Tip
• Tip
To adjust the 12/24 hour format, see "Use system menu" > "Set hour
format and synchronize time".
• •
When being idle for 10 seconds, the clock radio exits clock setting mode
New stations and services will be added in the DAB+ broadcast. To make
automatically. new DAB+ stations and services available, perform full scan regularly.
In DAB+ mode, press and hold SCAN for 3 seconds.
» The clock radio stores all the available DAB+ radio stations automatically.
4 Listen to DAB+ radio
» After full scan, the first available station is broadcast.
Digital Audio Broadcasting (DAB+) is a way of broadcasting radio
digitally through a network of transmitters. It provides you with more
Store DAB+ radio stations manually
choice, better sound quality and more information.
You can store up to 10 DAB+ radio stations.
For the first time use 1 Tune to a DAB+ radio station.
2 Press and hold PRESET for 3 seconds to activate the storing mode.
1 Press SOURCE repeatedly to select DAB+ radio.
3 Press TUNING
» [FULL SCAN] (full scan) is displayed.
» The preset number is displayed for one second. Then if this position
2 Press SELECT to start full scan.
is occupied, the previously stored DAB+ station name will be
» The clock radio stores all DAB+ radio stations automatically and
displayed; if this position is empty, [Empty] will be displayed.
then broadcasts the first available station.
4 Press PRESET to confirm.
» The station list is memorized in the clock radio. When you turn
5 Repeat steps 1-4 to store other DAB+ stations.
on the unit next time, the station scan does not take place.
» If no DAB+ station is found, [No DAB Station] (no DAB station)
is displayed.
To tune to a station from the station list:
Note
•
To remove a pre-stored DAB+ radio station, store another station in its
place.
Listen to a preset DAB+ radio station
In DAB+ mode, press PRESET repeatedly to select a preset radio
station.
Use DAB+ menu
1 In DAB+ mode, press and hold MENU for 3 seconds to access
DAB+ menu.
2 Press TUNING / to scroll through the menu options:
•
[STATION]: Display a list of available DAB+ stations.
•
[FULL SCAN]: Scan and store all available DAB+ radio stations.
•
[MANUAL]: Tune to a specific channel/frequency manually and
3 sec. add it to the station list.
•
[DRC] (Dynamic Range Control): Add or remove a degree of
compensation for differences in the dynamic range among DAB+
stations. You may experiment the options on different source
materials to decide which option suits best.
•
[PRUNE]: Remove invalid stations from the station list.
•
[SYSTEM]: Adjust system settings (see the Chapter "Use system
menu").
3 To select an option, press SELECT.
4 Repeat steps 2-3 if sub-option is available under one option.
[DRC]
•
[DRC OFF]: No compensation applied.
•
[DRC HIGH]: Maximum compensation applied (the default
option recommended for noisy environment).
•
[DRC LOW]: Medium compensation applied.
[PRUNE]
/ repeatedly to navigate through
•
[PRUNE N]: Return to the previous menu.
•
[PRUNE Y]: Remove invalid stations from the station list.
Show DAB+ information
While listening to DAB+ radio, press INFO repeatedly to scroll through
the following information (if available):
» Station name
» Dynamic Label Segment (DLS)
» Signal strength
» Program type (PTY)
» Ensemble Name
» Frequency
» Signal error rate
» Bitrate
» Codec
» Time and date
5 Listen to FM radio
/ to select a number.
Tune to FM radio stations
1 Press SOURCE repeatedly to select FM radio.
2 Press and hold TUNING /
» The FM tuner tunes to a station with strong reception
automatically.
To tune to a radio station manually:
Press TUNING / repeatedly to tune to a radio station.
for 3 seconds.
