Summary of Contents for Fluke IT200

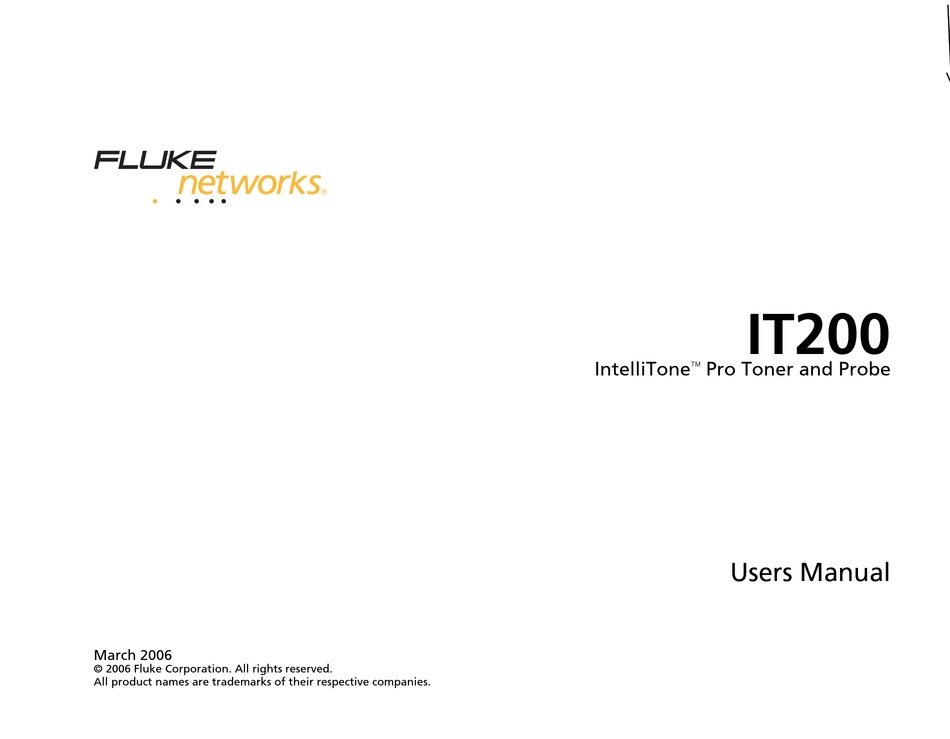

- Page 1 IT200 IntelliTone Pro Toner and Probe Users Manual March 2006 © 2006 Fluke Corporation. All rights reserved. All product names are trademarks of their respective companies.
- Page 2 90 days, unless otherwise stated. Ni-Cad, Ni-MH and Li-Ion batteries, cables or other peripherals are all considered parts or acces- sories. The warranty extends only to the original buyer or end user customer of a Fluke Networks authorized reseller, and does not apply to any product which, in Fluke Networks’...
-
Page 3: Table Of Contents
Overview of Features....................1 Registration ........................3 Contacting Fluke Networks ..................3 Unpacking ........................4 ITK200 IntelliTone Pro Kit..................4 IT200 IntelliTone Pro Toner ..................4 IT200 IntelliTone Pro Probe ..................4 Safety Information......................5 Battery Status ........................6 Auto Power Down ......................6 Locating and Isolating Terminated UTP/STP Cables with the IntelliTone ....6 Isolating Individual Wire Pairs with the SmartTone Analog Function .......9... - Page 4 Testing for Continuity ....................15 Battery Life and Replacement................. 16 Accessories ....................... 17 Specifications ........................ 18 Environmental and Regulatory Specifications ............18 IT200 Toner Electrical Specifications............... 19 IT200 Probe Electrical Specifications............... 19 Feature Compatibility....................20 Certifications and Compliance ................20 Dimensions....................... 20...
-
Page 5: Overview Of Features
The IT200 IntelliTone Pro toner and probe let you The IntelliTone feature also lets you use the IT200 toner locate, isolate, and validate twisted pair (UTP, Cat 5e, Cat and probe to validate and troubleshoot wiring on RJ11 6), coax cables (RG6, RG59, and others for CATV/CCTV), and RJ45 cables. - Page 6 IT200 Users Manual The IntelliTone feature also lets you use the IT200 toner and probe to validate and troubleshoot wiring on RJ11 and RJ45 cables. The IT200 toner detects telephone and Ethernet service, indicates polarity and active line numbers on voice circuits, and indicates active pair number on Ethernet circuits.
-
Page 7: Registration
To www.flukenetworks.com register, fill out the online registration form on the Fluke Networks website at www.flukenetworks.com/registration. support@flukenetworks.com If you do not have Internet access, print the registration +1-425-446-4519 form from the CD included with the product. -
Page 8: Unpacking
Users Manual IT200 IntelliTone Pro Toner Unpacking • IT200 Toner with 9V battery The IT200 products come with the accessories listed • 1 RJ11 to RJ11 patch cord below. If an accessory is damaged or missing, contact the • 1 RJ45 to RJ45 patch cord place of purchase immediately. -
Page 9: Safety Information
Safety Information • Never use the toner, probe, or test leads if they Safety Information are damaged. Inspect the cases and test leads Table 1 describes the international electrical symbols used for damage before use. on the tester and in this manual. •... -
Page 10: Battery Status
IT200 Users Manual Battery Status Auto Power Down LEDs on the toner and probe light for 1 second at power The toner turns off automatically after approximately 2 ½ on to indicate the battery status: hours of inactivity. The probe turns off automatically after 1 hour of inactivity. - Page 11 RJ11 and RJ45 connectors. Use the following: continuity test (page 15) to check for shorts on Connect the IT200 toner to a jack or punch-down coax and non-terminated cables. block as shown in Figure 1. Turn the probe’s rotary switch to (isolate).
- Page 12 IT200 Users Manual Connecting the Toner Locating Cables Isolating Cables SmartTone Analog 1kHz toning Volume control Digital toning ash04f.eps Figure 1. Locating and Isolating Cables...
-
Page 13: Isolating Individual Wire Pairs With The Smarttone Analog Function
SmartTone Analog Function the wires of the pair, and the black lead must be connected to the other wire of the pair. position on the IT200 probe and toner lets you Put the toner and probe in the position. -
Page 14: Validating Rj11 And Rj45 Cable Maps
Each LED that corresponding to an active pin flashes briefly, then should light for about 1 You can use the IT200 or IT100 toner and IT200 probe to second. The brief flash shows which LED is next validate the cable map on RJ11 and RJ45 connectors. The in the sequence. - Page 15 Validating RJ11 and RJ45 Cable Maps CABLE = Shield (If enabled. See text.) ash05f.eps Figure 2. Validating Cable Maps...
-
Page 16: Validating The Cable's Shield
IT200 Users Manual Validating the Cable’s Shield To disable shield validation via the probe’s SYNC LED, do the following: To use the probe’s SYNC LED for shield validation during Remove the battery door and disconnect the battery cable map tests, do the following: from the probe. -
Page 17: Validating Telephone Service And Polarity
Validating Telephone Service and Polarity Validating Telephone Service and Telephone RJ45 punch-down Polarity RJ11 block The toner detects telephone service and circuit polarity on its banana, RJ11, and RJ45 jacks. Note This test requires power from the Central Office. Turn off the toner. Line 1 Line 2 Connect the toner to the circuit as shown in Figure 3. -
Page 18: Validating Ethernet Service
IT200 Users Manual Validating Ethernet Service The toner detects link pulses for 10BASE-T, 100BASE-TX, RJ45 Ethernet jack and 1000BASE-T Ethernet service on pins 1, 2 and 3, 6 of its RJ45 jack. Turn off the toner. Green: service on 3, 6 Connect the toner to the circuit as shown in Figure 4. -
Page 19: Testing For Continuity
Testing for Continuity Testing for Continuity You can use the toner to test circuits and components for continuity. If you are testing a circuit, verify that it is not powered. Use the toner’s continuity E function to check for continuity. Use a voltage meter to check other types of circuits for power. -
Page 20: Battery Life And Replacement
IT200 Users Manual WX Warning Maintenance To avoid possible electric shock or personal Clean the case with a soft cloth dampened with water or injury: a mild soap solution. • Turn off the toner or probe and disconnect all WCaution test leads before replacing the battery. -
Page 21: Accessories
Testing for Continuity Accessories To order accessories (Table 2), contact Fluke Networks. For the latest list of IT200 accessories and other cable testers visit the Fluke Networks website at www.flukenetworks.com. Table 2. Accessories Fluke Networks Model Accessory or Part Number... -
Page 22: Specifications
IT200 Users Manual Specifications Specifications apply at 23 C (73 F), unless otherwise noted. Environmental and Regulatory Specifications Operating temperature 32 °F to 104 °F (0 C to 40 Storage temperature -4 °F to +140 °F (-20 C to +60 Operating relative humidity 95 % (50 °F to 95 °F;... -
Page 23: It200 Toner Electrical Specifications
IT200 Probe Electrical Specifications Tone detection Detects IntelliTone signal from IT100 or IT200 toner and 1 kHz signal from other toners. Battery type and life 9V alkaline (NEDA 1604A or IEC 6LR61); 20 hours typical Auto power down Turns off automatically after 1 hour of inactivity... -
Page 24: Feature Compatibility
IT200 Users Manual Feature Compatibility Product Compatibility IntelliTone Toner/Probe Feature IntelliTone Toner and Probe Works with Legacy Toner or Probe IntelliTone locate mode IntelliTone isolate mode Cable map validation Shield validation Analog tone 1 kHz Visual / audible proximity indicators Requires IntelliTone IP200 probe.
