Speed Hex FlipOut Manual

PRODUCT SPECIFICATIONS
Rotation: Clockwise or counter clockwise
Variable speed: 0–175 RPM (no load)
Variable torque: 50-60 in/lb
Hex drive: Quick release ¼" (6.35 mm)
Battery: Integral 8V Li-ion, 0.7 Ah (Maximum initial
battery voltage (measured without workload) is
8 volts. Nominal voltage is 7.2)
Battery charger: 45 minutes, Class 2
Charger input: 120 V AC, 60 Hz
Charger output: 8.6 V DC, 1A (maximum)
Weight: 1 lb (0.45 kg)
Need Assistance?
Call us on our toll free customer support line:
1-800-396-6849 or email info@pellindustrial.com
• Technical questions
• Replacement parts
• Parts missing from package
GENERAL SAFETY WARNINGS
!
WARNING:
Before using this tool or any of its accessories, read this
manual and follow all Safety Rules and Operating Instructions. The important
precautions, safeguards and instructions appearing in this manual are not
meant to cover all possible situations. It must be understood that common
sense and caution are factors which cannot be built into the product.
ALWAYS WEAR EYE PROTECTION THAT CONFORMS WITH CSA
REQUIREMENTS or ANSI SAFETY STANDARD Z87.1
FLYING DEBRIS can cause permanent eye damage. Prescription
eyeglasses ARE NOT a replacement for proper eye protection.
WARNING:
Non-compliant eyewear can cause serious injury if
broken during the operation of a power tool.
WARNING: Use hearing protection, particularly during extended
periods of operation of the tool, or if the operation is noisy.
WARNING: This product contains chemicals known to the State of
California to cause cancer and birth defects or other reproductive harm.
WEAR A DUST MASK THAT IS DESIGNED TO BE USED WHEN
OPERATING A POWER TOOL IN A DUSTY ENVIRONMENT.
WARNING:
Dust that is created by power sanding, sawing, grinding,
drilling, and other construction activities may contain chemicals that are
known to cause cancer, birth defects, or other genetic abnormalities. These
chemicals include:
Lead from lead-based paints
Crystalline silica from bricks, cement, and other masonry products
Arsenic and chromium from chemically treated lumber
The level of risk from exposure to these chemicals varies, according to how
often this type of work is performed. In order to reduce exposure to these
chemicals, work in a well-ventilated area, and use approved safety
equipment, such as a dust mask that is specifically designed to filter out
microscopic particles.
WARNING:
To avoid electrical hazards, fire hazards or damage to the
tool, use proper circuit protection.
This tool is wired at the factory for 120 V AC operation. It must be
connected to a 120 V AC, 15 A circuit that is protected by a time-delayed
fuse or circuit breaker. To avoid shock or fire, replace power cord
immediately if it is worn, cut or damaged in any way.
POWER TOOL SAFETY
WARNING: Read all safety warnings and instructions. Prevent unintentional starting. Ensure the switch is in
Failure to follow the warnings and instructions may result the off-position before connecting to power source
in electric shock, fire and/or serious injury. and/or charger pack, picking up or carrying the tool.
Carrying power tools with your finger on the switch or
Work area safety energizing power tools that have the switch on invites
Keep work area clean and well lit. Cluttered or dark accidents.
areas invite accidents.
Power tool use and care
Do not operate power tools in explosive
Do not force the power tool. Use the correct power
atmospheres, such as in the presence of flammable
tool for your application. The correct power tool will do
liquids, gases or dust. Power tools create sparks which
the job better and safer at the rate for which it was
may ignite the dust or fumes.
designed.
Keep children and bystanders away while operating a
Do not use the power tool if the switch does not turn
power tool. Distractions can cause you to lose control.
it on and off. Any power tool that cannot be controlled
with the switch is dangerous and must be repaired.
Electrical safety
Do not expose power tools to rain or wet conditions. Store idle power tools out of the reach of children and
Water entering a power tool will increase the risk of do not allow persons unfamiliar with the power tool
electric shock. or these instructions to operate the power tool. Power
tools are dangerous in the hands of untrained users.
If operating a power tool in a damp location is
Maintain power tools. Check for misalignment or
unavoidable, use a residual current device (RCD)
protected supply. Use of a ground fault circuit interrupter binding of moving parts, breakage of parts and any
(GFCI) reduces the risk of electric shock. other condition that may affect the power tool's
operation. If damaged, have the power tool repaired
Personal safety before use. Many accidents are caused by poorly
Stay alert, watch what you are doing and use maintained power tools.
common sense when operating a power tool. Do not
Use the power tool, accessories and tool bits etc. in
use a power tool while you are tired or under the
accordance with these instructions, taking into
influence of drugs, alcohol or medication. A moment
account the working conditions and the work to be
of inattention while operating power tools may result in
performed. Use of the power tool for operations different
serious personal injury.
from those intended could result in a hazardous situation.
Use personal protective equipment. Always wear eye
protection. Protective equipment such as dust mask, Battery tool use and care
non-skid safety shoes, hard hat, or hearing protection Recharge only with the charger specified by the
used for appropriate conditions will reduce personal manufacturer. A charger that is suitable for one type of
injuries. battery pack may create a risk of fire when used with
another battery pack.
Dress properly. Do not wear loose clothing or jewelry.
Keep your hair, clothing and gloves away from Under abusive conditions, liquid may be ejected from
moving parts. Loose clothes, jewelry or long hair can be the battery; avoid contact. If contact accidentally
caught in moving parts. occurs, flush with water. If liquid contacts eyes,
additionally seek medical help. Liquid ejected from the
Do not overreach. Keep proper footing and balance at
battery may cause irritation or burns.
all times. This enables better control of the power tool in
unexpected situations.
SPECIFIC SAFETY RULES
WARNING: Know your cordless driver. Do not plug Do not drive screws or break into existing walls or other
in the charger until you have read and understand blind areas where electrical wiring may exist. If this
this Instruction Manual. Learn the tool's applications situation is unavoidable, remove all fuses or disconnect
and limitations, as well as the specific potential all breakers feeding the work area.
hazards related to this tool. Following this rule will
Always use the correct shape of screwdriver bit that
reduce the risk of electric shock, fire, or serious injury.
matches the head of the screw.
Always wear eye protection. Any power tool can
Do not use worn or damaged screwdriver bits. Worn or
throw foreign objects into your eyes and cause
damaged screwdriver bits will not drive the screw
permanent eye damage. ALWAYS wear safety
properly and may jump out of the screw head, causing
goggles (not glasses) that comply with ANSI
possible injury and damage to the workpiece.
safety standard Z87.1. Everyday glasses have only
Always insert the magnetic bit holder fully into the collet
impact resistant lenses. They ARE NOT safety glasses.
and make sure it is properly locked into the collet. A
WARNING: Glasses or goggles not in compliance
loose bit holder may jump out of the collet and cause
with ANSI Z87.1 could cause serious injury when
damage to the workpiece or possible injury.
they break.
Never carry the cordless driver with your finger on the
Always check to make sure the area where screws are switch. The tool is always in an "ON" condition when the
being driven or where holes are being drilled does not battery is charged.
have any hidden wiring. Contact with a "live" wire will
Never hold the body of the cordless driver near the
make exposed metal parts of the tool "live" and could
switch while changing bits. Accidentally touching the
result in an electric shock to the operator.
switch may start the tool and possibly cause an injury.
BATTERY & CHARGER SAFETY
WARNING: Only use the charger supplied with this sinks or tubs. Do not immerse the charger in water. Do
kit to charge the battery. Charging any other not allow the cord to hang over the edge of a table or
batteries may damage the charger and possibly counter or touch hot surfaces. The charger should be
cause serious injury. placed away from sinks and hot surfaces.

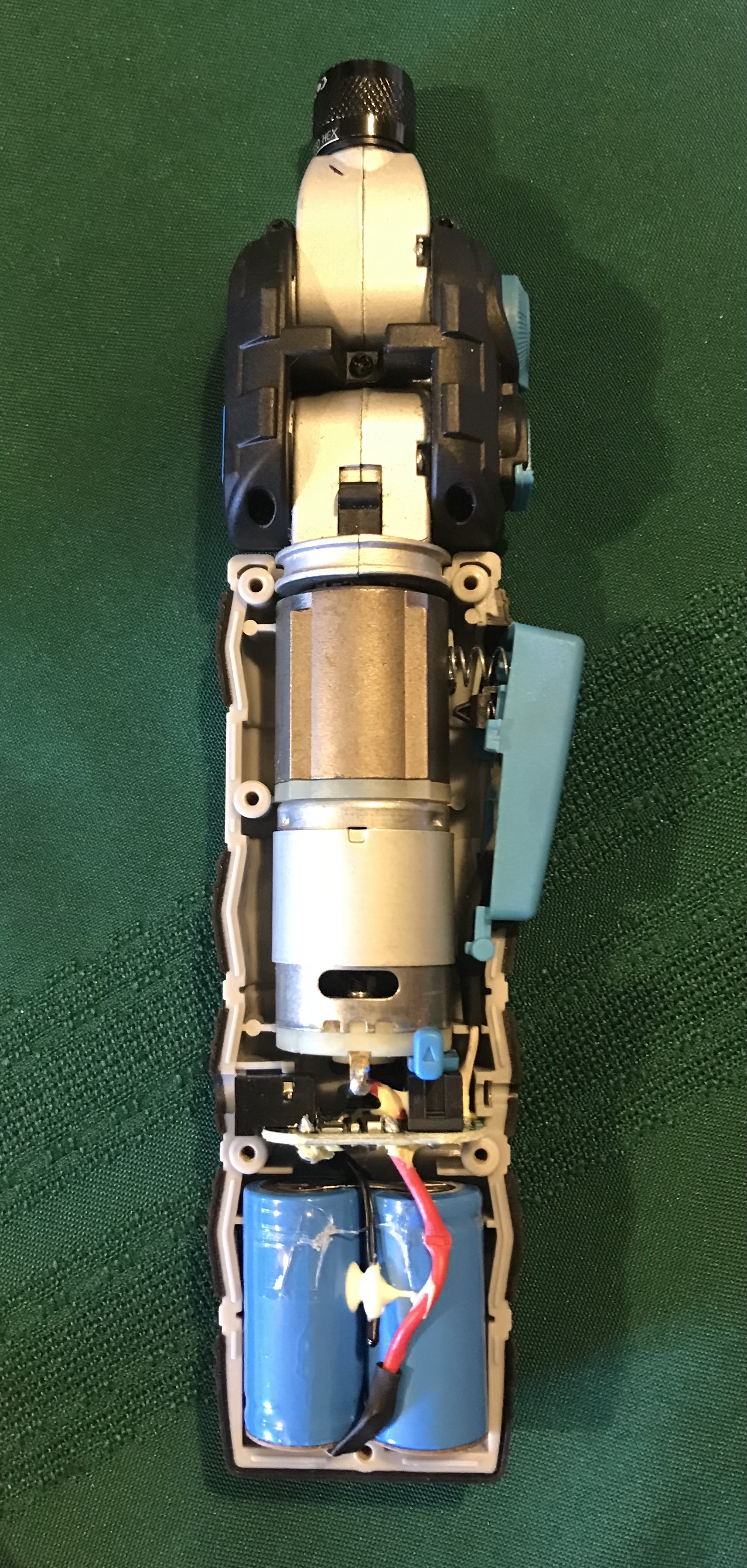

The battery pack for this driver is contained within the Do not use the charger to charge any batteries other
main housing of the tool. Never attempt to open the than this 8V cordless driver battery. Other batteries may
battery housing for any reason. If the battery housing explode.
breaks or cracks, immediately discontinue use and do
Do not operate charger if the cord or plug is damaged.
not recharge.
Replace the damaged cord and plug immediately.
Do not charge the battery if the battery housing is wet or
Do not operate the charger if it has received a sharp
shows any evidence of corrosion.
blow, been dropped or otherwise damaged in any way.
A small leakage from the battery may occur under Have a qualified technician examine the charger and
extreme usage, charging or temperature conditions. This repair it if necessary. Do not disassemble the charger.
does not indicate a failure. However, if the outer seal is
Do NOT charge the batteries when the work area or the
broken and this leakage gets on your skin, follow these
battery temperature is at or below 0° C (32° F) or above
steps:
45° C (113° F).
1. Wash immediately with soap and water.
Unplug the charger when not in use and before cleaning
2. Neutralize with a mild acid such as lemon juice or
or maintenance.
vinegar.
3. If liquid gets into your eyes, flush immediately with
BATTERY PACK RECYCLING
clean water for a minimum of 10 minutes and seek
To preserve our natural resources,
medical attention.
please recycle or dispose of batteries
properly. The batteries charged by this
NOTE: The battery liquid is slightly acidic.
charger may contain chemicals and
Do not incinerate the battery. It can explode in a fire.
metals that are harmful to the
Do not use an extension cord. Plug the charger cord environment. Never dispose of
directly into an electrical outlet. re-chargeable batteries in your normal household
garbage or in landfill sites as they will add to the pollution
Use the charger only in a standard 120V, 60 Hz electrical
of the environment.
outlet.
Do not use the charger in wet or damp conditions. It is
Please call 1-800-822-8837 for the location of your
intended for indoor use only. Do not use the charger near
nearest RBRC battery recycling location.
LISTED
This symbol designates that this tool is listed with UL requirements by ETL Testing Laboratories, Inc.
Conforms to UL Std. 60745-1 and 60745-2-2.
Ce logo indique que l'outil est homologué selon les exigences UL par ETL Testing Laboratories, Inc.
Conforme aux normes UL no 60745-1 et 60745-2-2.
3042597
Este símbolo designa que esta herramienta está incluida en la lista de requisitos UL de ETL Testing Laboratories, Inc.
JD5029 Cumple con los estándares UL 60745-1 y 60745-2-2.
MAINTENANCE
DO NOT use solvents when cleaning plastic parts. Lithium-ion batteries perform best and deliver peak
Plastics are susceptible to damage from various types of output power at room temperature (20° C or 68° F).
commercial solvents and may be damaged by their use. When operated in lower temperatures, the battery output
Use a clean cloth to remove dirt, dust, oil, grease etc. will be reduced and it will NOT function below –20° C (-4°
F). The output power will increase as the heat generated
WARNING: by the battery during use increases the internal
Do not allow brake fluids, gasoline,
temperature of the battery. The result is increased power
petroleum-based products, penetrating oils, etc. to
as the tool is used.
come into contact with plastic parts. They contain
chemicals that can damage, weaken or destroy
LITHIUM-ION BATTERY MAINTENANCE
plastic.
Lithium-ion batteries share many characteristics with
Nickel-Cadmium batteries.
DO NOT abuse power tools. Abusive practices can
damage the tool and the workpiece.
The major characteristic that is NOT shared with
Nickel-Cadmium batteries is that Lithium-ion batteries do
WARNING: DO NOT attempt to modify tools or
not have a "memory" and do not require to be completely
create accessories. Any such alteration or
discharged periodically. It is recommended that you
modification is misuse and could result in a
charge your Lithium-ion batteries after each use so they
hazardous condition leading to possible serious
will be fully charged when needed.
injury. It will also void the warranty.
NOTE: A fully charged battery will loose about 2% of its
LITHIUM-ION BATTERY PERFORMANCE
charge per month during storage.
Lithium-ion rechargeable batteries generally provide
superior performance to nickel-cadmium batteries when
used in power tools.
• Faster charges
• Longer battery life
• More power
• Lighter weight
ASSEMBLY AND OPERATING
CHARGING THE BATTERY LED WORKLIGHT / BATTERY CHARGING
1. Place the driver near a 120 V, 60 Hz electrical outlet. INDICATOR
2. Insert the small battery charger plug into the This driver has a LED worklight (1) built into the head of
receptacle in the rear of the driver (Fig. 1). the tool (Fig. 3). Turn the LED bulb towards the direction
3. Plug the battery charger into a 120 V, 60 Hz wall of the connector to turn on. The light will remain on while
receptacle. it is in the same direction as the connector. To turn off
the light, turn the LED bulb towards the battery
NOTES: compartment (2).
a) Make sure the charger plug is fully inserted into the
matching receptacle in rear of the driver handle.
b) A new battery or one that is completely exhausted
should be charged for 45 minutes or until the LED
worklight / charging indicator turns OFF. After normal 1
use, a battery should be fully charged in 45 minutes.
c) If the battery does not charge properly, check
to make sure the
electrical outlet is "live"
Fig. 3
and that the temperature
range in the work area
is between 0–40° C
REPLACING THE LED WORKLIGHT BATTERY
(32–104° F).
remove the battery cover (2) (Fig. 3) and replace the
battery with a new one (CR927).
Fig. 1
FORWARD/REVERSE SWITCH
The forward/reverse switch (1) is conveniently mounted
below the trigger switch (2) (Fig. 4). To make the driver
rotate clockwise for driving screws, push the
WARNING: Do NOT leave the charger plugged in for
forward/reverse switch to the left. To make the driver
longer than 5 hours. The battery will be fully charged
rotate counter clockwise for removing screws, push the
within 45 minutes. Leaving the charger plugged in for
forward/reverse switch to the right.
longer than 5 hours may damage the battery and
void the warranty.
Fig. 4
1
How to load the SpeedHex™ connector:
Push forward metal collar and insert any 1/4 in. hex
shank accessory (Fig. 2). Release the collar to lock the
accessory in the SpeedHex™ connector.
NOTES:
a) Never change the position of the forward/reverse
switch while the driver is turning.
b) The trigger switch will NOT function with the
forward/reverse switch in the middle/neutral position.
Fig. 2
How to unload the SpeedHex™ connector:
Push forward metal collar to release the accessory from
the SpeedHex™ connector.
ASSEMBLY AND OPERATING
VARIABLE SPEED TRIGGER SWITCH
1. To start the driver, gently squeeze the trigger switch
The FlipOut cordless driver is equipped with a
(2) (Fig. 5). NOTE: The driver will turn at its slowest
variable-speed trigger switch.
speed when the trigger switch is squeezed lightly. The
driver will turn at its fastest speed when the trigger switch
is squeezed firmly.
2. To stop the cordless driver, release the trigger
switch. NOTE: Operating the driver at a slow speed for
an extended period of time may cause the driver motor
or the battery to overheat. If the driver gets hot, stop
operating it and allow it to cool for at least 15 minutes.
Fig. 5
MULTI-POSITION DRIVER HEAD
The FlipOut driver has a multi-position head. This allows the
SpeedHex™ connector to move in any direction required.
1. To rotate the head 360º, push the switch (1) (Fig. 6)
towards the SpeedHex™ connector and
freely rotate the head.
1
3. To change the angle
of the connector push
button (3) and rotate the
angle of the head (Fig. 8)
Fig. 6
2. To change the angle of the driver head
push button (2) and rotate the
angle of the head (Fig. 7)
2
2
Fig. 7
FlipOut 8 VOLT MAX LI-ION CORDLESS DRIVER WARRANTY
2-YEAR LIMITED WARRANTY:
This FlipOut by SpeedHex™ power tool carries a 2-Year Limited Warranty to the original
purchaser. If, during normal use, this FlipOut by SpeedHex™ power tool breaks or fails due to a
defect in material or workmanship within two (2) years from the date of original purchase, simply
bring this tool with the original sales receipt back to the retail store of purchase. Not withstanding the
foregoing, this limited warranty does not cover any damage that has resulted from abuse or misuse
of the Merchandise. This warranty: (1) excludes expendable parts including but not limited to blades,
2 brushes, belts, bits, light bulbs, and/or batteries; (2) shall be void if this tool is used for commercial
and/or rental purposes; and (3) does not cover any losses, injuries to persons/property or costs.
This warranty does give you specific legal rights and you may have other rights, which vary from
state to state. Be careful, tools are dangerous if improperly used or maintained. Seller's employees
are not qualified to advise you on the use of this Merchandise. Any oral representation(s) made will
not be binding on seller or its employees. The rights under this limited warranty are to the original
purchaser of the Merchandise and may not be transferred to any subsequent owner. This limited
warranty is in lieu of all warranties, expressed or implied including warranties or merchantability and
fitness for a particular purpose. Seller shall not be liable for any special, incidental, or consequential
damages. The sole exclusive remedy against the seller will be for the replacement of any defects as
provided herein, as long as the seller is willing or able to replace this product or is willing to refund
the purchase price as provided above. For insurance purposes, seller is not allowed to demonstrate
any of these power tools for you.
For questions / comments, technical assistance –
Please Call Toll Free at: 1-800-396-6849 or email info@pellindustrial.com
PLEASE SAVE YOUR RECEIPTS. THIS WARRANTY IS VOID WITHOUT THEM.
For safety reasons, the operator must read the sections of this
Owner's Manual entitled "GENERAL SAFETY WARNINGS",
"POWER TOOL SAFETY", "SPECIFIC SAFETY RULES", and
"BATTERY & CHARGER SAFETY" before using this cordless driver.
Verify the following every time the cordless driver is used:
• Safety glasses, safety goggles, or face shield is being worn.
• The screwdriver bit is single ended and has the ANSI groove on one end.
• The screwdriver bit is correctly installed and locked into the collet.
• The bit is in good condition, and is fully inserted into the bit holder.
Failure to observe these safety rules will significantly increase the risk of injury.
3
Fig. 8
