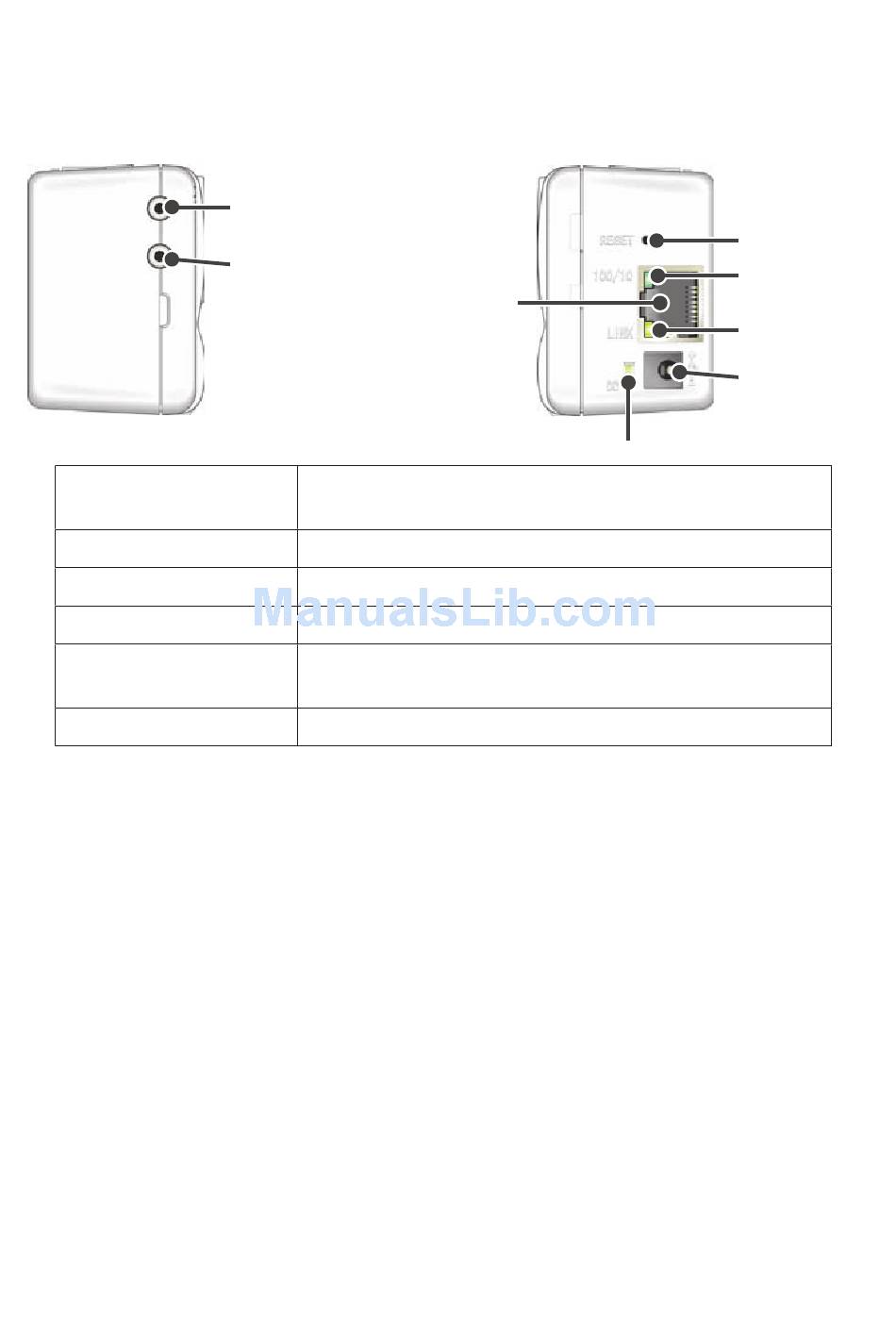

LEFT SIDE
Sensor Jack Channel 1
Sensor Jack Channel 2
(Only for TR-71W)
Ethernet Jack
AC Adaptor Jack
Reset Button
Data Display LED
LINK display LED
Power Monitor LED
Ethernet Jack
10Base-T / 100Base-TX Ethernet Jack
Connect the LAN Cable
Connect the supplied AC adaptor here.
Press to return to the factory default settings.
When data is being input or output the lamp will blink green.
The communication speed will appear in green.
Lamp on: 100Mbps, Lamp blinking: 10 Mbps
While the power is ON, the lamp will appear green.
RIGHT SIDE
Power Monitor LED
Reset Button
Data Display
LED
LINK Display
LED
AC Adaptor Jack
15
