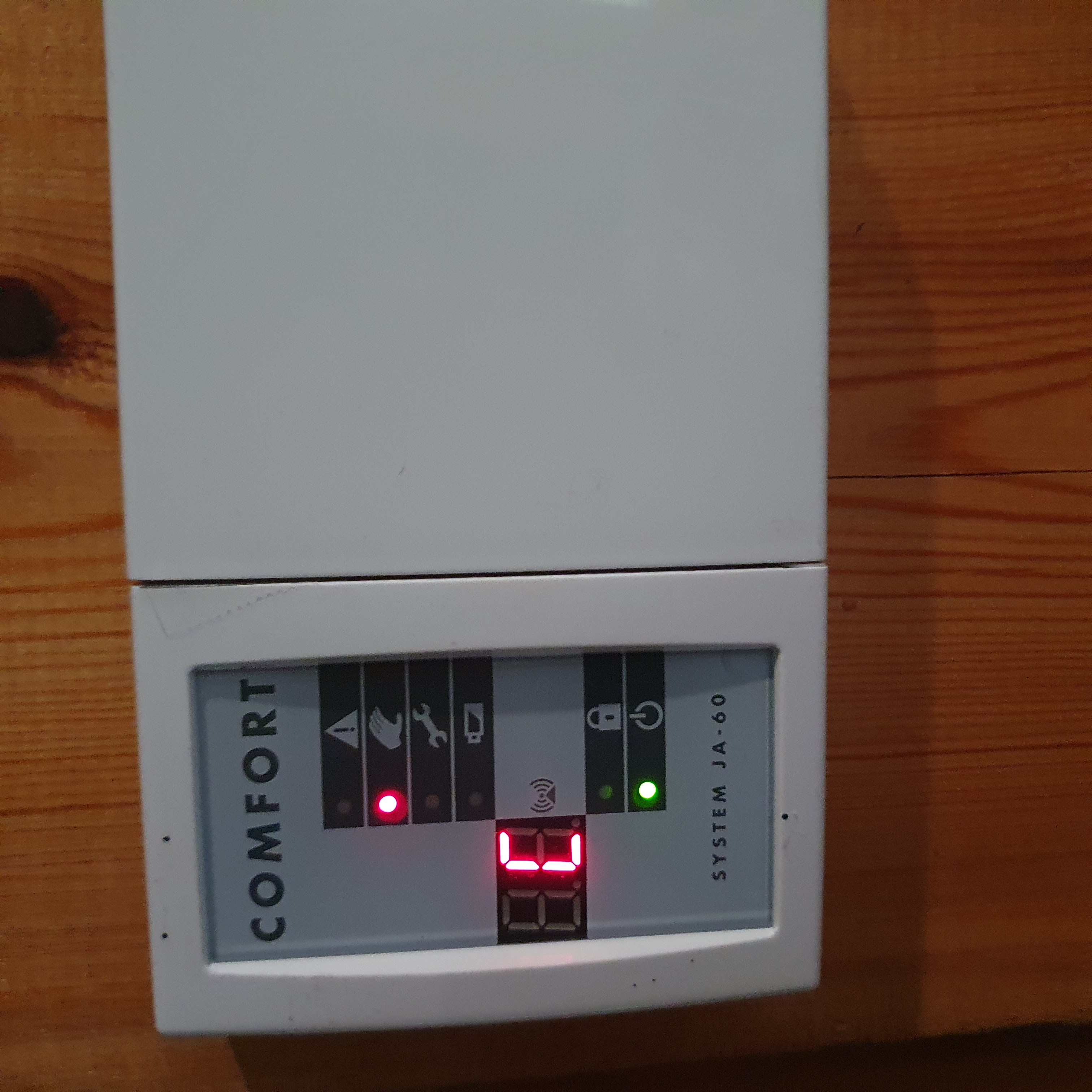

- Page 1 JA-60 “COMFORT” Alarm system Installation manual...
-
Page 3: Table Of Contents
This manual is valid for control panel model JA-60KX, SW versions FM61215 (control panel board) and DY61232 (telephone communicator board). The use of Comlink Windows v. 58 software or higher is required with this control panel, and can be obtained from our home page at WWW.JABLOTRON.CZ... -
Page 4: Before Starting
Thank you for purchasing a Jablotron alarm system. Its reliable operation depends on proper installation. We recom- mend having this alarm professionally installed. To find a qualified installer, please contact your Jablotron Distributor. The manufacturer assumes no liability for damages caused by incorrect installation or improper use of this system. -
Page 5: Connection Of The Telephone Line
2.5 Connection of the telephone line (only for models with an optional built in dialer) • Use the provided telephone cable to connect the telephone line to the IN jack inside the control panel (see fig. 4), • Connect any telephone, fax or other phone operated device to the OUT jack, marked with a phone symbol •... -
Page 6: Ja-60P - Motion Detector Installation
• Open the detector’s cover by pressing the internal pawl – see fig. 7 • Install the detector to the desired location using the two provided screws. • Be sure that the antenna is vertical (pointing up or down) • Attach the magnet, using the provided screws, to the moving part of the door or window, and attach its cover. -
Page 7: Enrollment Of Detectors And Remote Controls
Fig. 9 A. Attach the bracket with the two provided screws, being sure that the arrow inside the bracket is pointing up. We recommend to install one screw in the pre-punched hole on the lever of the tampering sensor (see fig. -
Page 8: Testing Of Detectors And Controllers
5. Testing of detectors and controllers The control panel should be in the programming mode for testing – (LED display will show „P“ )(see part 8. how to enter programming mode). If the control panel will not indicate a detector’s triggering during testing, it means that this detector was not enrolled (see note in part 4.1.). -
Page 9: Recording A Detector's Location
* can be connected to analogue interfaces TBR 21/1998, EG 201 121 V1.13/2000, AS/ACIF S002/2001 (Australia) Hereby, Jablotron Ltd., declares that this JA-60 is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Original of the conformity assessment can be found at the web page www.jablotron.cz, section Technical support. -
Page 10: Wiring Of External Devices
7. Wiring of external devices In addition to using wireless items, which are part of the JA-60 system, hard wired devices can be wired to the system. The JA-60 control panel (JA-60K) and the JA-60N detector are both equipped with terminals for wiring. 7.1. -
Page 11: Use Of External Sensors With The Ja-60N
7.2. Use of external sensors with the JA-60N The JA-60N detector can be used to wire external sensors which have contacts on their outputs. For example, it can be used to protect multiple doors or windows (see fig. 16). The built in magnetic sensor of the JA-60N can also be disabled (DIP switch number 2 to position ON) and then the JA-60N works only as an interface for exter- nal sensors. -
Page 12: Testing Of The System
List of control panel programmable parameters Function sequence options factory note 1& 6 scrolling, hold 2 to erase Enrolling of detectors and controllers position, 3 all controllers, 4 to erase all items Exit delay x = 1 to 9 (x 10sec.) 30sec. -
Page 13: Enrollment (Teaching) Of Wireless Items
8.2. Enrollment (teaching) of wireless items enter: 1 As a maximum 16 detectors and 8 controllers (remote controls & keypads) can be enrolled to the control panel. A wire- less siren and an additional JA-6x control panel (subsystem) can be enrolled as well. •... -
Page 14: User Recorded Message And Phone Numbers Editing In The User Mode
Table for split system: where x represents the following functions (non split system): 23x (PgX) 24x (PgY) 0 Chime – triggered during the entrance delay (pre-alarm output) Alarm A Alarm A 1 Fire – triggered by a fire alarm (by a smoke or a gas detector) Alarm B Alarm B 2 Arm –... -
Page 15: Enrollment Of The Control Panel To A Uc-216, 222, Ja-60K Etc
options: 2 8 1 reset enabled 2 8 0 reset disabled Factory default setting: reset enabled Note: if the Master or Service code is forgotten when the reset is disabled, the reset of the control panel will be possible only by the manufacturer. 8.11. -
Page 16: Exit Delay Audible Indication
8.15. Exit delay audible indication sequence: 3 3 x The exit delay can be indicated by the „beeping“ of the control panel (for the last five seconds, the beeping is faster). The audible indication can be disabled with this setting. options: 3 3 1 indication enabled... -
Page 17: Wireless Siren Alarm
8.20. Wireless siren alarm sequence: 3 8 x The wireless siren alarm function can be disabled with this parameter. This setting will have no influence on the outdoor siren chirp sounds function if enabled in the siren. options: 3 8 1 siren enabled 3 8 0 siren disabled... -
Page 18: Addressing Of Wireless Controllers To Sections
Notes: • If the control panel is not split, this setting has no effect. • Master code (MC) can not be addressed. If the system is split, the use of MC will arm all sections if no section is armed or it will disarm all sections if any is armed. -
Page 19: New Service Code Setting
8.28. New service code setting sequence: 5 nSC nSC The Service Code can be used to enter the programming mode. A new Service Code must be entered twice in the se- quence to avoid an error. To change the code enter: 5 nSC nSC where nSC is your new Service Code (four digits) Example: to change service code to 1276 enter: 5 1276 1276... -
Page 20: Voice Message Recording
Note: enter a pause (F0) after the last digit of a number which is calling a mobile phone. This way the number will be called only once and the dialer will not check the line signals (some mobile phone systems do not generate standard telephone line signals). -
Page 21: Dialing Method
9.4. Dialing method sequence: 9 0 x Enter: 9 0 1 for tone dialing 9 0 0 for pulse dialing (this option is blocked for some countries) Note: this dialing method setting is also valid for Monitoring station communications as well as remote PC access Factory default: tone dialing 9.5. -
Page 22: To Enable A Remote Computer To Dial In
10. To enable a remote computer to dial in When the user or installer wants to dial in to the installation from their JA-60U modem equipped computer or JA-60E keypad (see 15.), the following parameters should be programmed in the control panel’s telephone dialer. The most convenient programming of the dialer is via a connected PC using the Comlink software (see 14). -
Page 23: Monitoring Station Communication Setting
Internal structure of the CID protocol is shown in the part 13.1. This protocol provides the most in-depth data for the monitoring station and its use is recommended by Jablotron. -
Page 24: Account Code Setting
12.2. Account code setting sequence: 02 This sequence is used for the alarm system identification by a Monitoring Station. The sequence structure is as follows: 02 x x x x xxxx – account code ( x are numbers from 0 to 9 or hexadecimals). When using only three-digit codes (formats 3/1 and 3/2) enter a zero in the first position. -
Page 25: Phone Number Entering
12.5. Phone number entering sequence: 06 Monitoring station modem phone numbers can be stored by entering the following sequence: 0 6 x x ..x F y xx...x - Monitoring Station phone number (up to 16 digits) 1 for main phone number memory 2 for back up phone number memory Pause (3 sec.) can be inserted into the telephone number by entering F0. -
Page 26: Monitoring Station Reporting Codes Table
13. Monitoring station reporting codes table A two digit reporting code rc (00 to FFh) can be set for every event. If 00 is programmed as a report code, that event will not be reported. The major events group is marked with Rc. When formats 3/1 or 4/1/1 are used, only these major events are reported to the Monitoring Station. -
Page 27: Internal Structure Of Contact Id Protocol
13.1. Internal structure of Contact ID protocol The data in the CID protocol has following structure: XXXX 18 Q XYZ 01 CCC where XXXX is the account code of the installation, 18 is the code identification (identical for all events), Q is a number from 1 to 3, XYZ is the event number, 01 is the subsystem number, CCC event source details (see the table down the page). -
Page 28: Personal Computer Interface With
14. Personal Computer Interface with JA-60 The JA-60 system can be connected to a Personal Computer (PC) locally, using the PC-60A interface cable. It is also possible to dial into the system from a remote PC (or the JA-60E keypad) using the JA-60U modem (see 15). Comlink software is available for Win- dows system. -
Page 29: Recommended Professional Installer Basic Rules
“Dialing in” dialog of the Comlink Windows software 16. Recommended Professional installer basic rules If you install the system for a customer, you should follow these rules: • make a drawing of intended location of the items, keeping in mind proper protection for the intended area. •... -
Page 30: Possibilities To Extend The System
18. Possibilities to extend the system The JA-60 alarm system is a kit which can be tailor configured according to the size of the house or the needs of the user. See the structure of the system: (max. 1) (max. 16) (max. -
Page 31: Overview Of The Ja-60 Parts
The following description includes the basic assortment of accessories. Jablotron is systematically introducing new and im- proved J A-60 items to the market. You can get the most current information from your distributor or you can visit Jablotron’s Internet home page at: www.jablotron.com... - Page 32 6 different devices when used with Jablotron UC receivers. It has a unique optional "keypad locking" feature. It is powered by a 6V battery and its working range is up to 30 meters.
-
Page 33: Output Devices
built in buzzer. Illuminated keys can be covered with a closeable cover. The keypad has TWO-WAY communication with the control panel and it is enrolled as a controller (positions c1 to c8). Multiple JA-60F keypads can be enrolled to a single control panel. µ... - Page 34 COM2) in your computer. Suitable SW, ComLink, is provided on a floppy disk or you can visit Jablotron’s Internet home page at: www.jablotron.com to download a beta version of it. The software is a convenient way to setup the control panel, to supervise the system which is on line, to read, view and store data from the event memory and to record other information about the system.
